Product Name：Electric wire rope hoist
Model: CD1 / MD1
Type：Fixed type / Trolley type
Lifting Capacity：0.25-20 ton (Can be customized)
Lifting Height: 3-30m (Can be customized)
Product Parameters：
| Model | CD1 Single Lift Speed | ||||||||
| CD1-0.5 | CD1-1 | CD1-2 | CD1-3 | CD1-5 | CD1-10 | CD1-16 | CD1-20 | ||
| Capacity (Ton) | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 | |
| Lifting speed（m/min） | 8 | 8 | 8 | 8 | 8 | 7 | 3.5 | 3.5 | |
| Lifting Motor Power (kw） | 0.8 | 1.5 | 3 | 4.5 | 7.5 | 13 | 13 | 18.5 | |
| Traveling speed（m/min） | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| Traveling Motor Power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8*2 | 0.8*2 | 0.8*4 | |
| Wire Rope Diameter(mm) | 5.1 | 7.6 | 11 | 13 | 15 | 15 | 17.5 | 17.5 | |
| Power Supply | 3-Phase 380V 50Hz / according to client's request | ||||||||
| Control Voltage | 36V | ||||||||
| Model of I- Beam | 16-28b | 1628b | 20a-30c | 20a-30c | 25a-63c | 25a-63c | 45a-63c | 45a-63c | |
| Model | MD1 Double Lift Speed | ||||||||
| MD1-0.5 | MD1-1 | MD1-2 | MD1-3 | MD1-5 | MD1-10 | MD1-16 | MD1-20 | ||
| Capacity (Ton) | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 | |
| Lifting speed（m/min） | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 7/0.7 | 3.5/0 .35 | 3.5/0 .35 | |
| Lifting Motor Power (kw） | 0.2/0 .8 | 0.2/ 1.5 | 0.4/3 | 0.4/4.5 | 0.8/7.5 | 1.5/13 | 1.5/13 | 3.0/18.5 | |
| Traveling Speed（m/min） | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| Traveling Motor Power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8*2 | 0.8*2 | 0.8*4 | |
| Wire Rope Diameter(mm) | 5.1 | 7.6 | 11 | 13 | 15 | 15 | 17.5 | 17.5 | |
| Power Supply | 3-Phase 380V 50Hz / according to client's request | ||||||||
| Control Voltage | 36V | ||||||||
| Model of I- Beam | 16-28b | 16-28b | 20a-30c | 20a-30c | 25a-63c | 25a-63c | 45a-63c | 45a-63c | |
Product Description：

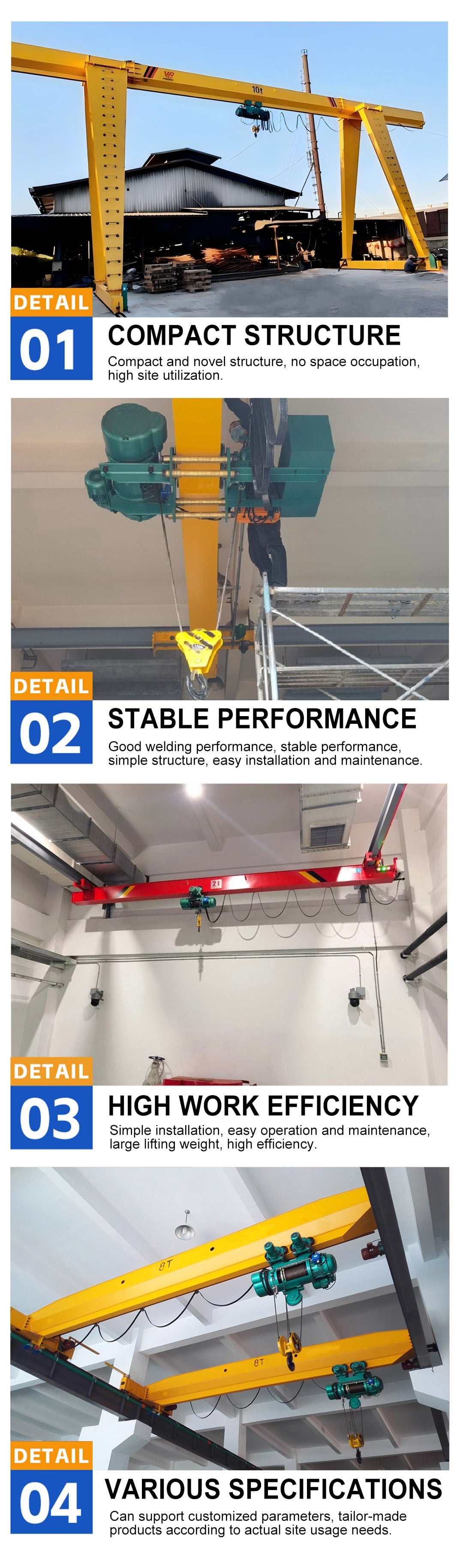

The CD1 MD1 series of wire rope electric hoists are improved products based on the original CDMD type. It has the characteristics of compact structure, light weight, safety and reliability, high commonality of parts, strong interchangeability, high single-weight lifting capacity, and convenient maintenance. It is currently a widely used and popular light lifting equipment.

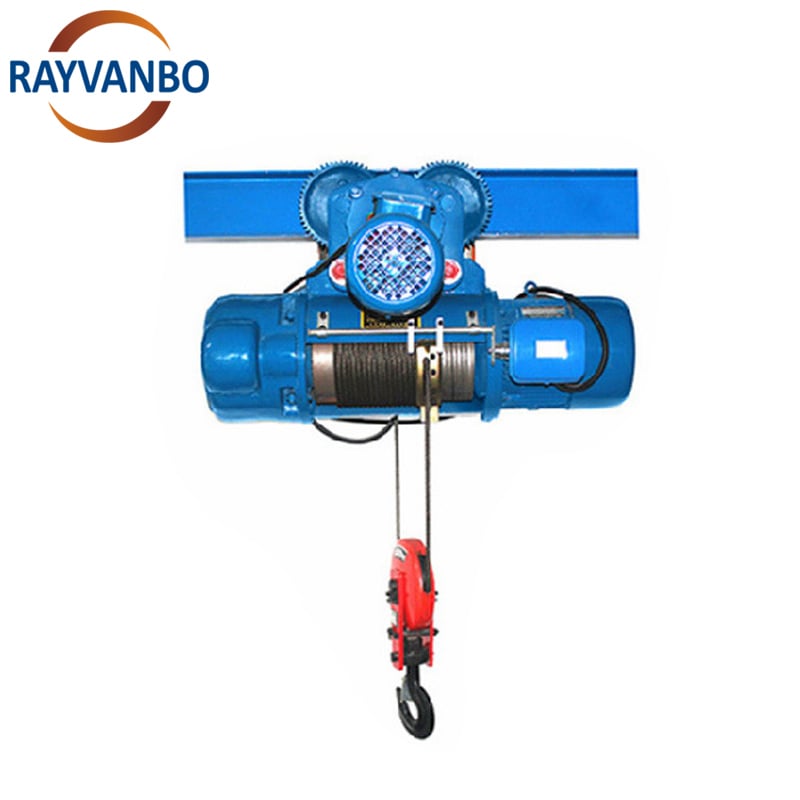

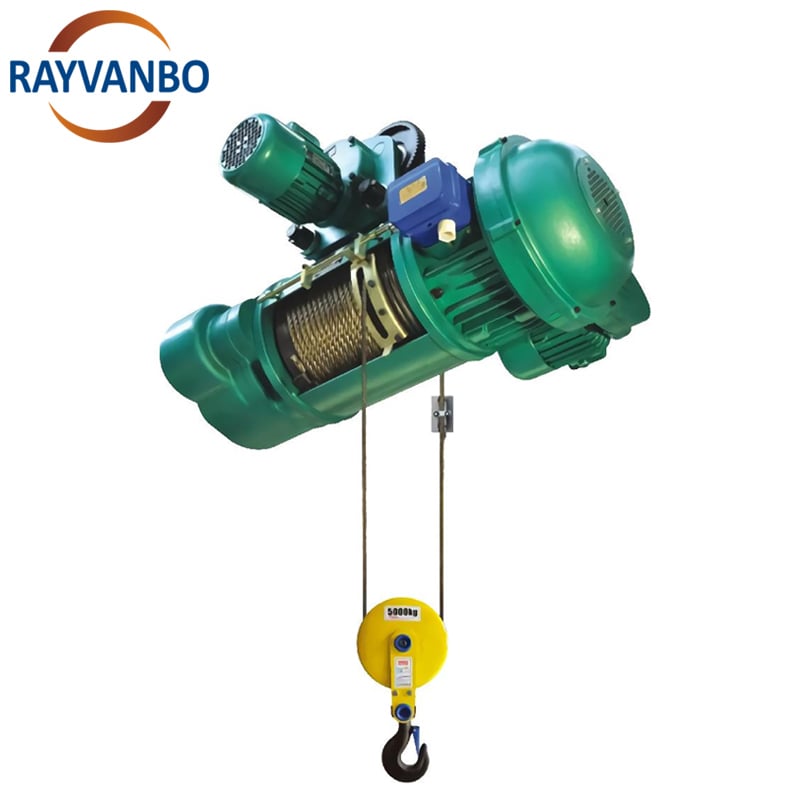

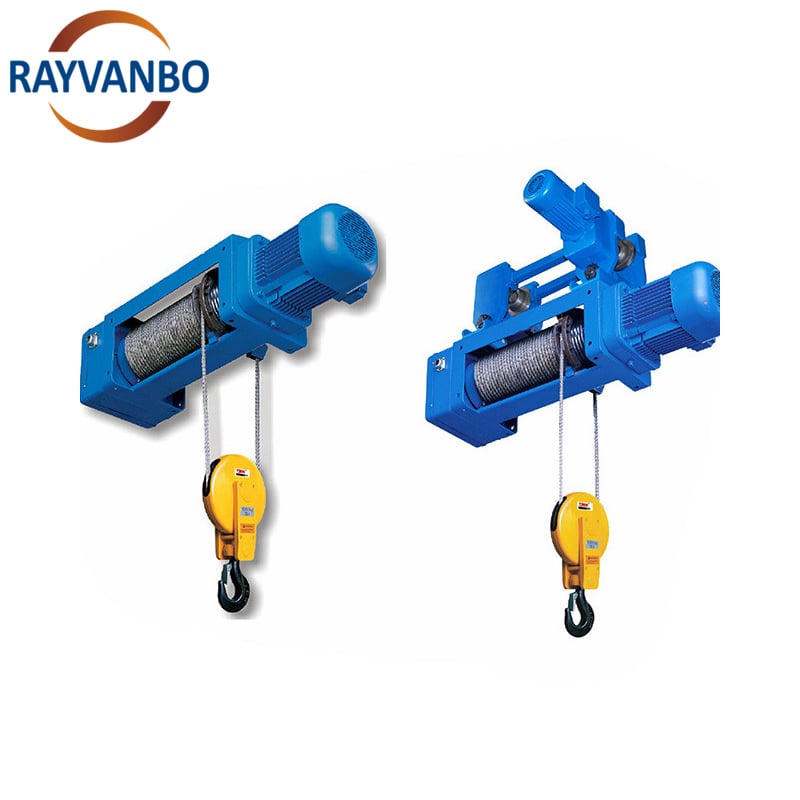

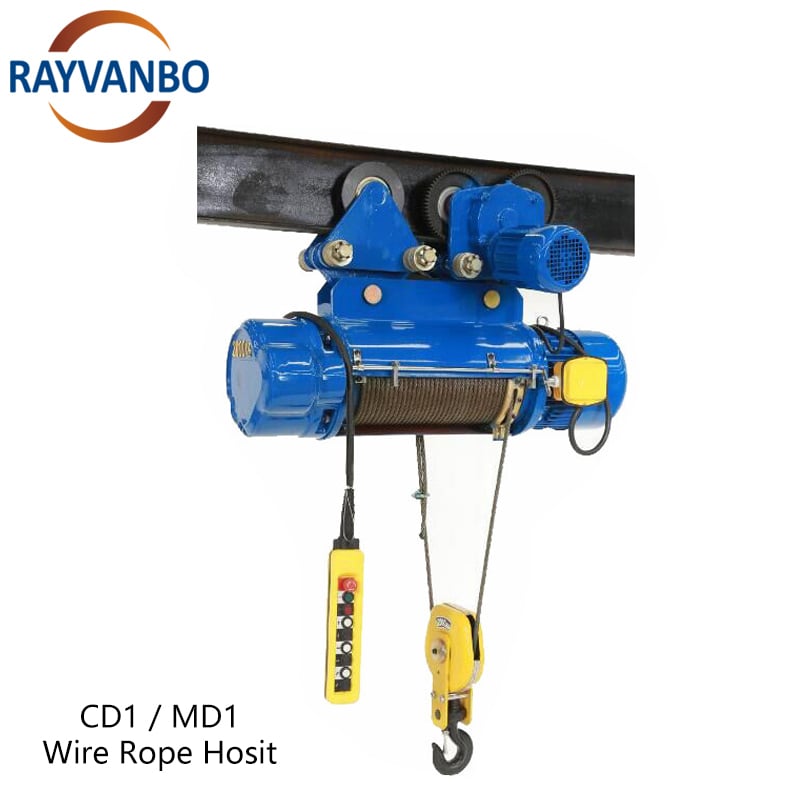

The hoist has two types: fixed type and trolley type. The fixed type can be directly installed on the frame for use, and the trolley type has a running function and can be installed on the track for use. The CD1 type is a single-speed lifting, and the MD1 type is a normal speed and slow speed two-speed lifting.
Our factory mainly produces electric hoists with a load capacity of 0.25t~20t and a lifting height of 3m~30m. We can also design and manufacture non-standard electric hoists according to your needs.

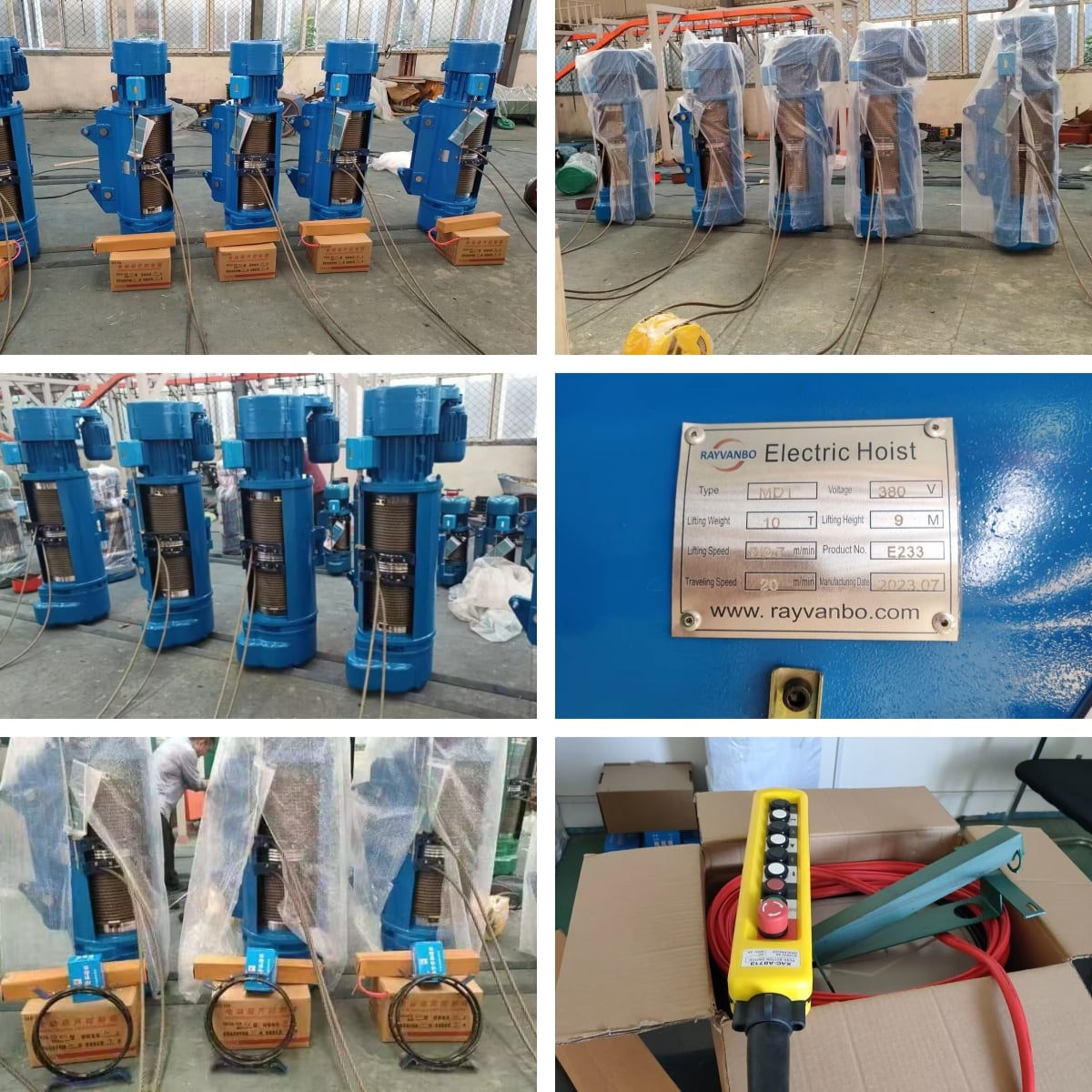

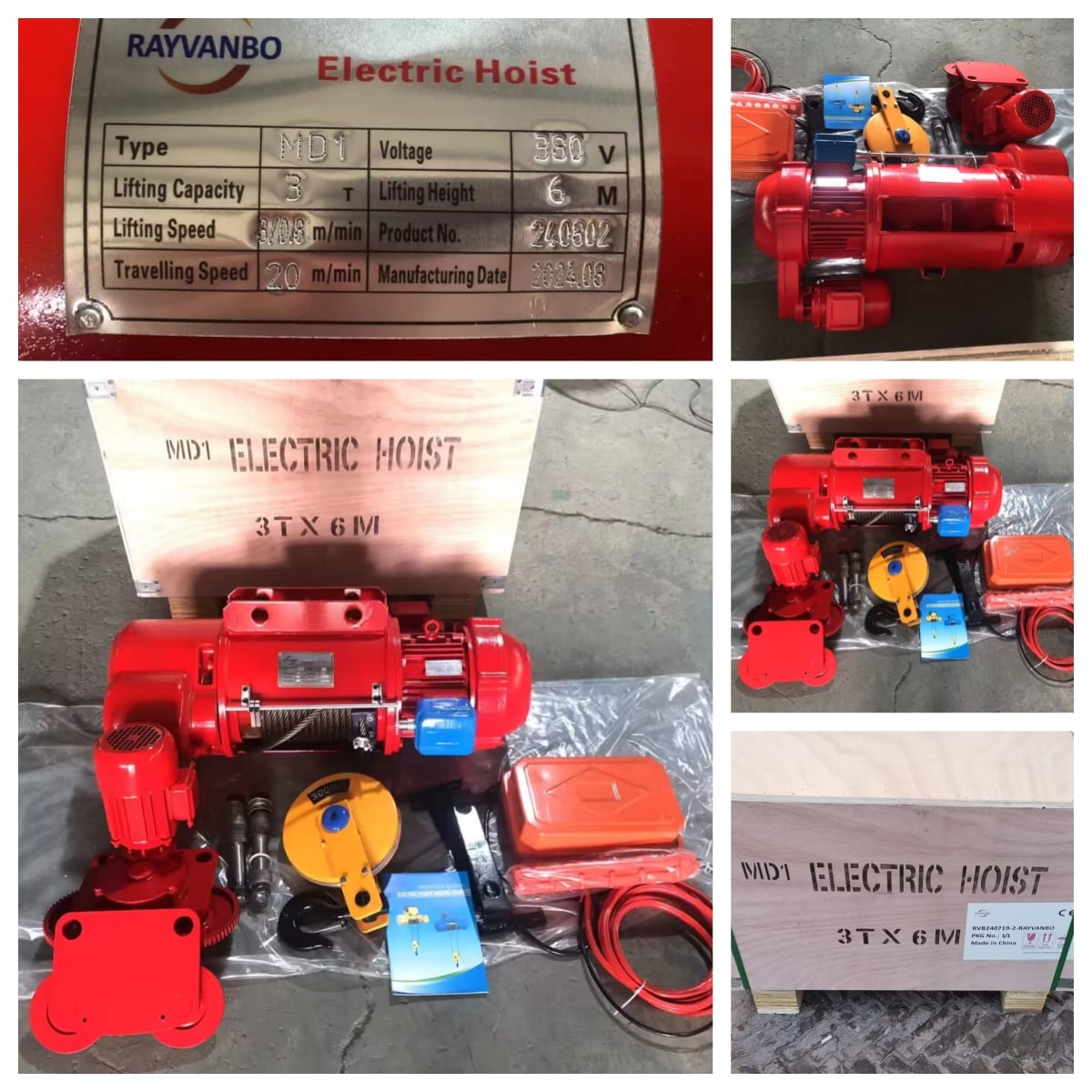

shipping & Packing：
