Reliable 0.25-2T Hook Type Trolley Type HH-A Model European Type Electric Chain Hoist

Reliable 0.25-2T Hook Type Trolley Type HH-A Model European Type Electric Chain Hoist

Product Name：European Type Electric Chain Hoist
Model: HH-A

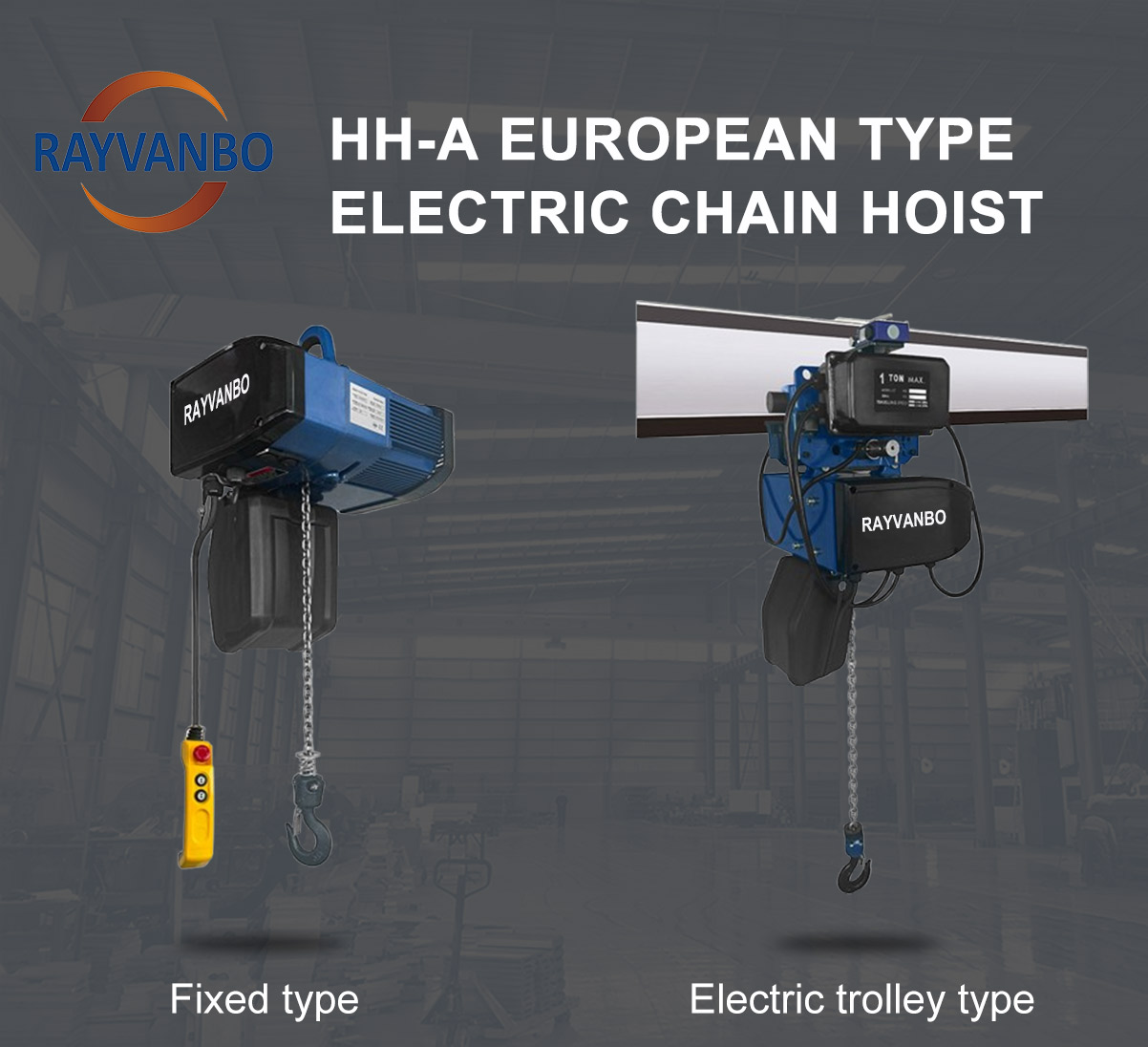

Type: Fixed type / Electric trolley type
Lifting Capacity：250kg-2t (can be customized)
Lifting Height: Standard 4m (can be customized)

Overview
Related Products

Product Description：

HH-A type European electric chain hoist has the advantages of high performance and high safety reliability. Adopting a humanized design concept, it increases your productivity and enables work to achieve the highest efficiency.

HH-A European electric chain hoist with flexible action, positioning accuracy Lord stood up quickly and efficiently speed low speed hoisting load smoothly, accurate positioning.

In practical terms, HH-A European electric chain service life is extended by approx.20% in comparison with the conventional 2m classification for chain hoists FEM rating.This results in significantly prolonged time between service
intervals and general overhauls.This extra operating life is only offered by HH-A european electric chain.

Product Parameters：

Type

Rated load

Lift speed (m/min)（double speed）

Hoist motor 3 phase

Working class

Chain diameter（φ）

Net weight（kg）

High speed

Low speed

Output Power（kW）

Motor speed

HH-A 0.25-01

0.25T

0.8/0.2

1440

5.6mm

HH-A 0.5-01

0.5T

0.8/0.2

1440

5.6mm

HH-A 01-02

0.8/0.2

1440

5.6mm

HH-A 01-02

1.3

1.8/0.3

1440

7.1mm

HH-A 02-02

0.7

1.8/0.3

1440

7.1mm

Type	Rated load	Lift speed (m/min)（double speed）			Hoist motor 3 phase	Running motor (3 phase)				Chain diameter（φ）	Net weight（kg）
Type	Rated load			High speed	Low speed	Output Power（kW）	Power（Kw）	Motor speed	Travel speed（m/min）	Chain diameter（φ）	Net weight（kg）
HH-A 0.25-01Y	0.25T	8	2	0.8/0.2	0.4	1440	11	5.6mm	60
HH-A 0.5-01Y	0.5T	8	2	0.8/0.2	0.4	1440	11	5.6mm	60
HH-A 01-02Y	1T	4	1	0.8/0.2	0.4	1440	11	5.6mm	70
HH-A 01-02Y	1T	8	1.3	1.8/0.3	0.4	1440	11	7.1mm	80
HH-A 02-02Y	2T	4	0.7	1.8/0.3	0.4	1440	11	7.1mm	90

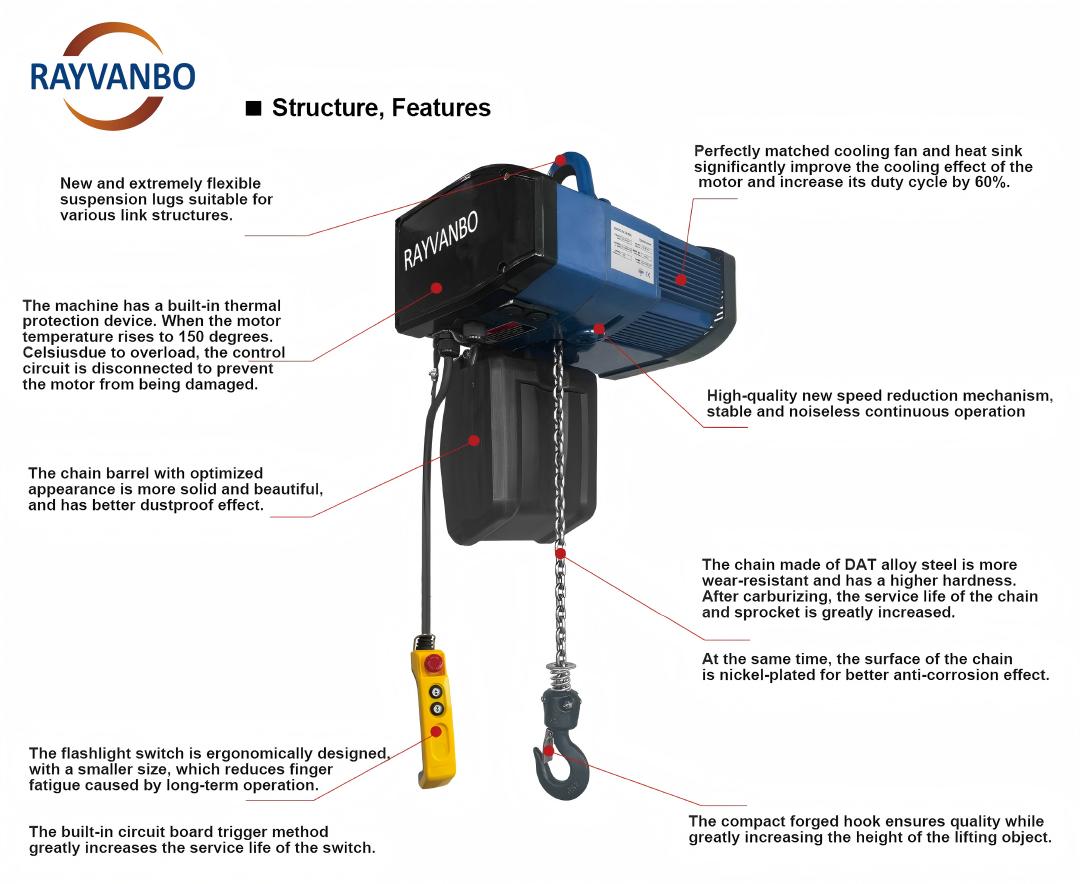

Product Features:

Higher Performance & Faster

Sensitive and Fast
HH-A European electric chain hoist with flexible action, positioning accuracy Lord stood up quickly and efficiently

speedlow speed hoisting load smoothly, accurate positioning.

Longer service life for greater efficiency
In practical terms, HH-A European electric chain service life is extended by approx,20%in comparison with the conventional 2m classification for chain hoists FEM rating.This results in significantly prolonged time between service intervals and general overhauls.This extra operating life is only offered by HH-A european electric chain.

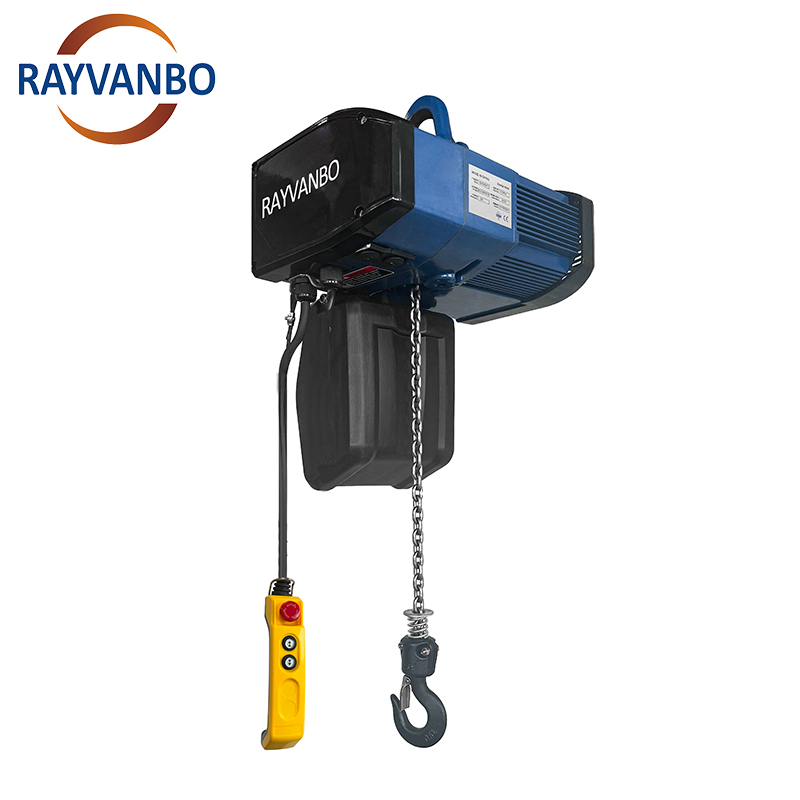

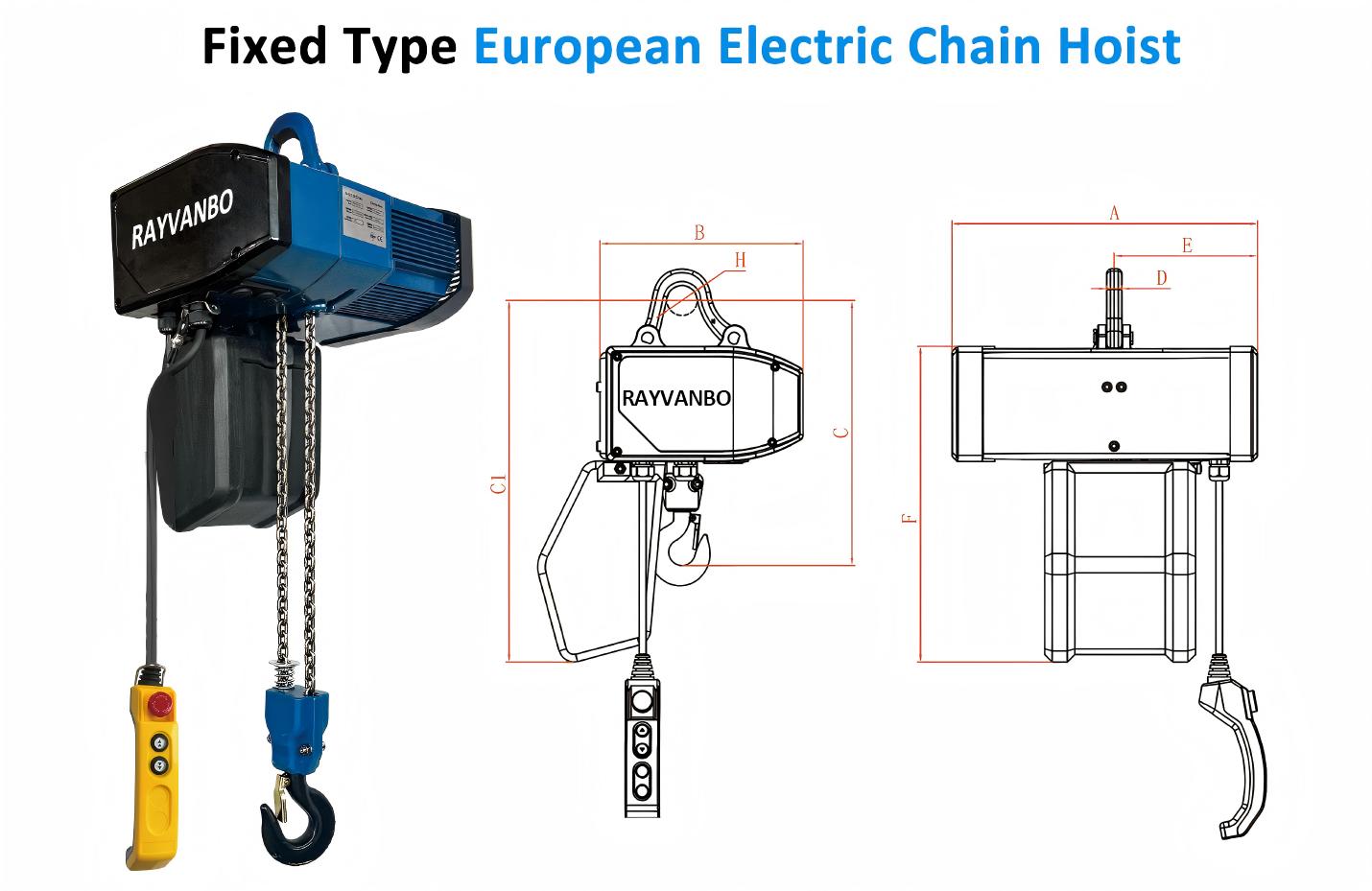

European Electric Chain Hoist With Hook Type

HH-A series hoist is especially suitable for use on aluminum rails rigid rails, KBK flexible rails, etc.

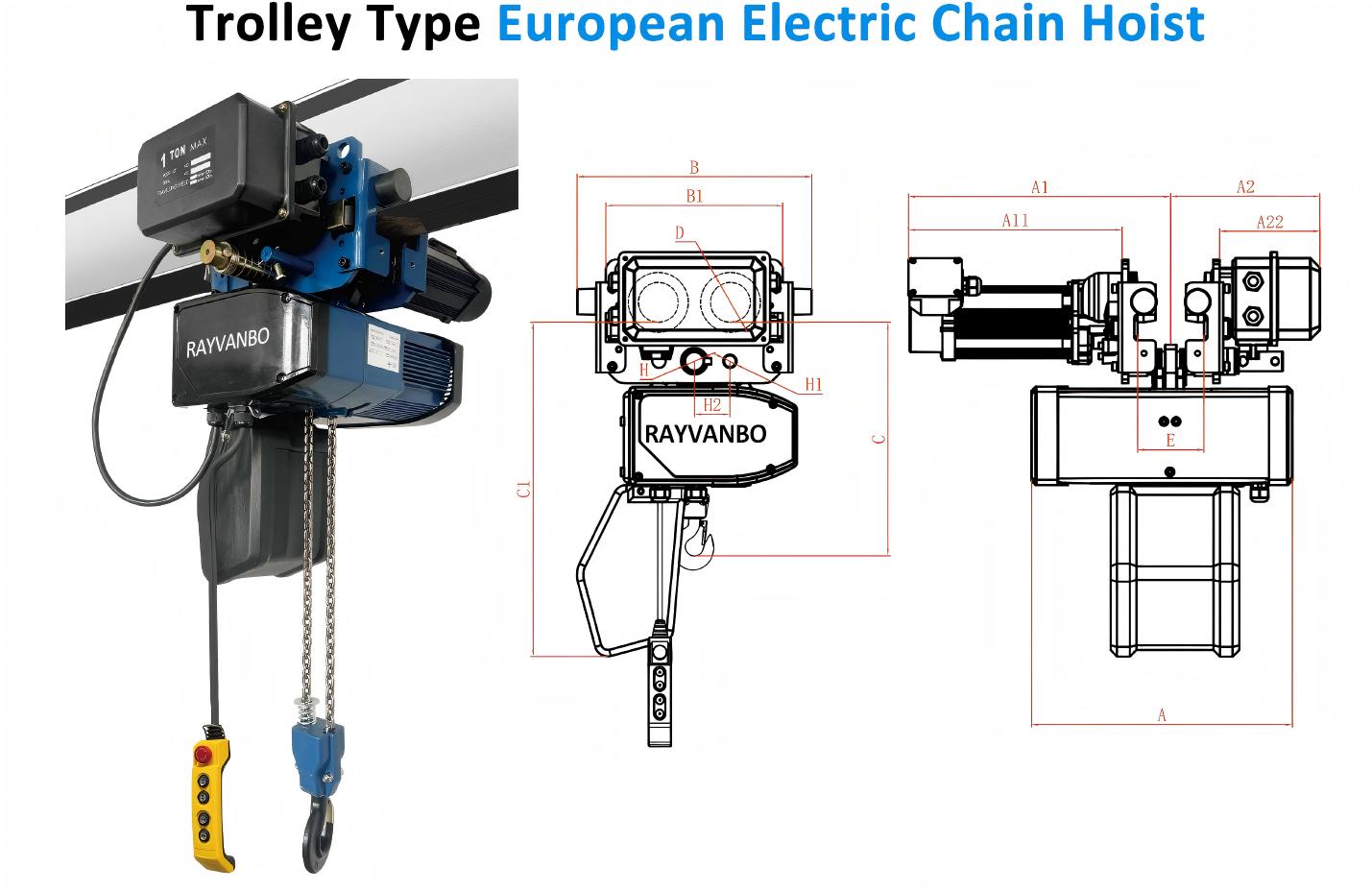

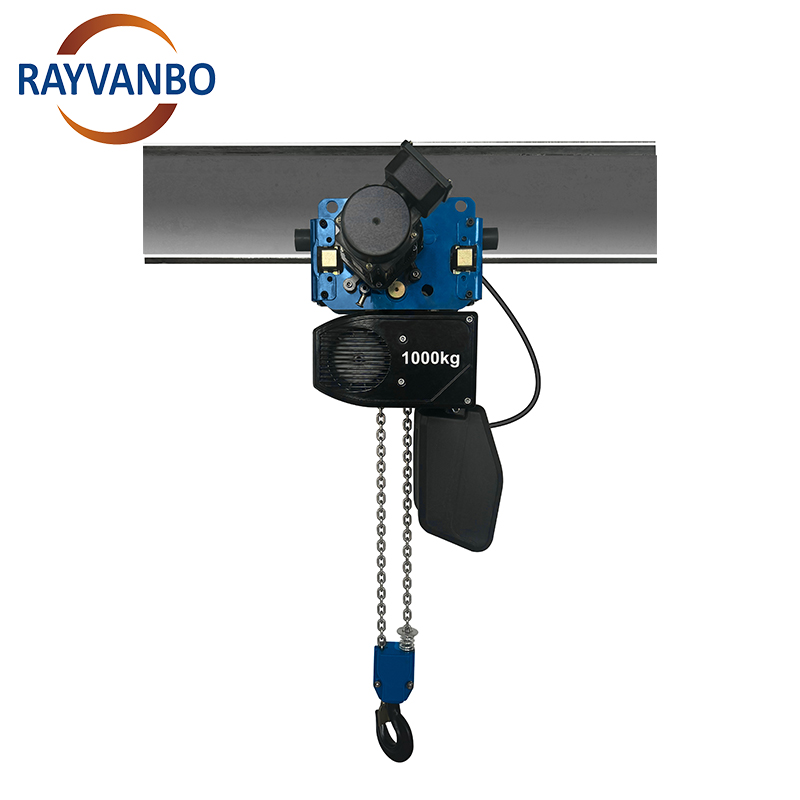

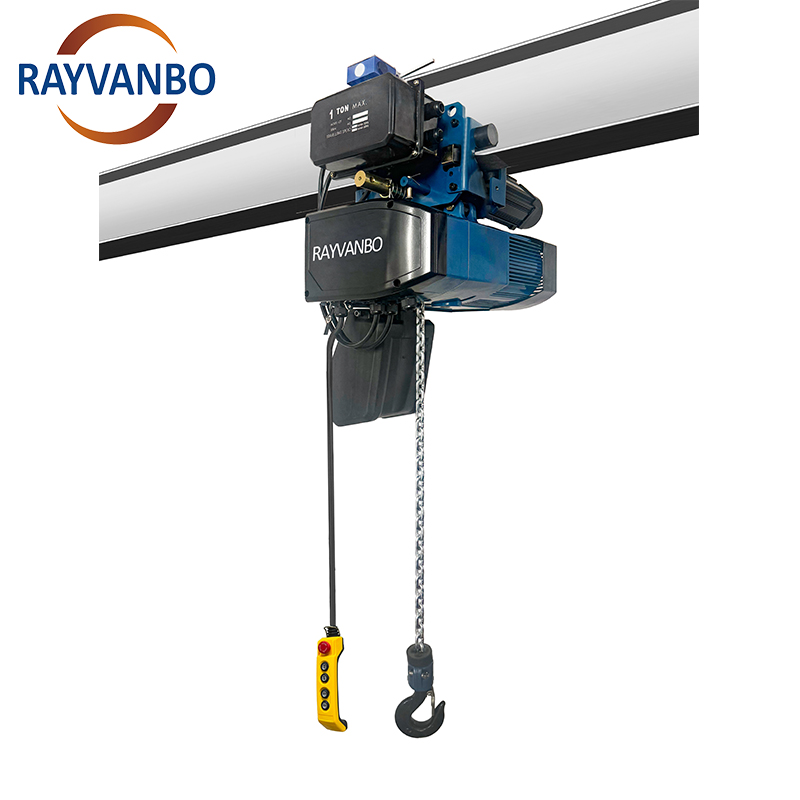

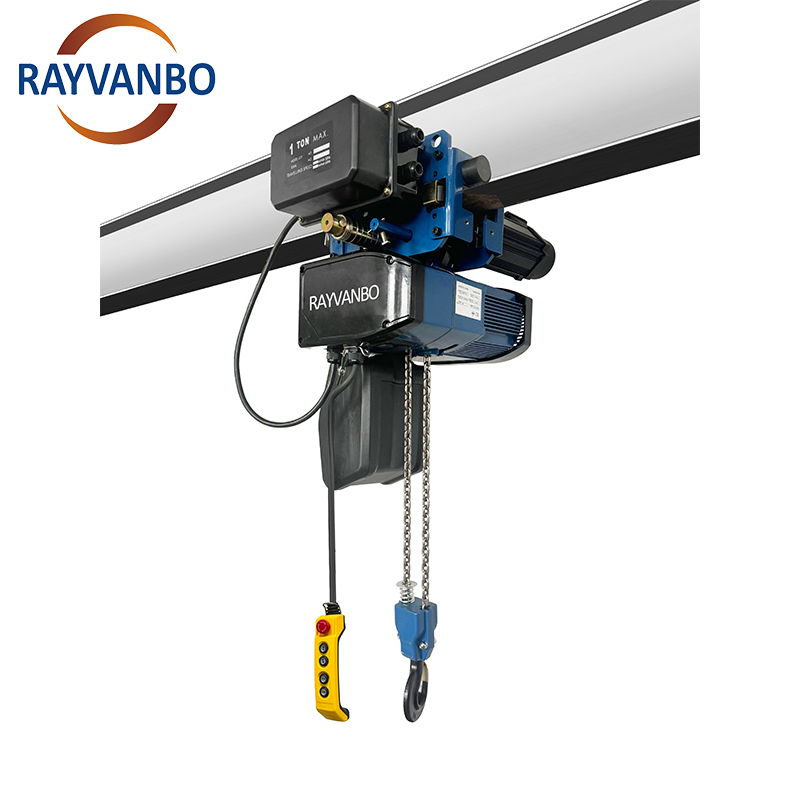

European Electric Chain Hoist With Electric Trolley

The trolley has added track-assisted side wheels, which make walking smoother and greatly enhance the durability of the wheels. The tower is equipped with an anti-fall structure, which greatly increases the safety of the car.

The trolley has a double-axle design and does not shake during operation.

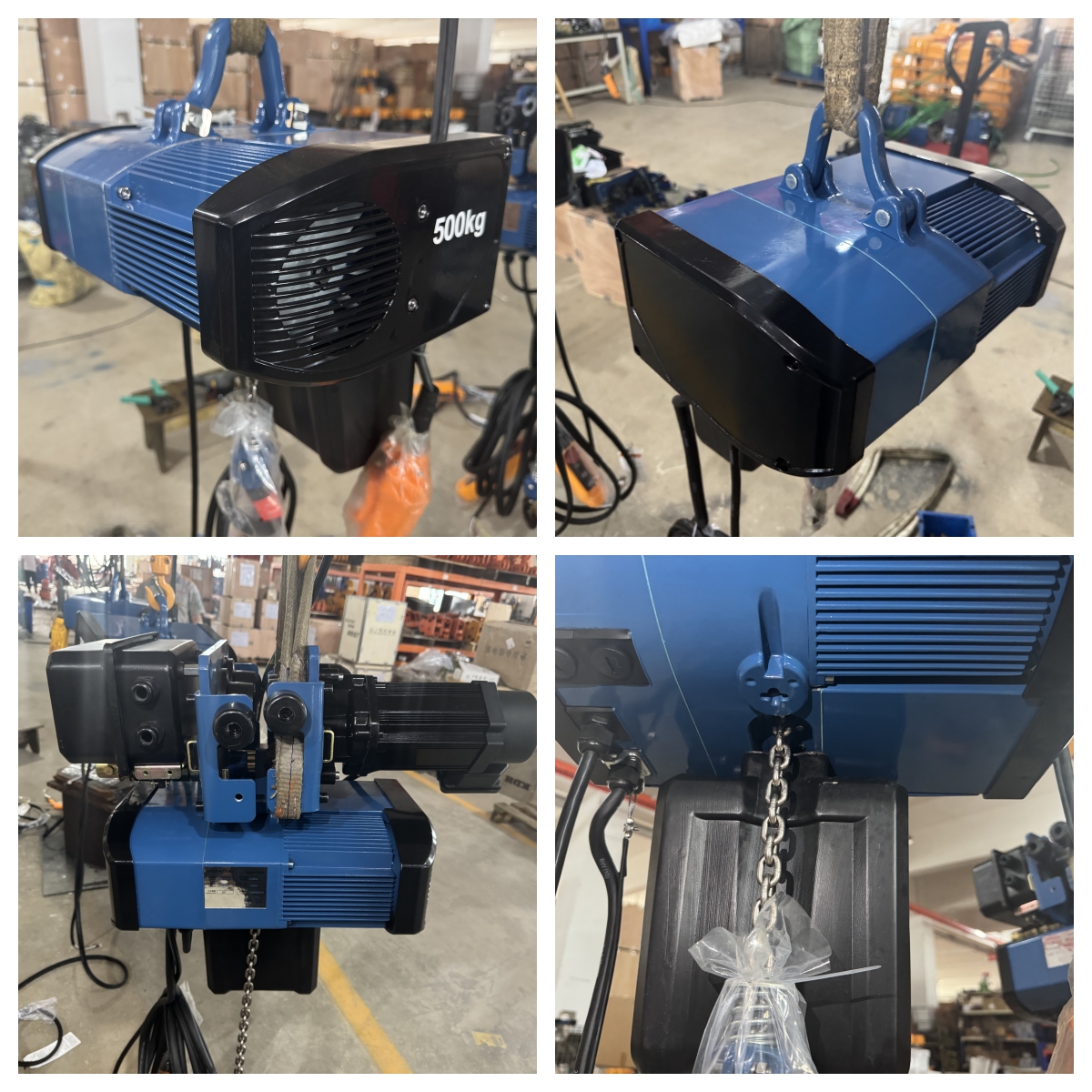

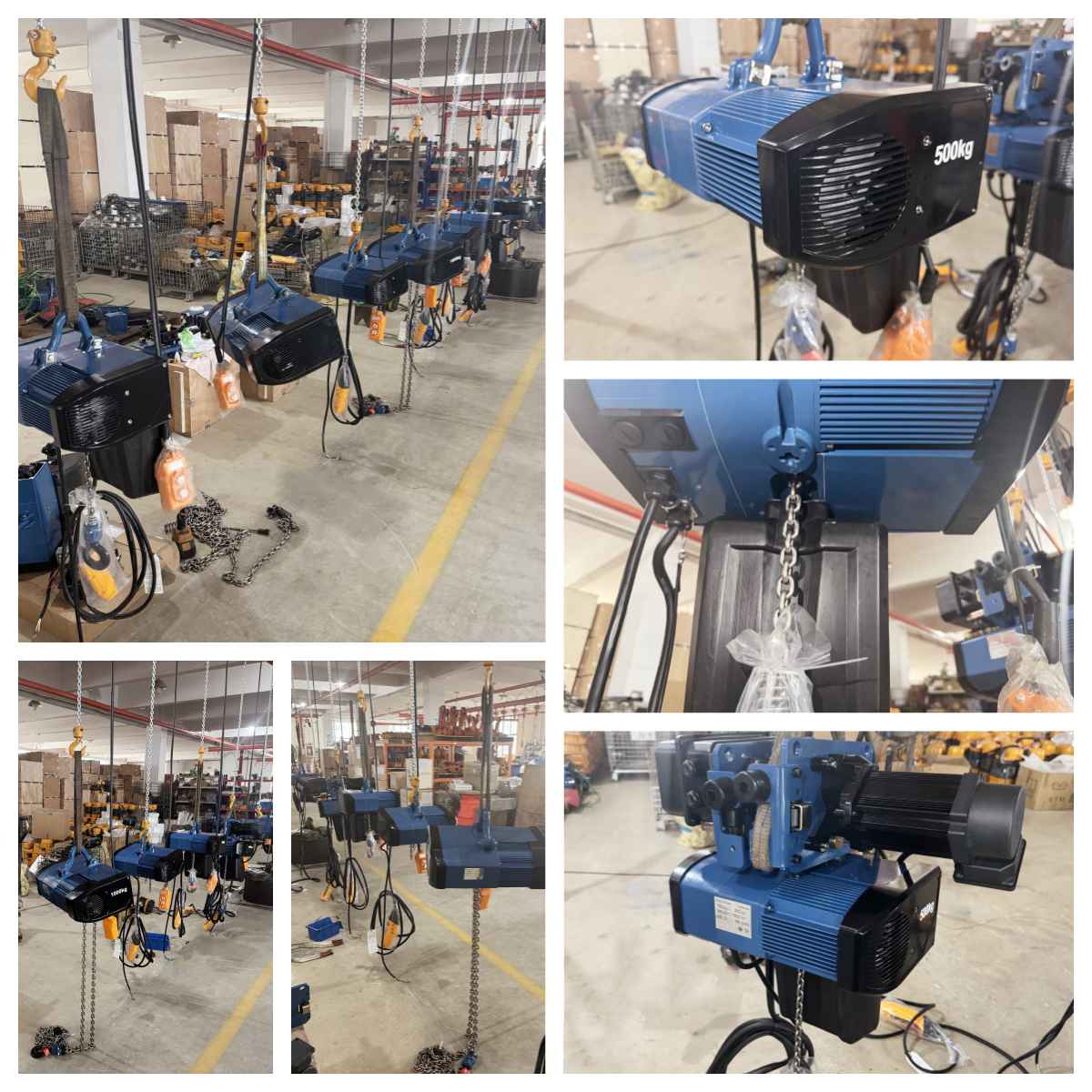

Shipping & Packaging:
