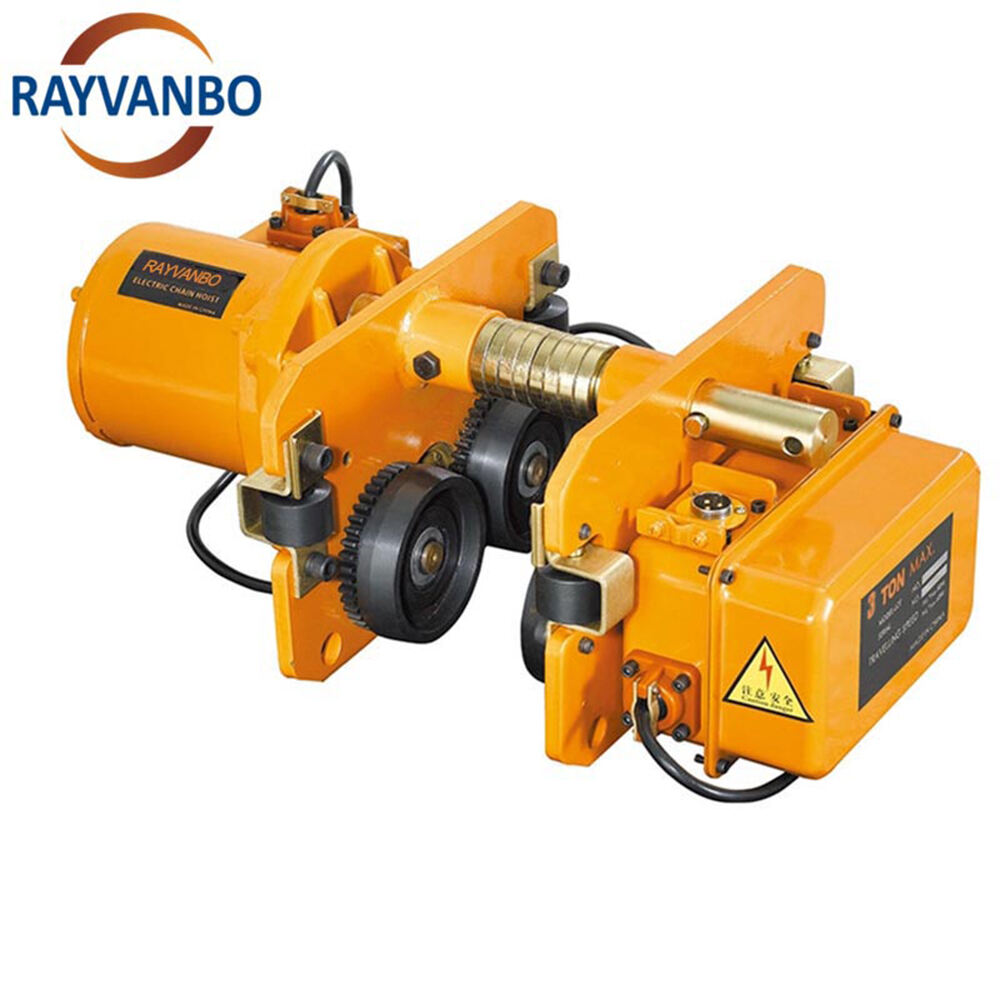

Product Name：Electric Trolley for Chain Hoist
Lift Capacity：0.5-32ton（can be customized）
Product Description:
The electric trolley is a key component of the electric hoist, primarily used to move the hoist horizontally. It consists of a motor, a reducer, wall panels, active and passive wheel assemblies, flat nuts, bolts, and adjustment washers. It features light weight, high operating efficiency, excellent stability, low noise levels, strong overload capacity, high braking torque, small limit dimensions, excellent safety performance, high reliability, and low failure rates.It is widely used in lifting, moving, loading and unloading heavy objects, civil engineering and bridge construction, electric power, shipbuilding, automobile manufacturing and other infrastructure projects.
Product Parameters:
Model |
Lift Capacity(T) |
Travel Speed(m/min) |
Motor(KW) |
Min.radius of turn |
0.5T |
0.5 |
Slow speed 11m/min
Fast speed 21m/min
|
0.4 |
0.8 |
1T |
1 |
0.4 |
0.8 |
|
2T |
2 |
0.4 |
0.8 |
|
3T |
3 |
0.75 |
1.0 |
|
5T |
5 |
0.75 |
1.8 |
|
7.5T |
7.5 |
0.75 |
1.8 |
|
10T |
10 |
0.75 |
2.5 |

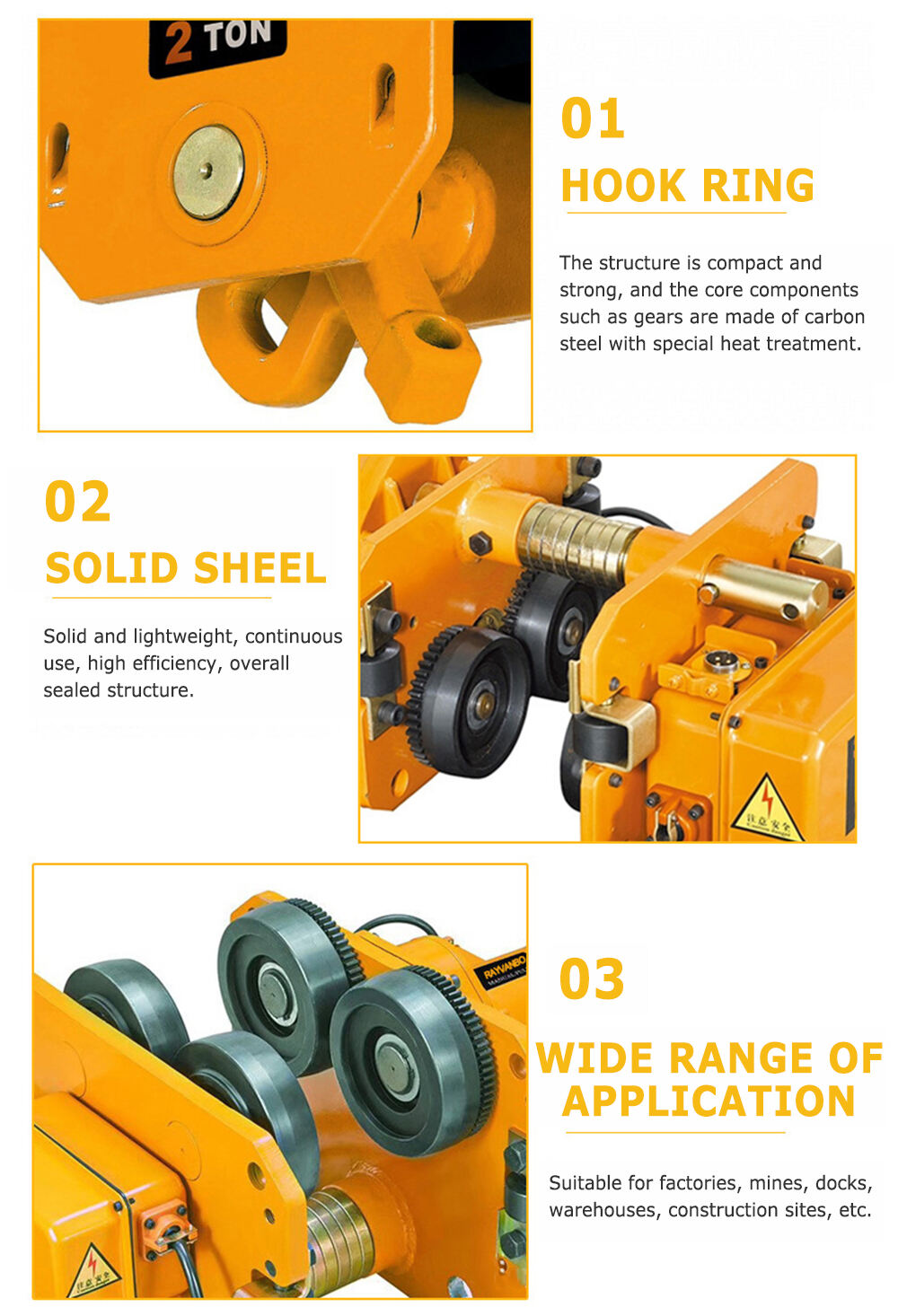

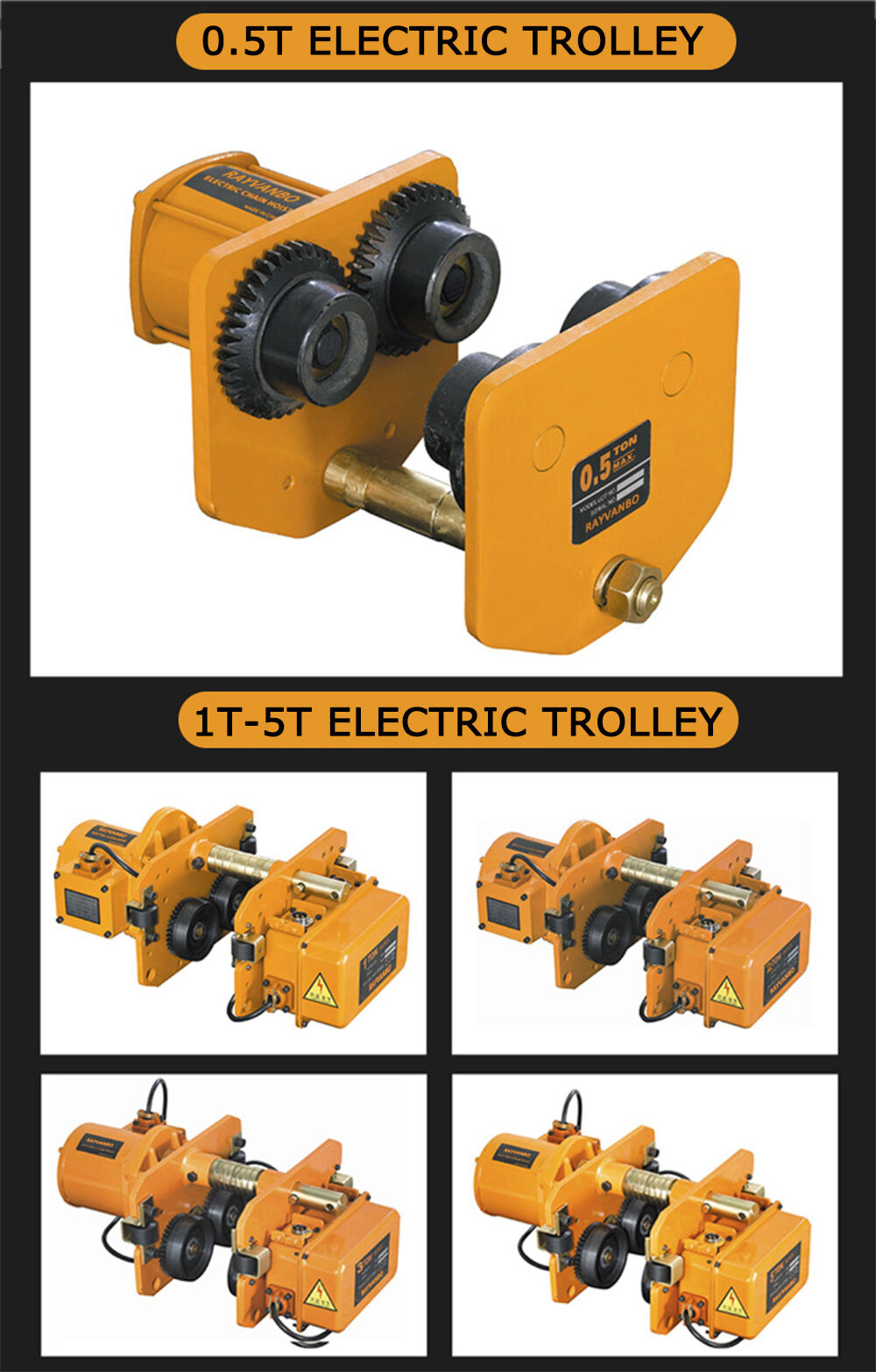

Product Details:
Product Application:
Shipping & Packaging:
