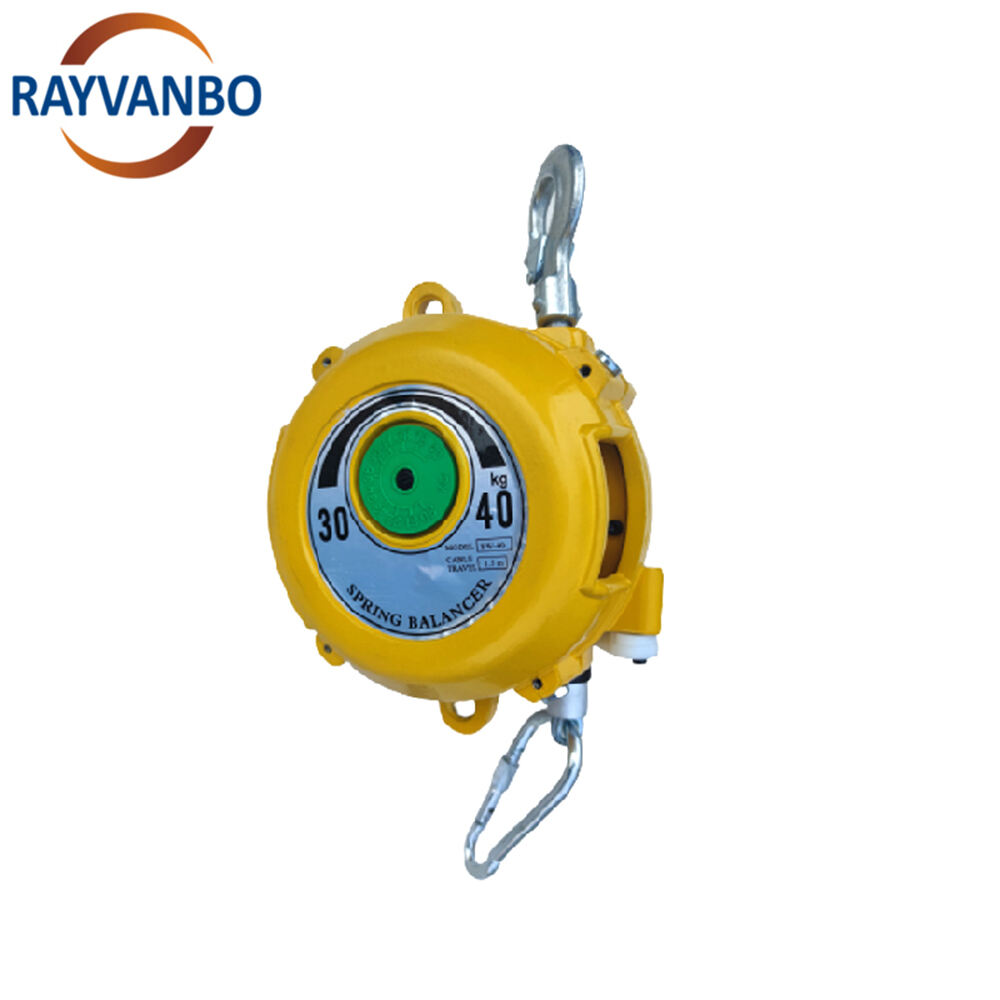

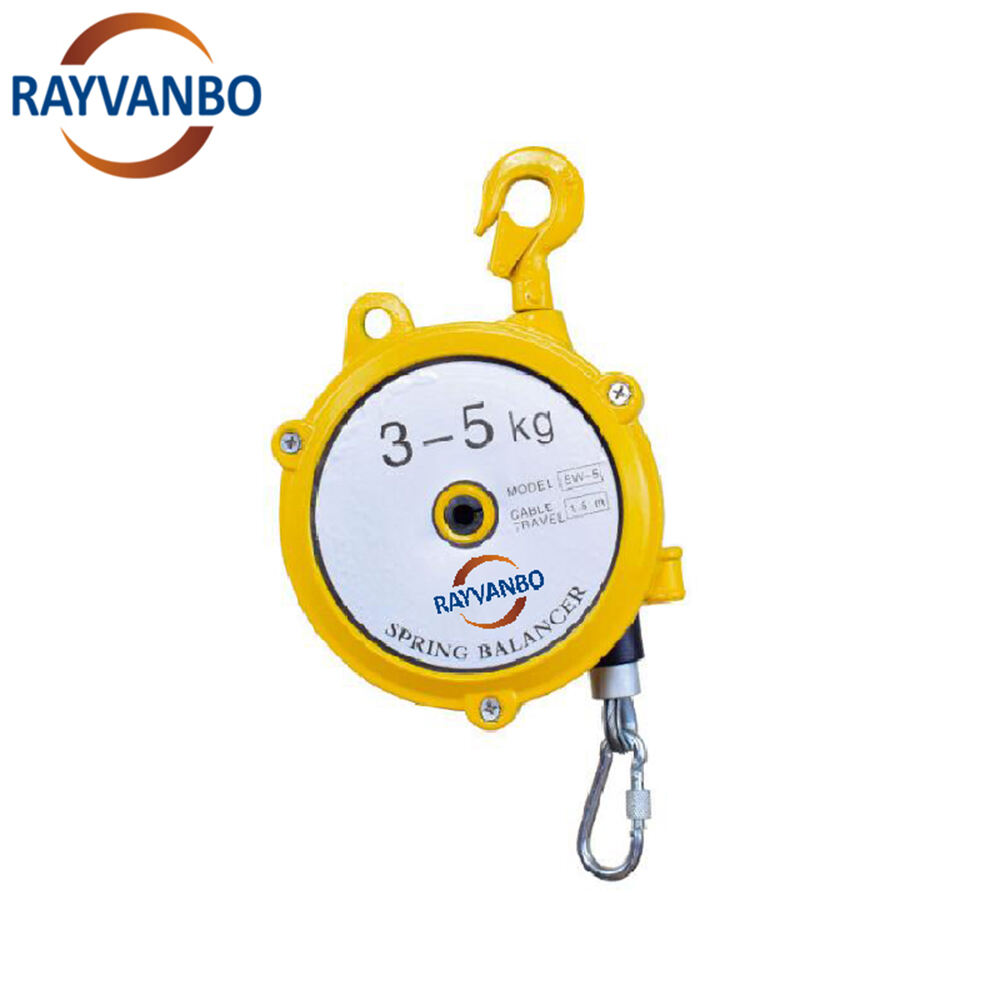

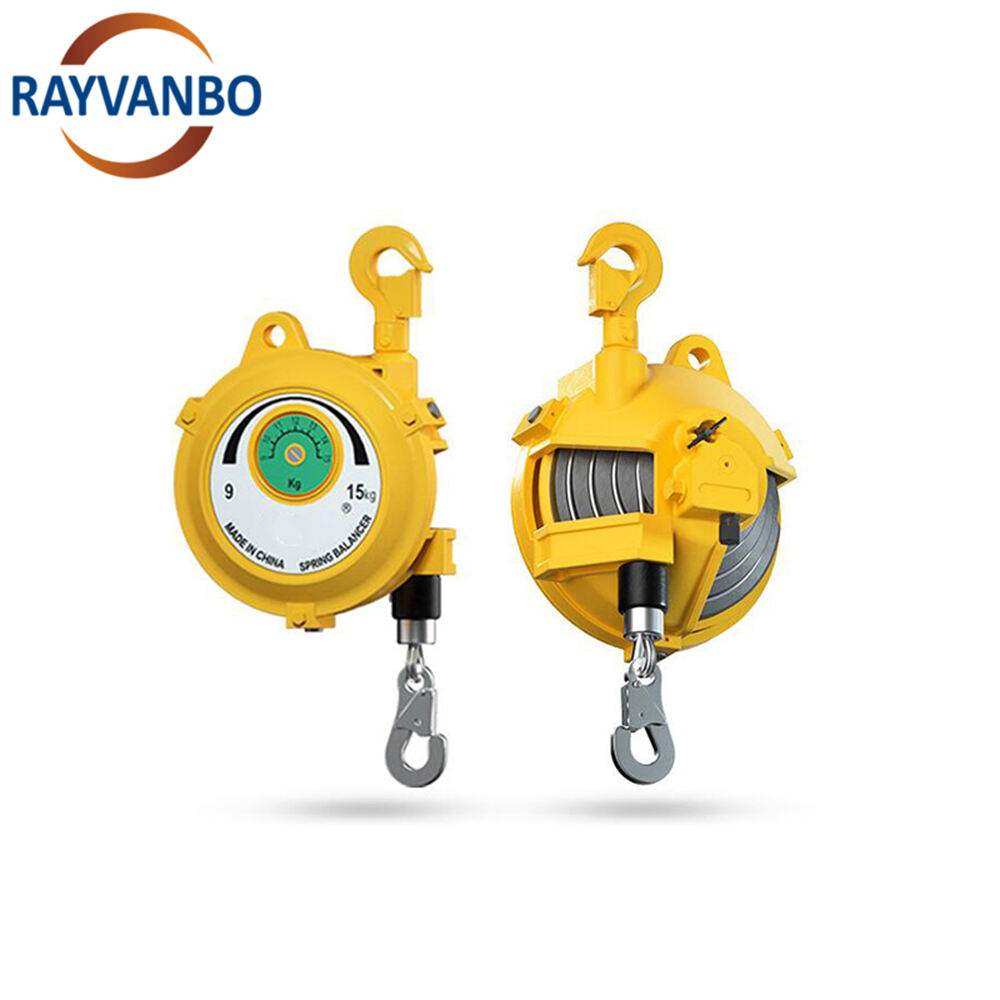

Self-locking Spring Balancer EW1.0-120kg Tower-type Balance Lifting Force Hoist Spring Balancer

Self-locking Spring Balancer EW1.0-120kg Tower-type Balance Lifting Force Hoist Spring Balancer

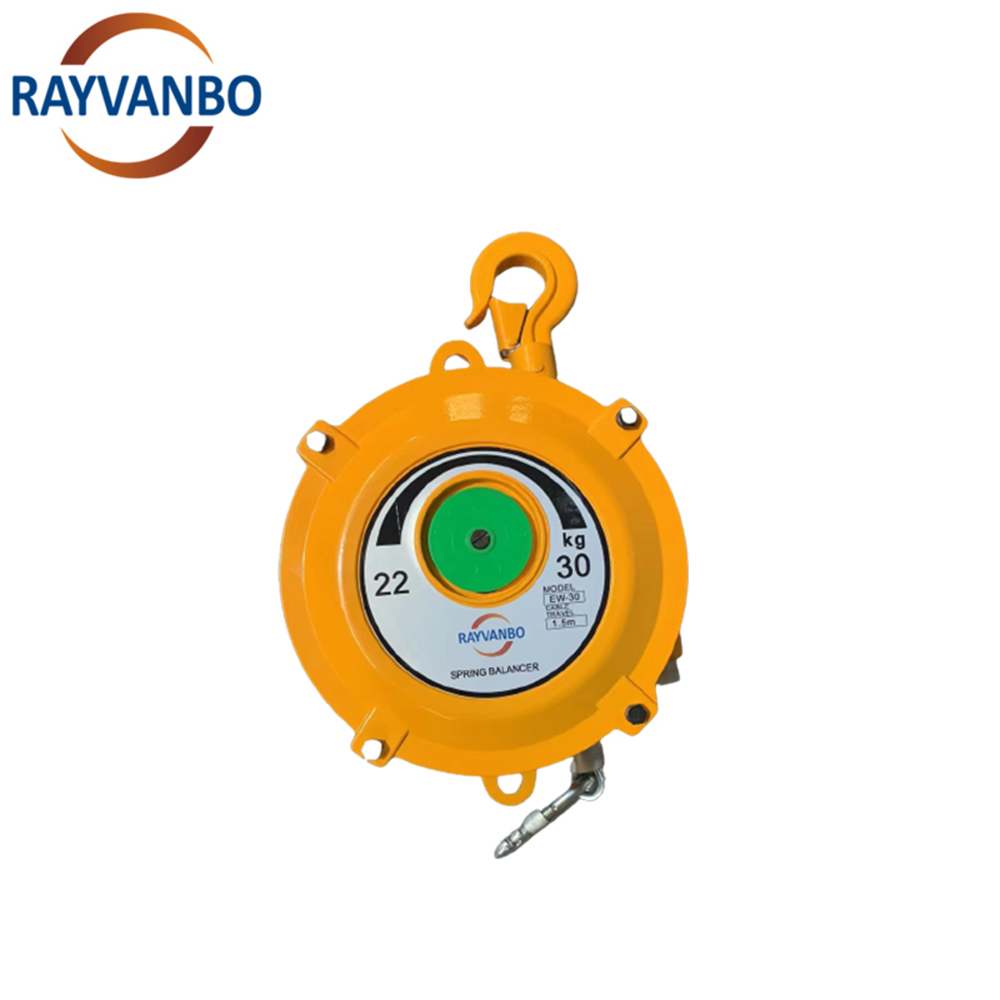

Product Name: Spring Balancer
Cable Length：1.0-1.5m（Can be customized）
Balanced Load：1.0-120kg（Can be customized）
Material：Stainless Steel

Overview
Related Products

Product Description：

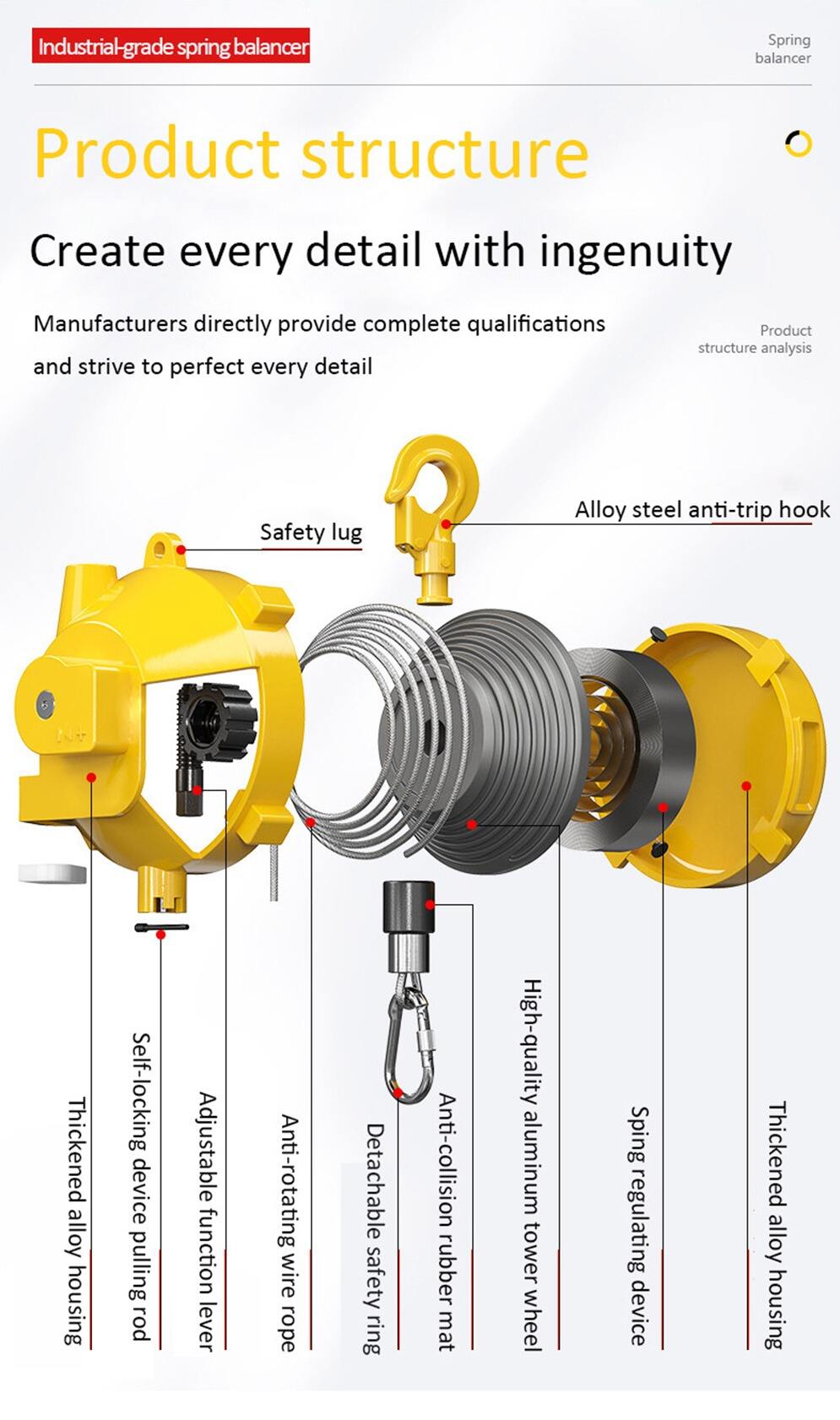

Spring balancer main volute spring roll by accumulation of energy,Make suspended in the air of the load in a state of suspension ,Make elastic energy and gravitational potential energy balance , this is the spring balancer basic principle . Therefore , the spring balancer tool can be suspended and can be used for tool position , the operator can be more flexible adjustment to work, reduce fatigue.

Spring balancer is widely applied in cars ,buses ,locomotive , ship household appliances , building , oilfields , mines and machine manufacturing, etc. whether in flowing water line or various work inspection,who use hand tools and condole with equipment occasion can use spring balancer Thereby significantly reducing homework personnel labor intensity,improve production efficiency,and help promote civilized production.

Product Parameters：

Balanced Load (kg)	Cable length（m）	Cable Dia	Packing Size	Net weight（kg）
1.0-3.0kg	1.5m	3.0mm	22018075mm	1.3kg
3.0-5.0kg	1.5m	3.0mm	22018075mm	1.3kg
5-9kg	1.5m	4.2mm	245235180mm	3.4kg
9-15kg	1.5m	4.2mm	245235180cm	3.8kg
15-22kg	1.5m	5.1mm	388310252mm	7.2kg
22-30kg	1.5m	5.1mm	388310252mm	7.6kg
30-40kg	1.5m	5.1mm	388310252mm	9.8kg
40-50kg	1.5m	5.1mm	388310252mm	10.4kg
50-60kg	1.5m	5.1mm	388310252mm	11.6kg
60-70kg	1.5m	5.1mm	388310252mm	11.8kg
70-80kg	1.5m	5.1mm	388310252mm	18kg
80-100kg	1.5m	5.1mm	388310252mm	18.6kg
100-120kg	1.5m	5.1mm	388310252mm	19.6kg
