Product Name：Electric Chain Hoist
Model: HHBB

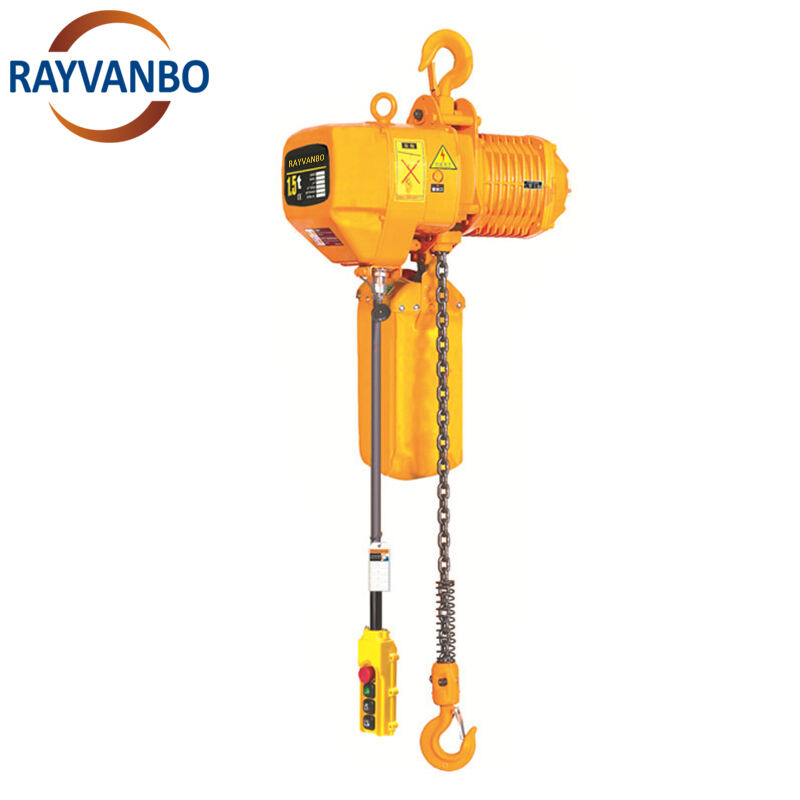

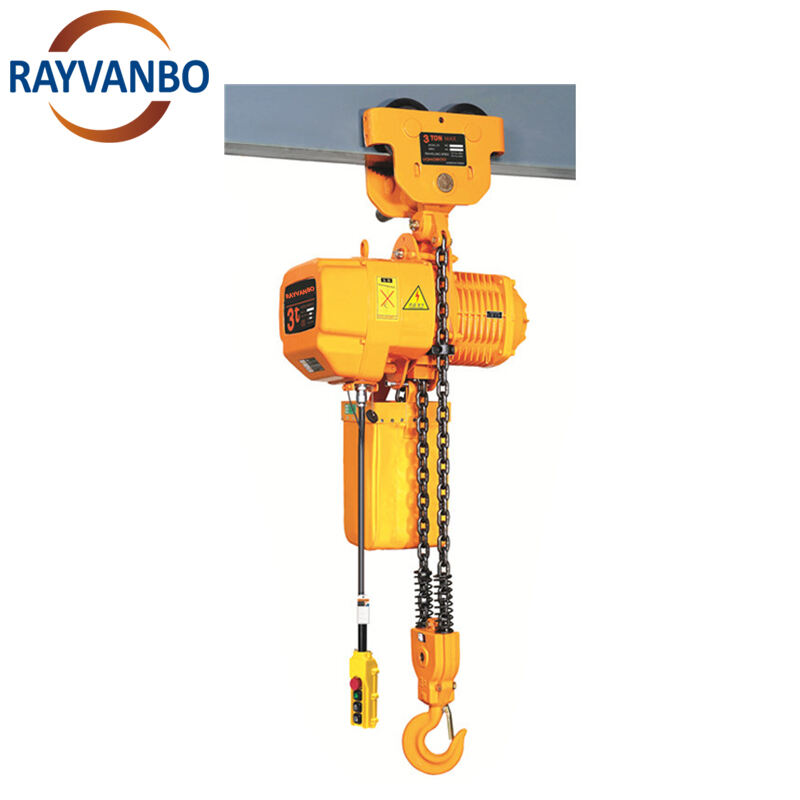

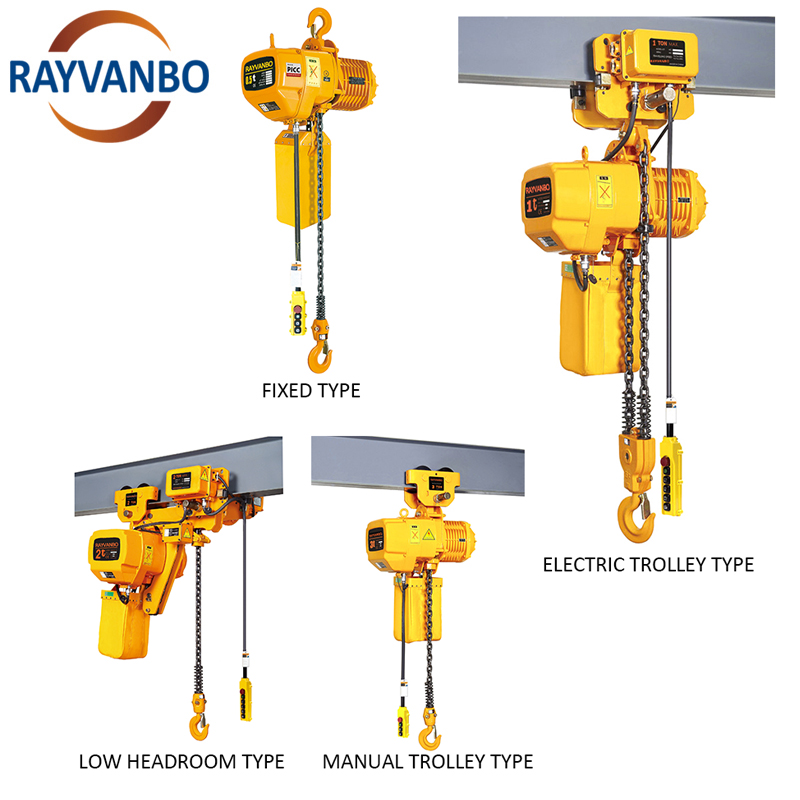

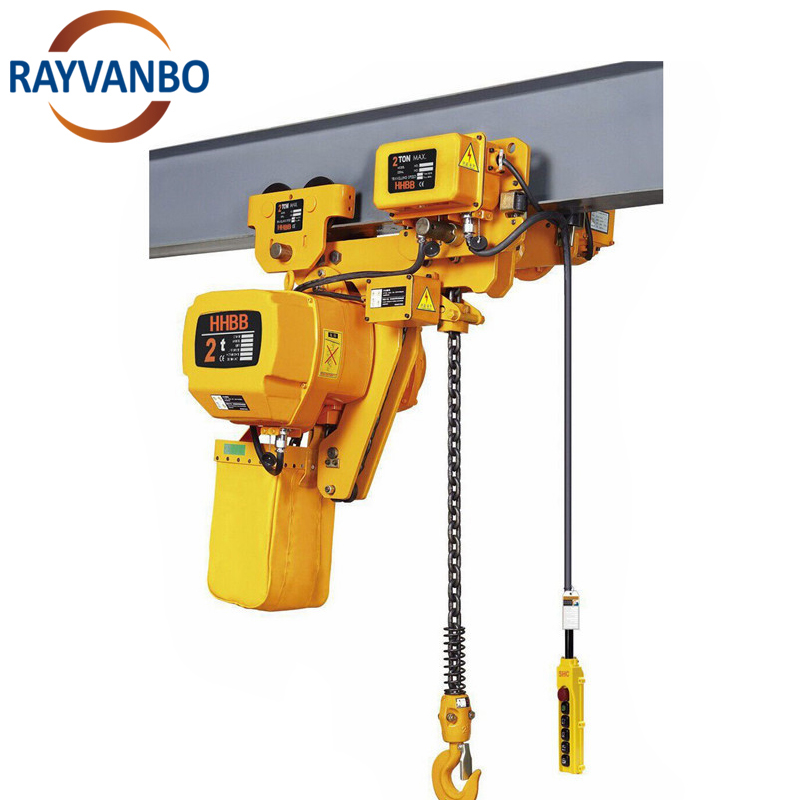

Type：Fixed type / Manual trolley type/ Electric trolley type/ Low headroom type
Lifting Capacity：0.5-50 ton (Can be customized)
Lifting Height: 3-12m (Can be customized)
Product Description
HHBB electric chain hoist is one of Rayvanbo's best-selling products. Chain electric hoists can be divided into manual and electric types according to the power mode.
1. Manual type: suitable for some simple occasions that do not require frequent lifting. The manual chain electric hoist achieves the lifting and lowering of heavy objects through manual operation, which has the advantages of low cost and easy operation.
2. Electric type: suitable for occasions that require frequent and efficient lifting. The electric chain electric hoist adopts a continuously variable transmission, which can adjust the lifting speed and load capacity according to actual needs to improve work efficiency.
Product Parameters：
|
Model |
Single or double lifting speed based on client's request |
||||||||
0.5-01 |
01-01 |
01-02 |
1.5-01 |
02-01 |
02-02 |
2.5-01 |
03-01 |
03-02 |
|
Capacity(T) |
0.5 |
1 |
1 |
1.5 |
2 |
2 |
2.5 |
3 |
3 |
Lifting speed(m/min) |
7.2/2.4 |
6.9/2.3 |
3.6/1.2 |
8.8/2.9 |
6.6/2.2 |
3.3/1.1 |
5.6/1.8 |
5.6/1.8 |
3.3/1.1 |
Motor power(kw) |
1.1/0.37 |
1.8/0.6 |
1.1/0.37 |
3.0/1.0 |
3.0/1.0 |
1.8/1.6 |
3.0/1.0 |
3.0/1.0 |
3.0/1.0 |
Rotation speed(r/min) |
1440 |
||||||||
Insulation grade |
F |
||||||||
Traveling speed(m/min) |
Fixed hook type or slow 11m/min,fast 21m/min |
||||||||
power supply |
3-phase 380v 50hz/according to client's request |
||||||||
control voltage |
24v 36v 48v |
||||||||
No.of load chain |
1 |
1 |
2 |
1 |
1 |
2 |
1 |
1 |
2 |
Spec.of load chain |
Φ6.3 |
Φ7.1 |
Φ6.3 |
Φ10 |
Φ10 |
Φ7.1 |
Φ11.2 |
Φ11.2 |
Φ10 |
Net weight(kg) |
47 |
65 |
53 |
108 |
108 |
73 |
115 |
115 |
131 |
I-beam(mm) |
75-125 |
75-178 |
75-178 |
82-178 |
82-178 |
82-178 |
100-178 |
100-178 |
100-178 |

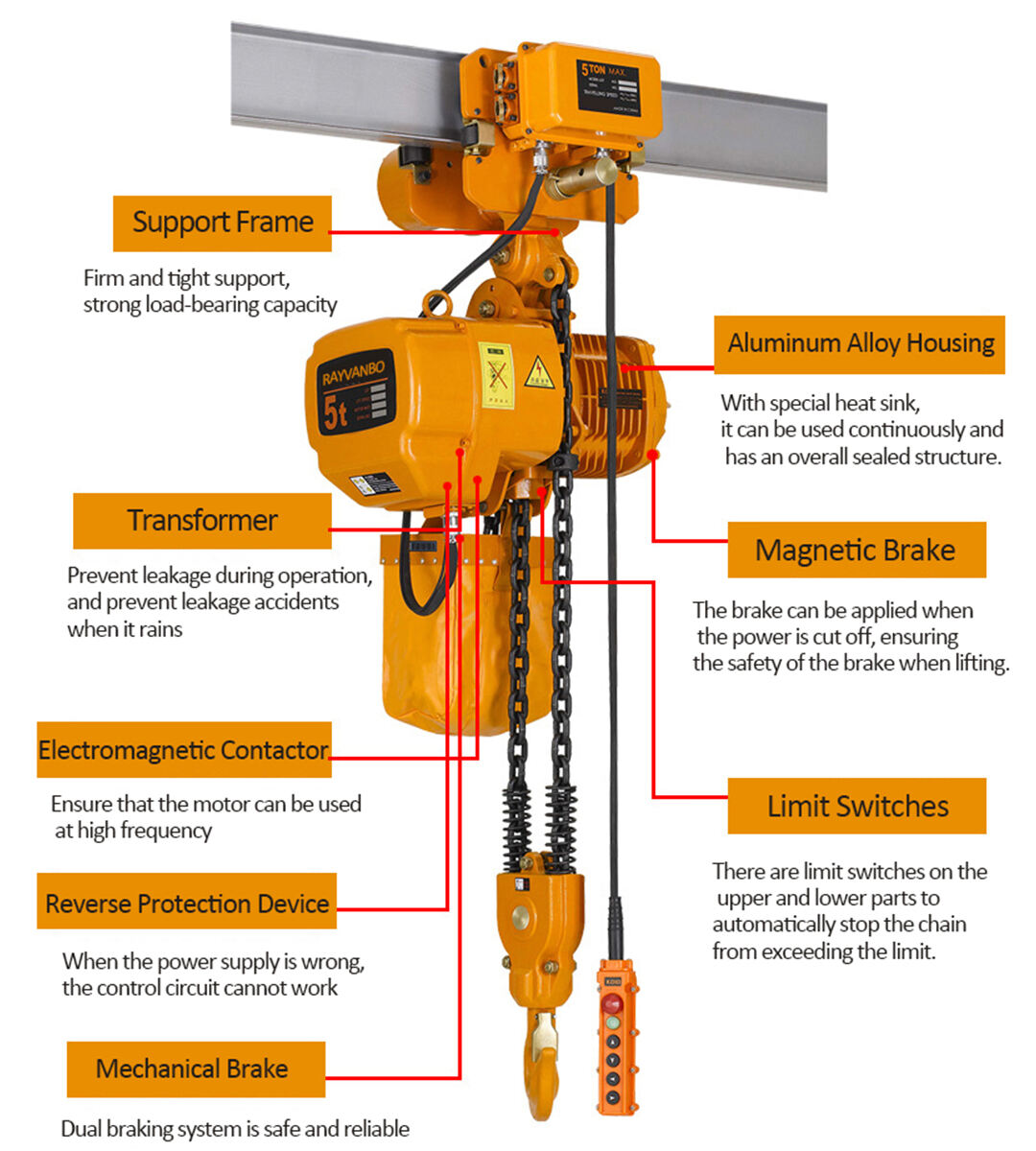

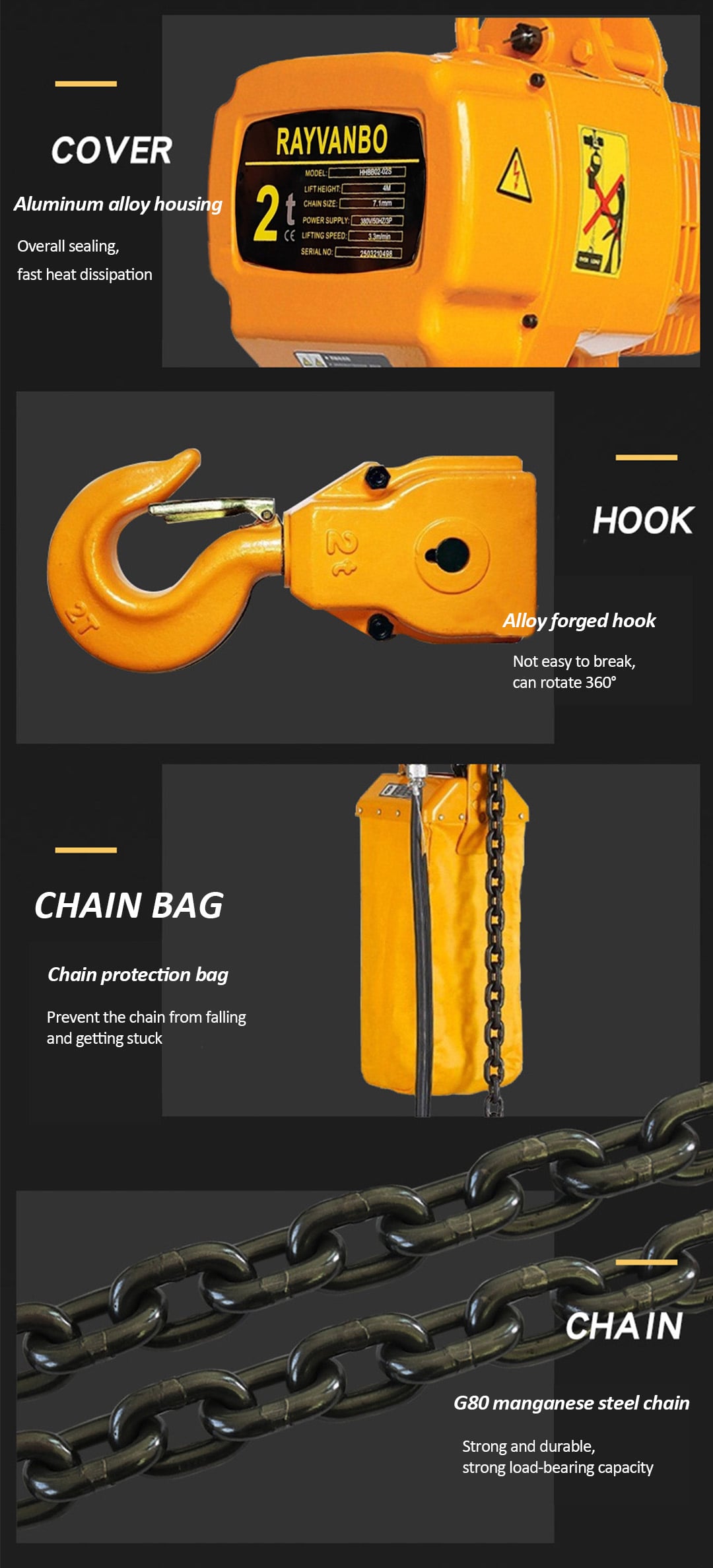

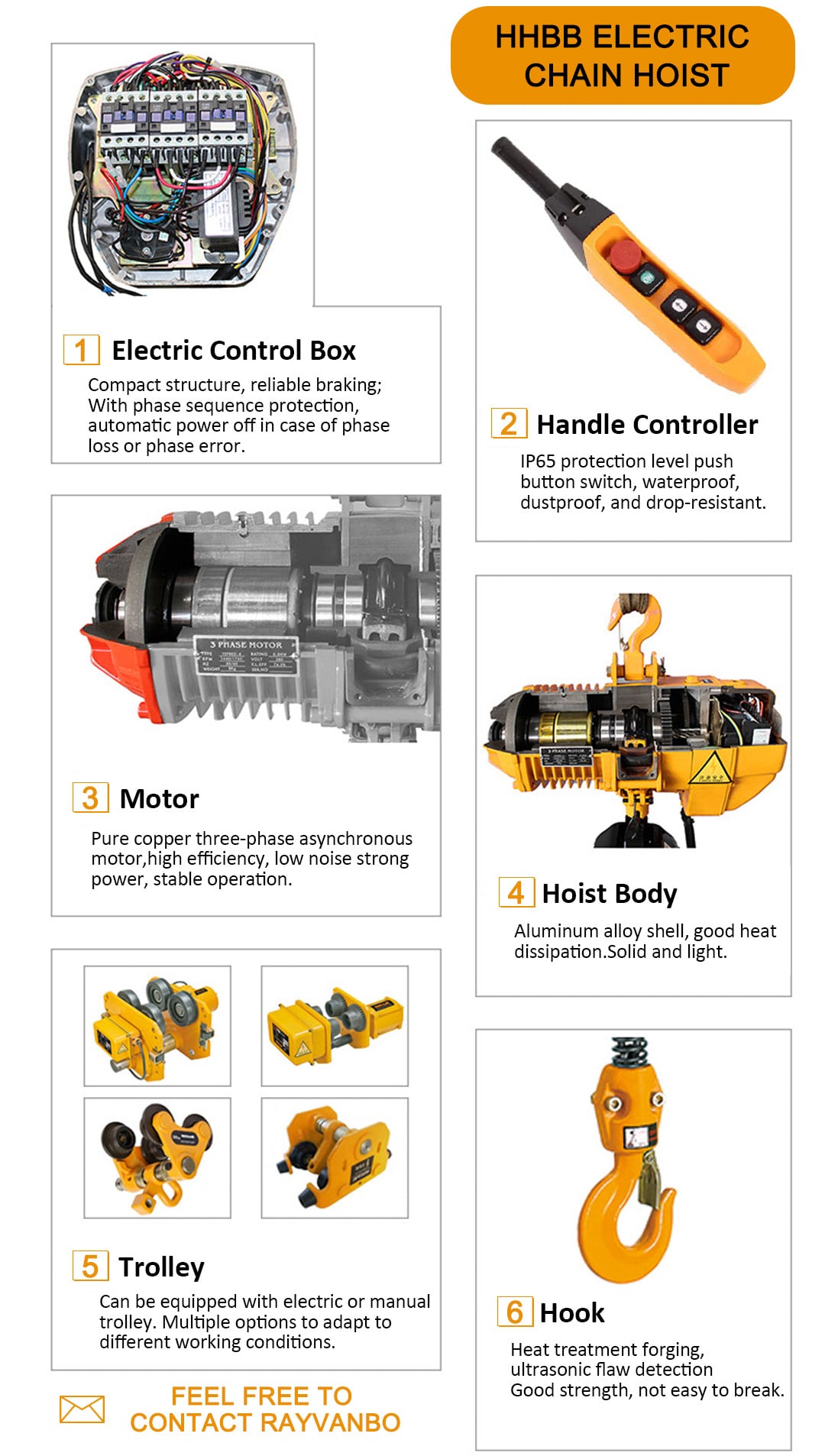

Product Details:
Hoist shell: Aluminum alloy shell, solid and light, with special heat sink, fast heat dissipation, can be used continuously, efficiency up to 40%. The overall sealed structure can be used in chemical plants, electroplating and other places.
Magnetic brake: The latest designed magnetic generator, its characteristic is magnetism. It can brake at the same time as the power is cut off, ensuring that the brake is absolutely safe when lifting.
Limit switch: There are limit switch devices for both lifting and lowering, which can stop automatically to prevent the chain from exceeding and ensure safety.
Chain: Imported FEC80 super heat-treated alloy steel chain is used.
Hook: After hot forging, it has excellent strength and is not easy to break. The lower hook can rotate 360 degrees and is equipped with a safety tongue to ensure safe operation.
Support frame: The lifting support frame is composed of two steel plates and is very tight.
Transformer: 24v/36v transformer. During operation, in case of leakage, accidents can be prevented, and even safe use can be guaranteed when it rains.
Reverse phase protection device: Special wire device, when the power line is wrong, the control circuit cannot operate.
Push button switch: Use waterproof push button switch, light and durable.
Product Advantages：
1. Electric chain hoists adopts a stamping structure, which is light and flexible, compact, with upper and lower limit devices and electromagnetic brake devices;
2. High-strength hook, the hook is a high-strength die-forged hook with good flexibility. In the case of accidental overload, it will only slowly deform and will not break;
3. The body is made of low-carbon alloy steel, which is corrosion-resistant and wear-resistant. It will not wear out after long-term use;
4. Most of them use water-blocking button switches, which are light and durable;
5. Usually 800Mpa high-strength lifting chain is used. Through high-temperature quenching technology, the surface is specially treated. It is not easy to break even in the case of overload, ensuring the orderly progress of work.

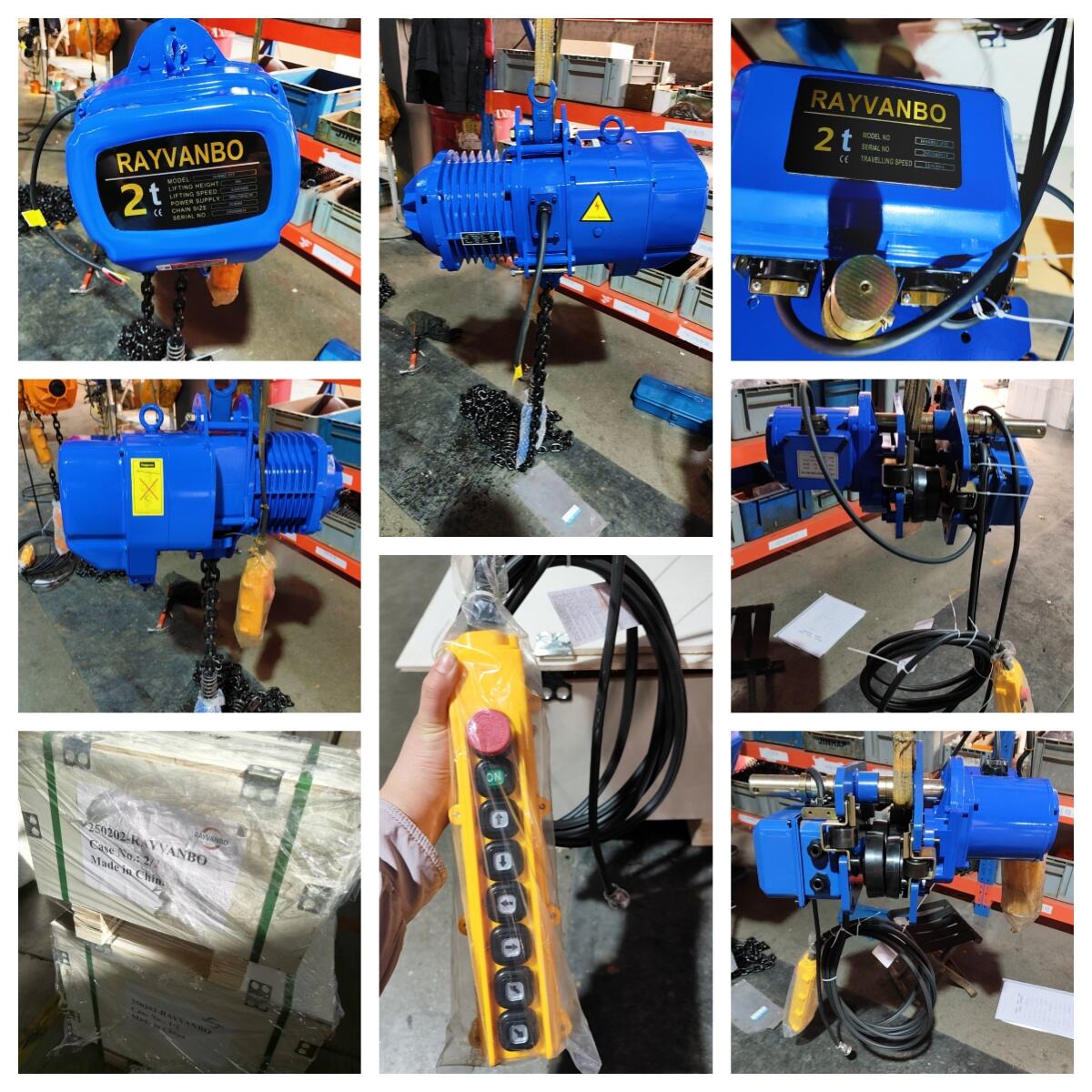

Shipping & Packaging:
