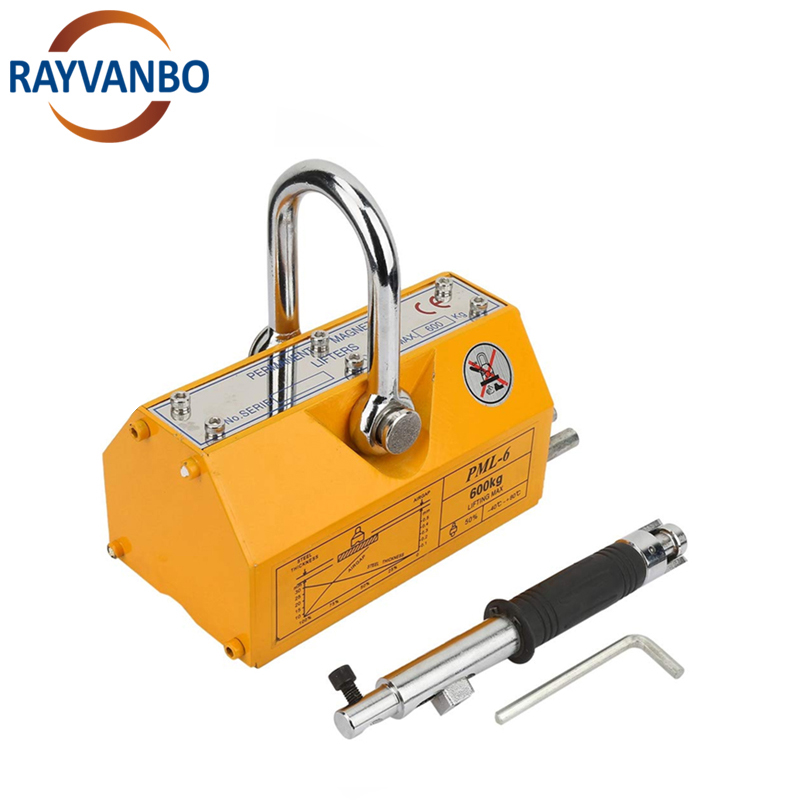

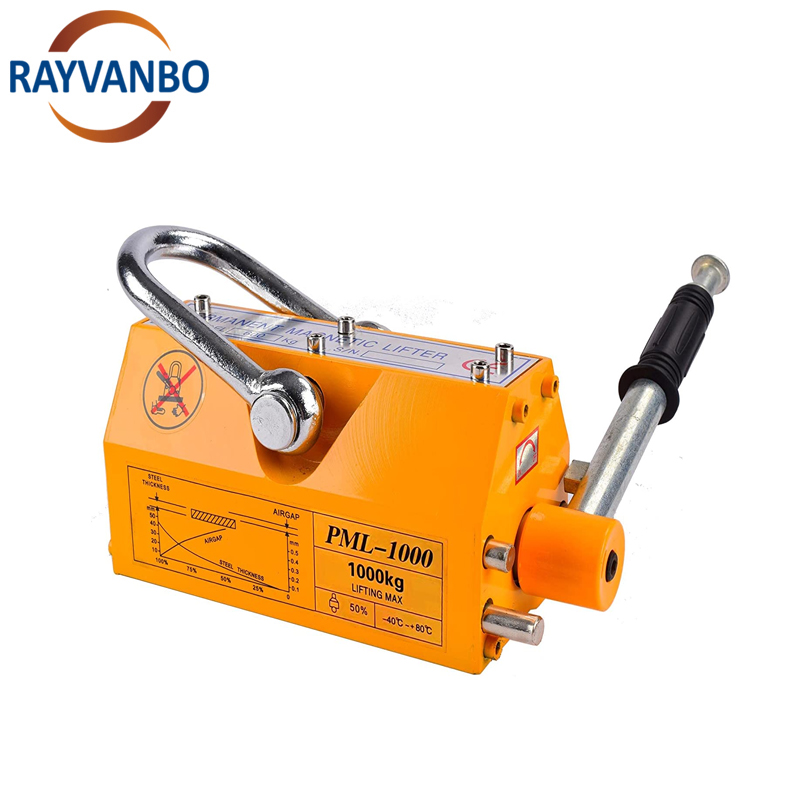

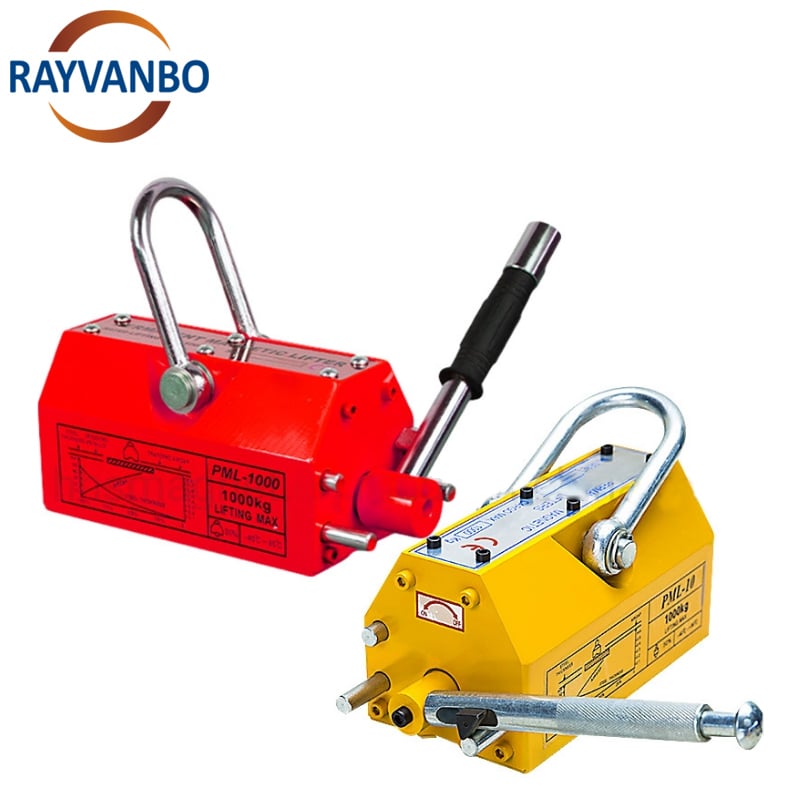

Product Name: Permanent magnetic lifter
Model: PML
Lifting Capacity: 100kg 200kg 400kg 600kg 1000kg 1500kg 2000kg 3000kg 5000kg
Safety Factory: 2/2.5 times
Product Description
RAYVANBO's permanent magnetic lifter is an industrial handling tool that uses permanent magnets to generate a strong magnetic field. It is designed for safe and efficient adsorption and transfer of magnetic materials such as steel plates, iron blocks, and metal components. No external power drive is required. Objects can be quickly adsorbed or released by manually switching the magnetic circuit. It is especially suitable for frequent handling, high-altitude operations, or scenes with limited power supply.
Core features：
Safe and reliable: no risk of power failure, stable and lasting magnetic force, to avoid accidental falling off.
Energy saving and environmental protection: zero power consumption, reduced use costs, in line with the concept of green production.
Convenient operation: the adsorption state can be switched by handle or knob, and the operation can be completed with one hand.
Strong durability: high-hardness shell protection, adapt to harsh industrial environments such as high temperature and humidity.
Product Parameters：
|
Lifting capacity (kg) |
Dimension |
Net weight (kg) |
||||
Steel plate |
Cylindrical |
Length |
Width |
Height |
Handle |
||
PML-100 |
100 |
50 |
92 |
62 |
69 |
155 |
3.2 |
PML-200 |
200 |
100 |
130 |
65 |
69 |
155 |
5.4 |
PML-400 |
400 |
200 |
160 |
95 |
95 |
200 |
11 |
PML-600 |
600 |
300 |
210 |
120 |
120 |
230 |
20 |
PML-1000 |
1000 |
500 |
260 |
150 |
140 |
255 |
40 |
PML-1500 |
1500 |
750 |
340 |
150 |
140 |
255 |
48 |
PML-2000 |
2000 |
1000 |
400 |
170 |
170 |
320 |
74 |
PML-3000 |
3000 |
1500 |
440 |
170 |
170 |
380 |
105 |
PML-5000 |
5000 |
2500 |
600 |
230 |
215 |
600 |
248 |

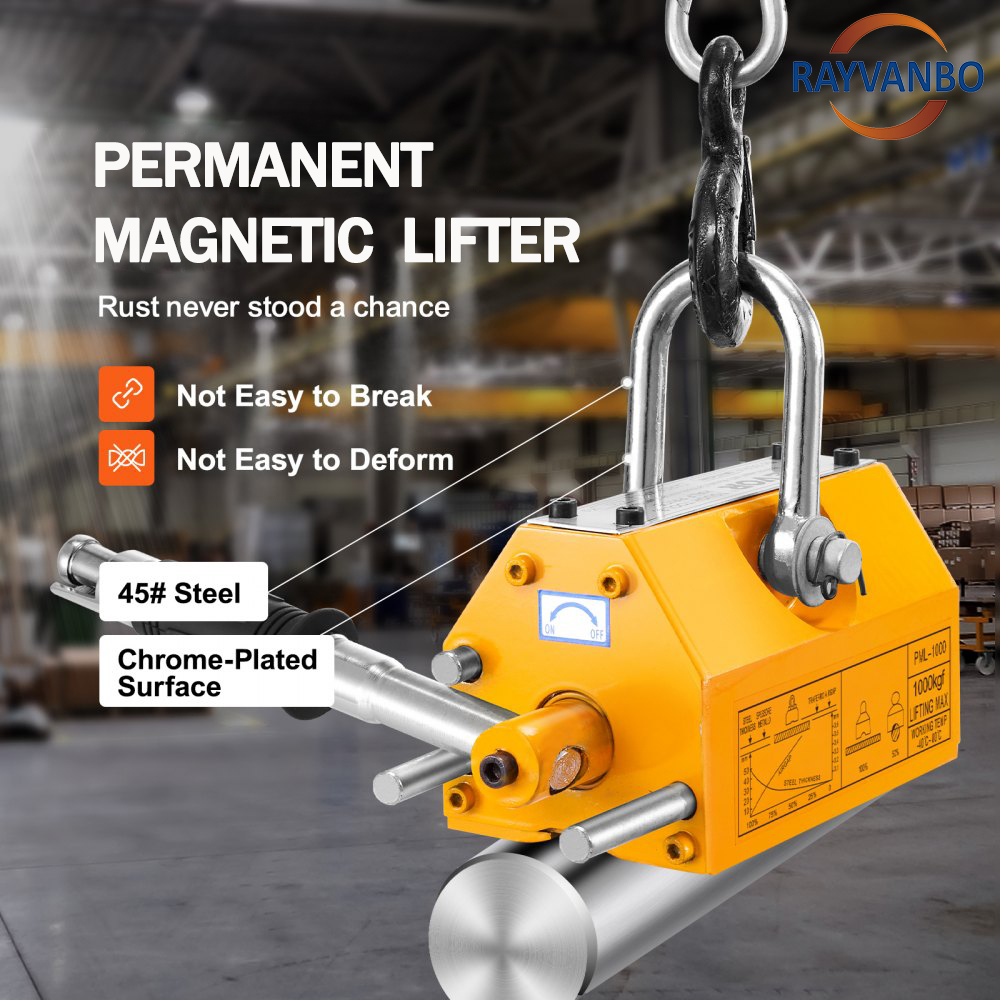

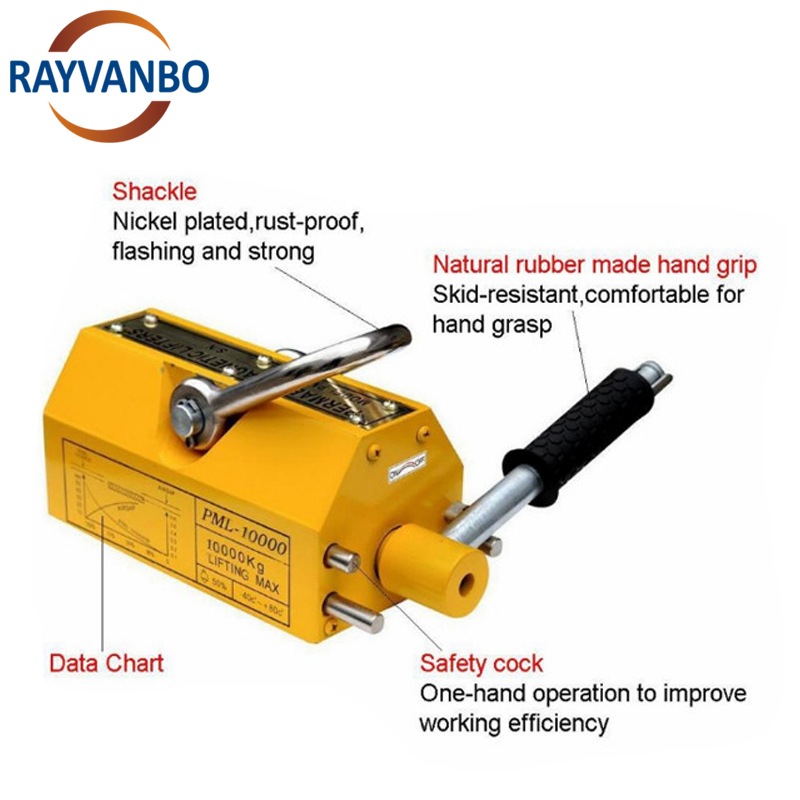

Product Details:
RAYVANBO's magnetic suction cups cover metal handling needs from industry to special fields with zero energy consumption and high stability magnetic solutions, taking into account efficiency and safety.
1. Long-lasting strong magnetic adsorption
Adopting high-performance permanent magnetic materials, the adsorption force is stable and reliable, there is no magnetic attenuation in long-term use, and no external energy support is required.
2. Intelligent magnetic control design
Quickly switch the adsorption/release state through a mechanical switch, the operation is simple and efficient, and the whole process can be completed with one hand.
3. Full scene adaptability
The corrosion-resistant protective shell design can cope with complex environments such as humidity and dust, and can maintain stable performance for indoor and outdoor operations.
4. Lossless handling experience
Uniform magnetic distribution avoids indentation on the surface of the workpiece, especially suitable for the safe transfer of precision instruments and polished metal parts.
Typical application scenarios
1. Industrial manufacturing field
Adsorb tools or parts when repairing heavy machinery, free your hands to achieve precise operation.
2. Warehousing and logistics scenarios
Emergency lifting of small metal goods in warehouses without power supply to ensure operation continuity.
3. Special operation requirements
Ship maintenance adsorption of curved steel plates, high-altitude steel structure welding auxiliary fixation, to solve the problem of handling special-shaped parts.

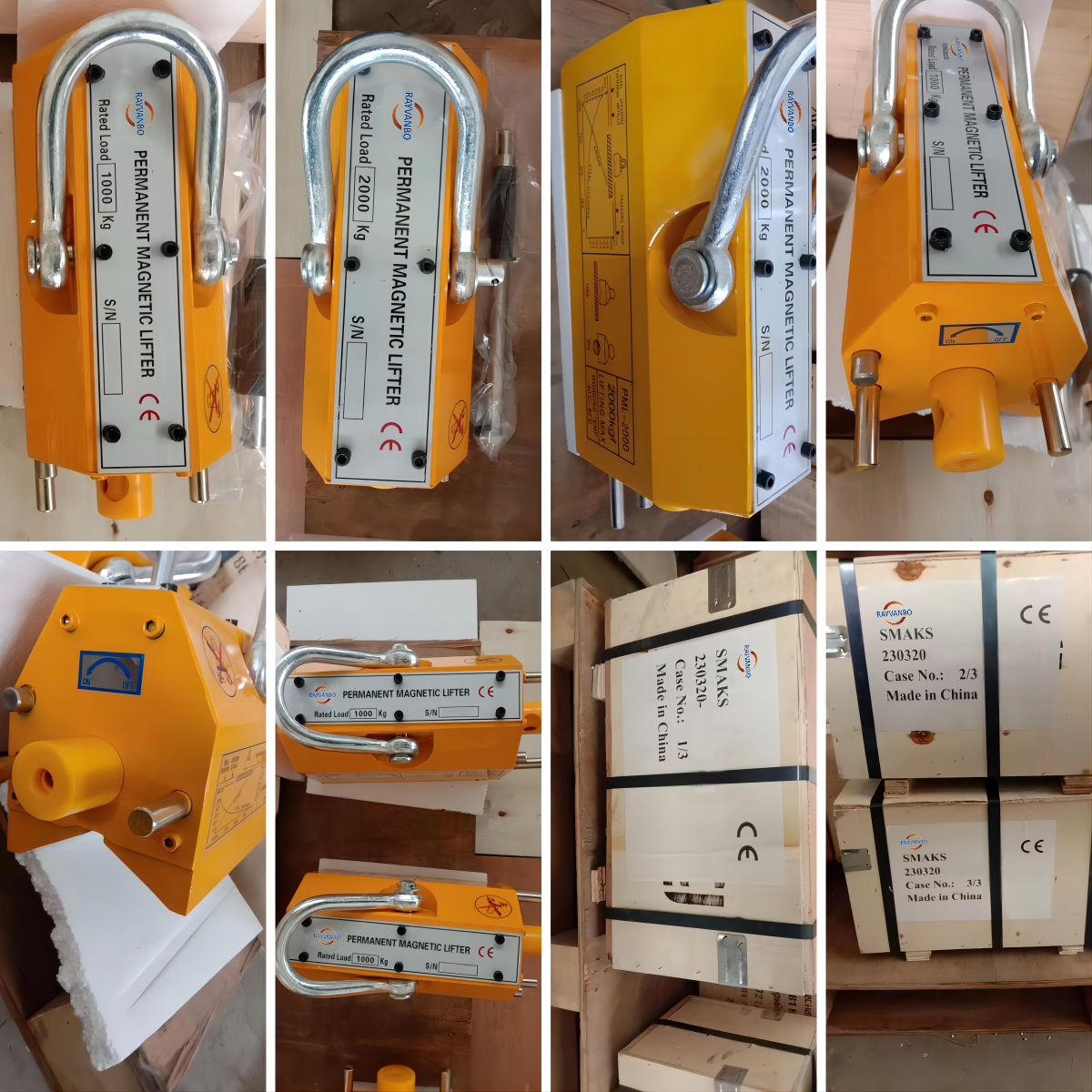

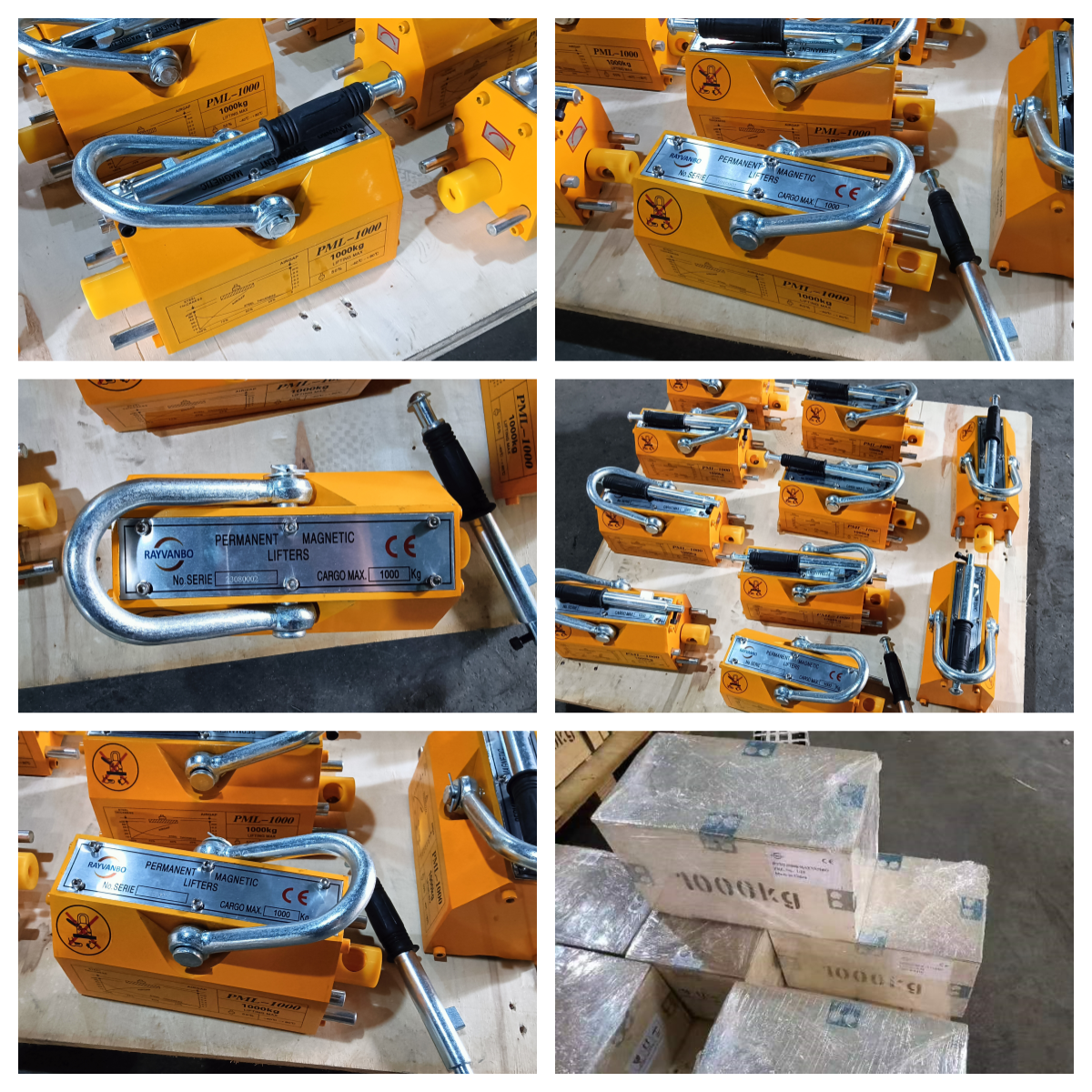

Shipping & Packaging:
