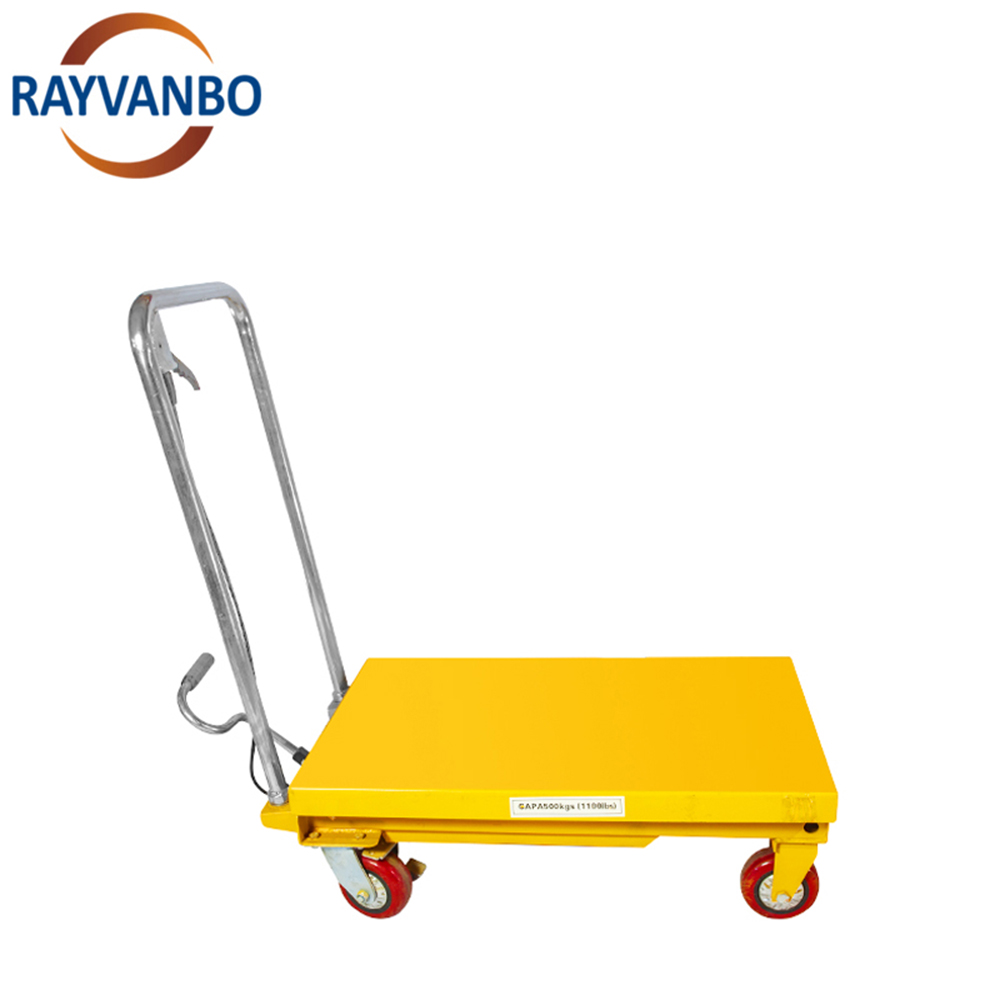

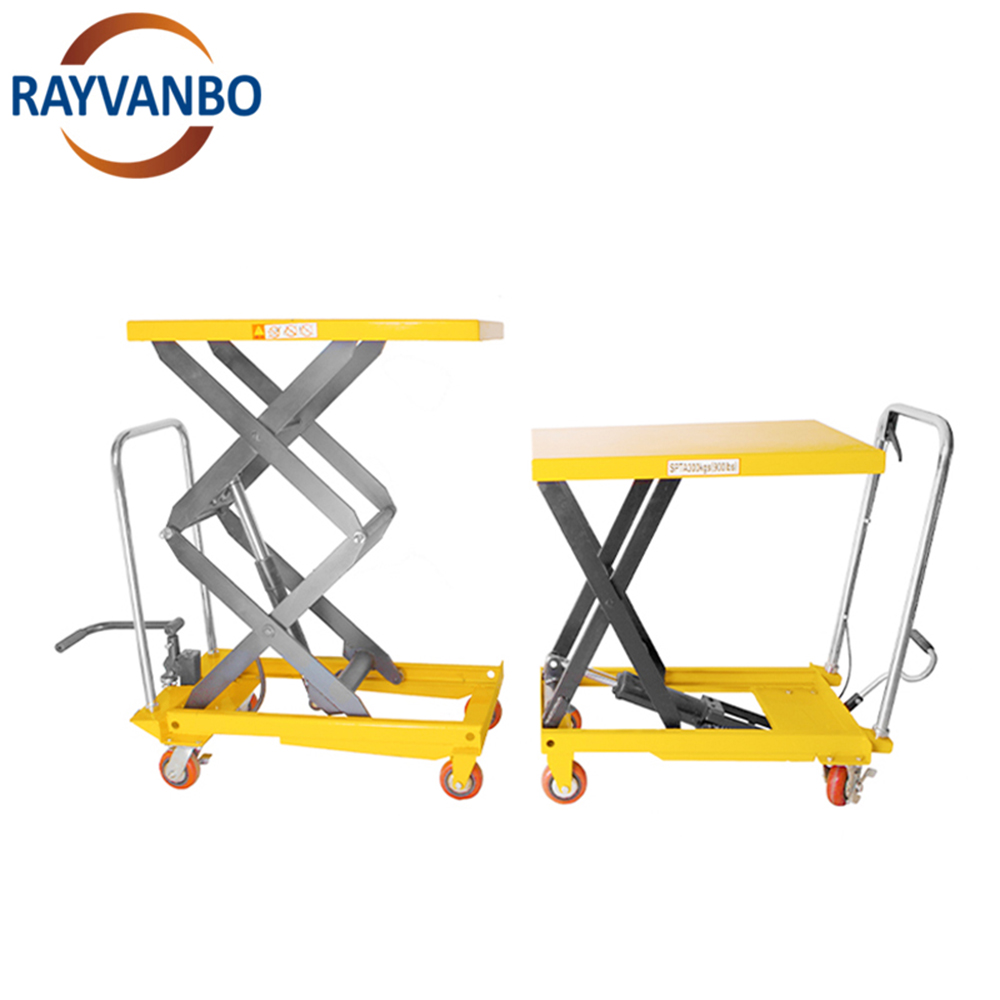

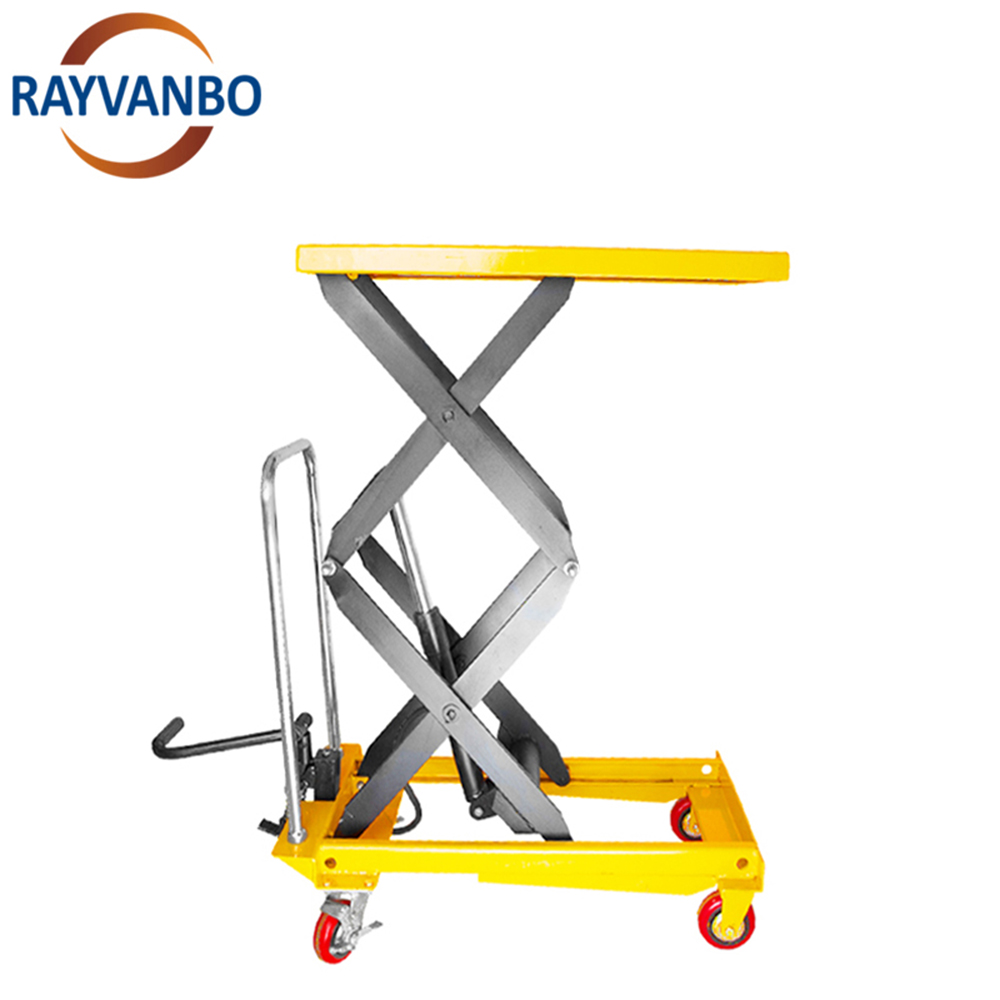

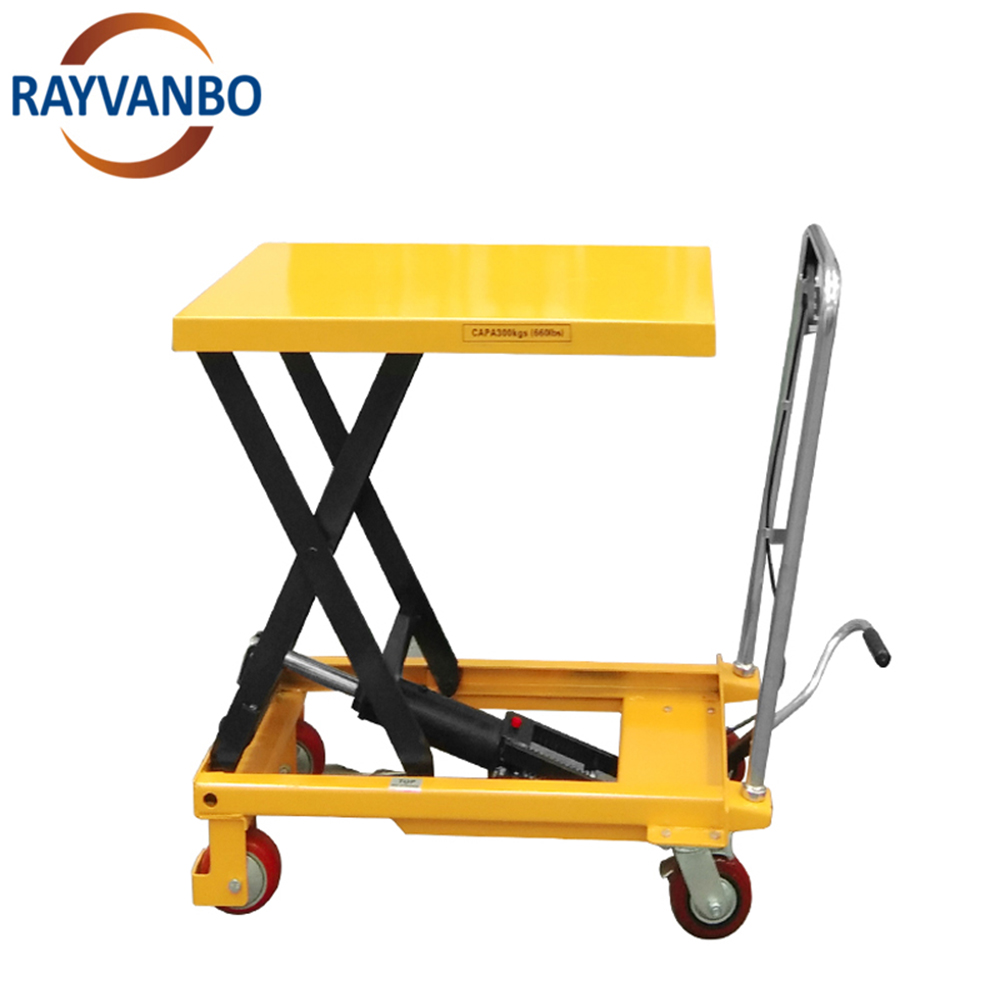

Product Name：Lift Table
Capacity：150-1000kg (Can be customized)
Lifting Height: 720-1700mm (Can be customized）
Min Height: 210-500mm
Product Description:
The lift table are small lifting machines primarily used for small-scale lifting, handling, and stacking operations. They are widely used in logistics, warehouse management, supermarket retail, and small equipment manufacturing. They utilize a hydraulic drive system and are characterized by their compact size, ease of movement, and robust structure.
The main body of this device is constructed of high-strength steel and equipped with a fully sealed cylinder, safety valve, and nylon guide wheels. Lifting and lowering are controlled manually by hydraulic pressure, ensuring both stability and ease of use. Its design focuses on reducing physical exertion and improving material flow efficiency, making it a popular handling device in warehousing scenarios.

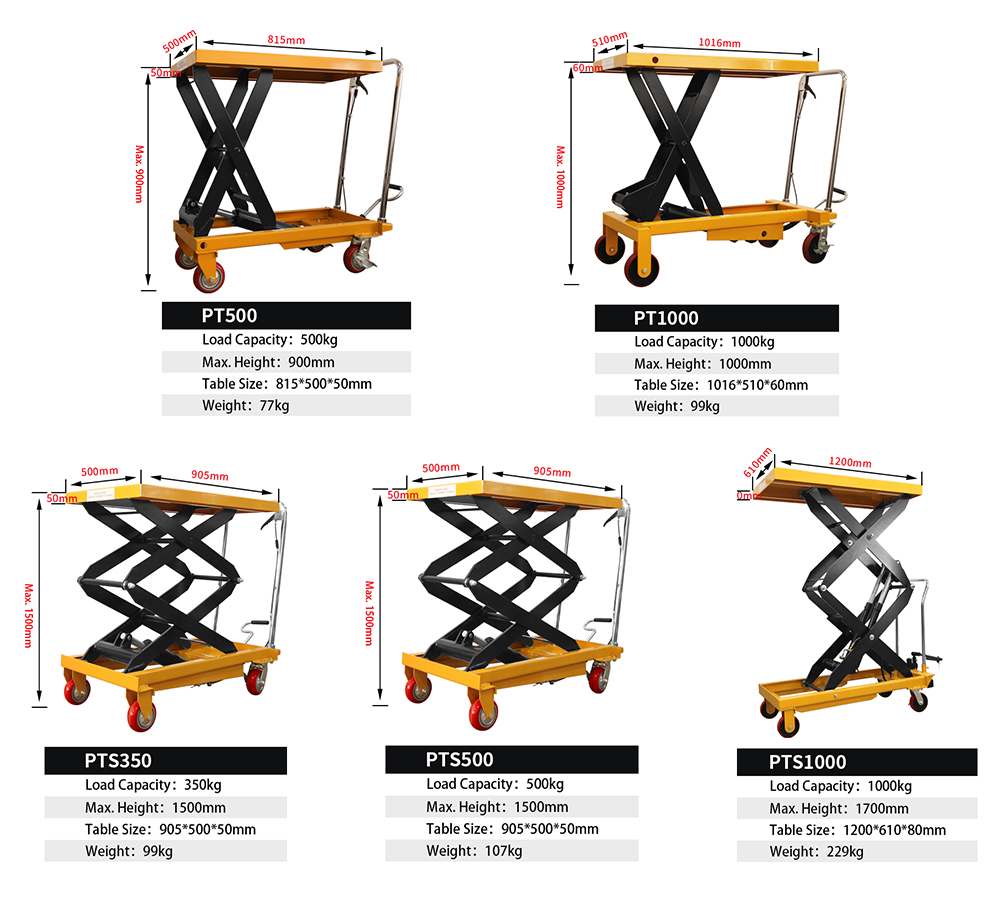

Product Parameters:
|
Model |
Capacity(kg) |
Lifitng height（mm) |
Tbale size（mm） |
Min height（mm） |
Pump |
Wheel size（mm） |
PT150A |
150 |
720 |
700*450*35 |
210 |
Single cylinder |
φ100*32 |
PTS150A |
150 |
1200 |
700*450*35 |
295 |
Single cylinder |
φ100*32 |
PT300A |
300 |
900 |
815*500*50 |
280 |
Single cylinder |
φ125*50 |
PT500A |
500 |
900 |
815*500*50 |
280 |
Single cylinder |
φ125*50 |
PTS350A |
350 |
1300 |
905*500*50 |
350 |
Single cylinder |
φ125*50 |
PTS350A-1.5 |
350 |
1500 |
905*500*50 |
350 |
Single cylinder |
φ125*50 |
PTS500 |
500 |
1500 |
905*500*50 |
360 |
Double cylinder |
φ125*50 |
PT1000A |
1000 |
1000 |
1000*500*55 |
415 |
Single cylinder |
φ150*50 |
PTS1000 |
1000 |
1700 |
1200*600*80 |
500 |
Double cylinder |
φ150*50 |

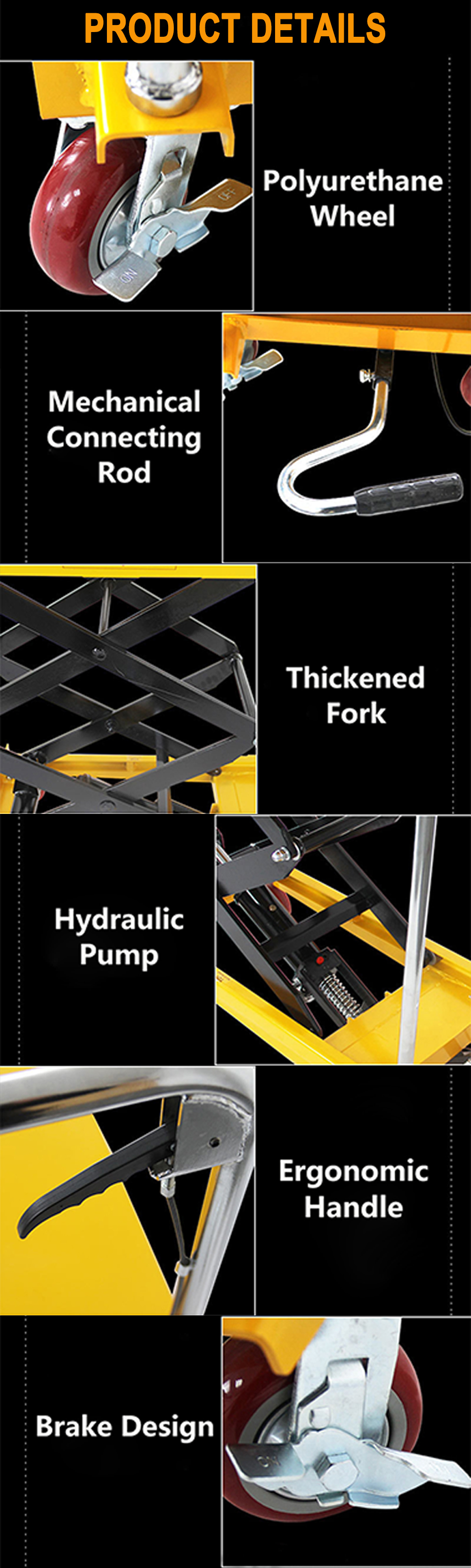

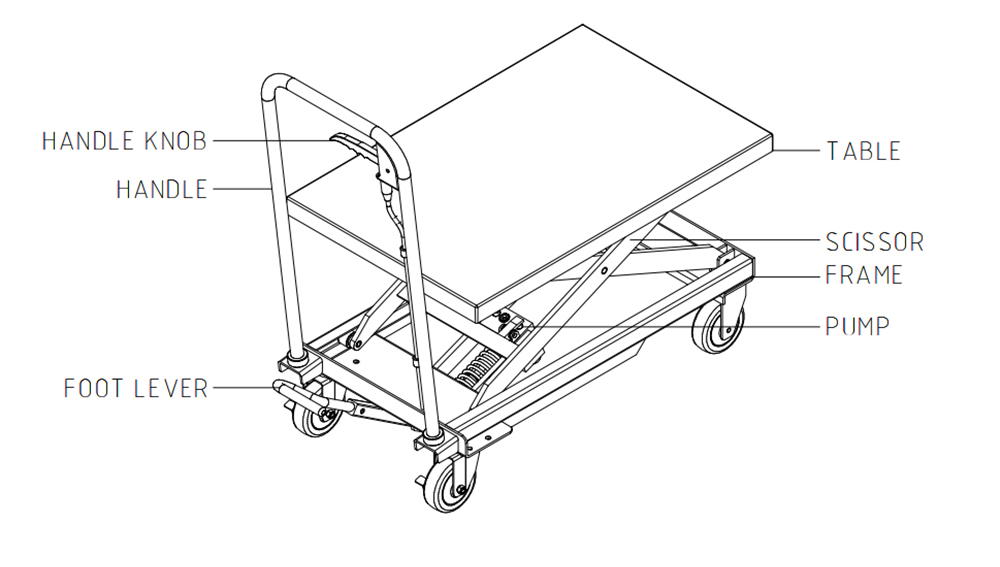

Product Details:

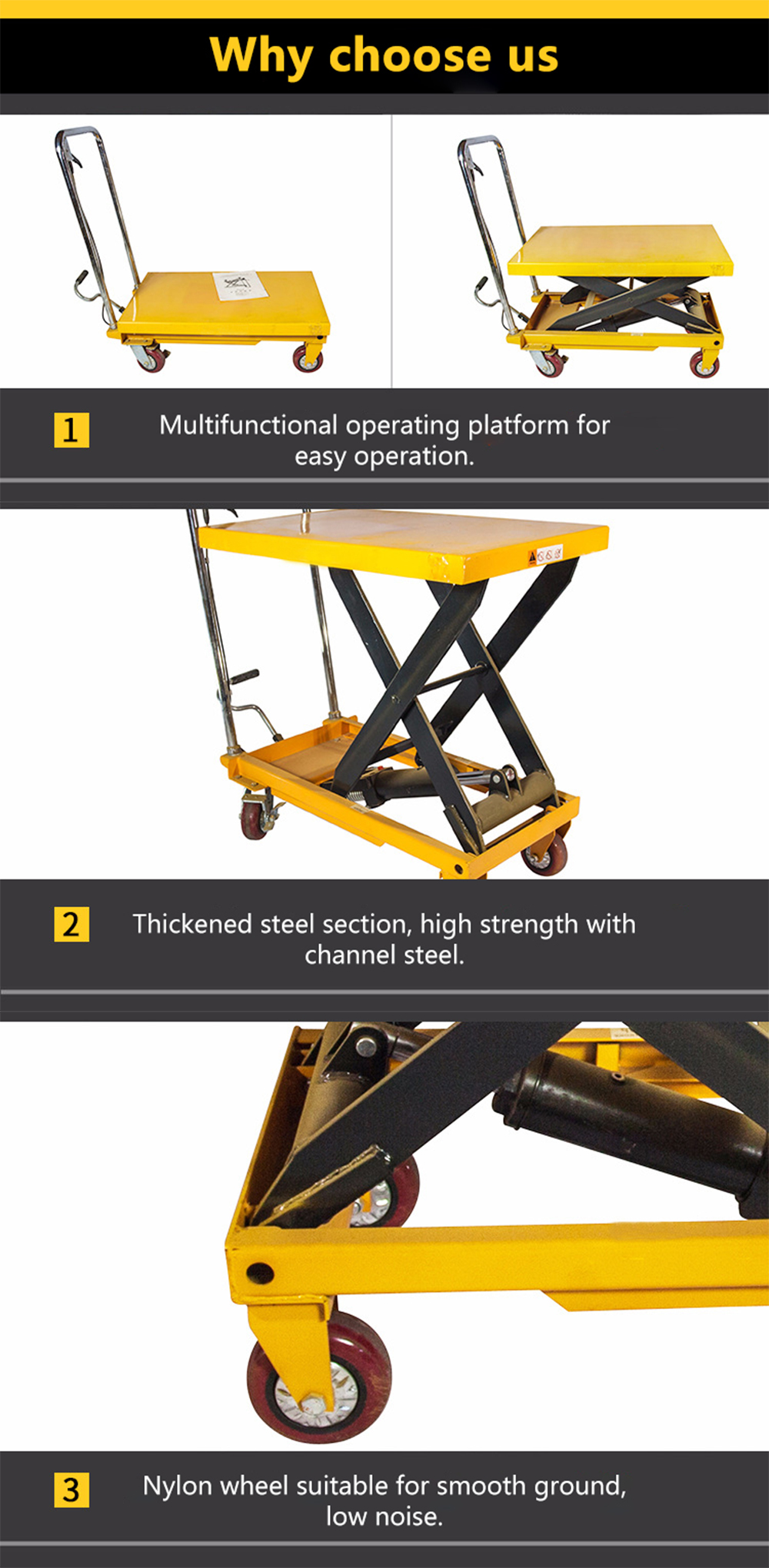

Product Advantages:
Product Application:

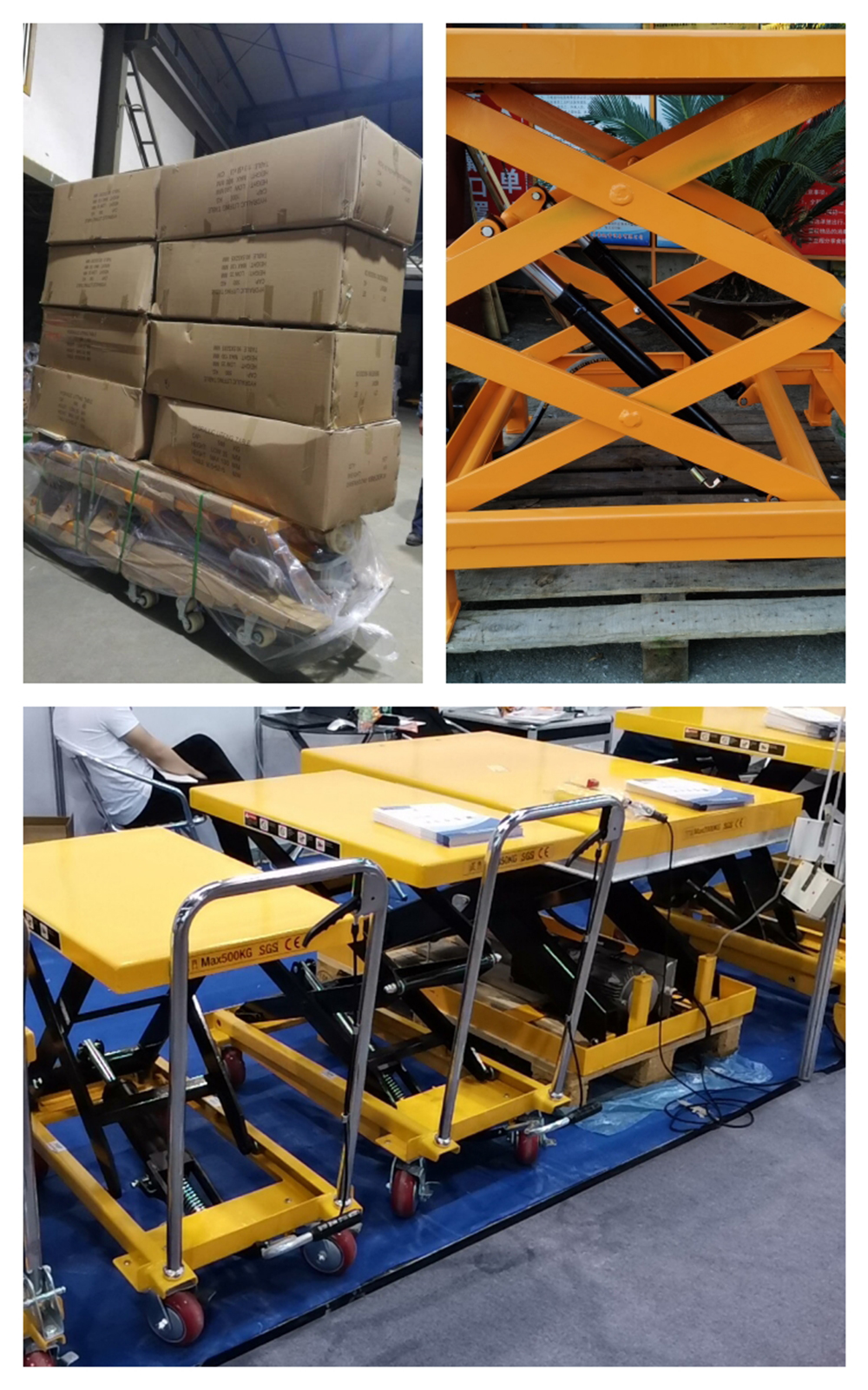

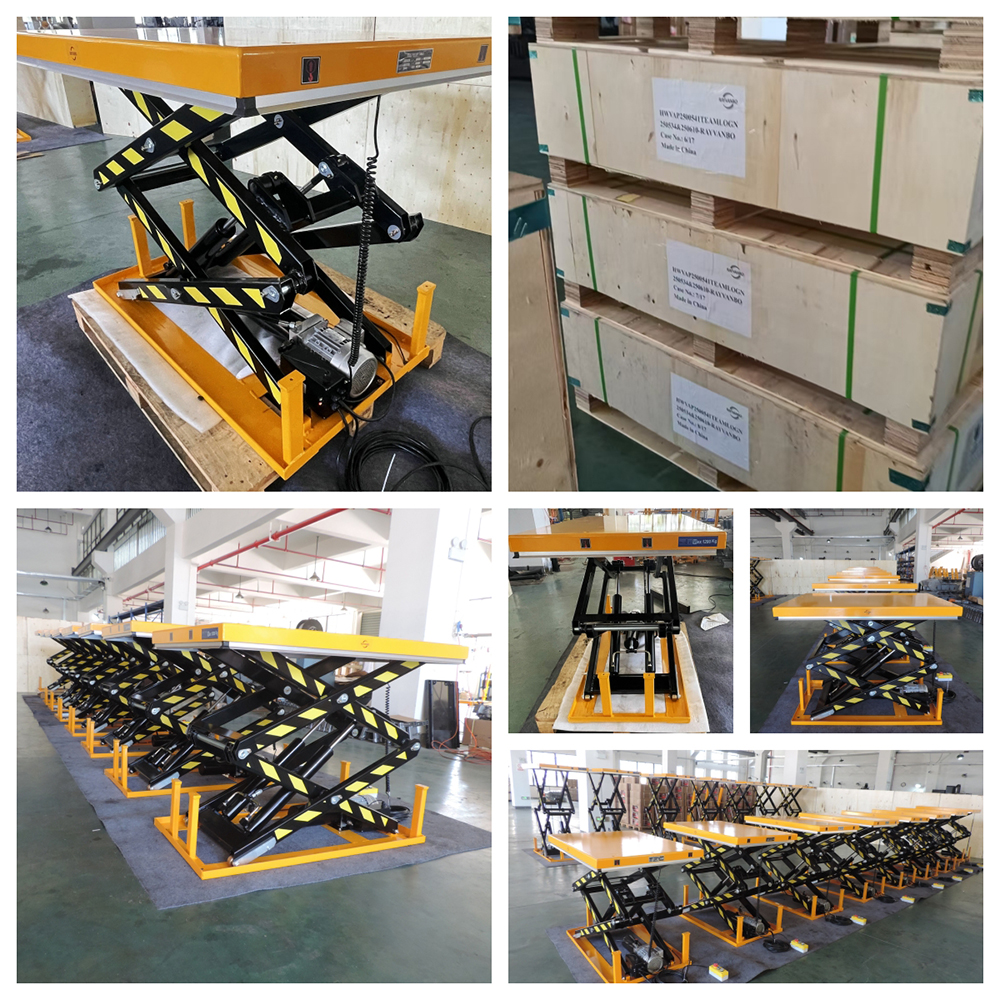

Shipping & Packaging:
