Rated Load Capacity：500kg,700kg,1000kg
Lifting Height:1300mm,1500mm,1600mm
Product Description
1.The whole vehicle is made of alloy Made of steel material, strength High and good rigidity.
2. The lifting system uses a hydraulic system, which is more reliable and durable than the mechanical structure.
3. Adopt lightweight design, light weight and flexible operation.
4. Use efficient gear pumps and motors to make the hydraulic system more energy-saving.
5. Descent using powered descent It is controlled separately from gravity descent. Gravity descent does not consume electrical energy, making the battery life longer.
6.The legs are chromium-plated, which has the characteristics of good appearance, corrosion resistance, high hardness and wear resistance, which reduces the use of the legs. The wear and tear during use will keep the pull-out flexible for a long time.

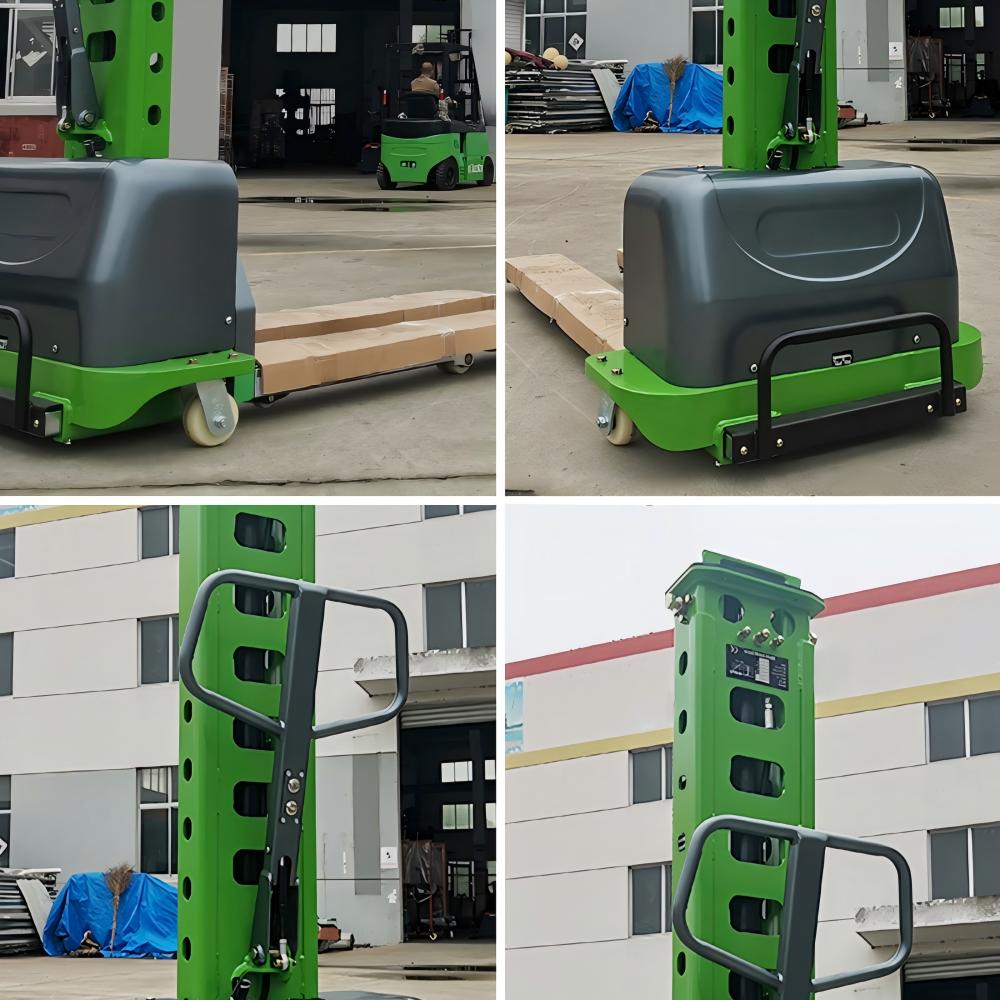

Details Features
1. Steering chain assist device;
2. Foot brake, more stable;
3. Sealed battery maintenance-free; safe operation, no pollution;
4. Explosion-proof valve design; descent is more stable and reliable;
5. Over-discharge protection, extend battery life.

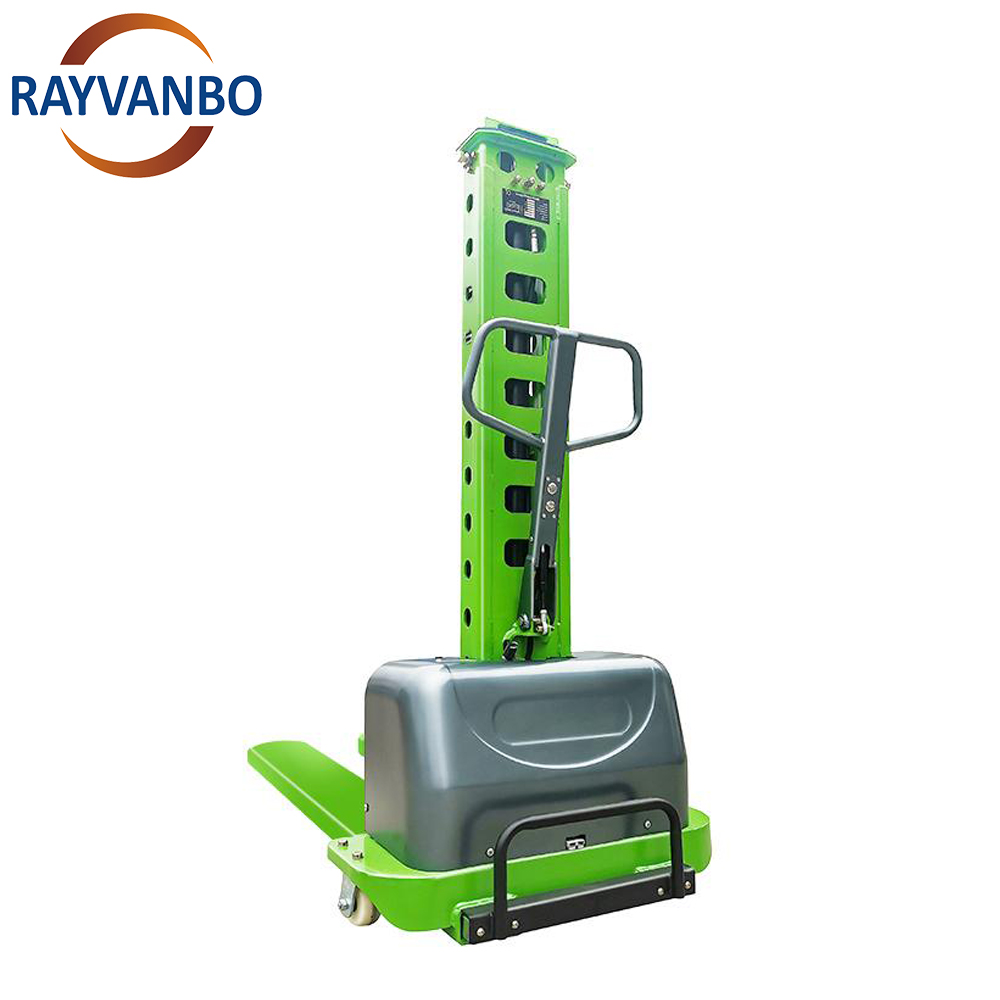

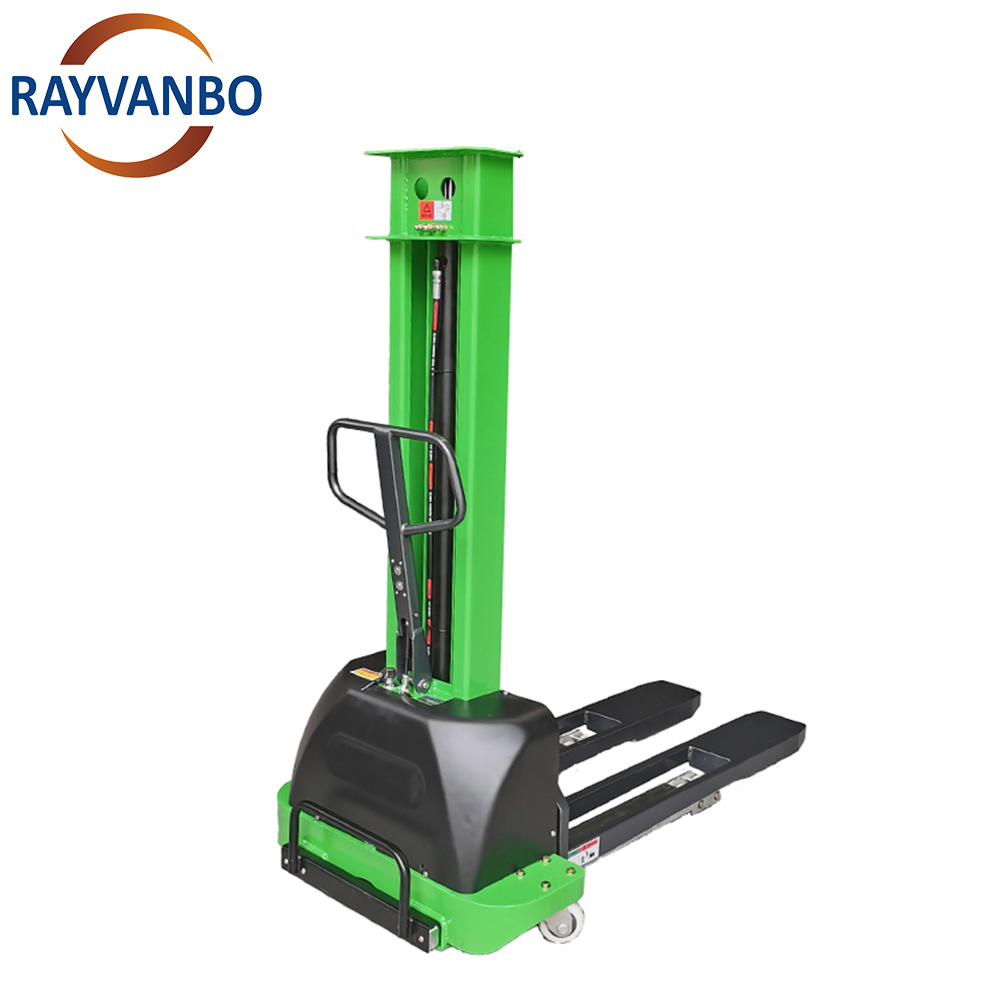

Right elevation Left elevatio.
Specification
Model |
/ |
RVB05 |
RVB07 |
RVB10 |
Features |
Power Type |
Battery |
Battery |
Battery |
Rated Load Capacity |
500kg |
700kg |
1000kg |
|
Load Center Distance |
400mm |
400mm |
400mm |
|
Wheelbase |
815mm |
788mm |
780mm |
|
Front Track Width |
380mm |
405mm |
398mm/518mm |
|
Rear Track Width |
665mm/815mm |
690mm/810mm |
708mm/928mm |
|
Dimensions |
Front Wheel Size |
70mm*60mm |
80mm*60mm |
70mm*60mm |
Caster Wheel Size |
100mm*45mm |
100mm*50mm |
100mm*50mm |
|
Middle Wheel Size |
45mm*26mm |
65mm*30mm |
65mm*30mm |
|
Maximum Fork Lift Height |
800mm/900mm/1000mm/
1100mm/1200mm/1300mm/
1500mm/1600mm
|
800mm/900mm/1000mm/
1100mm/1200mm/1300mm/
1500mm/1600mm
|
800mm/900mm/1000mm/
1100mm/1200mm/1300mm/
1500mm/1600mm
|
|
Fork Outside Distance |
535mm/685mm |
565mm/685mm |
565mm/(685mm) |
|
Fork Length |
1150mm |
1150mm |
1150mm |
|
Fork Thickness |
60mm |
60mm |
60mm |
|
Fork Width |
155mm |
190mm |
193mm |
|
Overall Length |
1570mm |
1152mm |
1544mm |
|
Body Width |
786mm/936mm |
809mm/929mm |
835mm/955mm |
|
Overall Height(Mast to Top Height) |
1150mm/1207mm/1307mm/
1407mm/1507mm/1607mm/
1807mm/1907mm
|
1155mm/1255mm/1355mm/
1455mm/1555mm/1655mm/
1855mm/1955mm
|
1166mm/1266mm/1366mm/
1466mm/1566mm/1666mm/
1866mm/1966mm
|
|
Overall Height(Mast to Top Height) |
1870mm/2070mm/2270mm/
2470mm/2670mm/2870mm/
3270mm/3470mm
|
1875mm/2075mm/2275mm/
2475mm/2675mm/2875mm/
3275mm/3475mm
|
1850mm/2050mm/2250mm/
2450mm/2650mm/2850mm/
3250mm/3450mm
|
|
|
Performance
&
Configuration
|
Lifting Speed |
55mm/s |
55mm/s |
55mm/s |
Lowering Speed |
80mm/s |
100m/s |
100m/s |
|
Lifting Motor Power |
0.8kw |
0.8kw |
1.6kw |
|
Battery Specification |
12V/52AH |
12V/52AH |
12V/52AH |

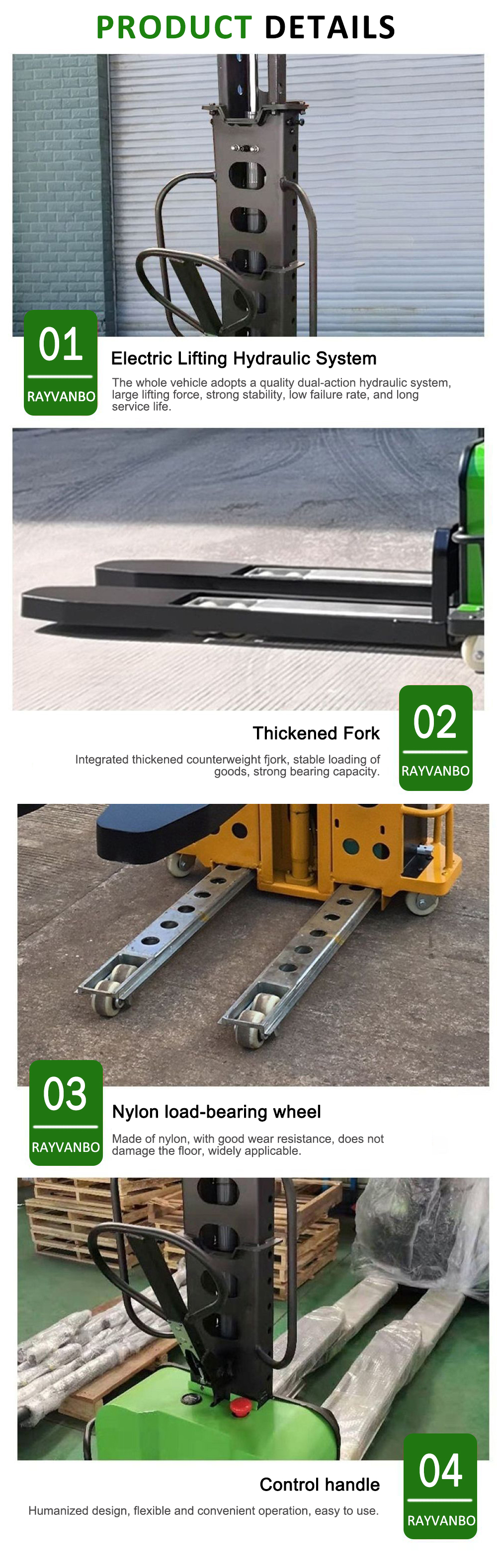

Product Details

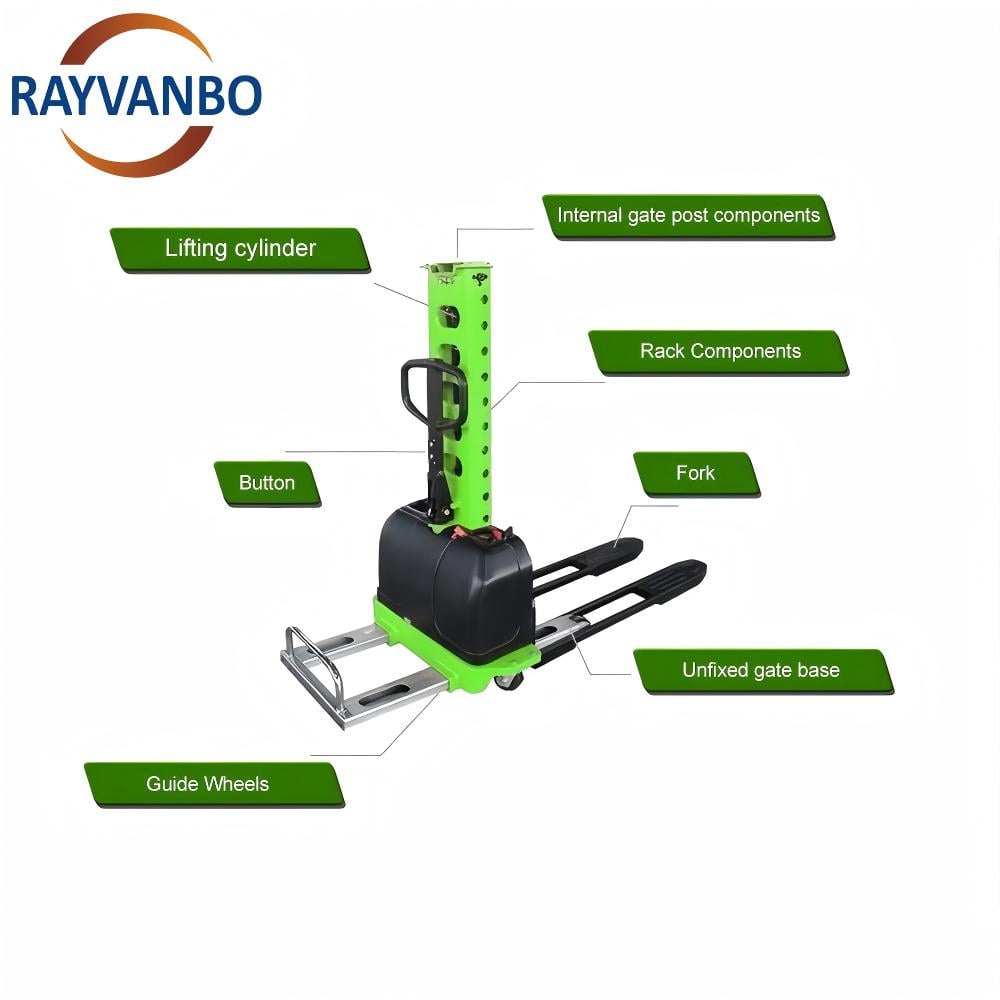

Product Structure
Product Application

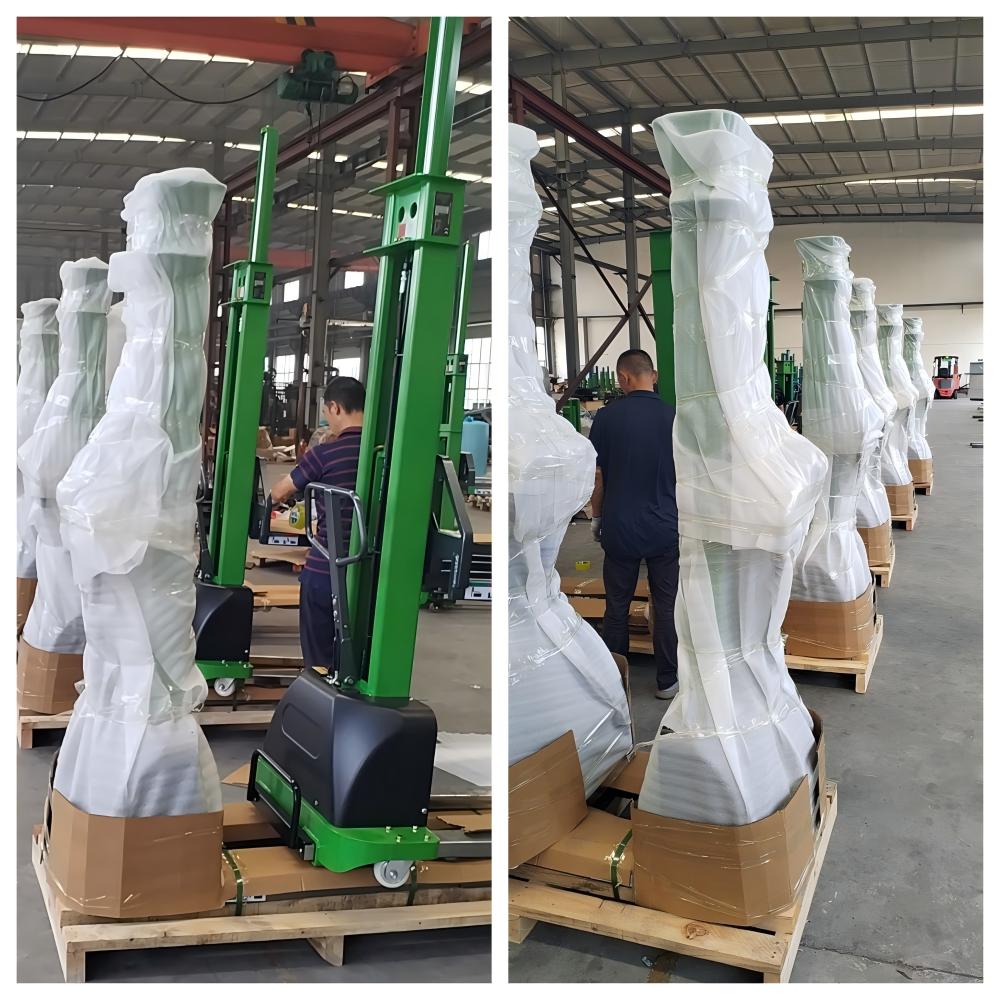

Shipping&Packaging
