Rated Load Capacity:1000kg,1300kg,1500kg
Lifting Height：1300mm,1500mm,1600mm
Product Description
1. The whole vehicle is made of alloy Made of steel material, strength High and good rigidity.
2. The lifting system uses a hydraulic system, which is more reliable and durable than the mechanical structure.
3. Adopt lightweight design, light weight and flexible operation.
4. Use efficient gear pumps and motors to make the hydraulic system more energy-saving.
5. Descent using powered descent It is controlled separately from gravity descent. Gravity descent does not consume electrical energy, making the battery life longer.
6.The legs are chromium-plated, which has the characteristics of good appearance, corrosion resistance, high hardness and wear resistance, which reduces the use of the legs. The wear and tear during use will keep the pull-out flexible for a long time.
Details Features

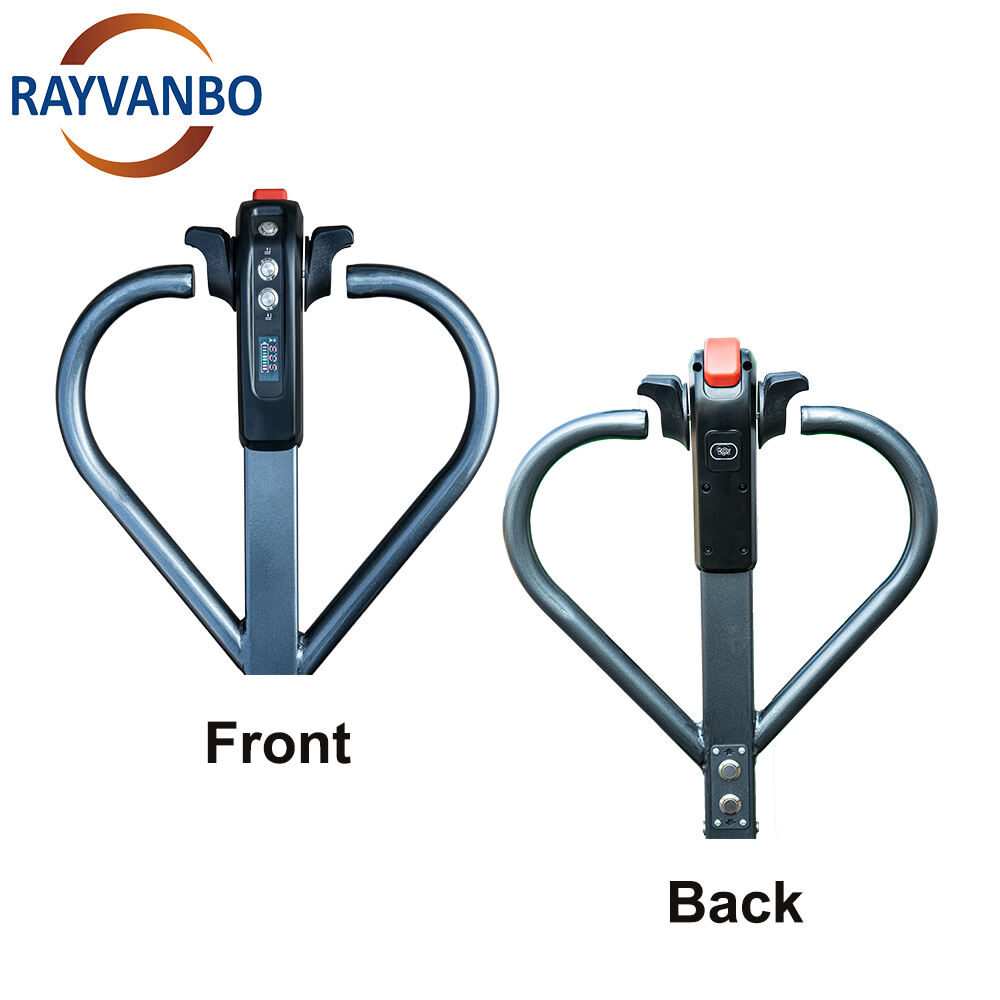

1. Steering chain assist device;
2. Foot brake, more stable;
3. Sealed battery maintenance-free; safe operation, no pollution;
4. Explosion-proof valve design; descent is more stable and reliable;
5. Over-discharge protection, extend battery life.

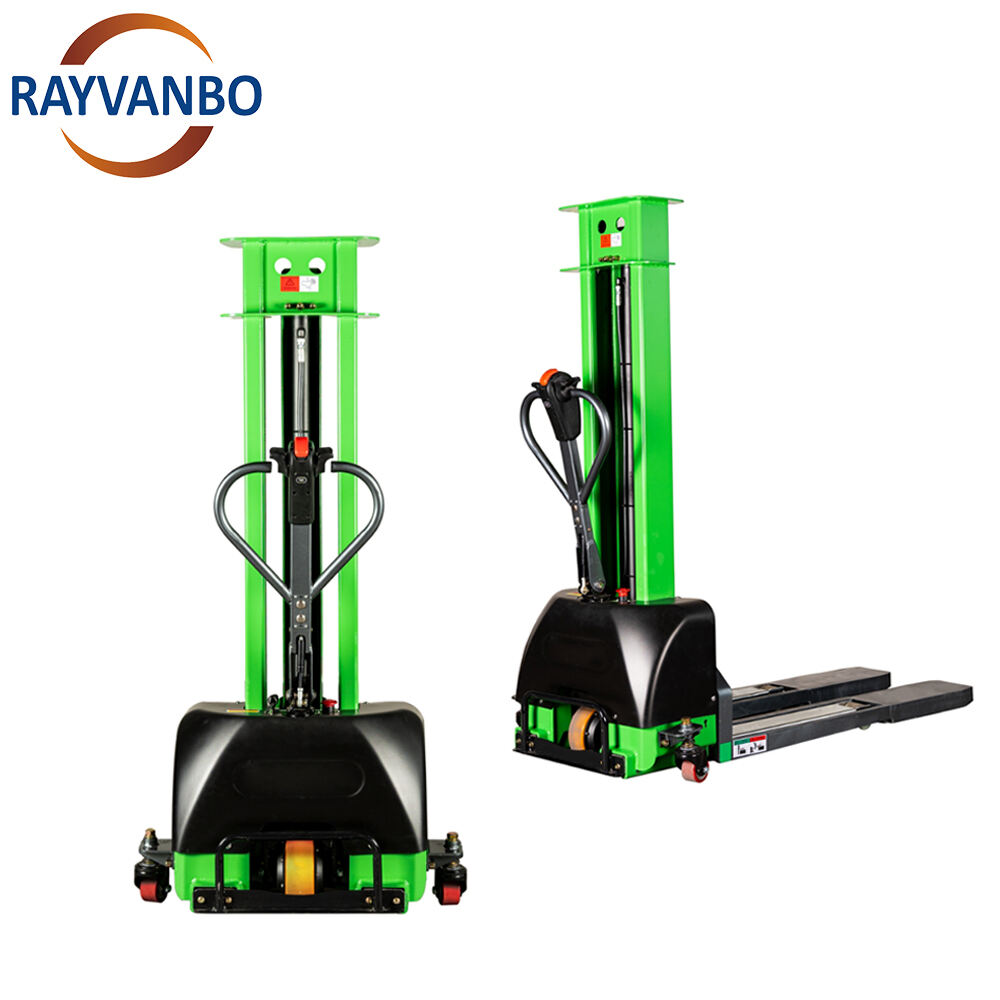

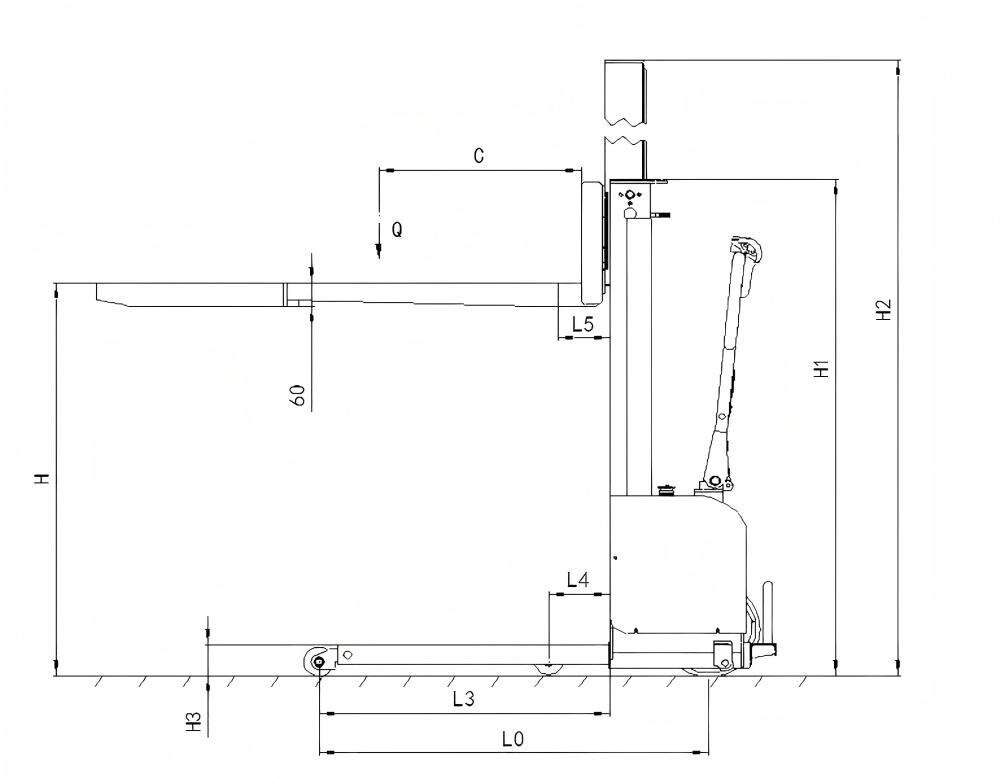

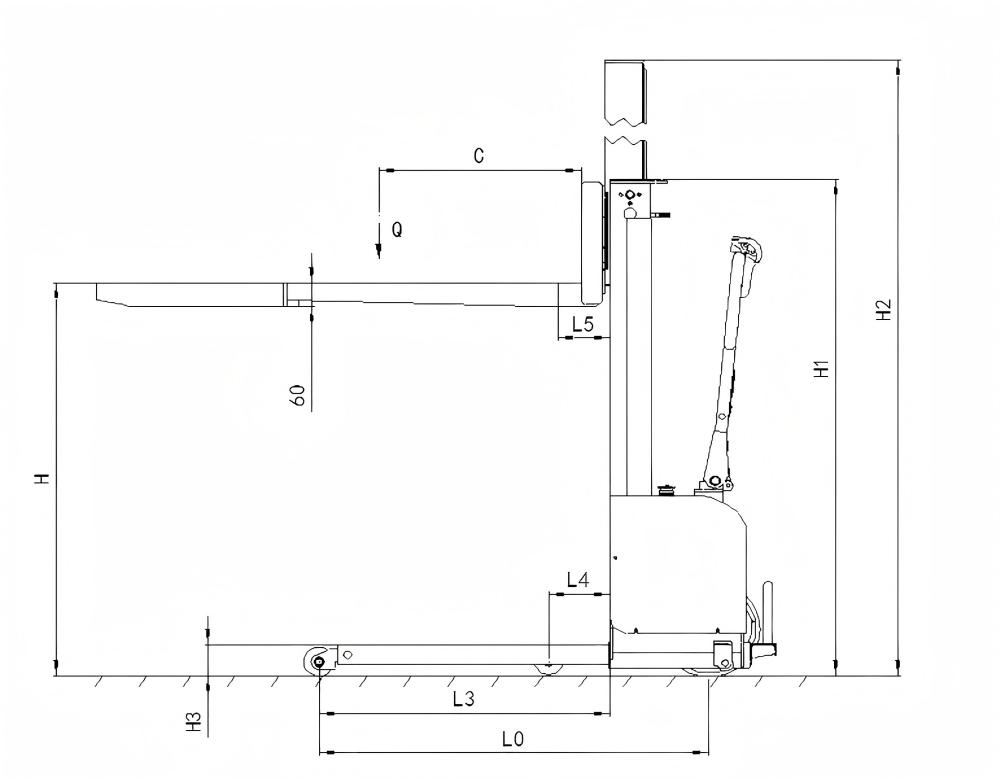

Right elevation Left elevatio.
Specification
Model |
/ |
RVB |
RVB |
RVB |
Features |
Power Type |
Lithium Battery |
Lithium Battery |
Lithium Battery |
Rated Load |
1000kg |
1300kg |
1500kg |
|
Load Center |
400mm |
400mm |
400mm |
|
Dimensions |
Front Wheel Size |
80mm*70mm |
80mm*70mm |
80mm*70mm/80mm*60mm |

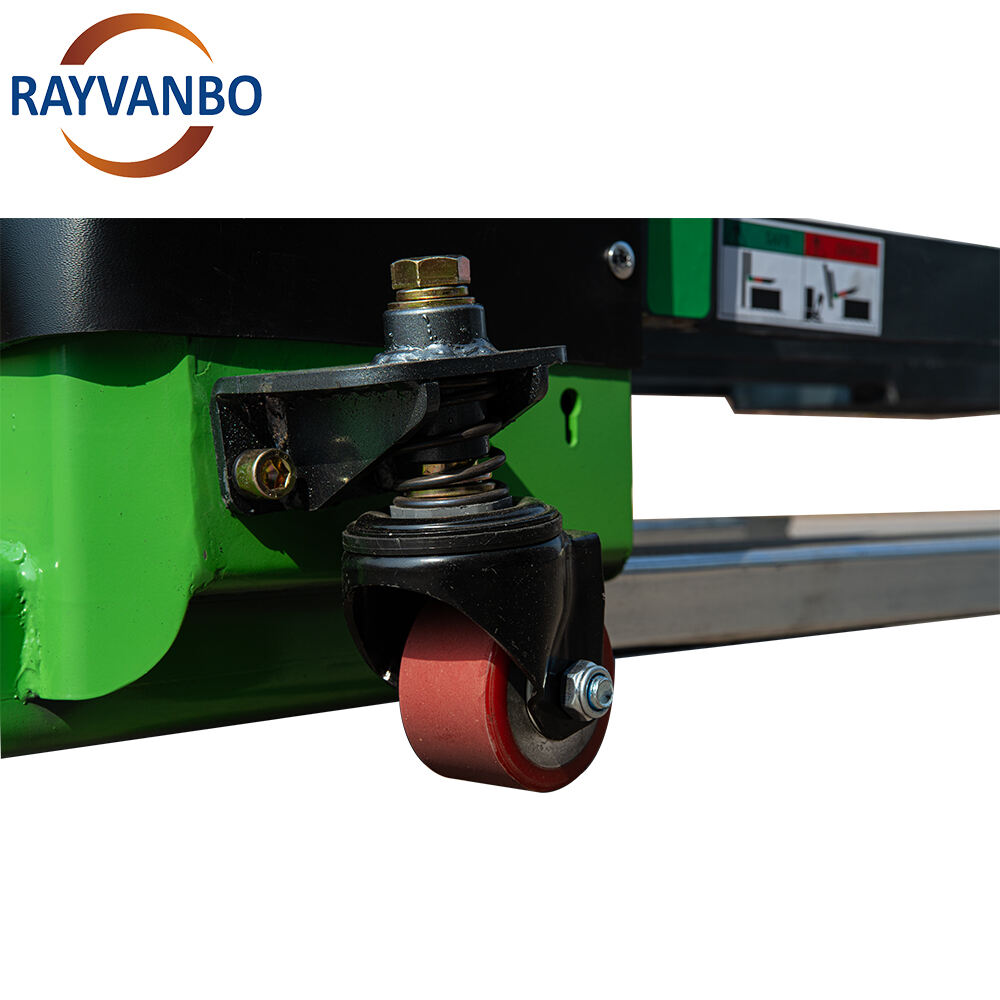

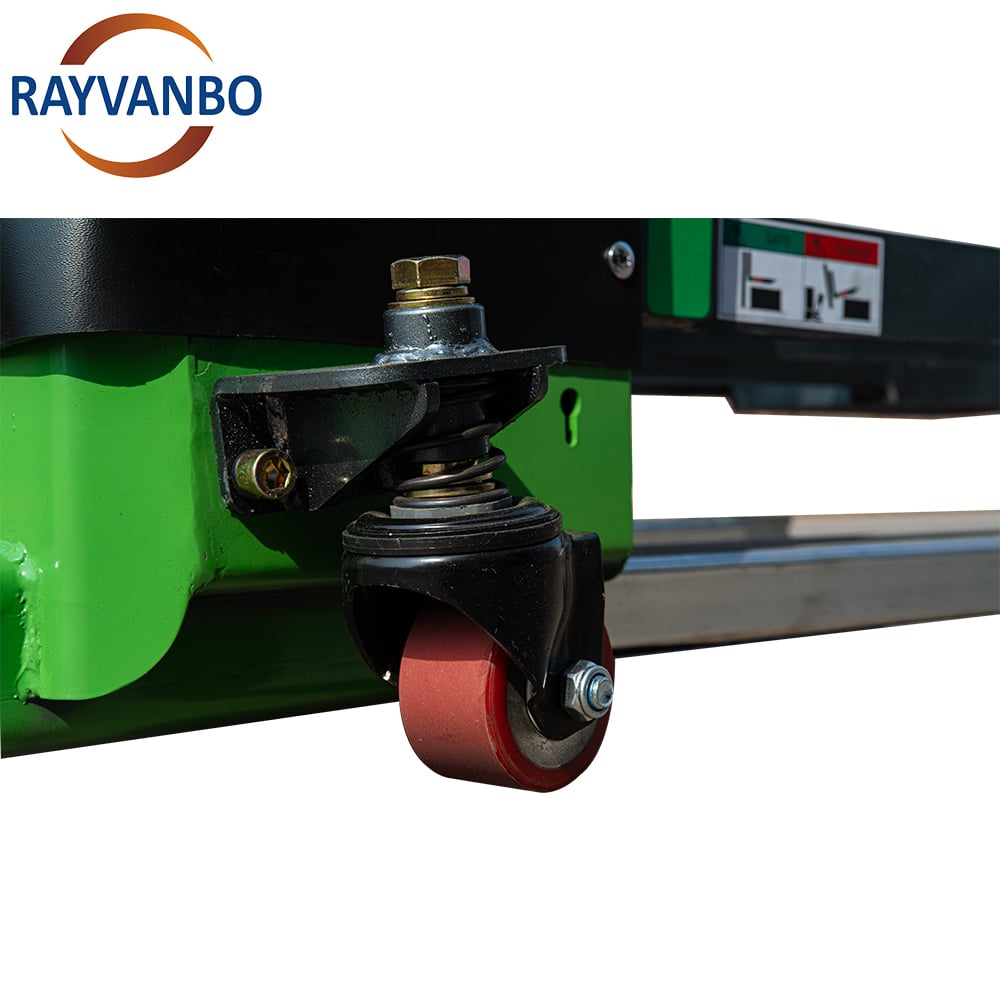

Caster Wheel Size |
75mm*45mm |
75mm*45mm |
75mm*45mm |
|
Middle Wheel Size |
45mm*30mm |
45mm*30mm |
45mm*30mm |
|
Drive Wheel Size |
185mm*70mm |
185mm*70mm |
185mm*70mm |
|
Maximum Fork Lift Height |
800mm/900mm/1000mm /1100mm/1200mm/1300mm/ 1500mm/1600mm |
800mm/900mm/1000mm/ 1100mm/1200mm/1300mm/ 1500mm/1600mm |
800mm/900mm/1000mm/ 1100mm/1200mm/1300mm/ 1500mm/1600mm |
|
Fork Spread |
565mm/685mm |
565mm/685mm |
565mm/685mm |
|
Fork Length |
1195mm |
1250mm |
1250mm |
|
Fork Width |
190mm |
190mm |
190mm |
|
Overall Length |
1603mm |
1655mm |
1657mm |
|
Body Width |
852mm |
852mm |
802mm |
|
Overall Height(Mast Lowered) |
1166mm/1266mm/1366mm/ 1466mm/1566mm/1666mm/ 1866mm/1966mm |
1163mm/1263mm/1363mm/ 1463mm/1563mm/1663mm/ 1863mm/1963mm |
1163mm/1263mm/1363mm/ 1463mm/1563mm/1663mm/ 1863mm/1963mm |
|
Overall Height(Mast Extended) |
1850mm/2050mm/2250mm/ 2450mm/2650mm/2850mm/ 3250mm/3450mm |
1861mm/2061mm/2261mm/ 2461mm/2661mm/2861mm/ 3261mm/3461mm |
1861mm/2061mm/2261mm/ 2461mm/2661mm/2861mm/ 3261mm/3461mm |
|
|
Performance
&
Configuration
|
Lifting Speed |
55mm/s |
55mm/s |
55mm/s |
Lowering Speed |
100mm/s |
100m/s |
100m/s |
|
Lifting Motor |
1.6kw |
0.8kw |
2kw |
|
Drive Motor |
0.8kw |
0.8kw |
0.8kw |
|
Gradeability(Loaded/Unloaded) |
5%/10% |
5%/10% |
5%/10% |
|
Battery Capacity |
48V/25AH |
48V/25AH |
48V/25AH |

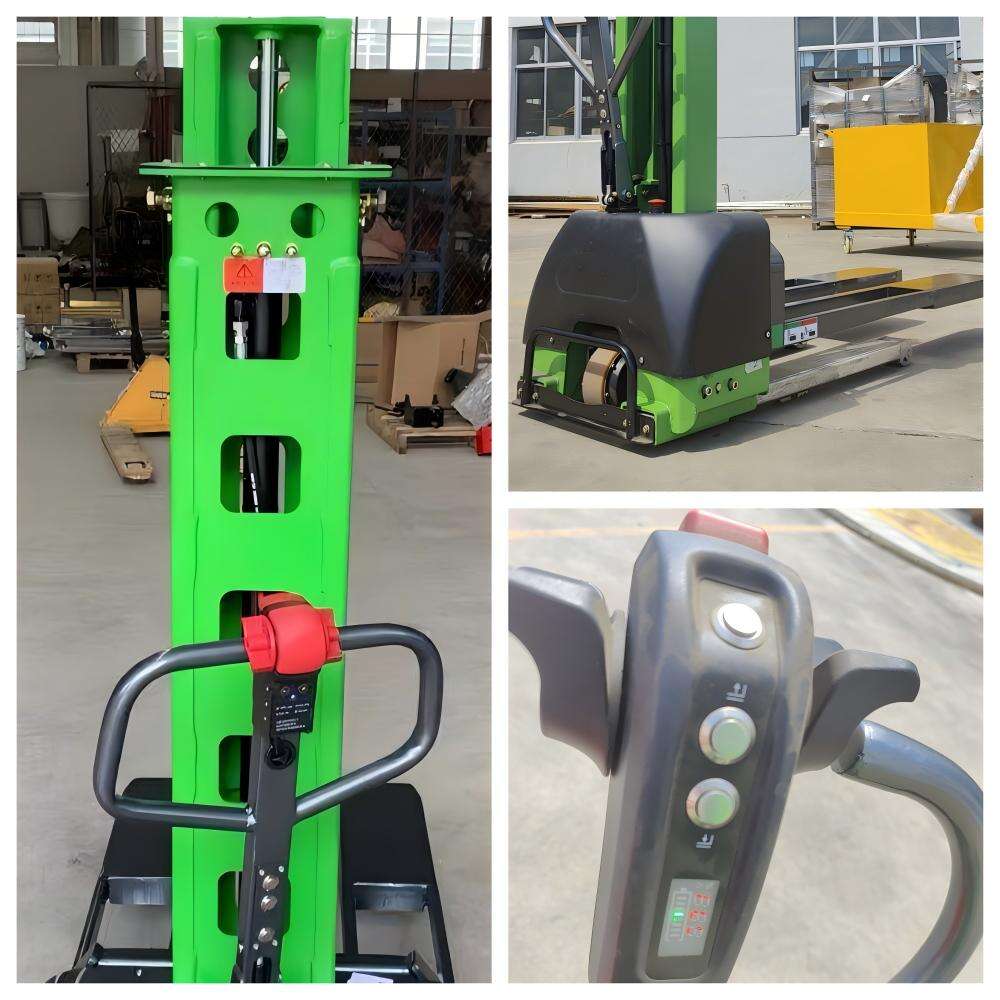

Product Details
