Product Name：Air Electric Chain Hoist
Type：Fixed type
Lifting Capacity：8-20 ton(can be customized)
Lifting Height: 1.5-5m(can be customized)
Product Description

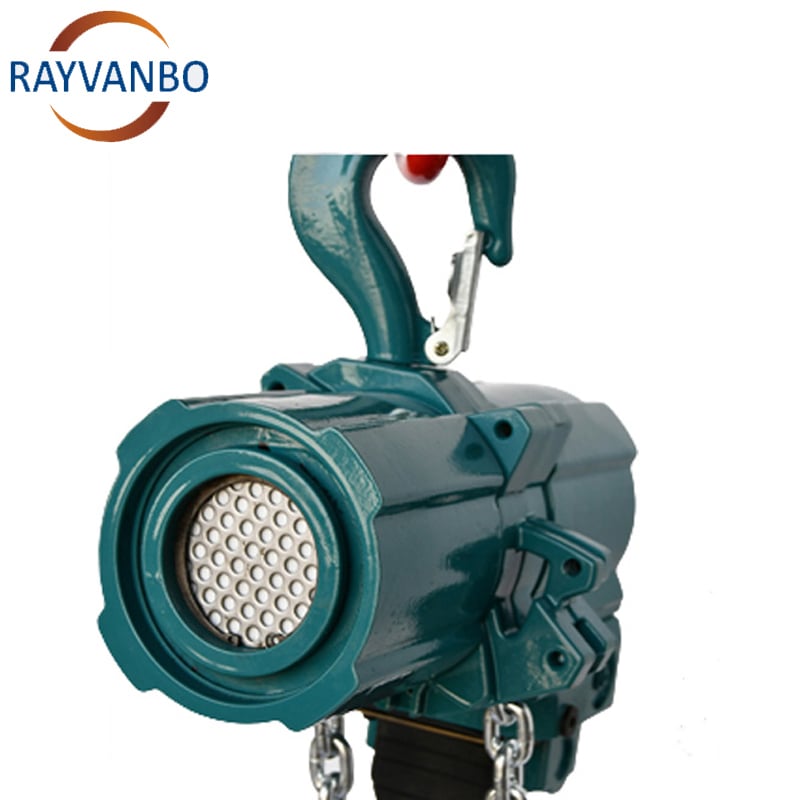

The RAYVANBO Pneumatic Chain Hoist is a high-performance lifting solution powered by compressed air, making it ideal for use in hazardous and demanding work environments. Engineered for safety and efficiency, it is widely applied in industries such as petroleum, chemical processing, shipbuilding, and mining, where explosion-proof and spark-free operation is essential.
Built with a thickened protective housing, G80 manganese steel chain, and reinforced alloy steel hooks, this hoist is designed to withstand heavy-duty applications while ensuring long-term durability and reliability. The precision air motor allows for smooth, responsive control, reducing the risk of chain jamming and increasing operational safety.
Its lightweight and compact structure makes it easy to install and maintain, while the low air consumption and fast lifting speed enhance productivity in intensive workflows.
Whether lifting, lowering, or holding loads in place, the RAYVANBO pneumatic hoist delivers consistent performance under tough conditions.
Proven in global markets and exported to many countries, this hoist offers a combination of advanced technology, industrial-grade materials, and user-centered design—a trusted choice for professional lifting applications.
Product Parameters：
Model |
Lift Capacity(t) |
Air pressure(bar) |
Full load lifting Speed(m/min) |
Empty lifting speed(m/min) |
Motor output(kw) |
0.25T |
0.16 |
4 |
20 |
37.5 |
0.6 |
0.25T |
0.25 |
6 |
20 |
42 |
1 |
0.5T |
0.32 |
4 |
10 |
16 |
0.6 |
0.5T |
0.5 |
6 |
11 |
19 |
1 |
1T |
0.63 |
4 |
5 |
10 |
0.6 |
1T |
1 |
6 |
5.5 |
11 |
1 |
2T |
1.25 |
4 |
2.5 |
5 |
0.6 |
2T |
2 |
6 |
2.7 |
5.5 |
1 |
3T |
3 |
4 |
2.5 |
6 |
1.8 |
3T |
3.2 |
6 |
5 |
10 |
3.5 |
5T |
5 |
4 |
1.2 |
3 |
1.8 |
5T |
5 |
6 |
2.5 |
5 |
3.5 |
6T |
6 |
4 |
1.2 |
3 |
1.8 |
6T |
6.3 |
6 |
2.5 |
5 |
3.5 |
10T |
10 |
4 |
0.8 |
2 |
1.8 |
10T |
10 |
6 |
1.6 |
3.2 |
3.5 |
Product Details:
Product Advantages
This high-performance pneumatic chain hoist is engineered for industrial-grade lifting with a focus on safety, durability, and efficiency. Its compact and avant-garde design ensures a lightweight yet powerful lifting solution, featuring a low noise output and high operational reliability. Equipped with sealed dust proof sprocket bearings, it minimizes maintenance and enhances longevity in dusty or humid environments. The use of high-grade G80 manganese steel chains and hooks—quenched and tempered for maximum strength—guarantees a safety factor five times higher than standard tension requirements. This hoist is built for consistent, smooth operation without chain jams, making it ideal for long-term, heavy-duty use.
Application Scenarios
Designed to meet the demands of various challenging environments, this pneumatic hoist is a versatile solution for multiple industries. In the shipbuilding industry, its resistance to dust and moisture and its wide operating temperature range (-20°C to 70°C) make it perfect for coastal or marine applications. On construction sites, the hoist can be used repeatedly without performance degradation, making it suitable for high-frequency lifting tasks. In the chemical industry, its pneumatic drive ensures safe operation in hazardous or explosive environments, where traditional electric hoists may pose risks. Whether in heavy manufacturing, shipyards, or chemical plants, this hoist delivers reliable lifting power when and where it's needed most.

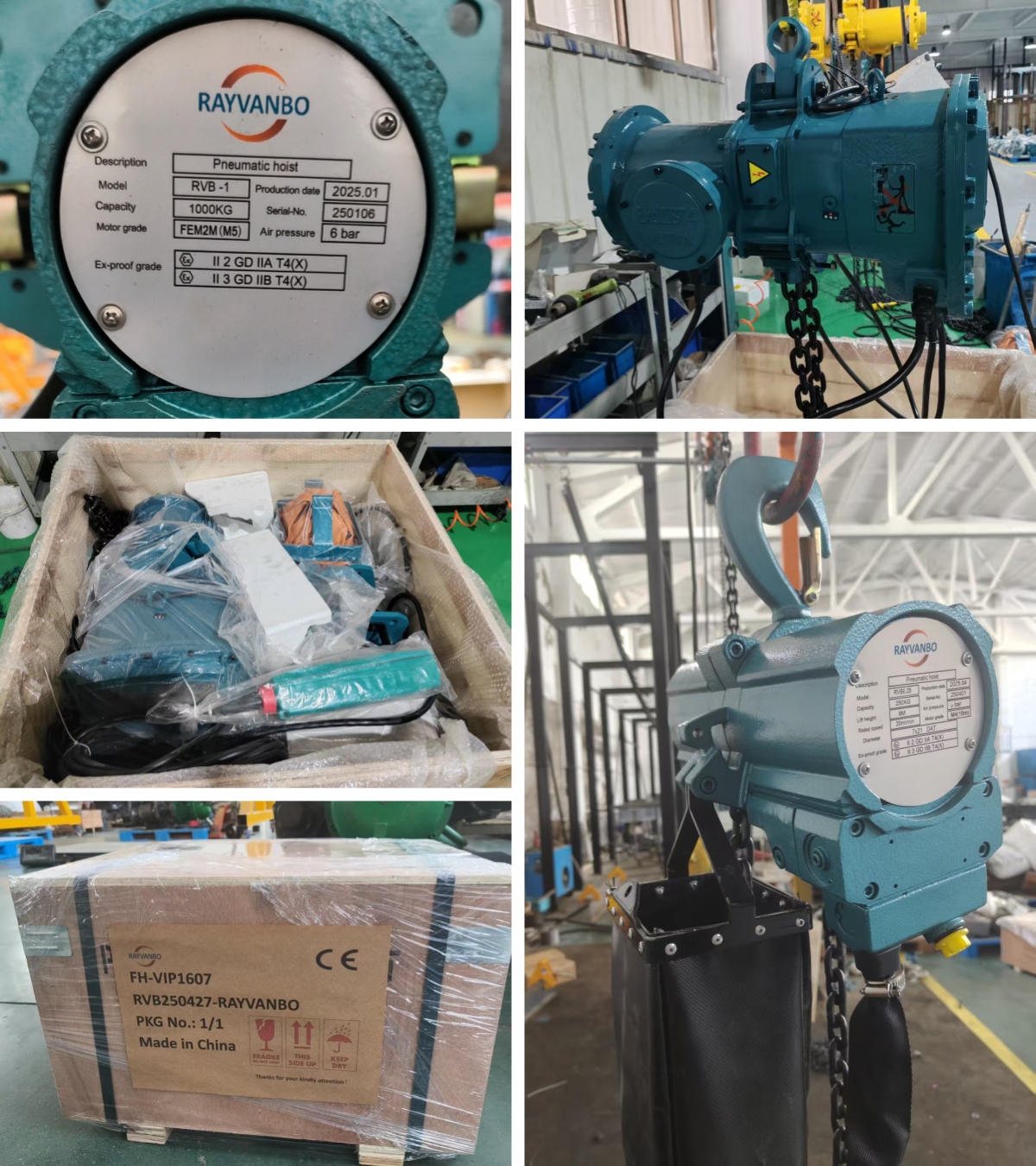

Shipping & Packaging:
