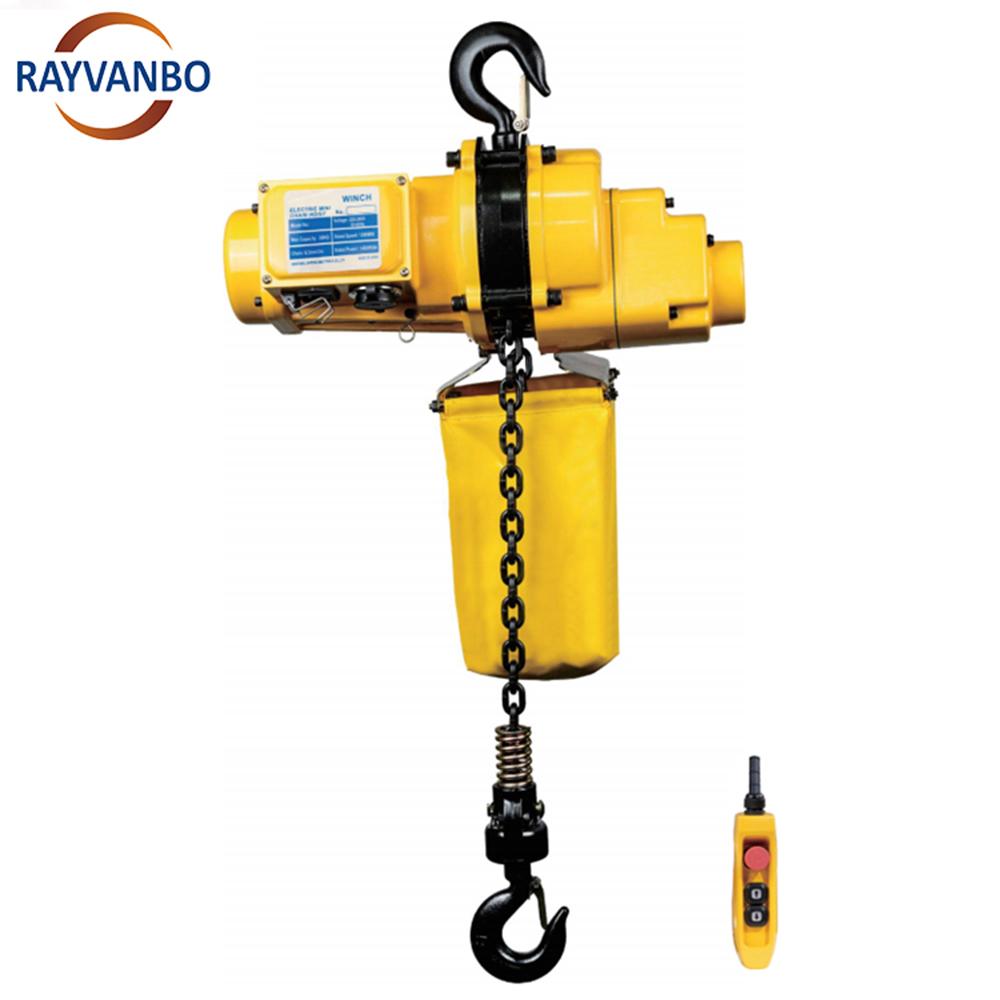

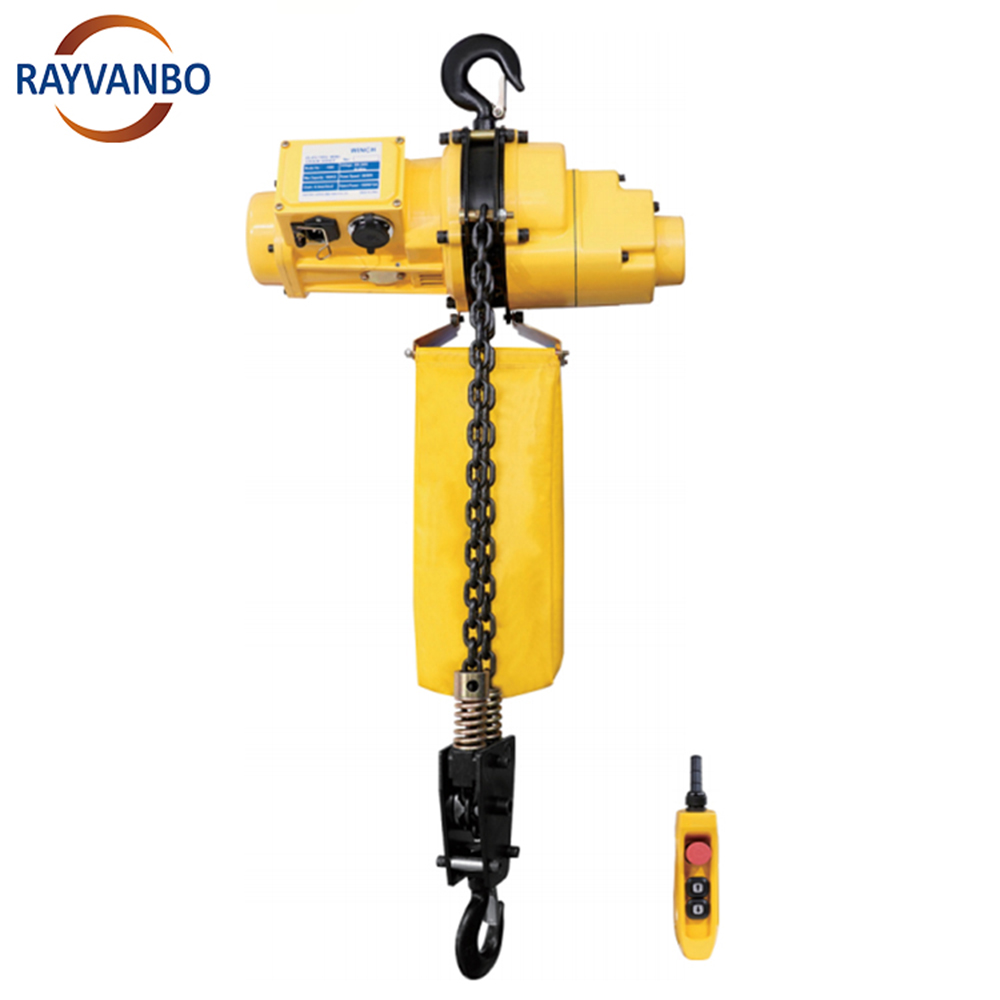

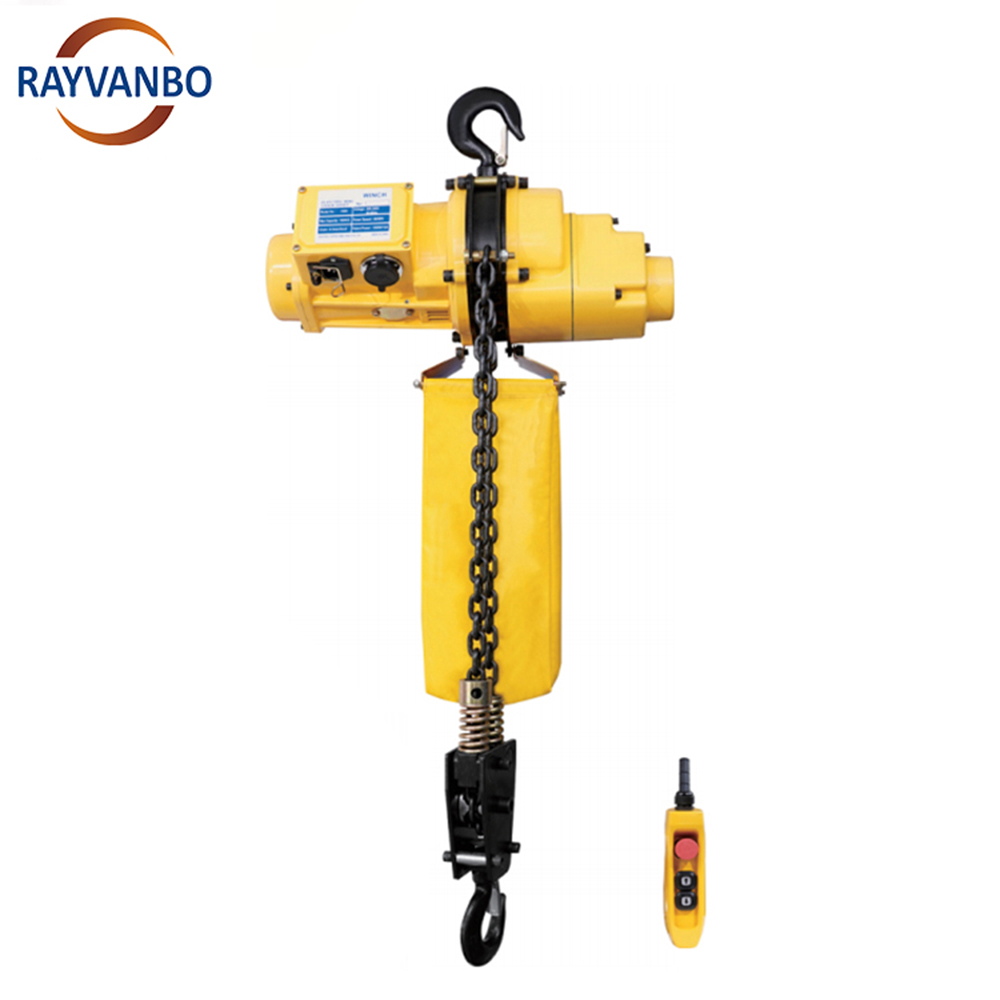

Product Name：Mini Electric Chain Hoist
Model：BCD
Lifting Capacity：300kg/500kg/1000kg/2000kg (Can be customized)
Voltage：110V 50~60Hz / 220V~240V 50~60Hz
Lifting Speed: 2.7M/min,3M/min,5M/min,6M/min,12M/min, (Can be customized)
Single-phase electric chain hoist is a small lifting equipment with the characteristics of small size, light weight, easy operation and beautiful appearance. In particular, the unique power phase sequence protection device (except for two-phase electricity) makes it safer and more reliable.

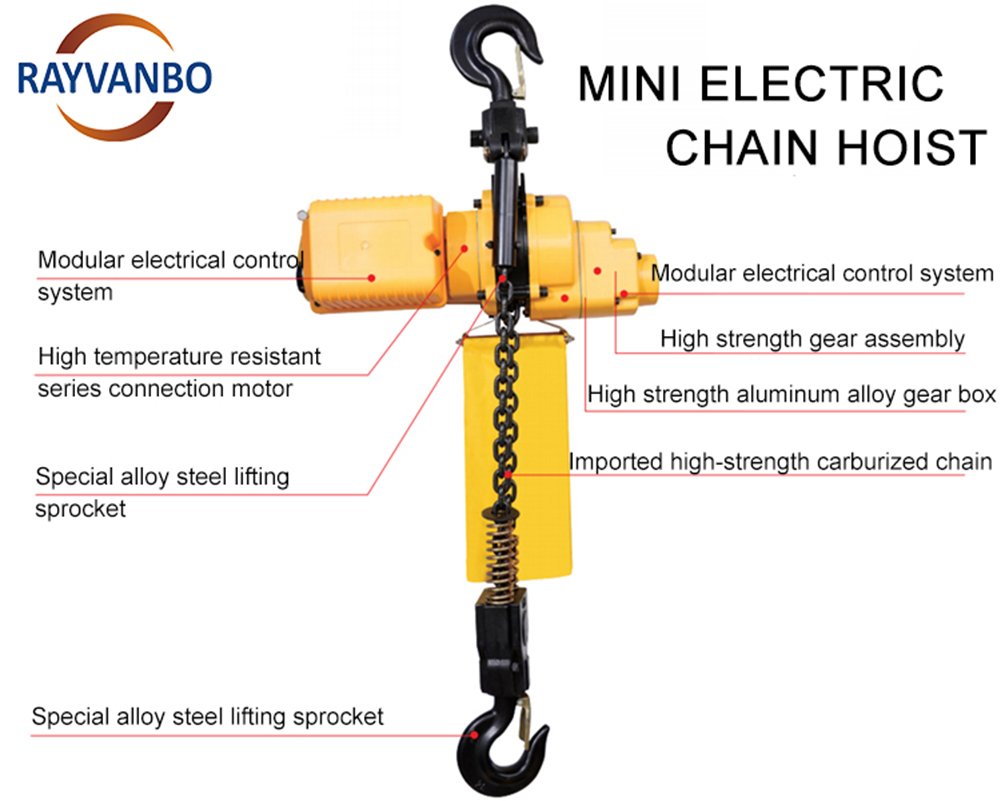

Product Features:
1.The motor system adopts an industrial grade wound carbon brush motor. The heat resistance of the enameled wire in the motor is up to 200°C, . and it can continuously provide good durability under high temperature conditions when lifting.
2.Dual braking system: unique mechanical braking and short-circuit resistance braking system.
3.Direct and indirect control systems are streamlined, efficient, and have a low failure rate. They are safe, stable, and easy to maintain.
4.The chain is made of 80 grade alloy steel, with a safety factor of 4 tim.
Product Parameters:
Model |
Load Pated |
Voltage |
Speed |
Motor |
Chain |
BCD-300 |
300kg |
220V~240V 50~60Hz |
12M/min |
1400W |
6.3mm/3M |
300kg |
110V 50~60Hz |
12M/min |
1400W |
6.3mm/3M |
|
BCD-500 |
500kg |
220V~240V 50~60Hz |
6M/min |
1500W |
6.3mm/3M |
500kg |
110V 50~60Hz |
6M/min |
1500W |
6.3mm/3M |
|
BCD-1000D |
1000kg |
220V~240V 50~60Hz |
3M/min |
1500W |
6.3mm/3M*2 |
1000kg |
110V 50~60Hz |
3M/min |
1500W |
6.3mm/3M*2 |
|
BCD-1000S |
1000kg |
220V~240V 50~60Hz |
5.4M/min |
2500W |
7.1mm/3M |
1000kg |
110V 50~60Hz |
5.4M/min |
2500W |
7.1mm/3M |
|
BCD-2000 |
2000kg |
220V~240V 50~60Hz |
2.7/min |
2500W |
7.1mm/3M*2 |
2000kg |
110V 50~60Hz |
2.7M/min |
2500W |
7.1mm/3M*2 |

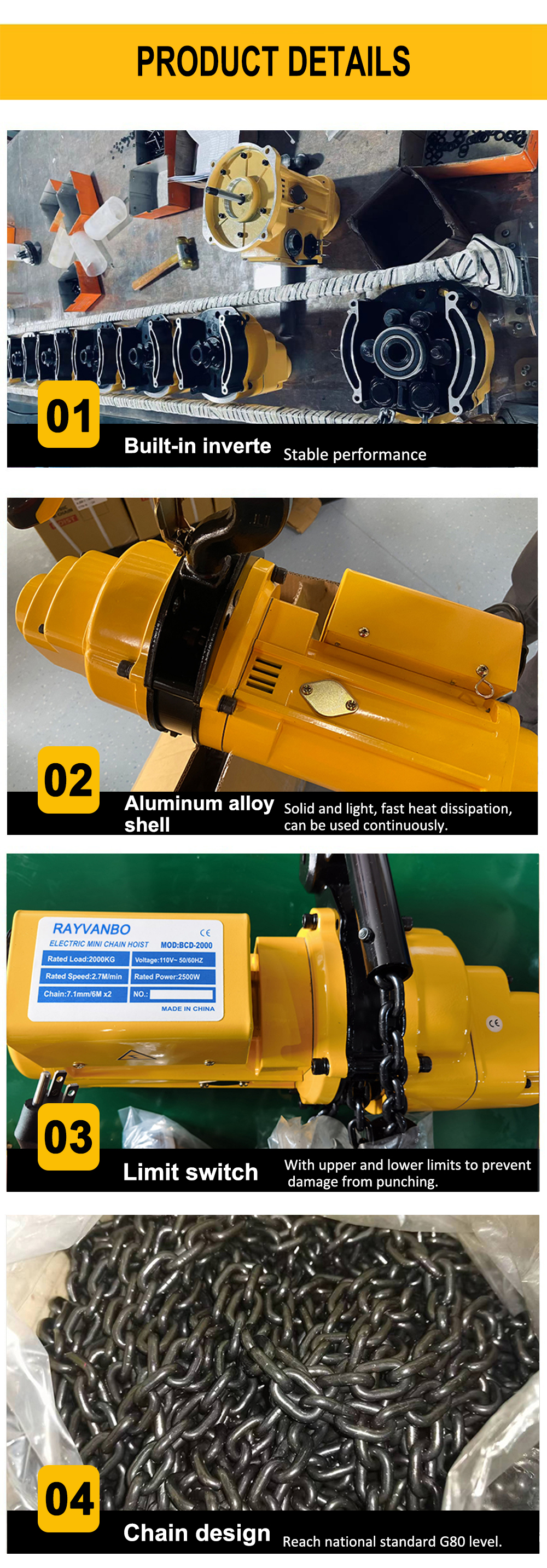

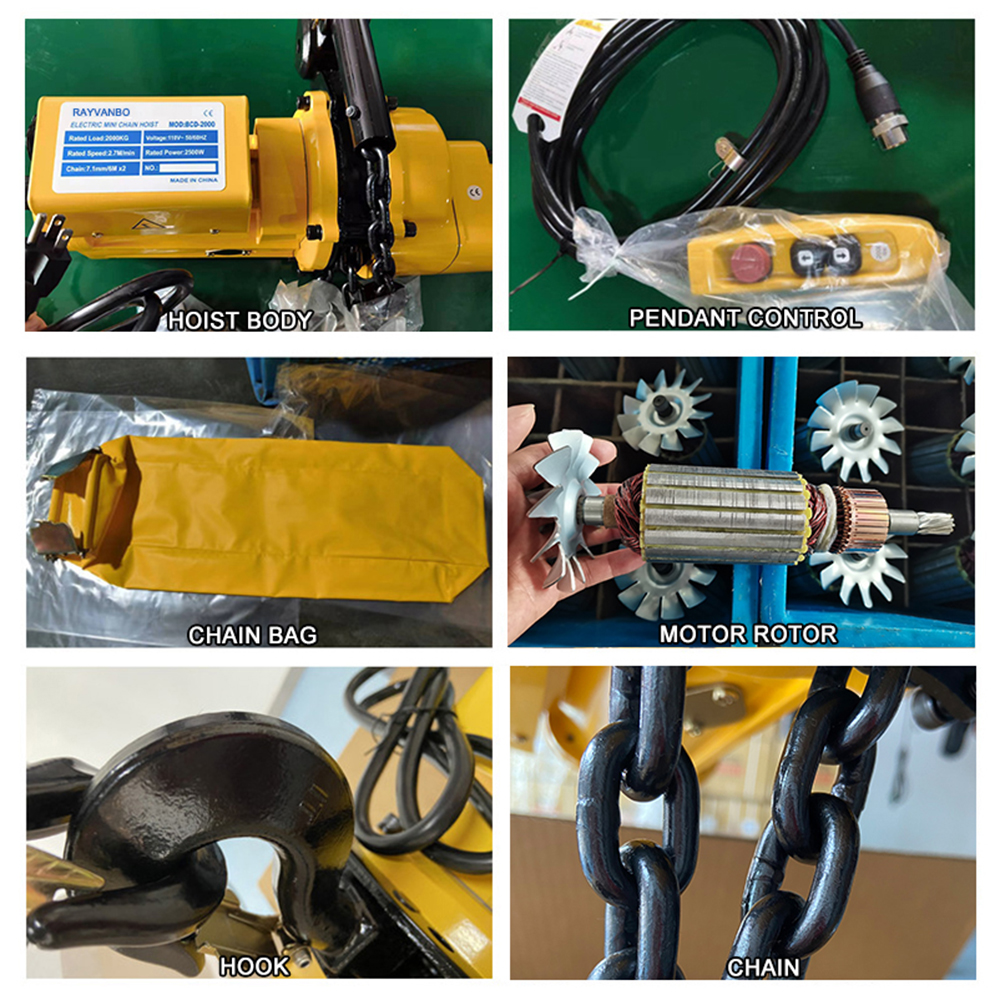

Product Destails:

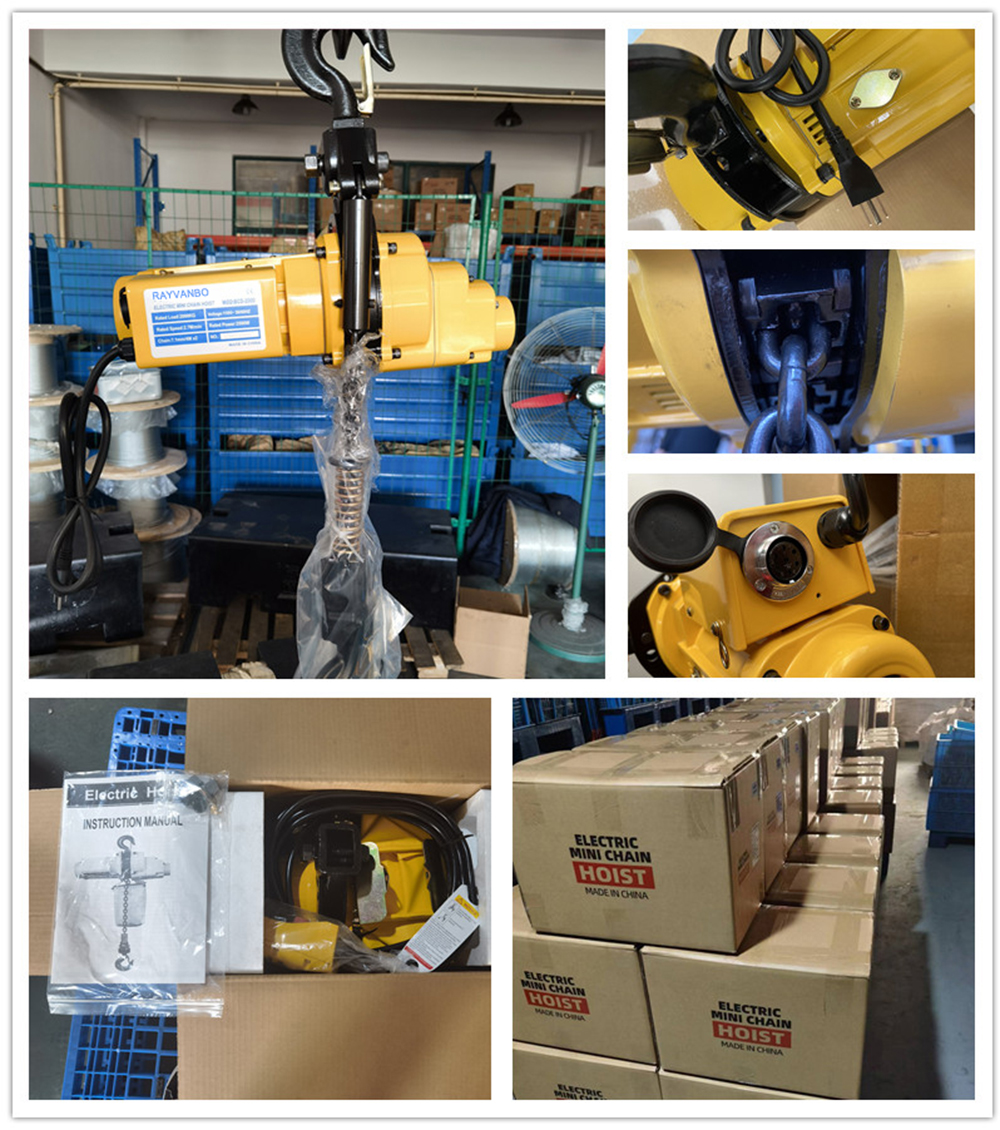

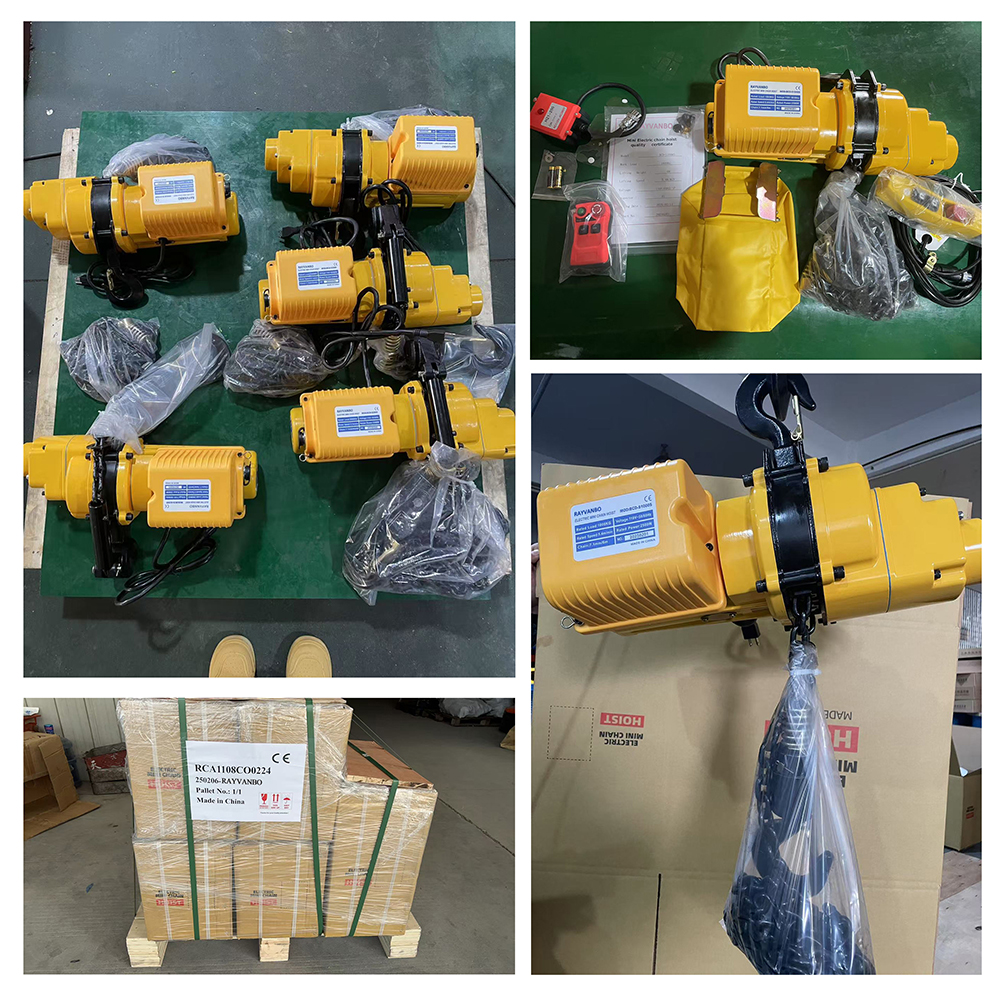

Shipping & Packaging:
