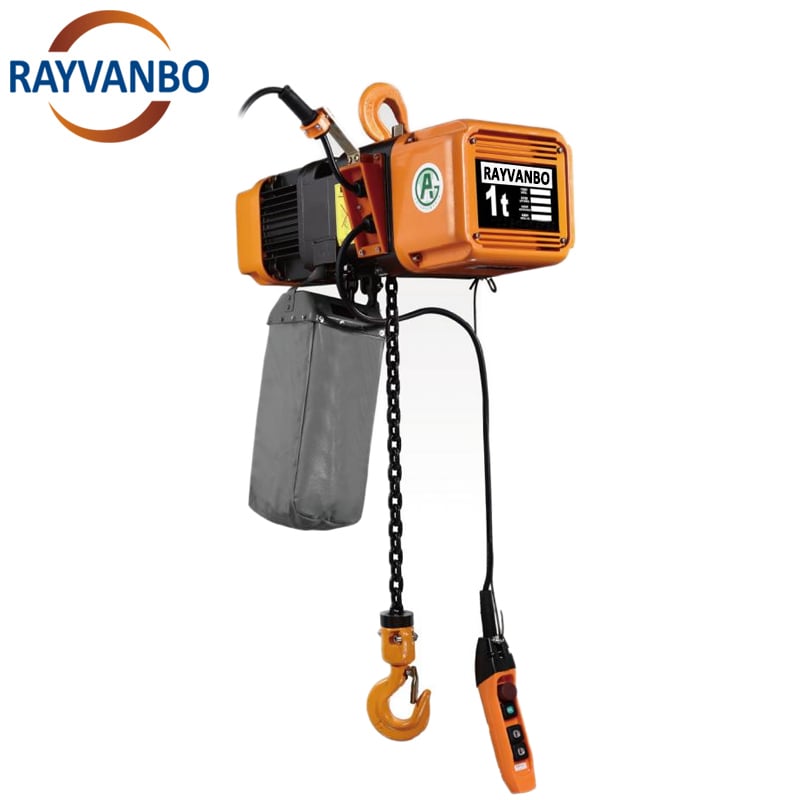

Product Name：ER Type Electric Chain Hoist
Model: ER

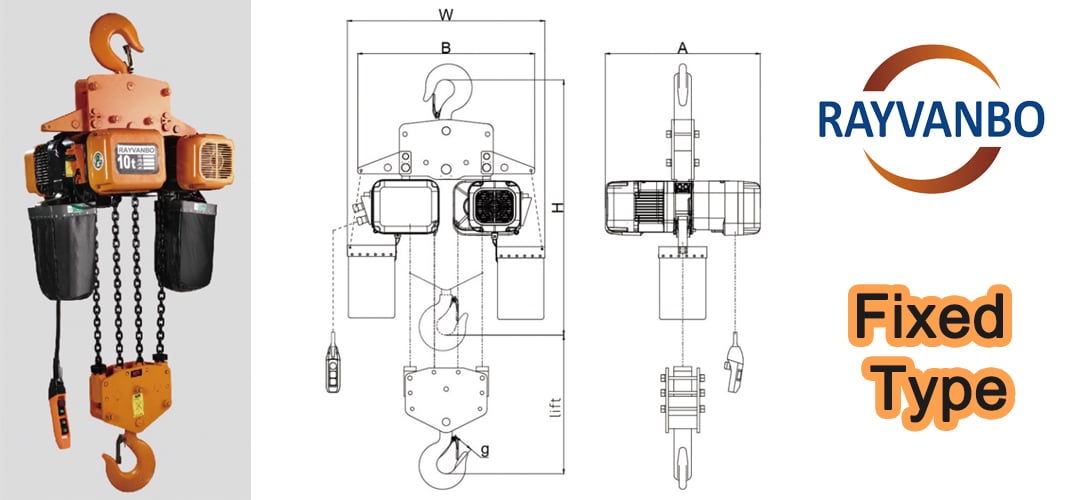

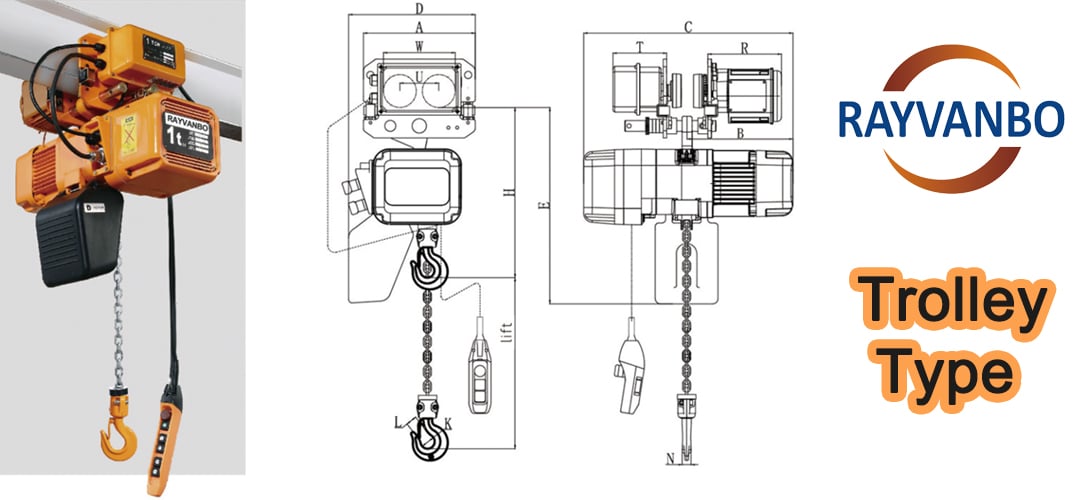

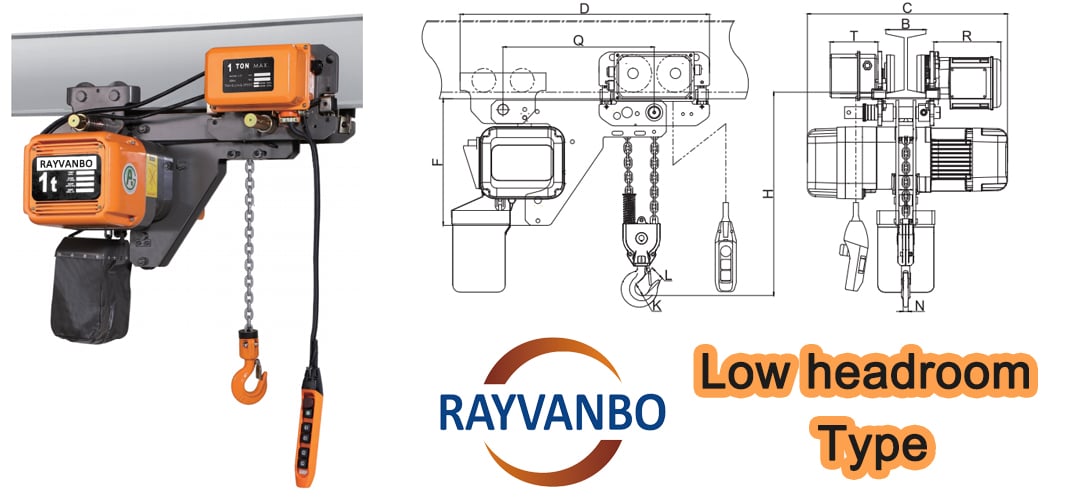

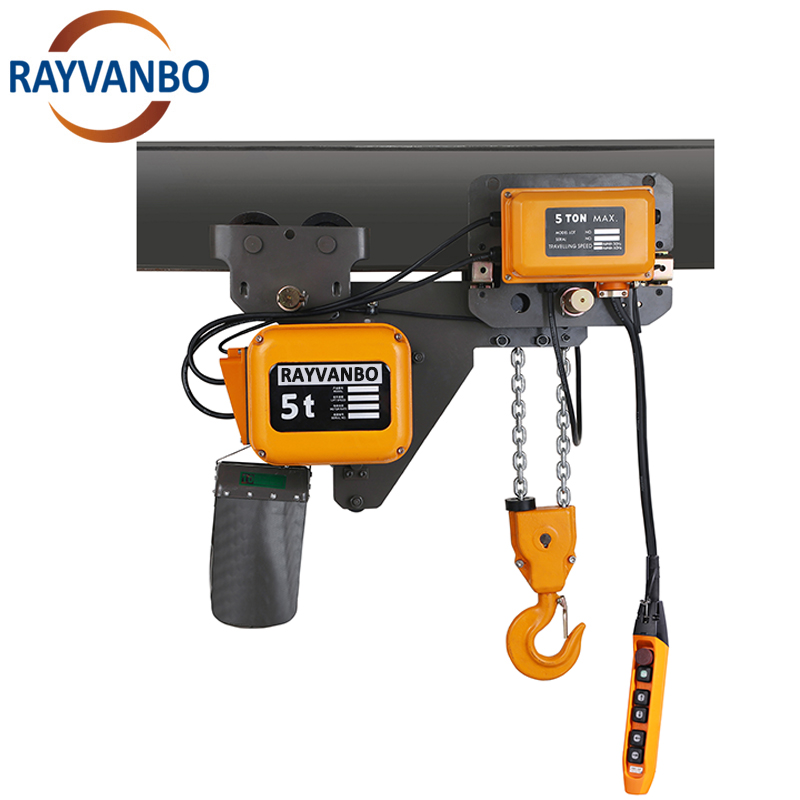

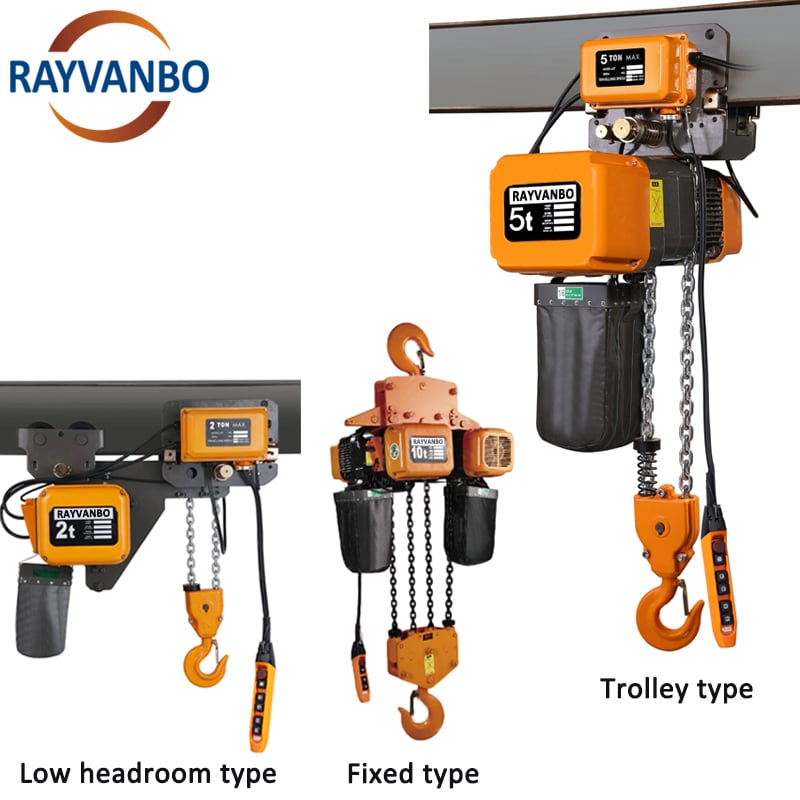

Type：Fixed type / Electric trolley type / Low headroom type
Lifting Capacity：1-15 ton(Can be customized )
Lifting Height: 4-15m（Can be customized）
Product Description:
ER electric chain hoist is one of Rayvanbo's main products. Compared with HHBB electric chain hoist, ER electric chain hoist has a smaller body size, which greatly expands the scope of use in the workshop.
ER electric chain hoist is equipped with 380V 50Hz 3Phase power supply, single speed and double speed optional, working level up to M5, safe and reliable, durable and easy to maintain.

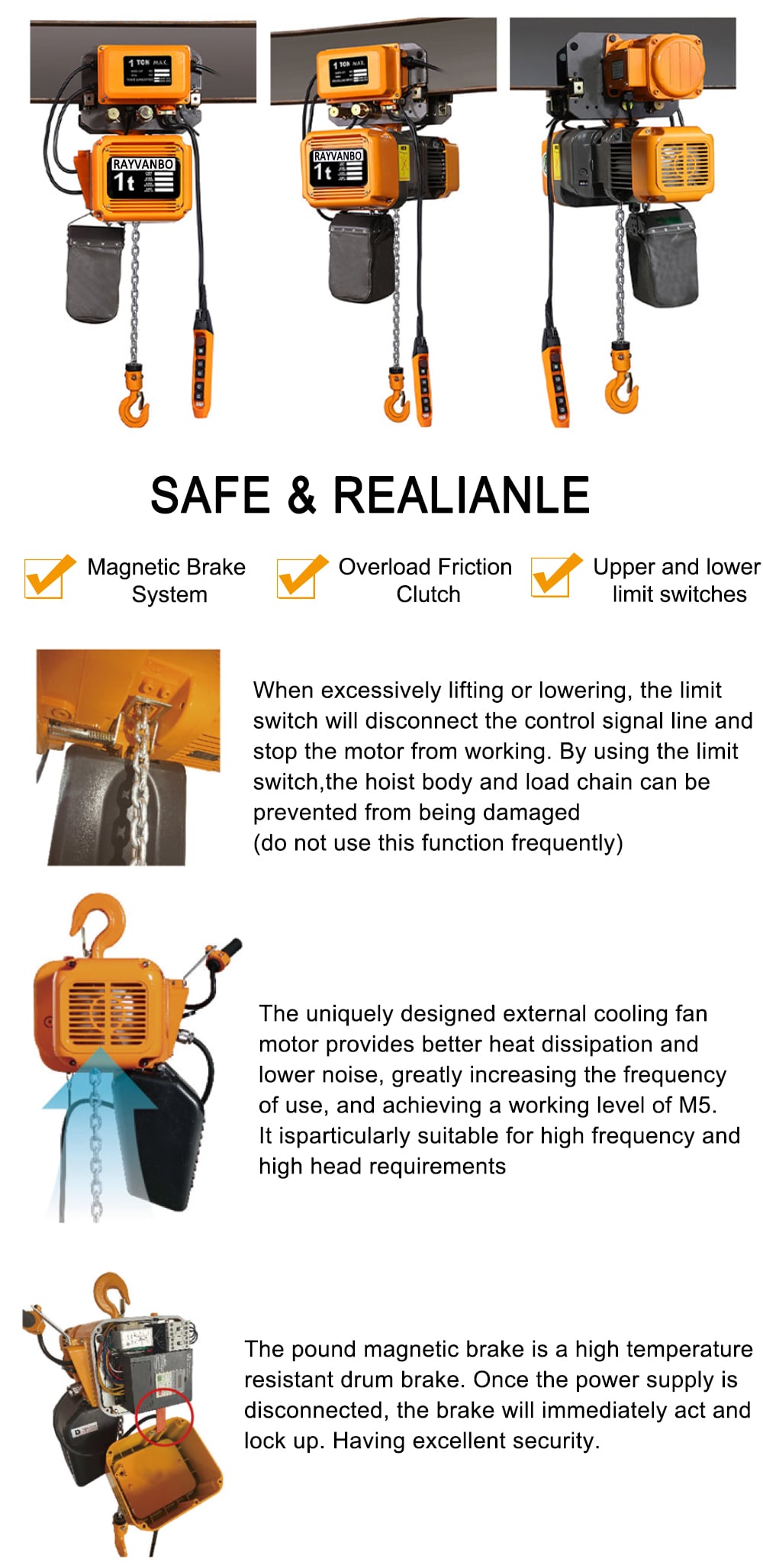

Safety is the basic principle of lifting equipment products. The ER electric chain hoist is equipped with triple safety functions: magnetic brake system, friction clutch, upper and lower limit switches.
Product Parameters:
Model |
Lifting capacity |
Lifting height |
Lifting speed |
Lifting motor |
||||
Power |
Rotation Speed |
Phase |
Voltage |
Frequency (Hz) |
||||
HH-B 01-01 |
1 |
4 |
7.1 |
1.5 |
1440 |
3 |
380 |
50 |
HH-B 02-01 |
2 |
4 |
7.0 |
3.0 |
1440 |
3 |
380 |
50 |
HH-B 02-02 |
2 |
4 |
3.5 |
1.5 |
1440 |
3 |
380 |
50 |
HH-B 03-01 |
3 |
4 |
7.0 |
3.6 |
1440 |
3 |
380 |
50 |
HH-B 03-02 |
3 |
4 |
3.5 |
3.0 |
1440 |
3 |
380 |
50 |
HH-B 05-02 |
5 |
4 |
3.5 |
3.6 |
1440 |
3 |
380 |
50 |
HH-B 075-03 |
7.5 |
4 |
2.3 |
3.6 |
1440 |
3 |
380 |
50 |
Model |
Lifting capacity |
Lifting height |
Lifting speed |
Lifting motor |
|||||
High speed |
Low speed |
Power |
Rotation Spped |
Phase |
Voltage |
Frequency |
|||
HH-B 01-01 |
1 |
4 |
7 |
2.3 |
1.5 |
1440 |
3 |
380 |
50 |
HH-B 02-01 |
2 |
4 |
7 |
2.3 |
3.0 |
1440 |
3 |
380 |
50 |
HH-B 02-02 |
2 |
4 |
3.5 |
1.2 |
1.5 |
1440 |
3 |
380 |
50 |
HH-B 03-01 |
3 |
4 |
7 |
2.3 |
3.6 |
1440 |
3 |
380 |
50 |
HH-B 03-02 |
3 |
4 |
3.5 |
1.2 |
3.0 |
1440 |
3 |
380 |
50 |
HH-B 05-02 |
5 |
4 |
3.5 |
1.2 |
3.6 |
1440 |
3 |
380 |
50 |
HH-B 075-03 |
7.5 |
4 |
2.3 |
0.8 |
3.6 |
1440 |
3 |
380 |
50 |
Model |
Lifting capacity |
Lifting height |
Lifting speed |
Lifting speed |
Lifting motor |
||||
Power |
Rotation Spped |
Phase |
Voltage |
Frequency |
|||||
HH-B 01-01 |
1 |
4 |
7.1 |
7.1 |
1.5 |
1440 |
3 |
380 |
50 |
HH-B 02-01 |
2 |
4 |
7.0 |
7.0 |
3.0 |
1440 |
3 |
380 |
50 |
HH-B 02-02 |
2 |
4 |
3.6 |
3.6 |
1.5 |
1440 |
3 |
380 |
50 |
HH-B 03-01 |
3 |
4 |
7.0 |
7.0 |
3.6 |
1440 |
3 |
380 |
50 |
HH-B 03-02 |
3 |
4 |
3.5 |
3.5 |
3.0 |
1440 |
3 |
380 |
50 |
HH-B 05-02 |
5 |
4 |
3.5 |
3.5 |
3.6 |
1440 |
3 |
380 |
50 |

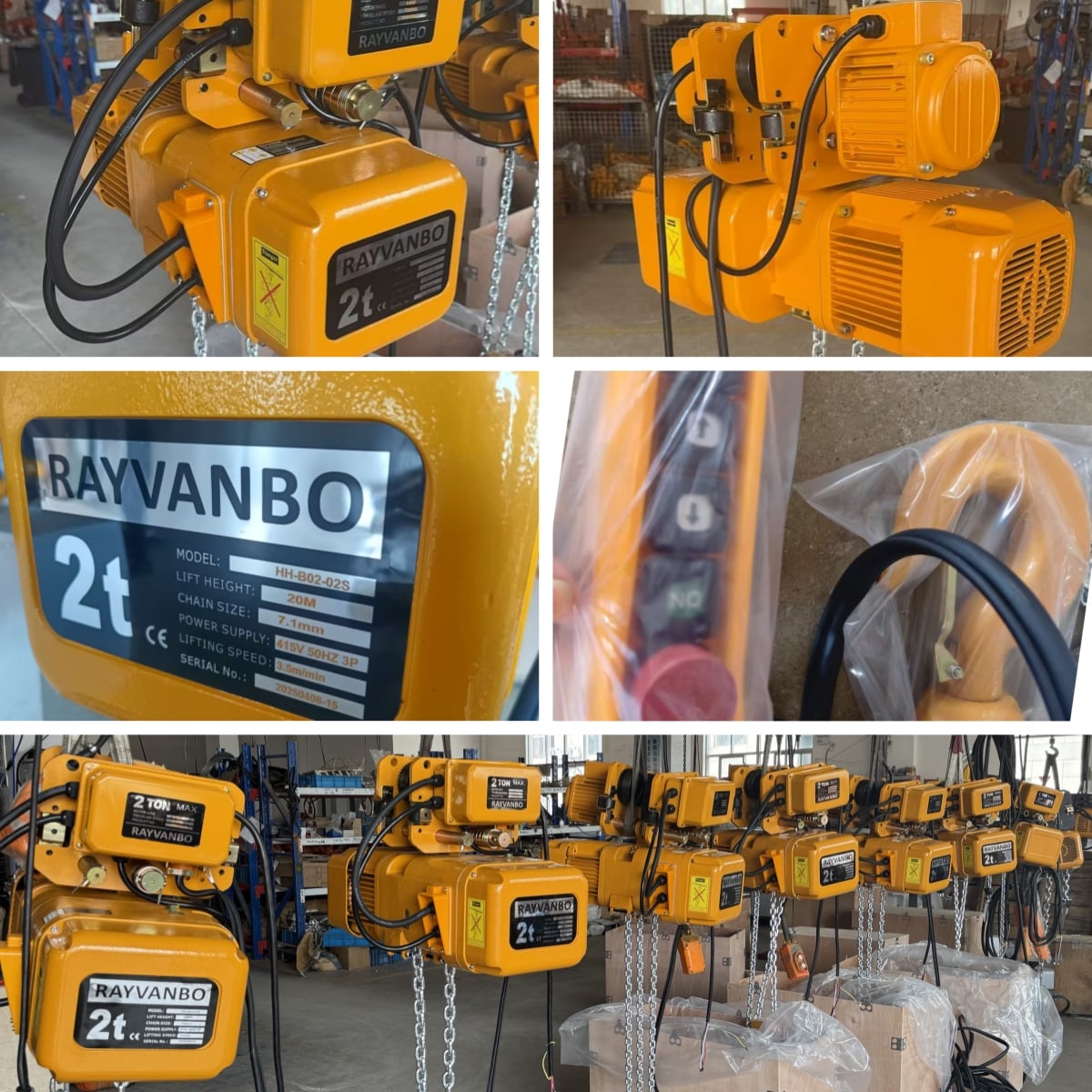

Product Details:
The ER Electric Chain Hoist features a compact and powerful design tailored for efficient lifting operations. At its core is a high-performance motor that delivers stable power output, ensuring smooth operation even under heavy loads. The system is equipped with a durable pendant control, offering intuitive, one-handed operation with clearly marked buttons for up/down and directional control, as well as an emergency stop function for added safety.
An integrated chain storage bag keeps the chain organized during use and prevents tangling, while the robust housing protects the motor and internal components from dust and damage in harsh environments. The hoist also includes a high-strength chain for reliable load support and extended service life.
Designed to be easy to install and operate, this hoist is ideal for use in workshops, warehouses, and stage rigging scenarios. With electric control, operators can lift loads efficiently, reduce manual effort, and enhance productivity. Every detail of the ER hoist reflects a focus on safety, convenience, and performance—making it a smart choice for global buyers.
The ER Series Electric Chain Hoist stands out with its superior structural design and user-centric features. One of its key advantages is the compact body and lightweight construction, which allows for flexible installation even in limited spaces. The aluminum alloy shell offers excellent heat dissipation and corrosion resistance, extending the product’s service life in demanding industrial environments.
This hoist is built for maximum safety, incorporating features like an overload protection system and thermal protection for the motor to prevent damage from excessive use. Additionally, the precision gear mechanism reduces internal friction and improves lifting efficiency, helping to reduce maintenance requirements over time.
The ergonomic design of the control handle ensures comfortable and fatigue-free operation, especially for long hours. Coupled with low-noise operation and minimal vibration, it creates a more pleasant and productive working environment.
Whether used for material handling, stage lifting, or warehouse logistics, the ER hoist offers a powerful combination of safety, reliability, and ease of use—making it a trusted solution for global industrial needs.

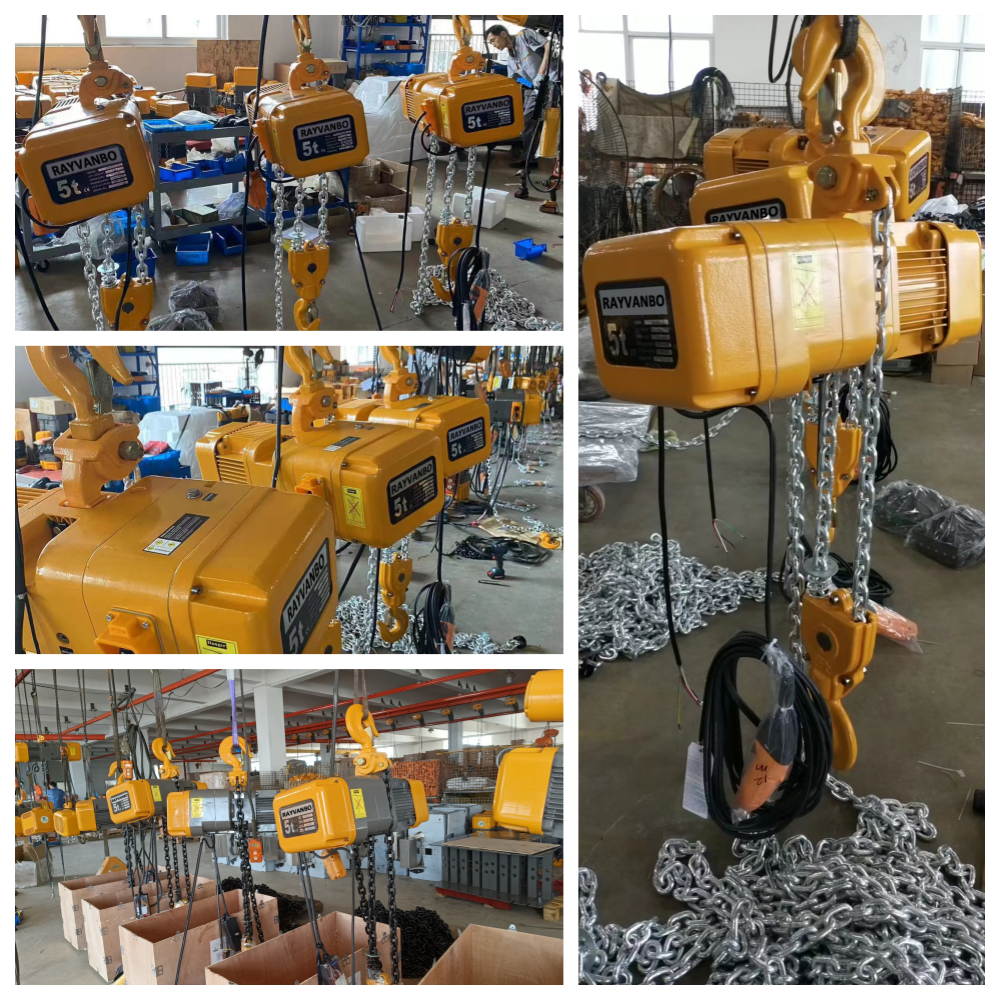

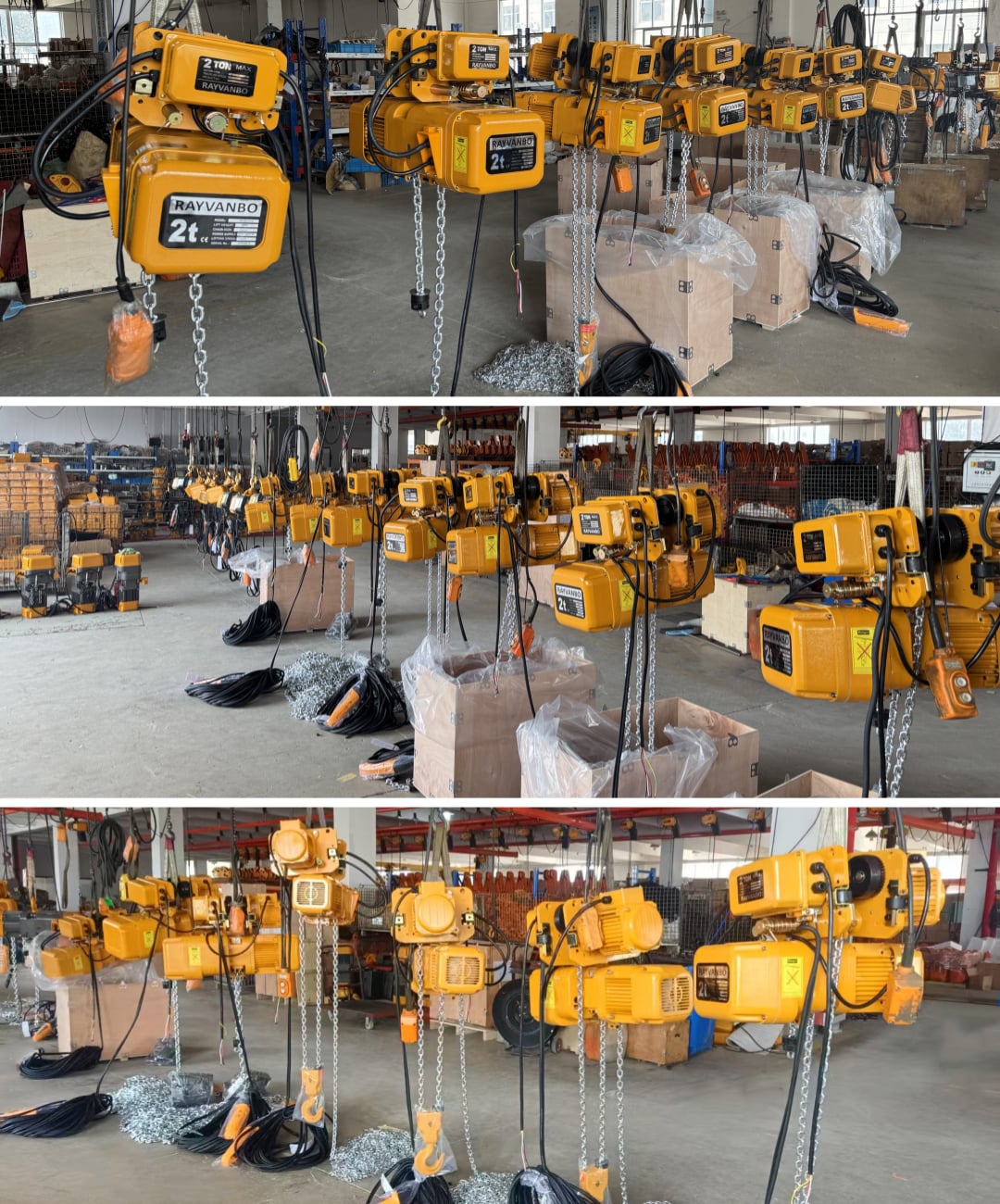

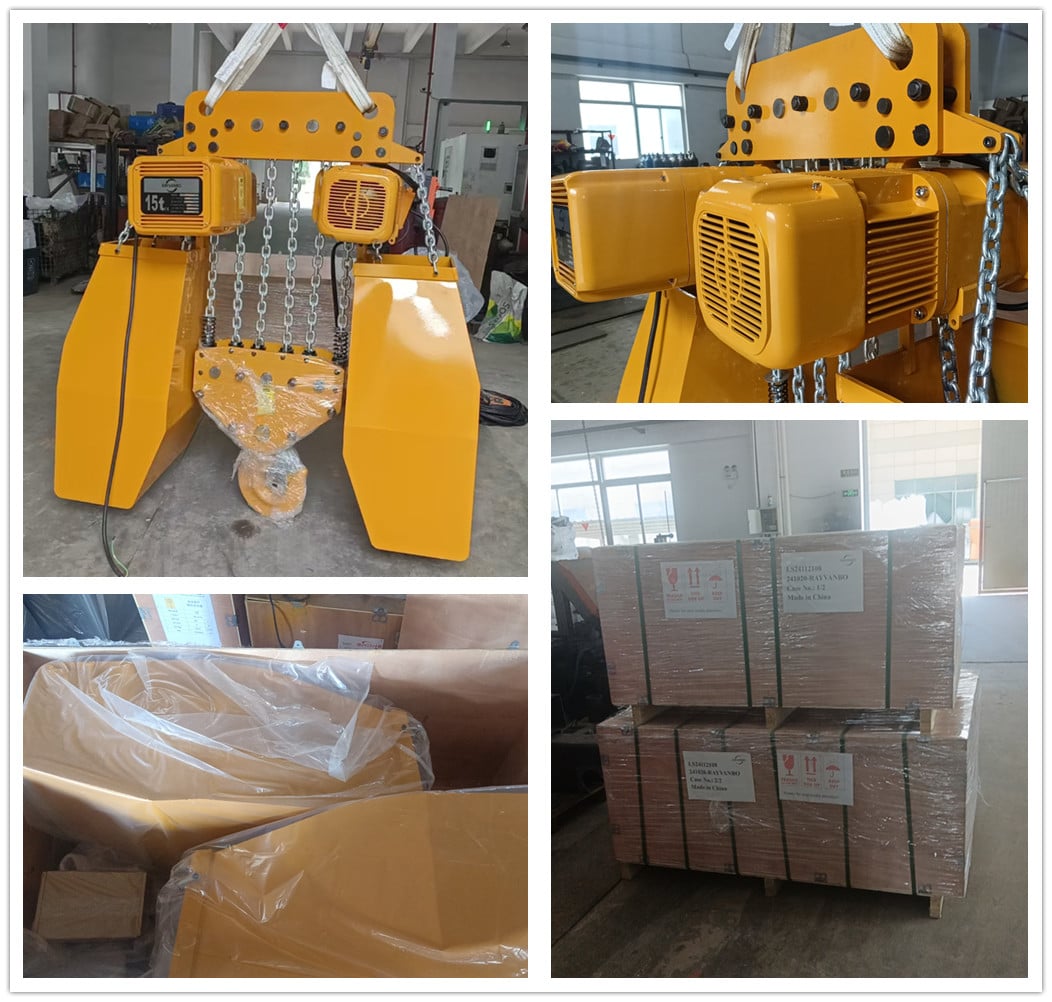

Shipping & Packaging:
