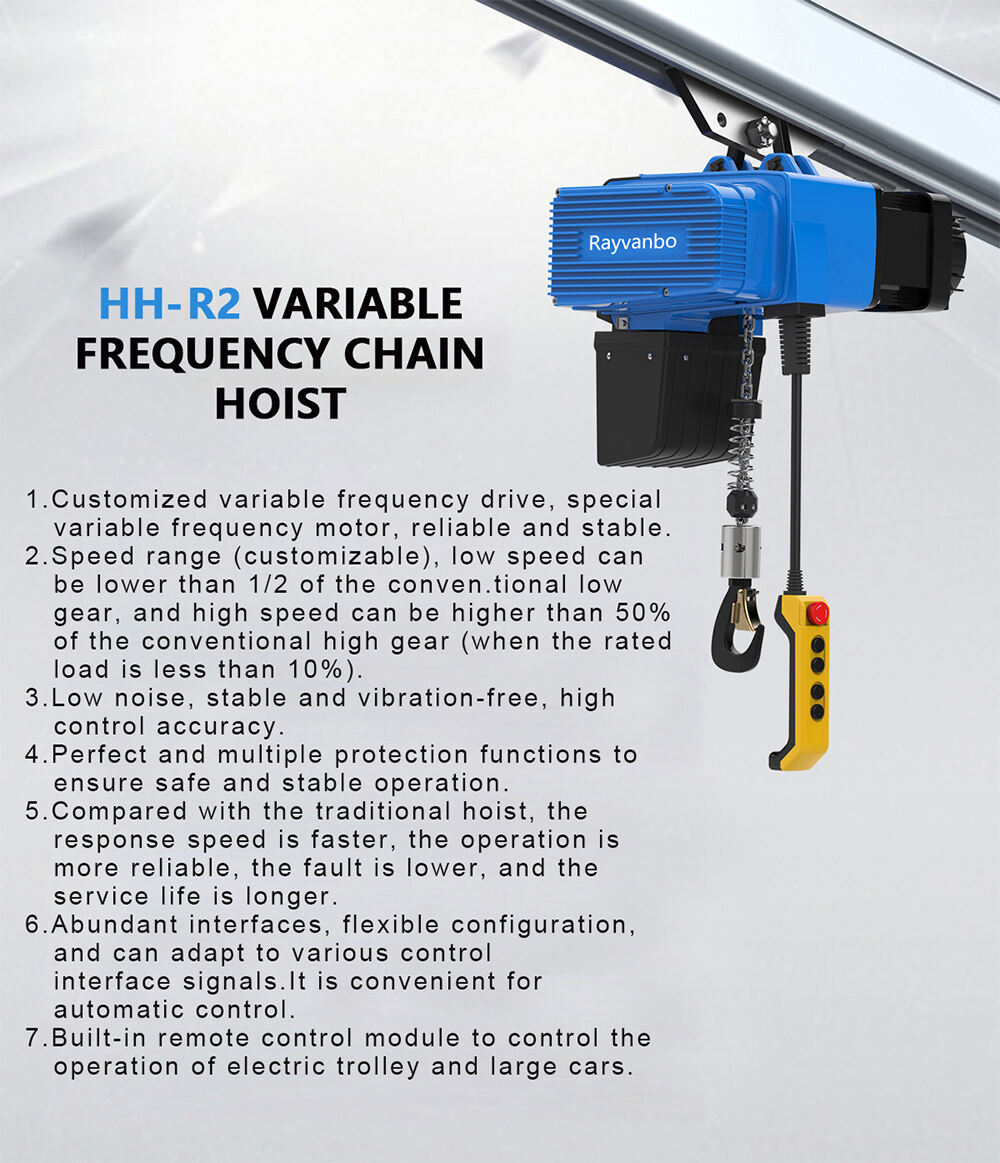

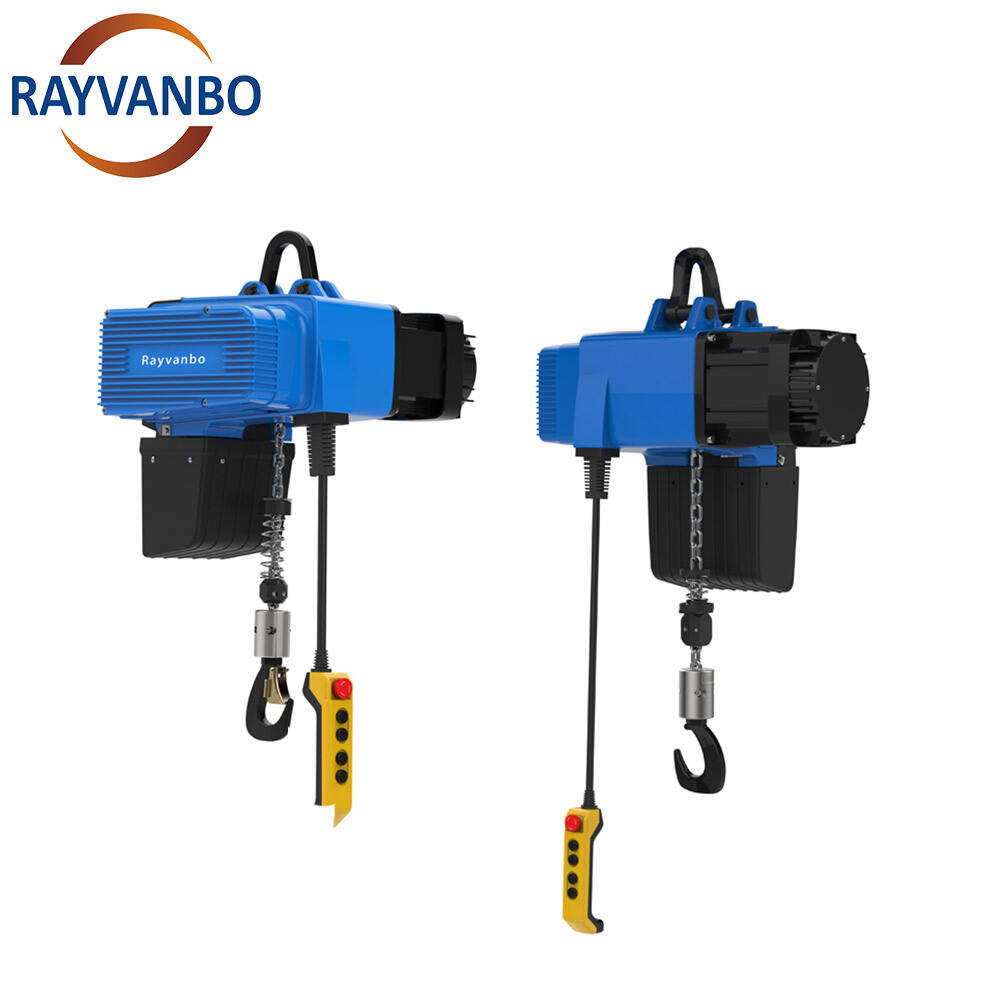

Product Name：HH-R2 Variable Frequency Intelligent Hoist
Load Capacity：125kg,250kg,500kg,1000kg,2000kg
Lifting Speed: 1/12,0.5/12,1/10,0.5/10,1/8,0.5/8,0.5/4 m/min
Vertical Maximum Stroker：4,5,8,11m (Can be customized)
Product Description:
1.Special servo motor, smooth operation performance.
2. Move smoothly as you want, accurate positioning. Wide range of liftingand lowering speeds, high precision, minimum 0.05m/min, maximum27m/min (less than 10% of the rated load), flexible choice.
3. Quiet, smooth and vibration-free, with high precision alignment accuracy.
4. Electronic friction clutch design, long service life of the wholemachine, maintenance-free.
5. Adapts multiple interfaces, flexible configuration, can be adapted to a variable control interface signals.
6.Built-in remote control module to control the operation of electricsmall sports car and big car.
Product Parameters:
Maximum Load(kg) |
125 |
250 |
500 |
1000 |
2000 (Double Chain) |
Lifting Speed(m/min) |
1/12 0.5/12 |
1/10 0.5/10 |
1/8 0.5/8 |
1/8 0.5/8 |
0.5/4 |
Rated Power(kw) |
0.45 |
0.45 |
0.75 |
1.5 |
1.5 |
Vertical Maximum Stroke(m) |
4/5/8/11(Customizable) |
||||
Control Mode |
Wire control button/remote control button |
||||
Deadweight(kg) |
23 |
23 |
32 |
55 |
63 |
Power Supply |
Standard 380V(Optional 220V) |
||||
Working Level of the Organization |
D2 |
||||
Working Temperature |
-10℃-55℃ |
||||

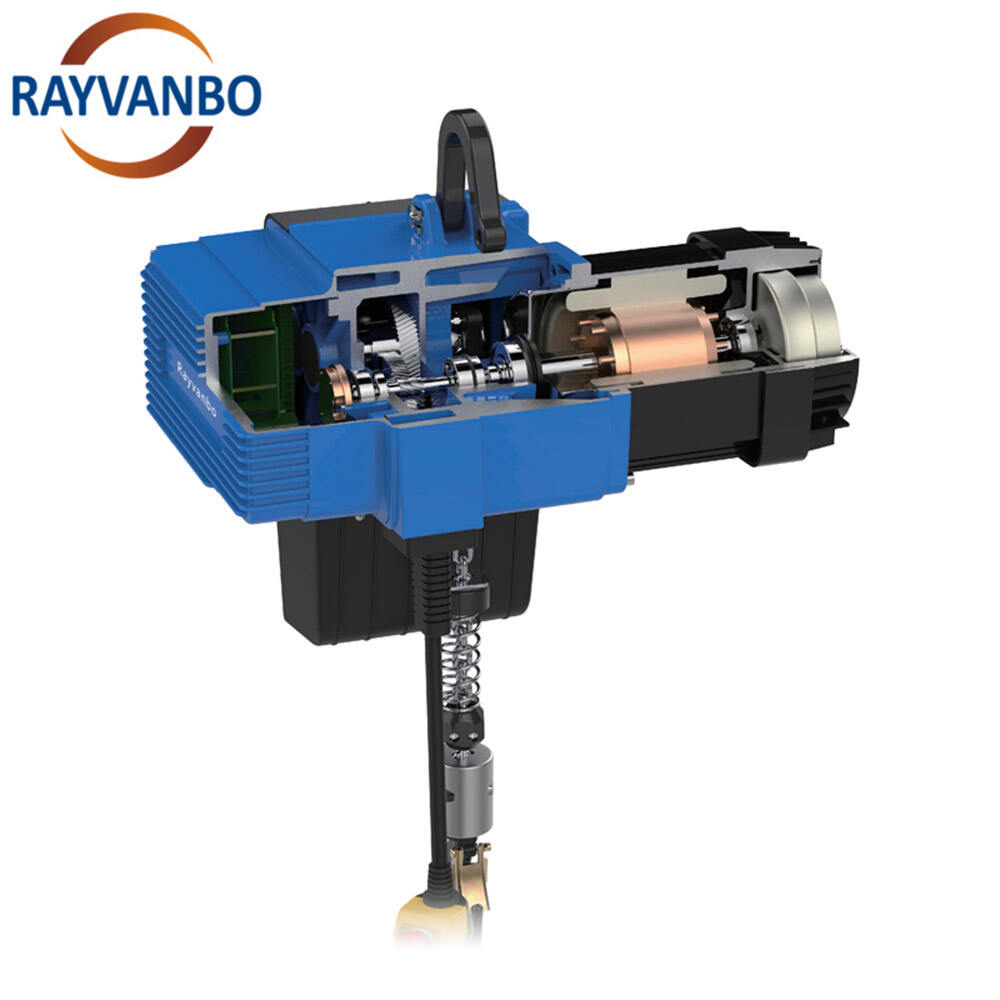

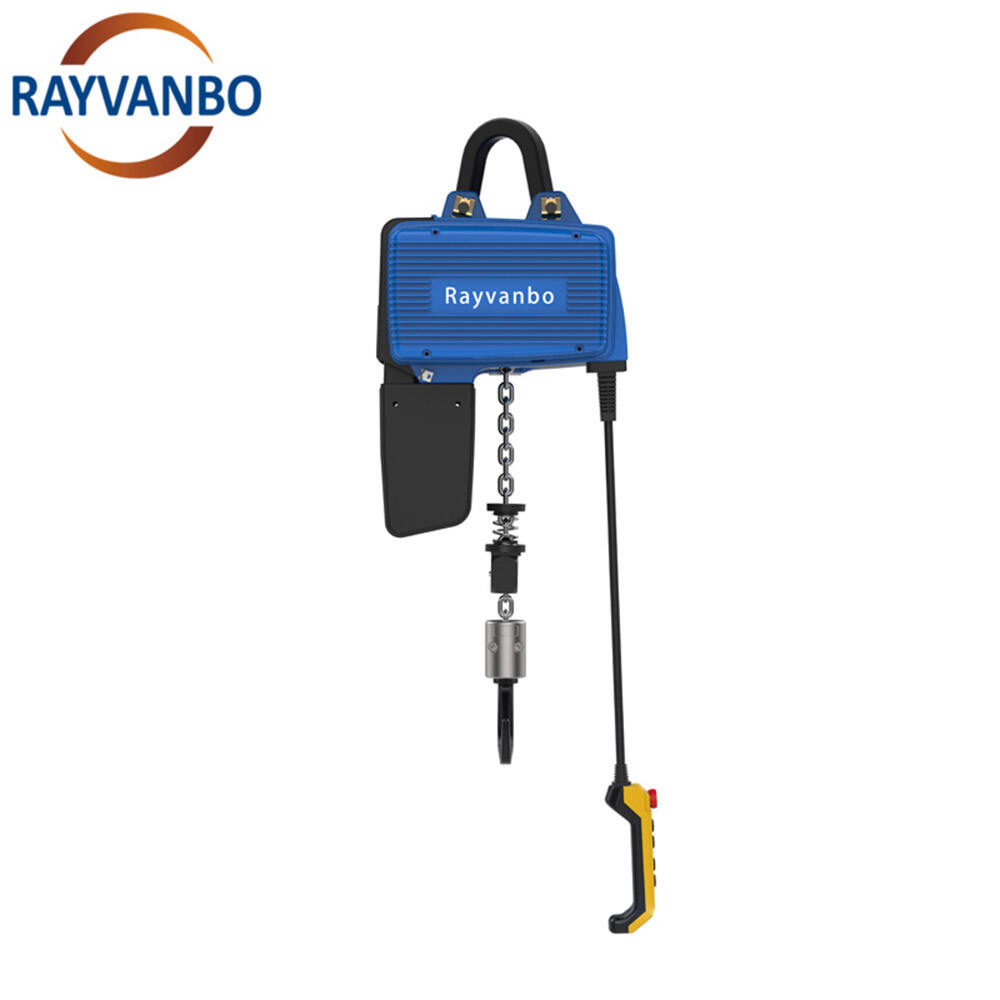

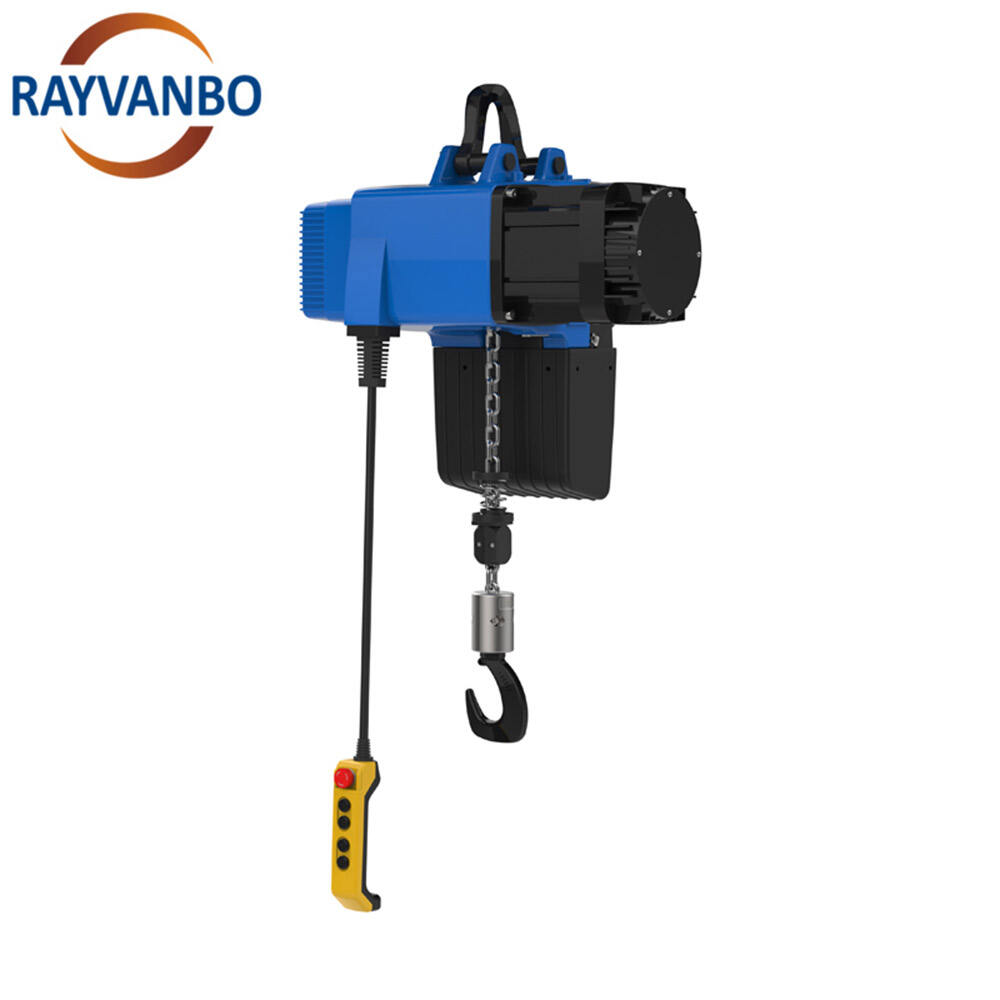

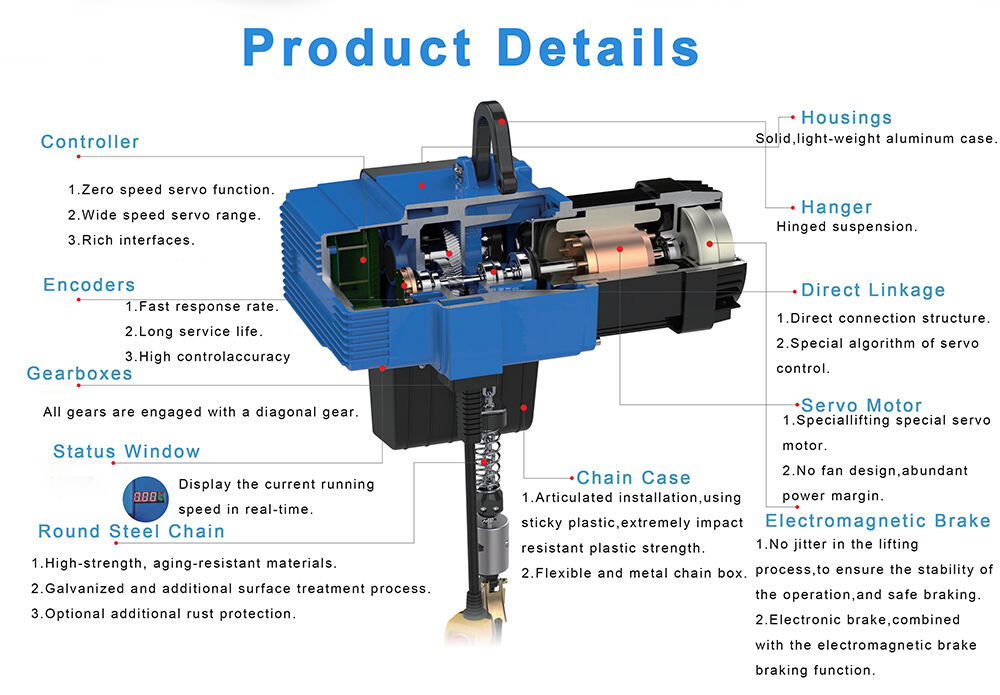

Product Details:

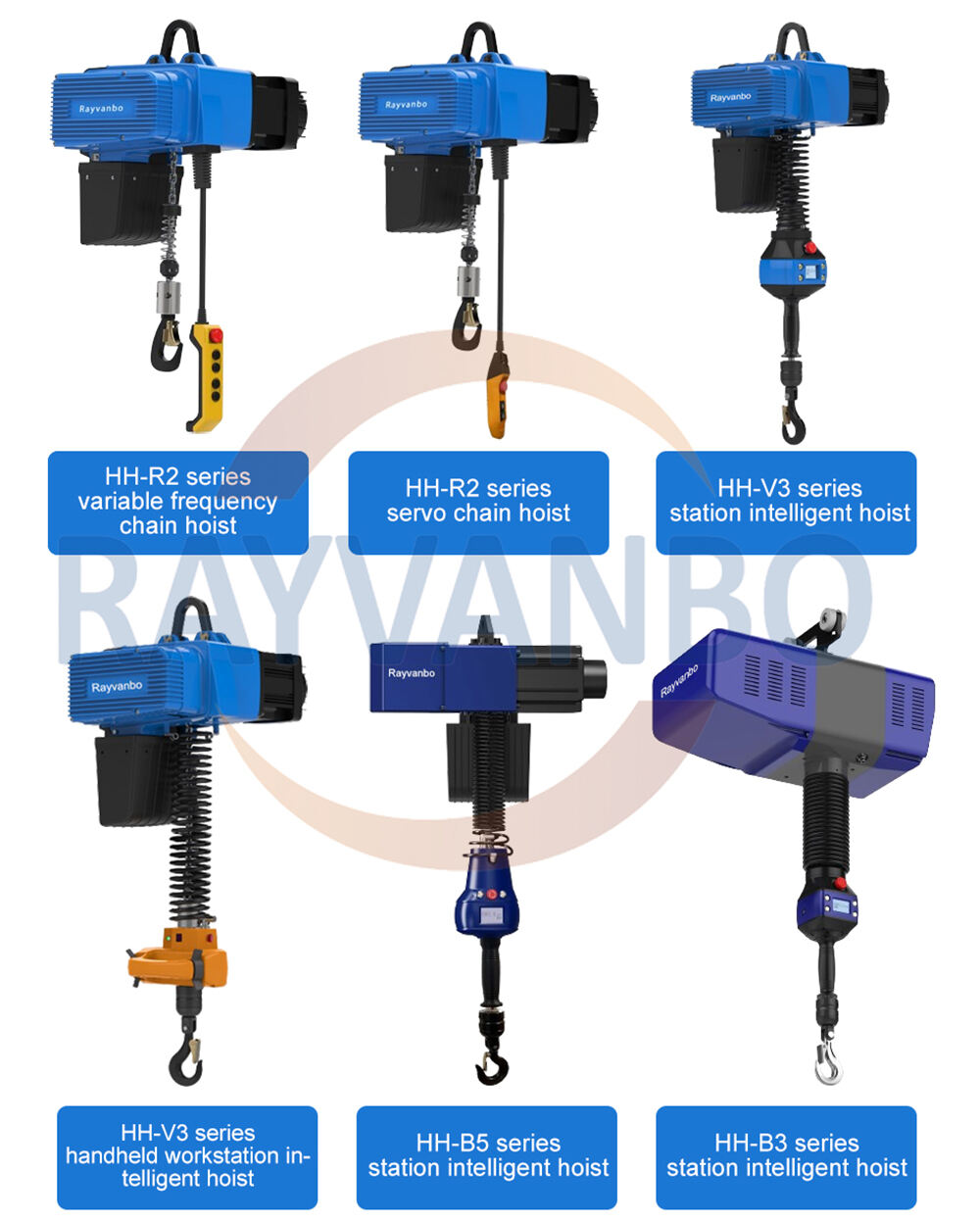

Product Advantages:

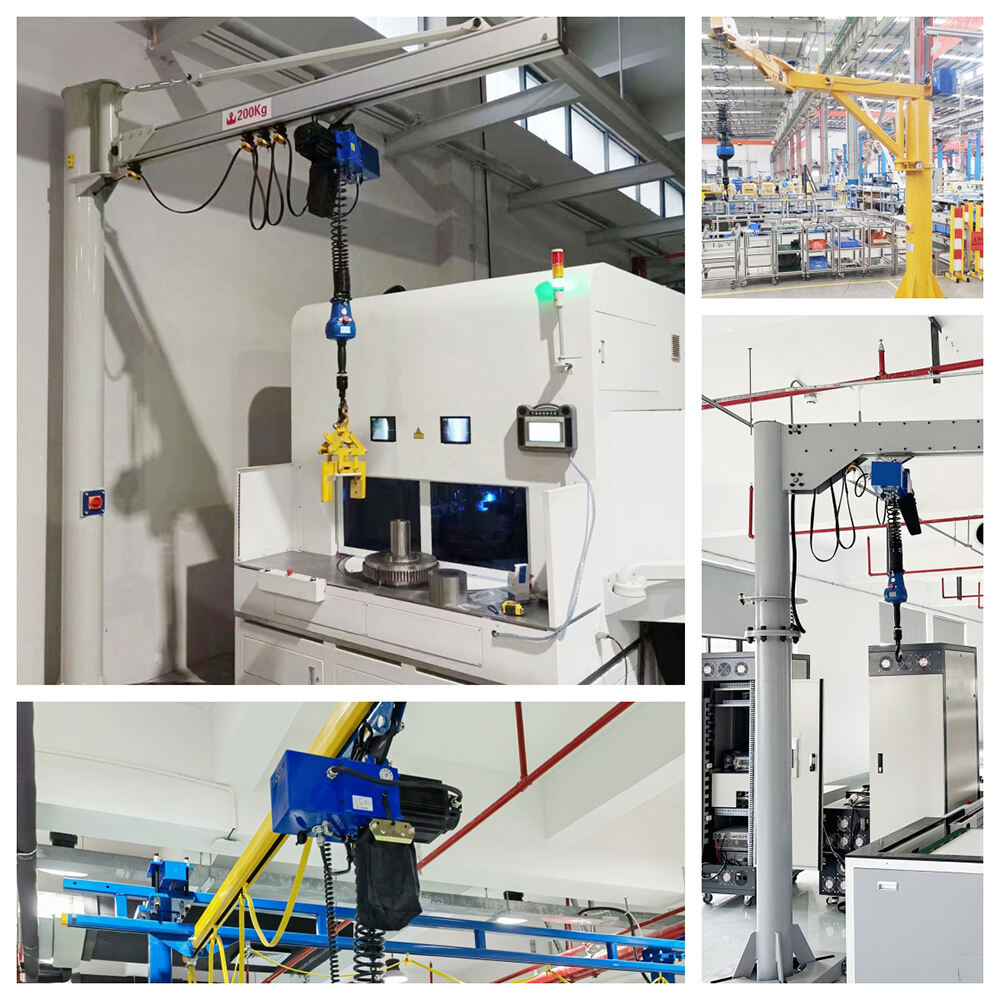

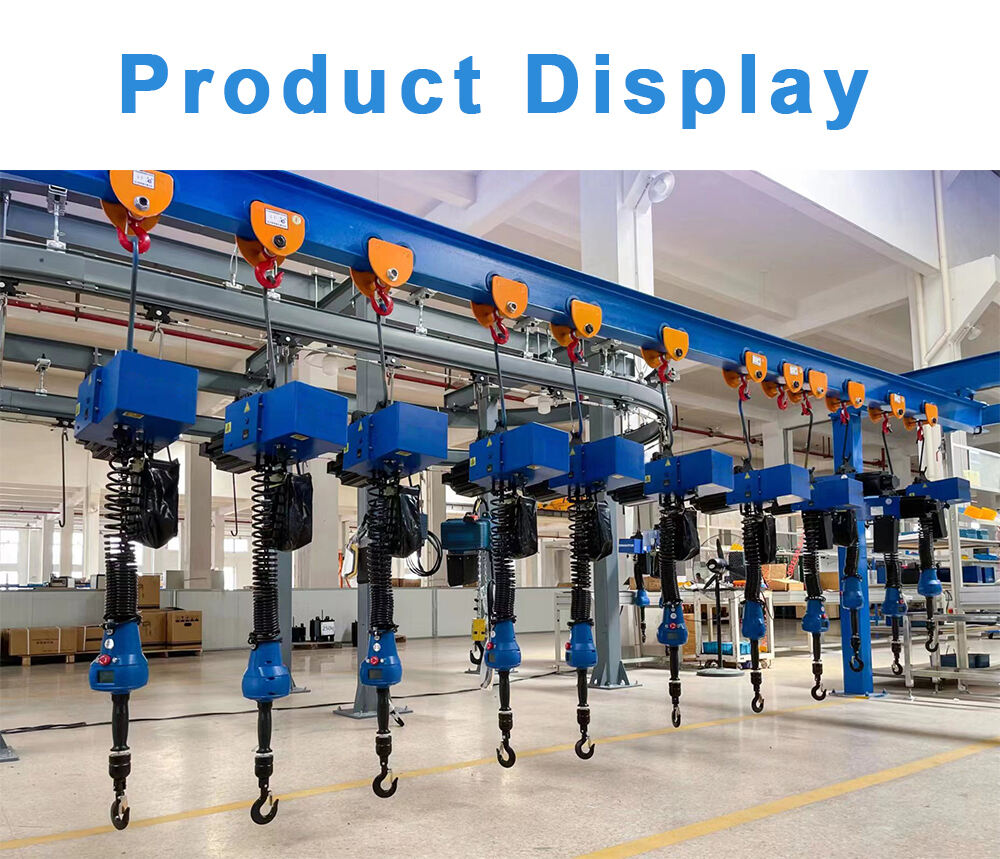

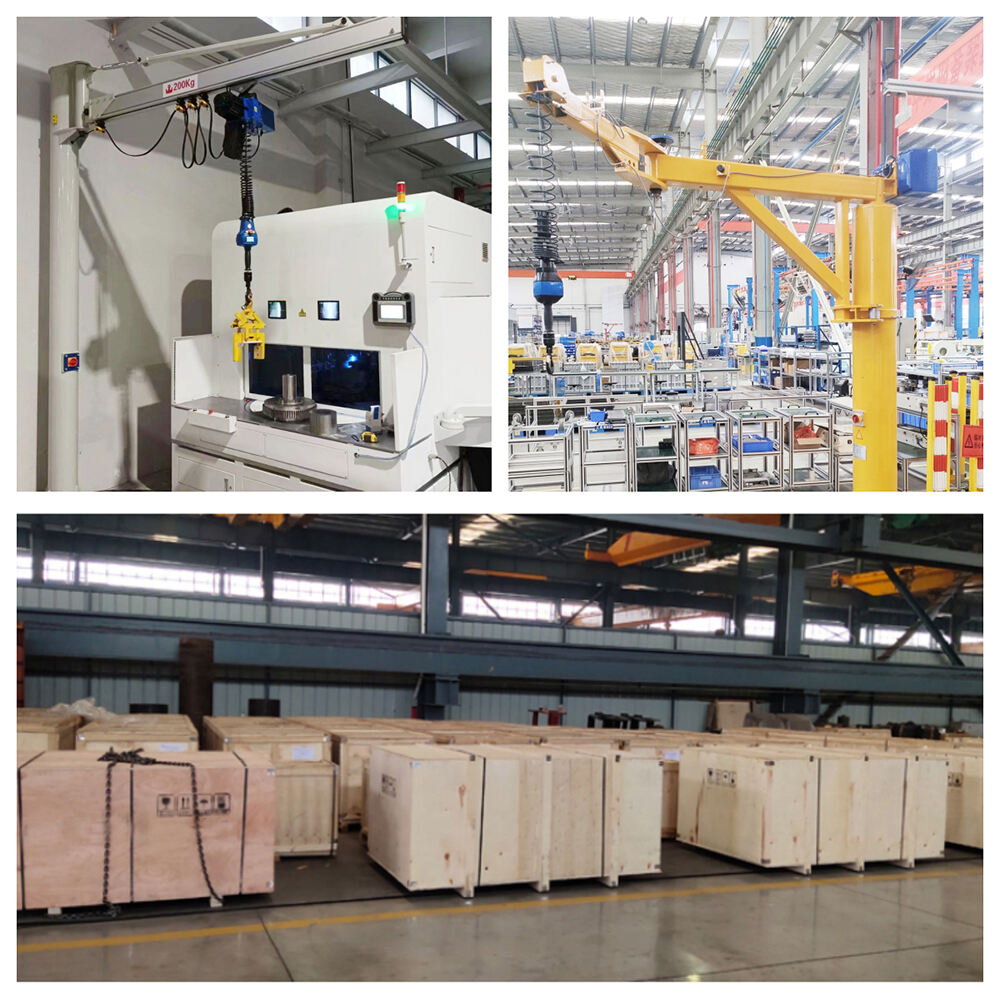

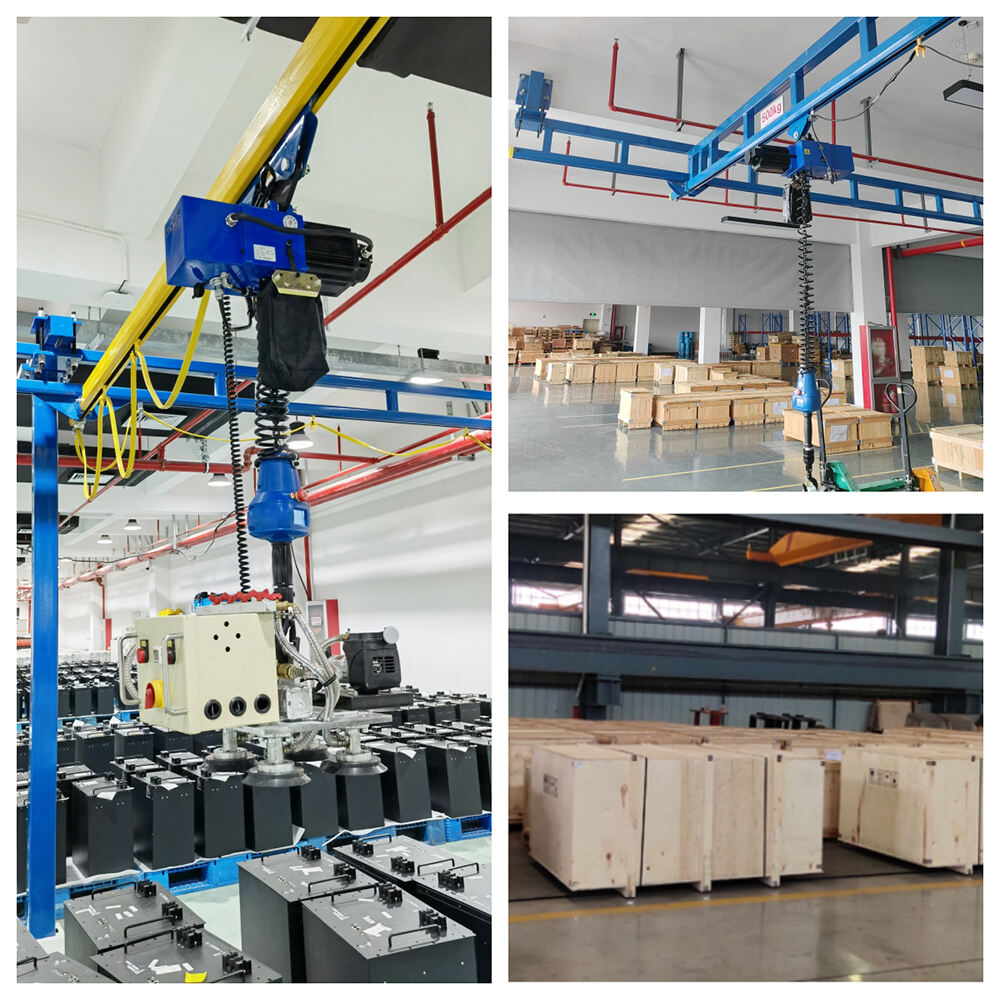

Case Show:

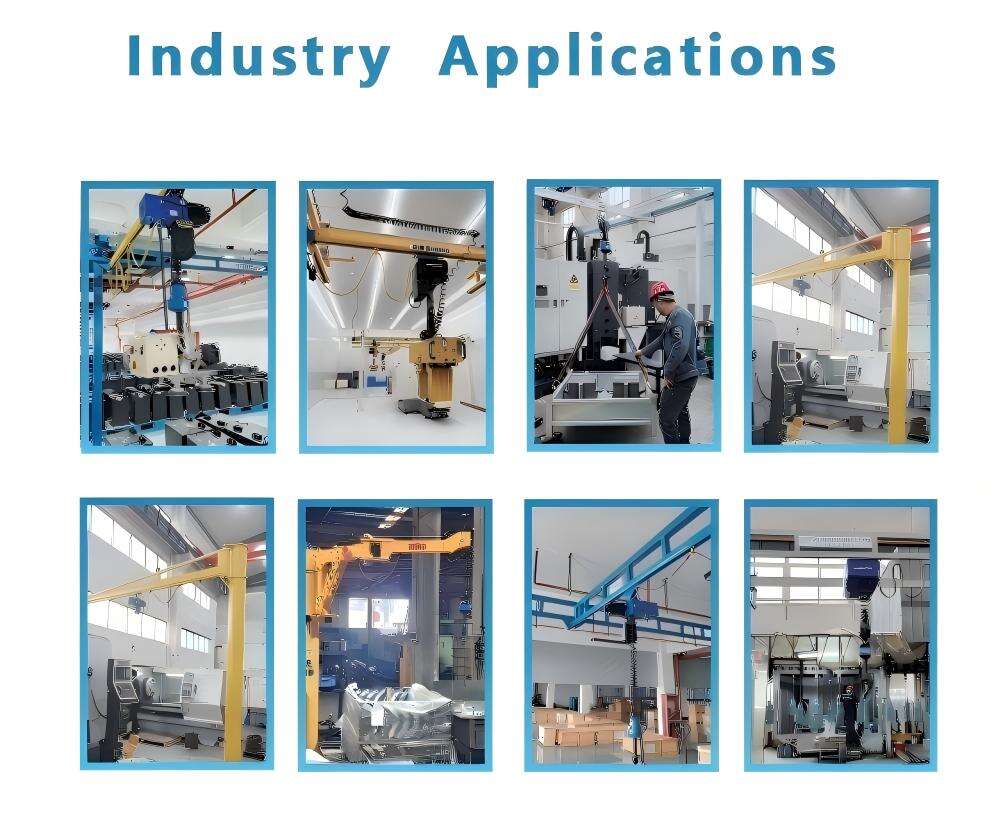

Product Application:

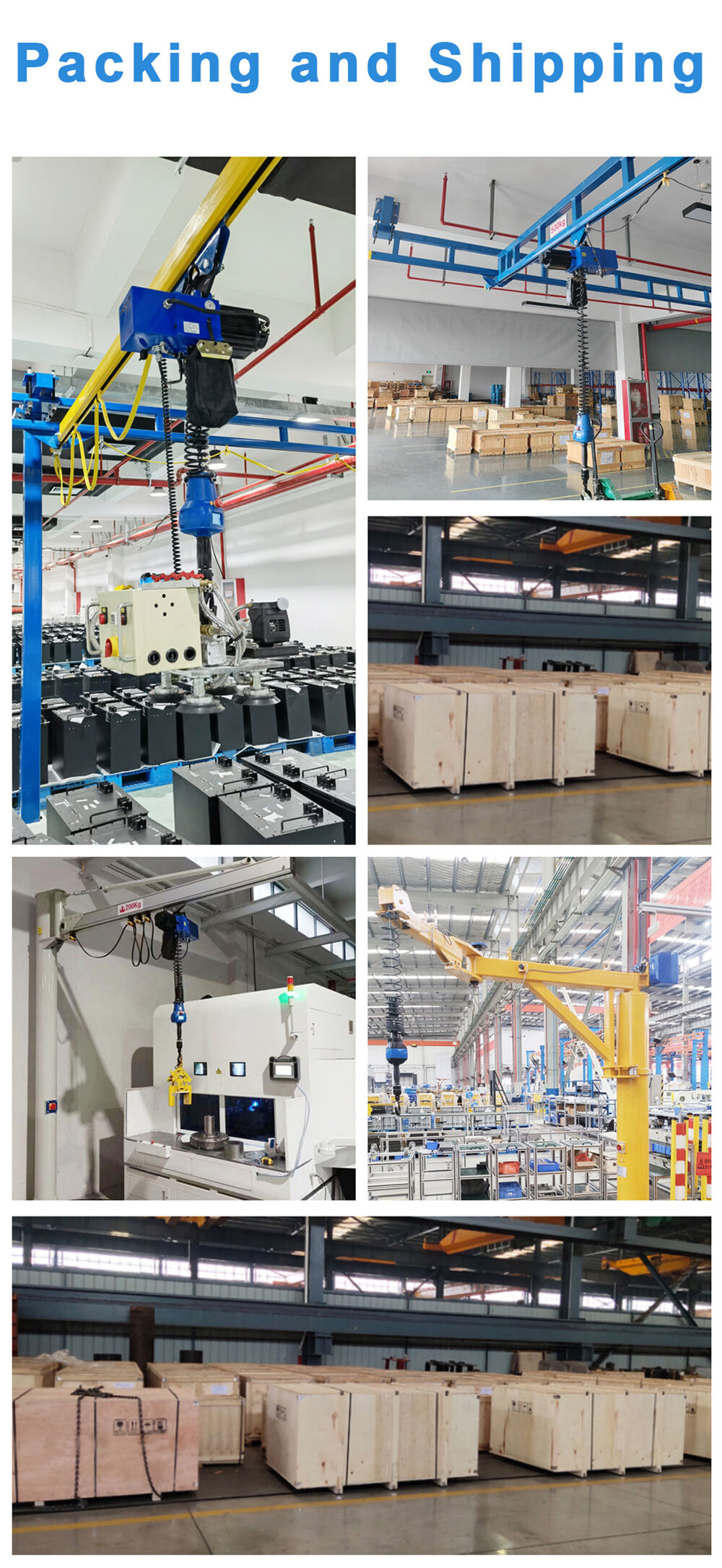

Shipping & Packaging:
