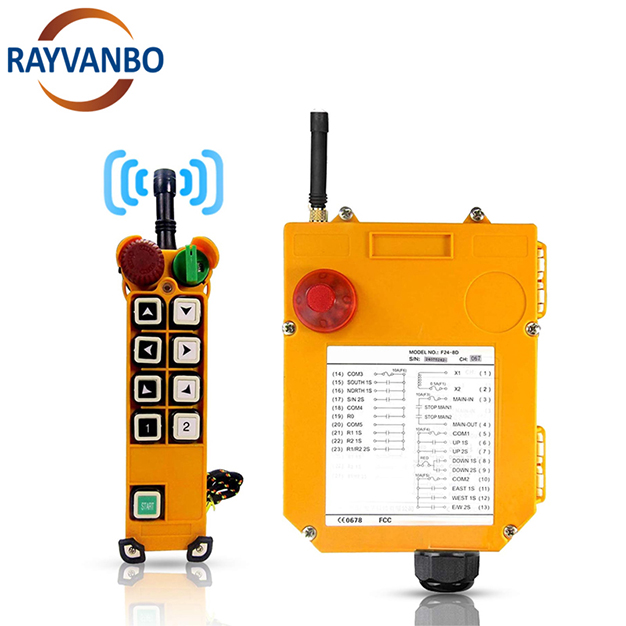

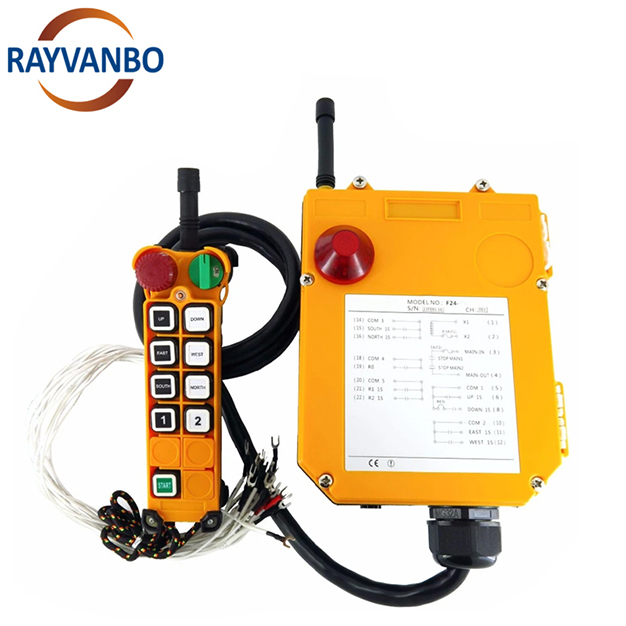

Product Name：Industrial Remote Control
Model: F24-8D
Material：Glass-Fiber PA
Enclosure Protection：IP65
Product Description:
Product Specifications :
12V UHF : The Receiver power supply 12V AC DC . Frequency UHF 425~446MHz . Arrow buttons
18-65V UHF : The Receiver power supply 18-65V AC DC . Frequency UHF 425~446MHz . Arrow buttons
65-440V UHF : The Receiver power supply 65-440V AC DC . Frequency UHF 425~446MHz . Arrow buttons

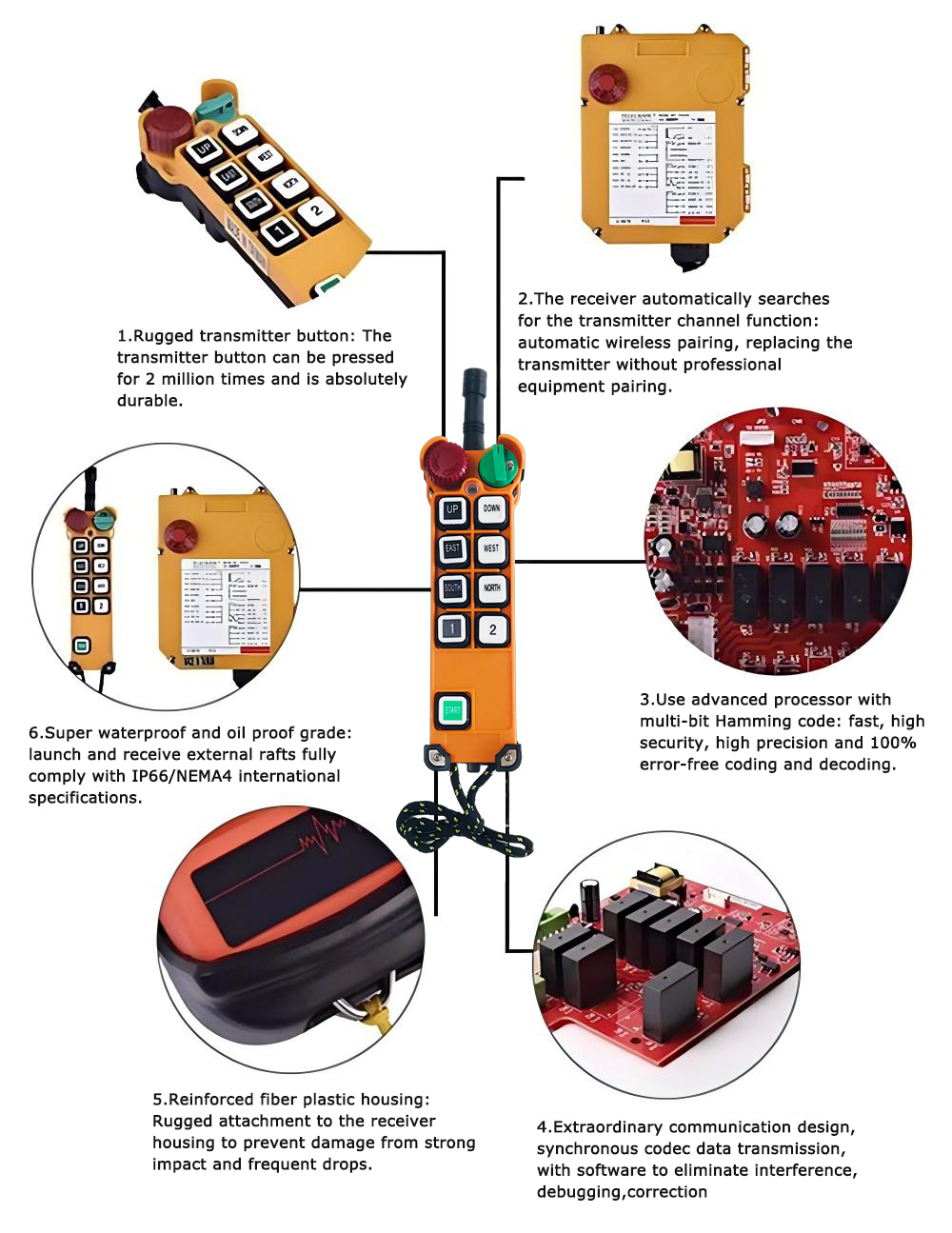

F24-8D Function Characteristic :
1.Have 9 function keys (8 double speed buttons + 1 start button ).
2. Control contact is up to 15.
3. With mushroom head rotation scram button
4. Safety switch key is to prevent from unauthorized user
5. With battery voltage warning device, the power supply is cut off during low power.
6. Program the button function by computer software.
( The program software /data line need to buy extra )
7. Up/down, east/west, south/north can be programmed to interlock or non-interlock, toggle or normal etc.
Start button can be program to be start, normal, toggle function etc.
Product Parameters:
F24-8D Transmitter Parameters | |
Material |
Glass-Fiber PA |
Enclosure protection class |
IP65 |
Frequency range |
VHF: 310-331MHz (UHF: 425-446MHz is optional) |
Transmitter power |
≤10dBm |
Transmitter power supply |
2 AA alkaline batteries (not included) |
Safety code |
32 bits (4.3billion) |
Temperature range |
-40℃-+85℃ |
Control distance |
Approx 100m(200 meters is customized) |
Size |
186x61x51mm |
Weight |
280g (without battery) |
F24-8D Receiver Parameters | |
Material |
Glass-Fiber PA |
Enclosure protection class |
IP65 |
Frequency range |
VHF: 310-331MHz; UHF: 425-446MHz |
Receiver sensitivity |
-110dBm |
Receiver power supply |
18~65V AC/DC; 65~440V AC/DC (optional) |
Safety code |
32 bits (4.3billion) |
Temperature range |
-40℃-+85℃ |
Output contactor capacity |
8A sealed relay output (with AC 250V/10A relays, 10A fuse) |
Cable length |
1.65m (Other length can be customized) |
Size |
210x162x107mm |
Weight |
1220g |
Product Advantages:

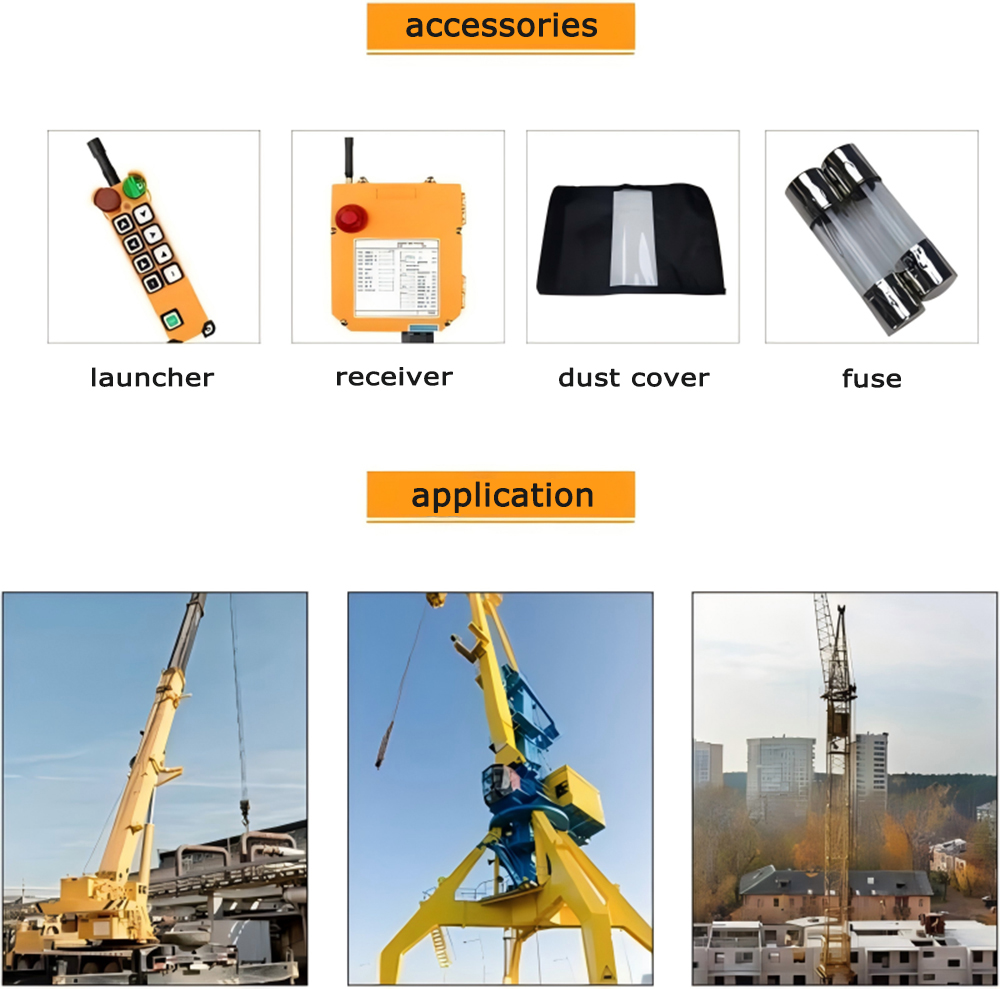

Product Application:

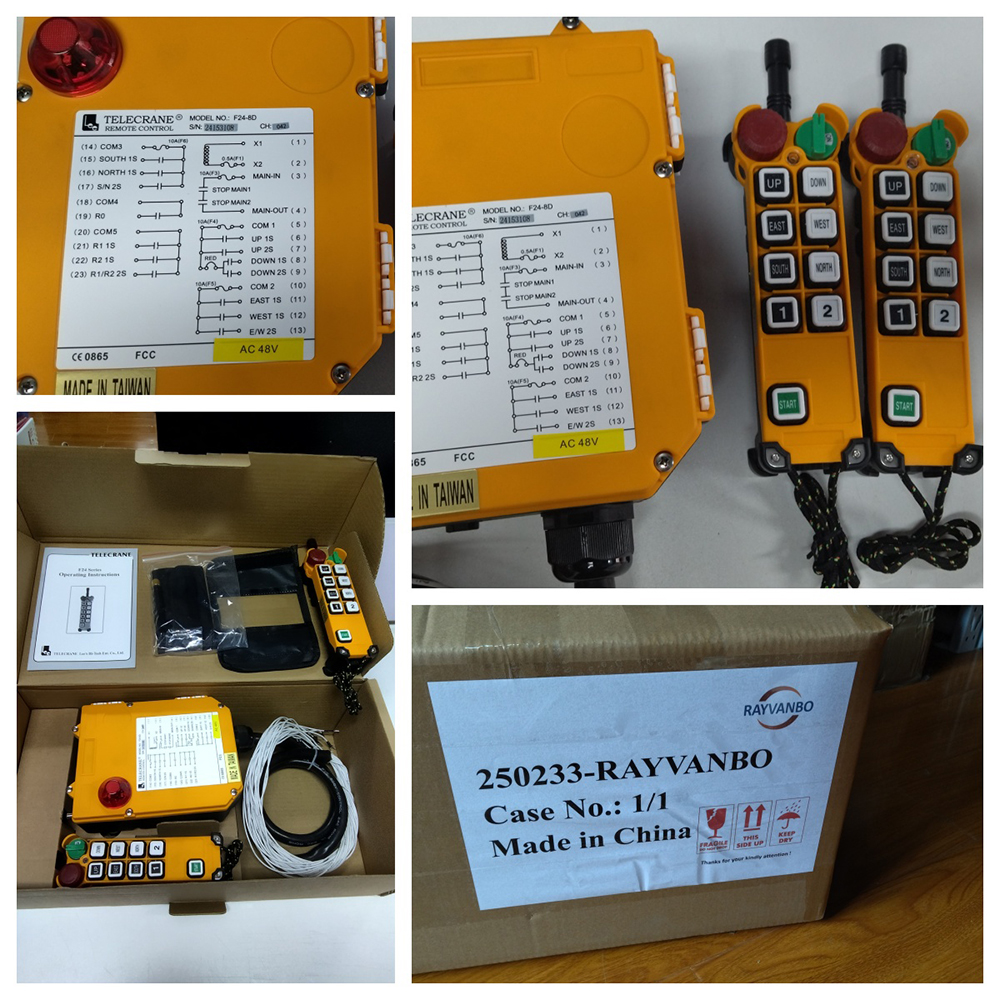

Shipping & Packaging:
