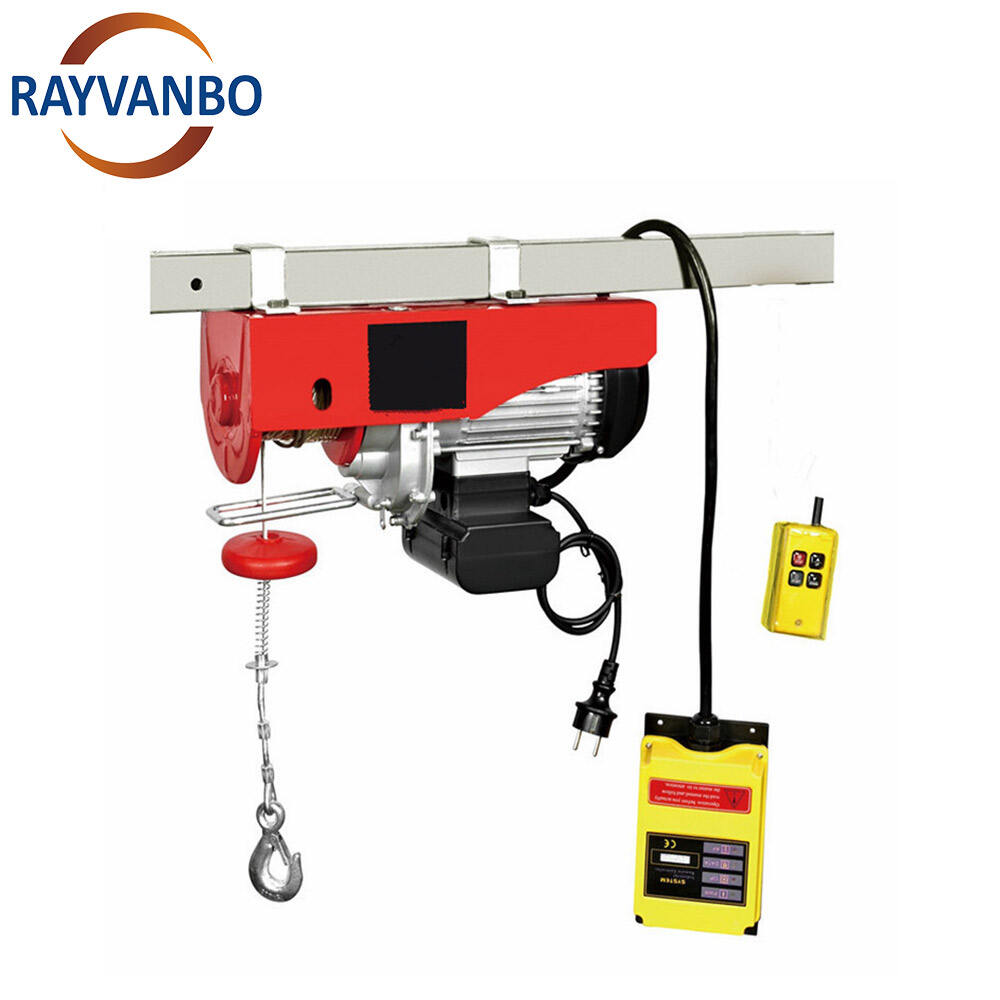

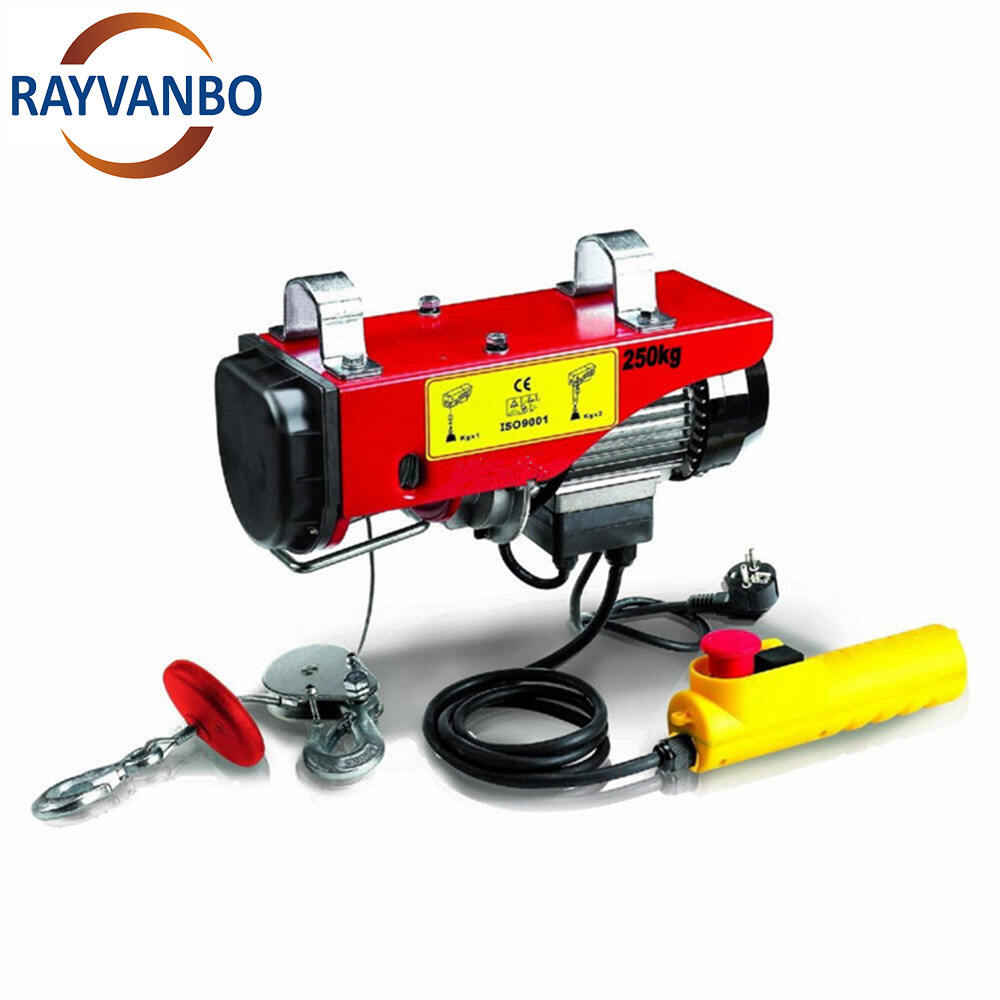

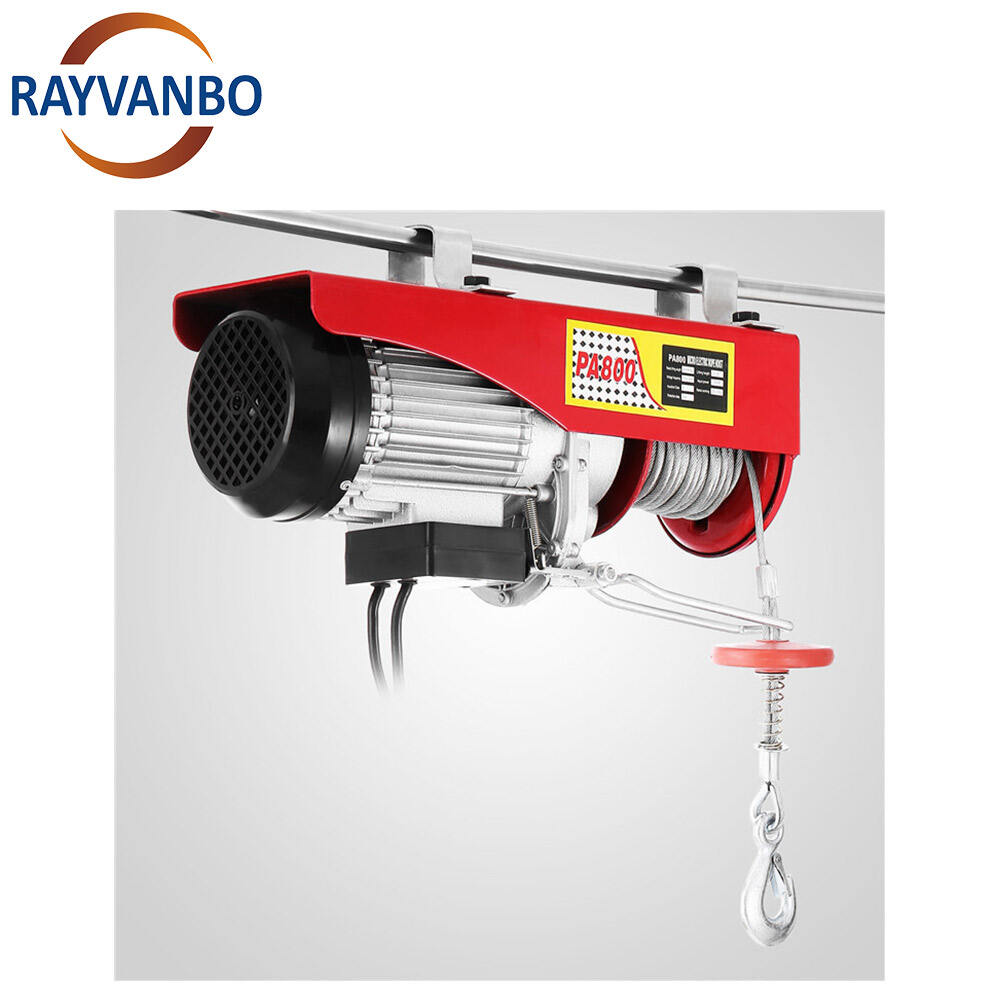

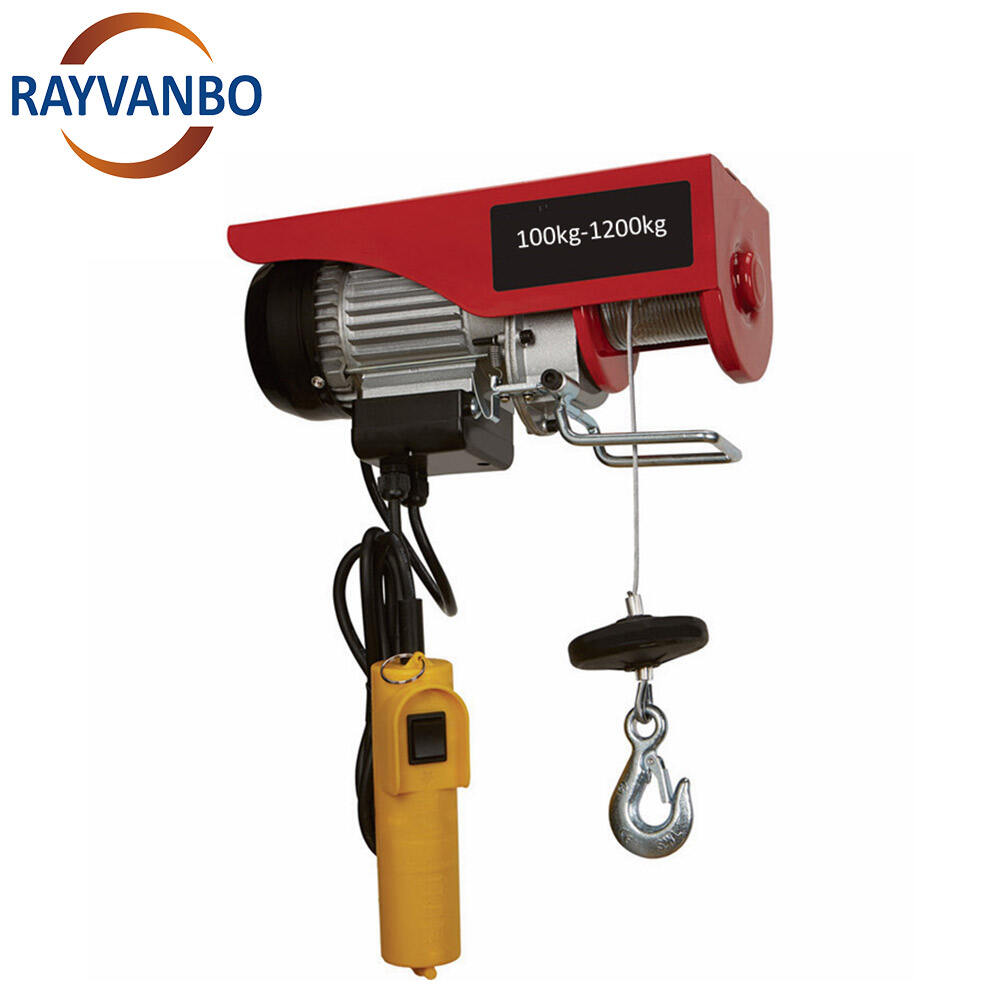

Product Name：PA Mini Electric Hoist
Load Capacity：100kg-1200kg (Can be customized)
Lift Height: 6m/12m
Lift Speed：4,5,8,10m/min
Product Description:
The mini electric hoists, also known as civilian electric hoists, are generally available in fixed and mobile versions. They are suitable for a variety of applications and can lift loads up to 1000 kg. They feature a simple structure, easy installation, and a compact design. They utilize a single-phase, 220V civilian power source, making them particularly suitable for everyday use, industrial production lines, and freight logistics.
Features of Mini Electric Hoist:

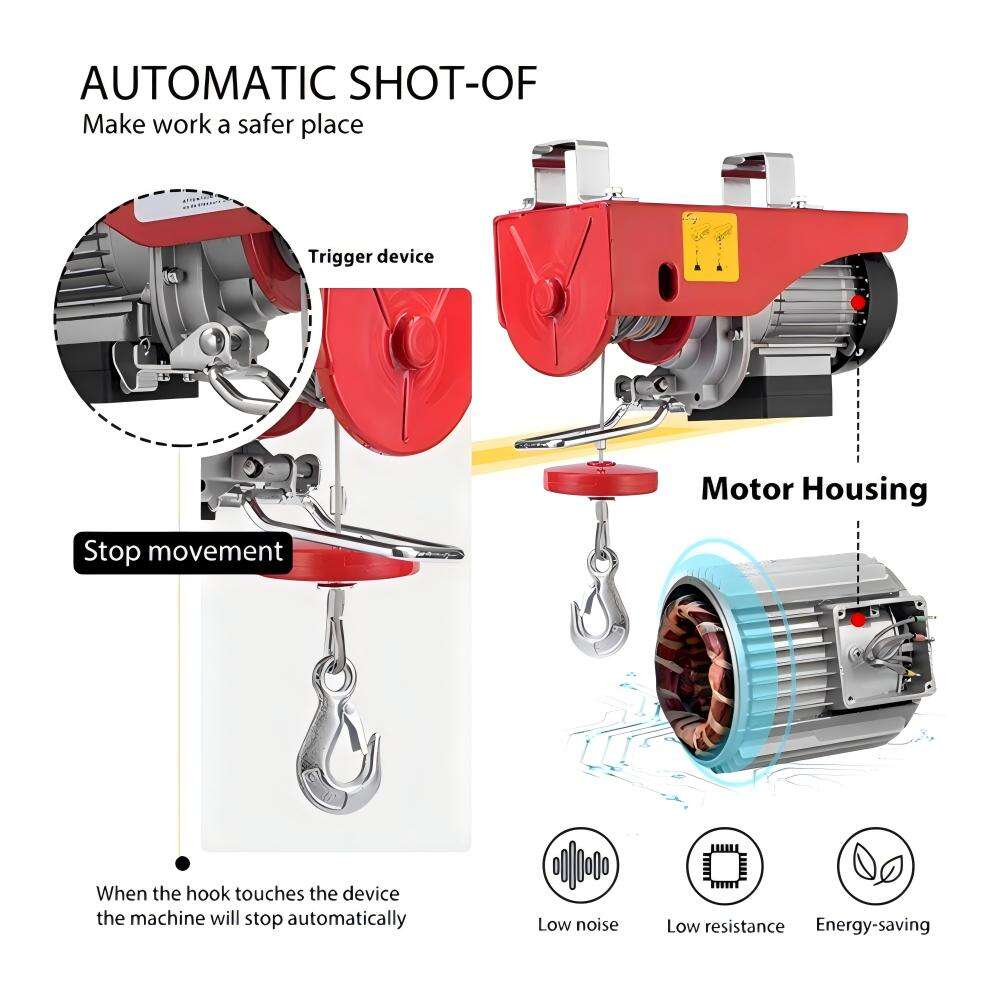

1. Adopt urgent stop switch and reinforced breaking switch with position limit. Protection class up to IP54, with thermal
protection device.
2. Lifting hook can rotate 360degree
3. Excellent control characteristics, minimal setting force required, designed for one-handed operation.

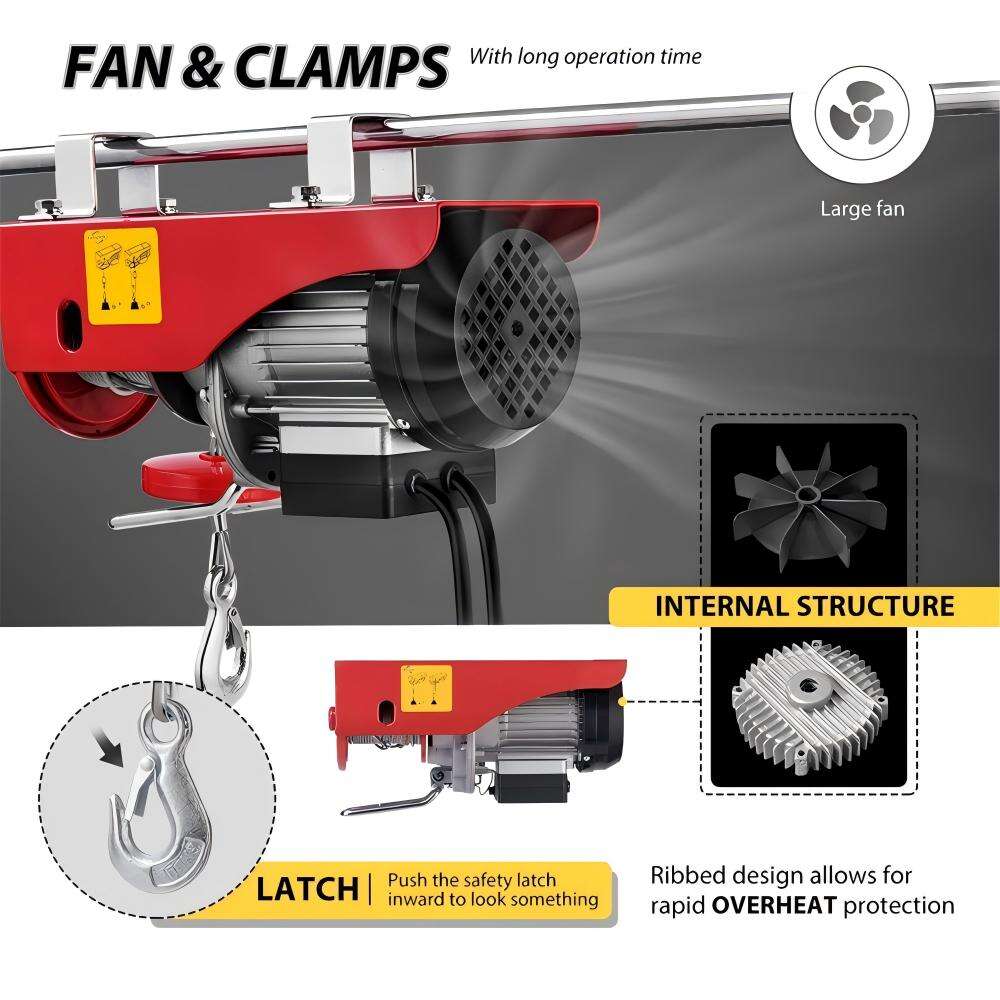

4. Drop-forged, heat-treated suspension hook and load hook mounted on swivel steel balls with safety latches.

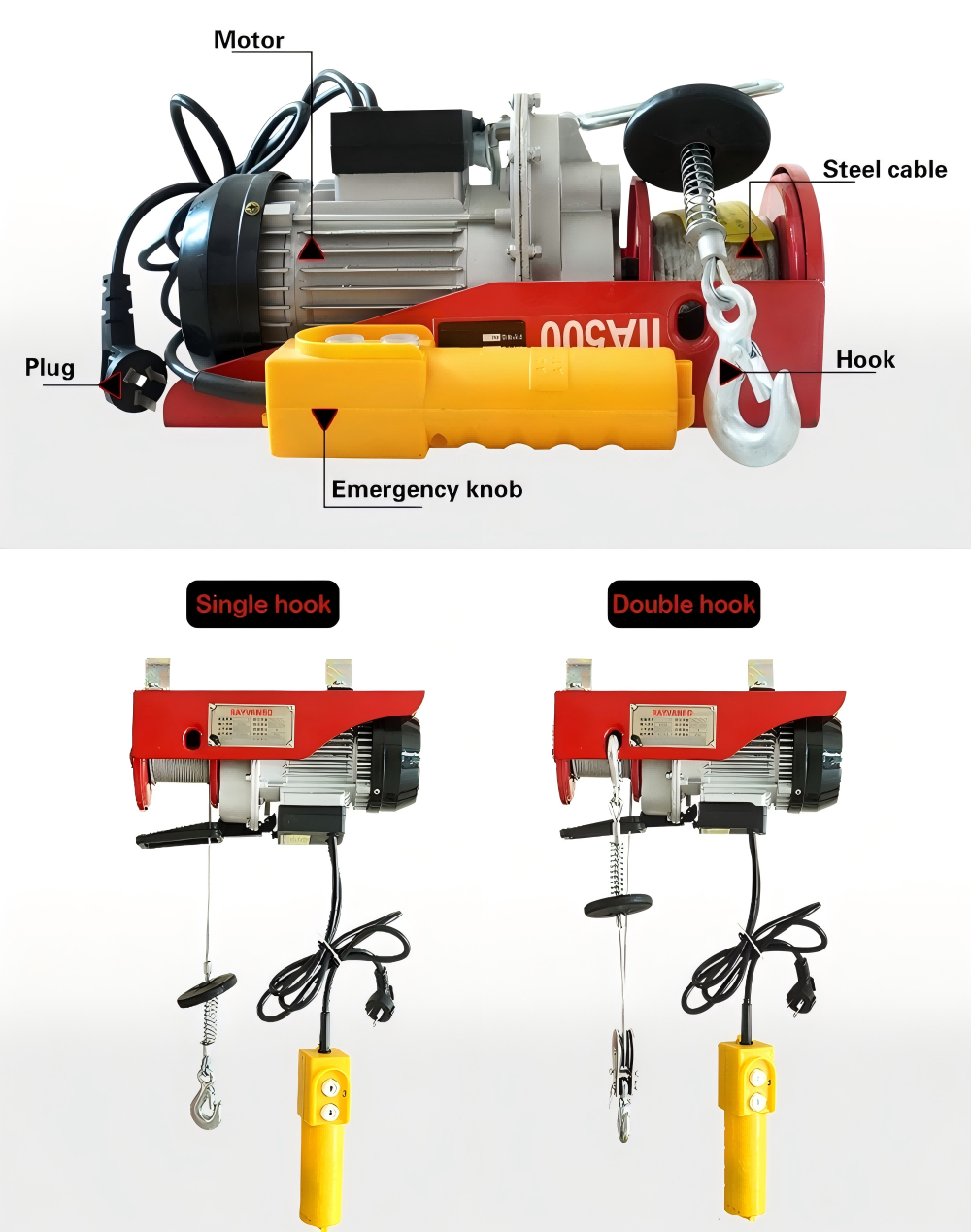

5. Motor insulation is B, magnetic single-phase. Double hook use, single hook use
6. Caged roller bearings on drum center shaft
7. Mini electric hoist speed can reach 10 m / min, the initial design rope length is 12 meters (longer can be customized), the hook specially designed with advanced settings, greatly increases the lifting weight of the mini electric hoist.
8. Simple structure, easy installation, small size, and single-phase power as a power source.
9. It can be applied in all kinds of locations in industry, business, handicraft industry and service industry not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane.
Product Parameters:
Model |
Lift Capacity (KG) |
Lift Height (M) |
Lift Speed (m/min) |
Standard Rope Length（M） |
Wire Rope Diameter (φmm) |
|
PA200 |
100 |
12 |
10 |
12 |
3.0 |
200 |
6 |
5 |
|||
|
PA250 |
125 |
12 |
10 |
12 |
3.0 |
250 |
6 |
5 |
|||
|
PA300 |
150 |
12 |
10 |
12 |
3.0 |
300 |
6 |
5 |
|||
|
PA400 |
200 |
12 |
10 |
12 |
4.0 |
400 |
6 |
5 |
|||
|
PA500 |
250 |
12 |
10 |
12 |
4.0 |
500 |
6 |
5 |
|||
|
PA600 |
300 |
12 |
10 |
12 |
4.0 |
600 |
6 |
5 |
|||
|
PA800 |
400 |
12 |
10 |
12 |
5.0 |
800 |
6 |
5 |
|||
|
PA1000 |
500 |
12 |
8 |
12 |
6.0 |
1000 |
6 |
4 |
|||
|
PA1200 |
600 |
12 |
8 |
12 |
6.0 |
1200 |
6 |
4 |

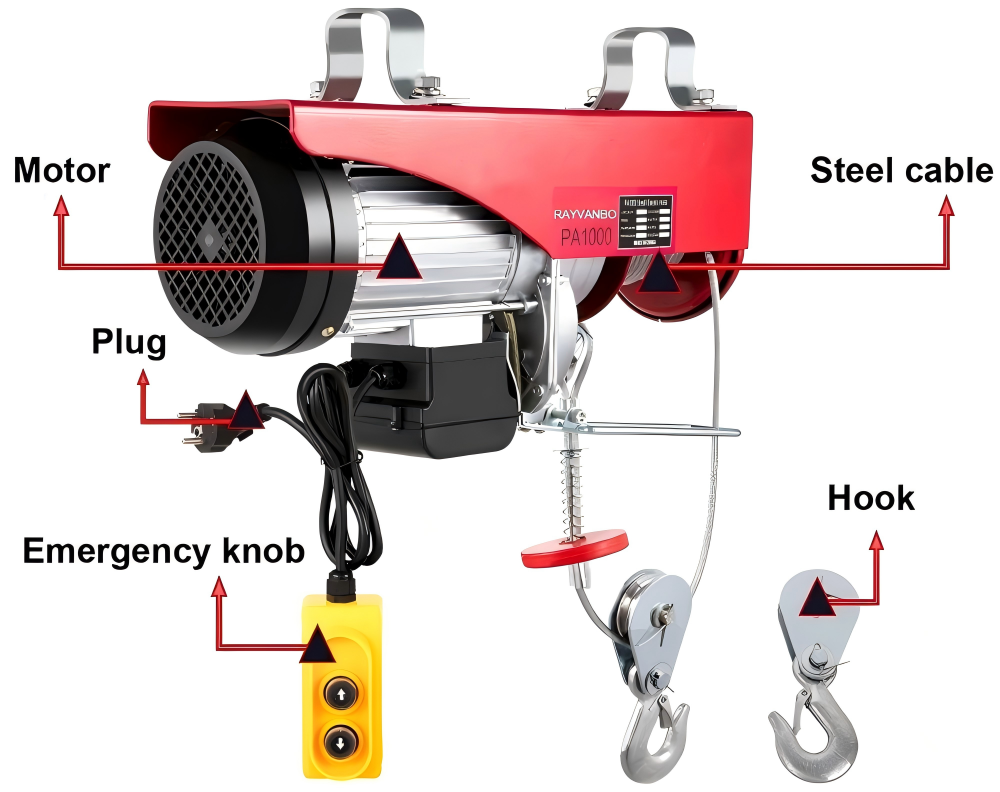

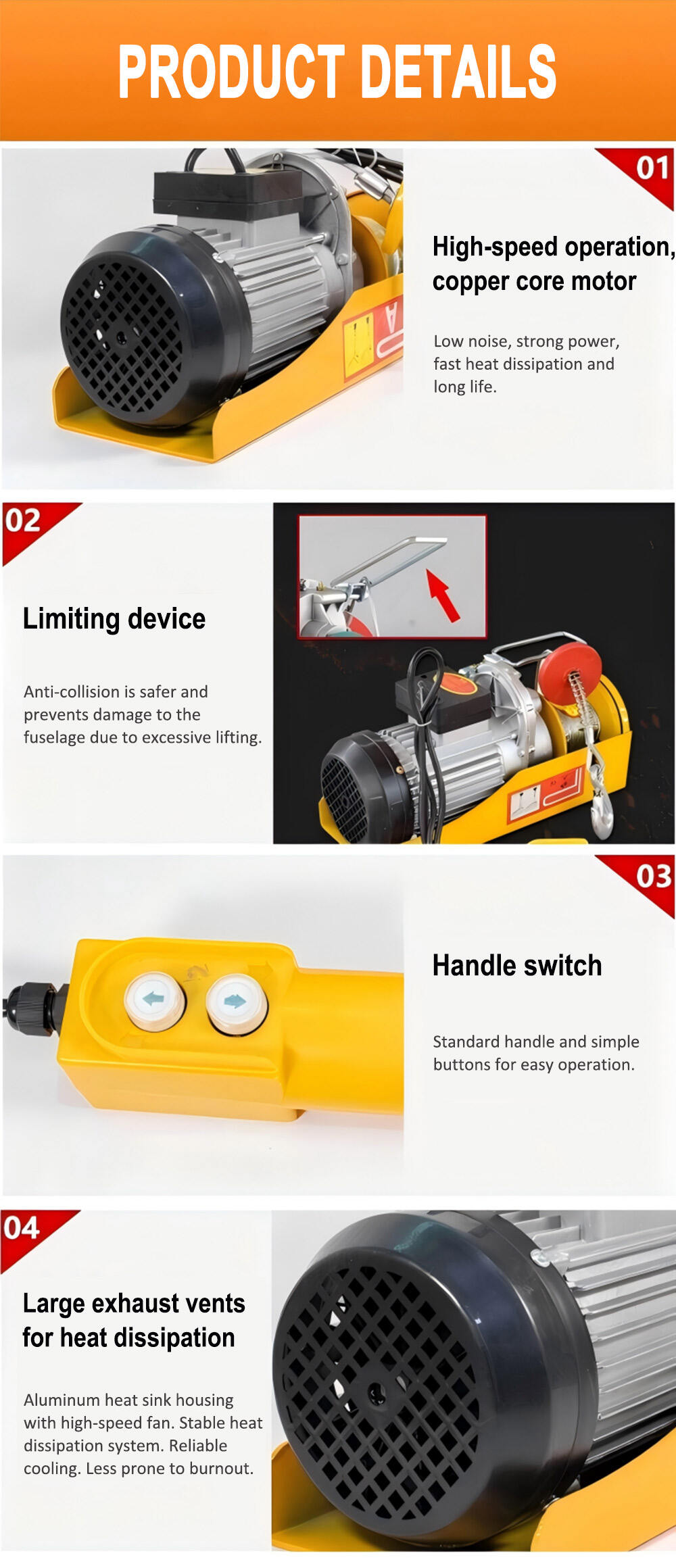

Product Details:
\

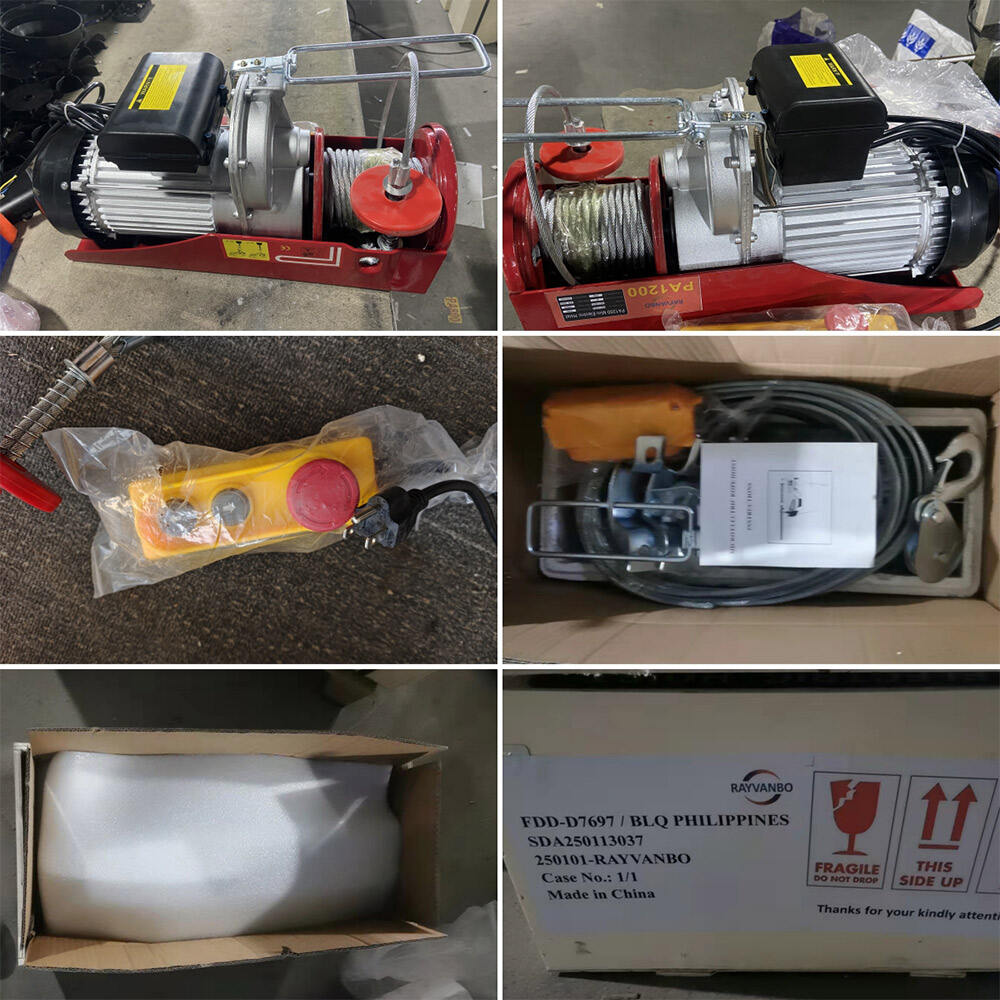

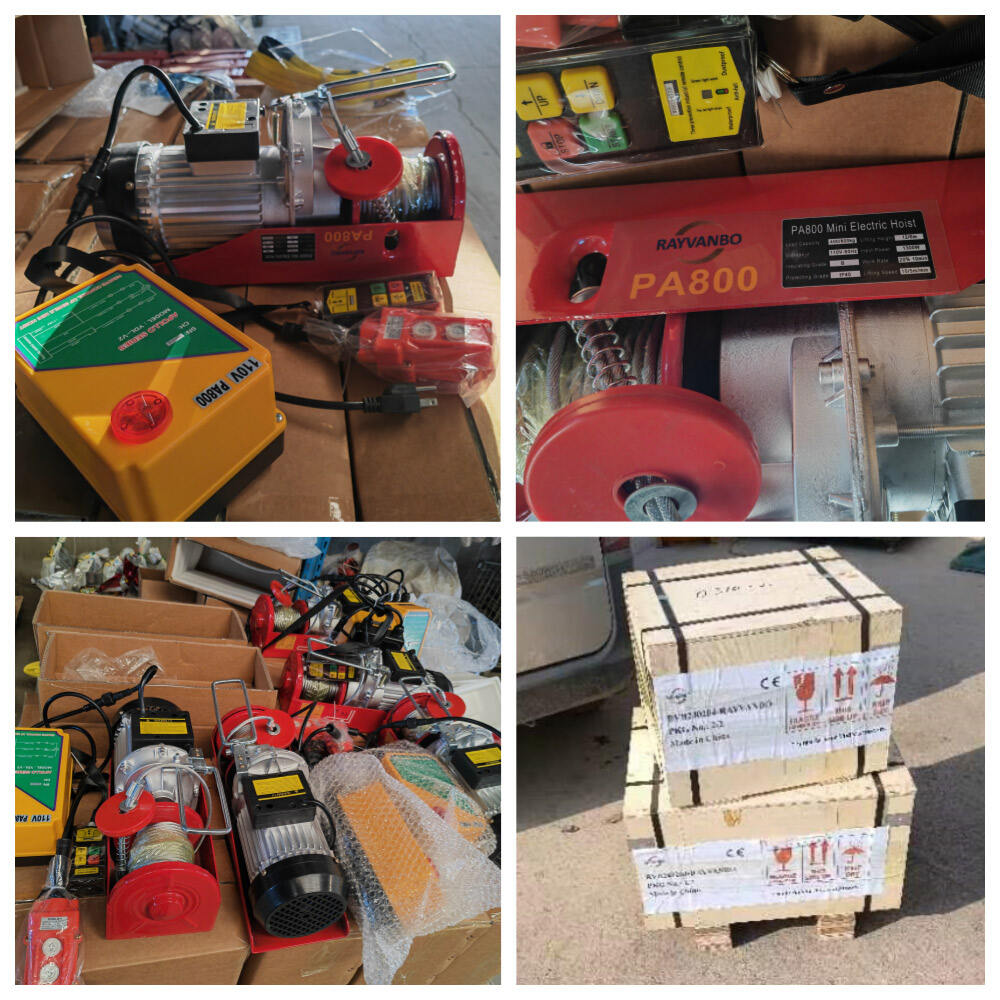

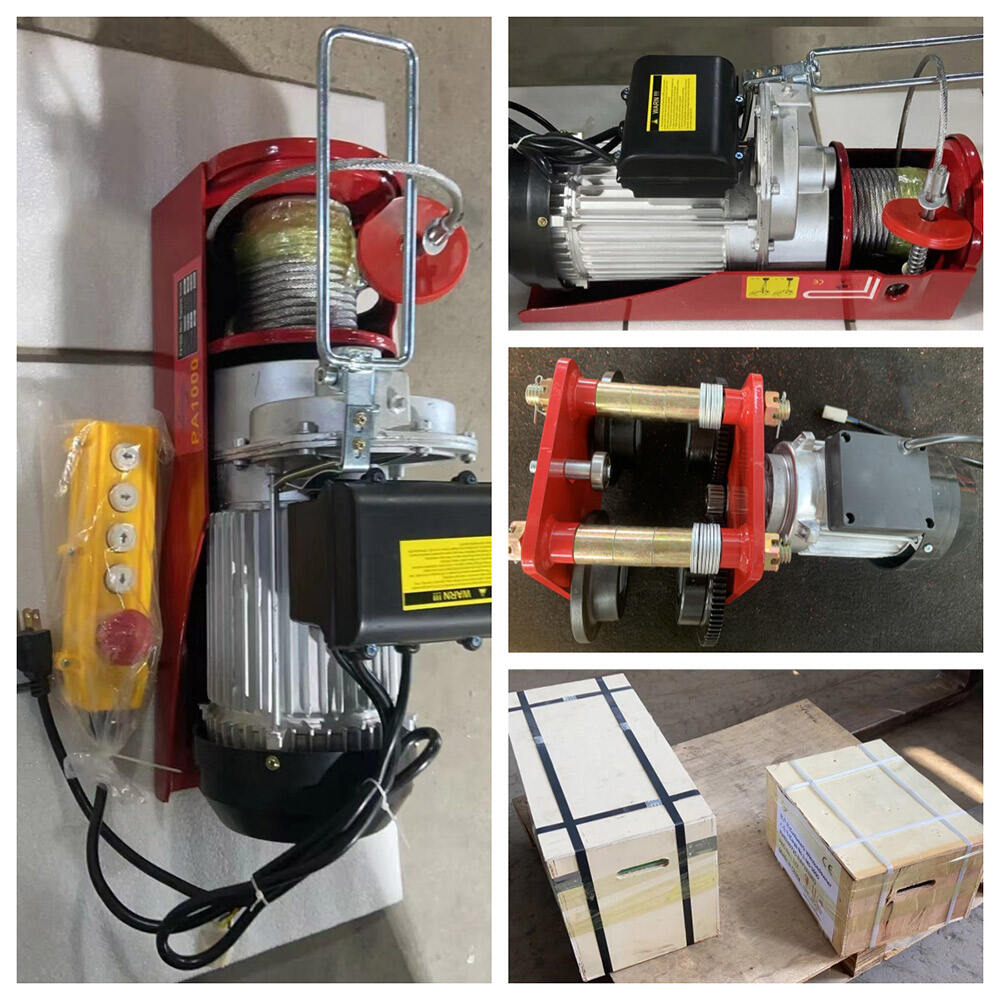

Shipping & Packaging:
