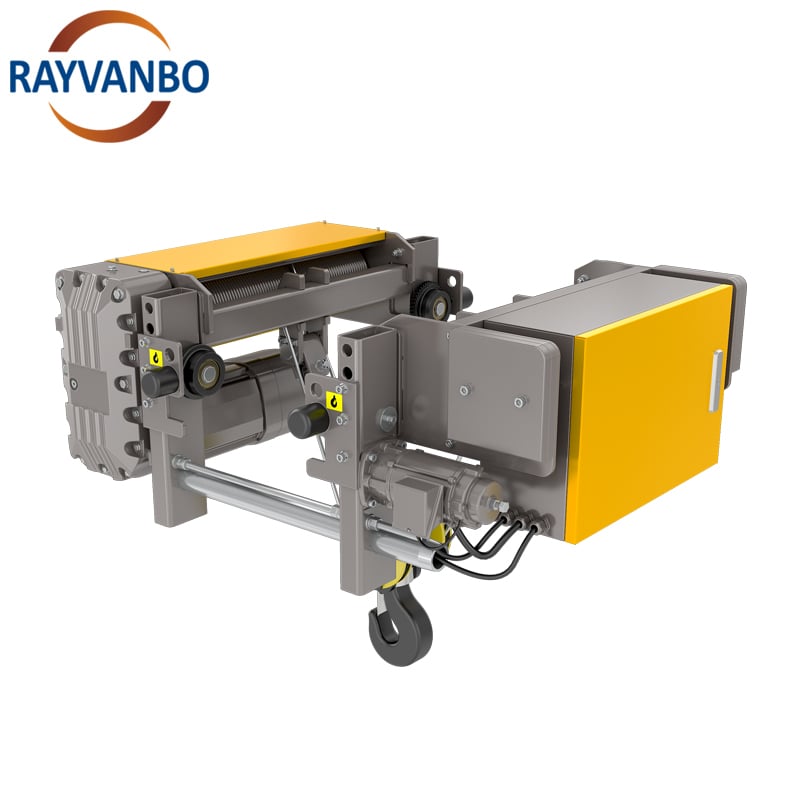

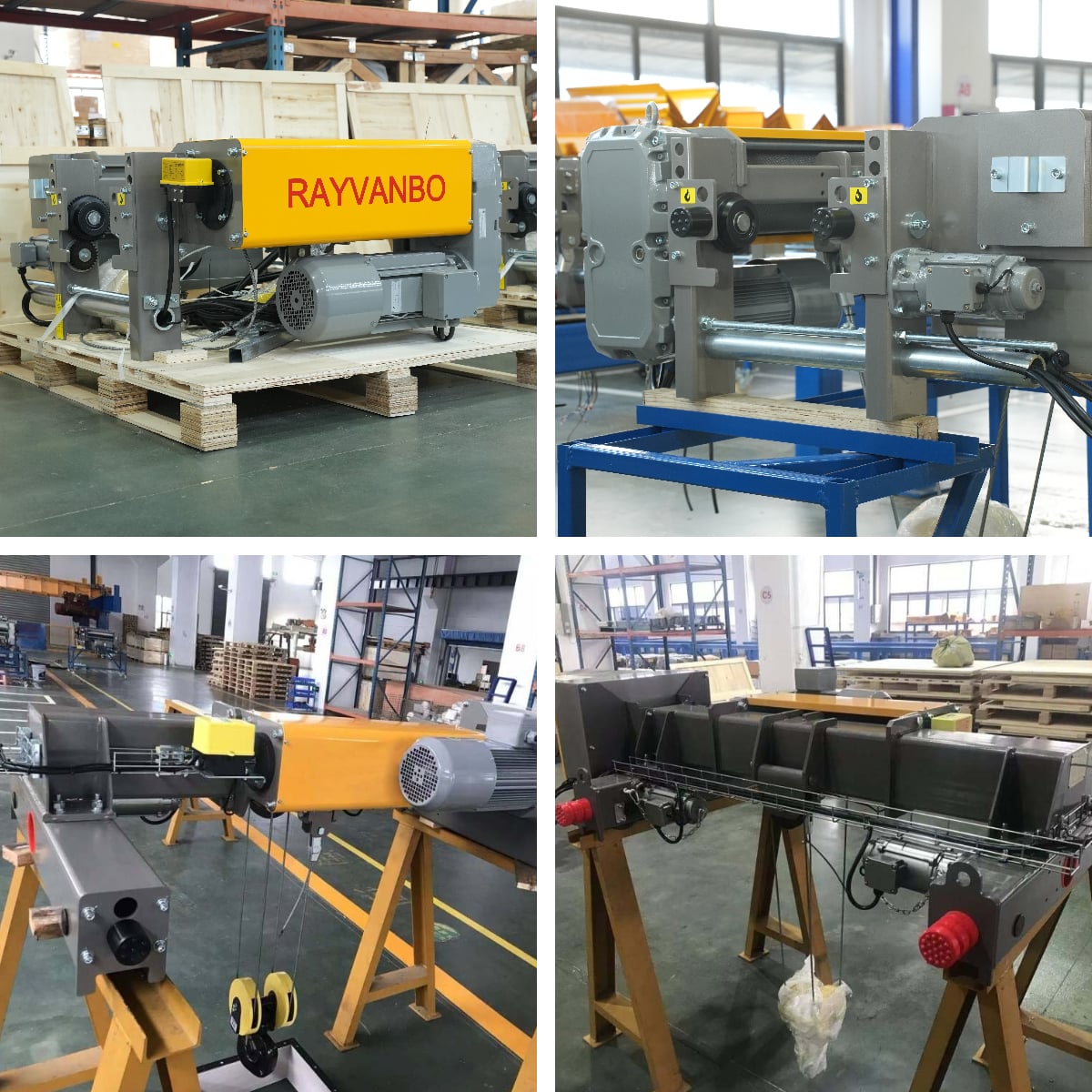

Product Name: European Type Electric Wire Rope Hoist

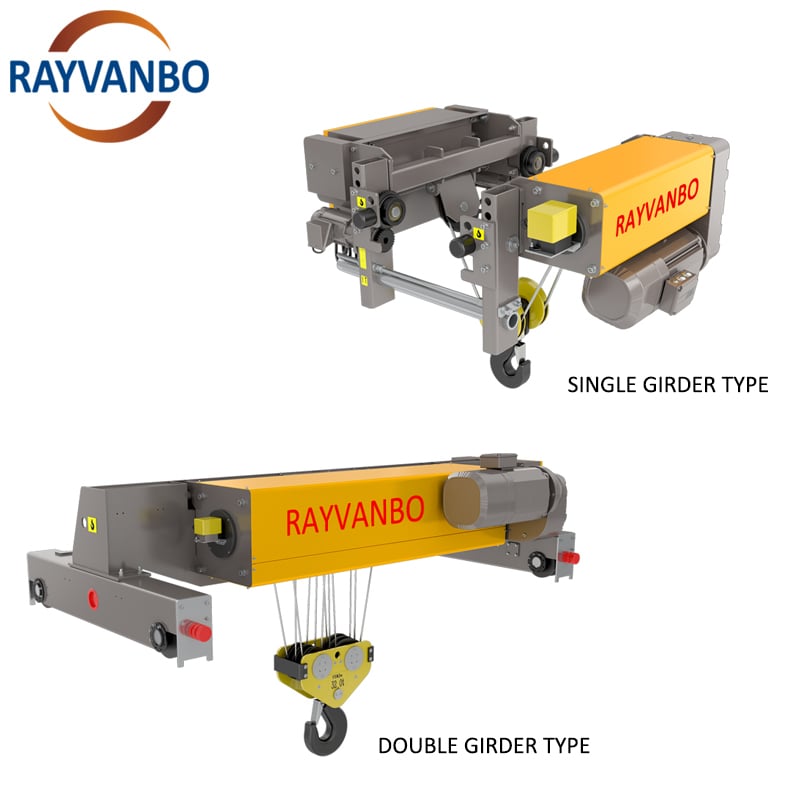

Type: single girder type/ double girder type
Lifting Capacity: 3.2-63 ton（Can be customized ）
Lifting Height: 6m/9m/12m/15m（Can be customized）
Word Duty: M4/M5
Product Description
RAYVANBO's European-style wire rope electric hoist adopts European design standards, with compact structure and efficient operation. Its core component is high-strength wire rope, matched with wear-resistant drum and precision deceleration system, the lifting process is smooth and reliable.
The equipment has built-in multiple safety protections, such as automatic power off in case of overload, instant electromagnetic braking, etc., which effectively ensure the safety of operation. The control method is flexible, supporting low-voltage handle or remote control operation to meet the needs of different scenarios.
The overall consideration of efficiency and reliability is suitable for frequent lifting scenarios, and it is a practical solution to improve industrial handling efficiency.
Product Parameters：
Modle |
Lifting Capacity |
Lifting Height |
Working Duty |
Rope |
Lifting Speed |
Lifting Motor |
Traveling Speed |
Traveling Motor (kw) |
Single Girder |
1.6 |
6/9/12/15/18 |
M5 |
2/1 |
10/1.6 |
3.2/0.45 |
20/5 |
0.4 |
3.2 |
6/9/12/15/18 |
M5 |
4/1 |
5/0.8 |
3.2/0.45 |
20/5 |
0.4 |
|
5 |
6/9/12/15/18 |
M5 |
4/1 |
5/0.8 |
6.1/1.0 |
20/5 |
2*0.4 |
|
6.3 |
6/9/12/15/18 |
M4 |
4/1 |
5/0.8 |
6.1/1.0 |
20/5 |
2*0.4 |
|
5 |
6/9/12/15/18 |
M5 |
2/1 |
10/1.6 |
9.5/1.5 |
20/5 |
2*0.4 |
|
6.3 |
6/9/12/15/18 |
M5 |
2/1 |
10/1.6 |
12.5/2 |
20/5 |
2*0.4 |
|
10 |
6/9/12/15/18 |
M5 |
4/1 |
5/0.8 |
9.5/1.5 |
20/5 |
2*0.4 |
|
12.5 |
6/9/12/15/18 |
M5 |
4/1 |
5/0.8 |
12.5/2 |
20/5 |
1.1 |
|
16 |
6/9/12/15/18 |
M5 |
4/1 |
4/0.66 |
12.5/2 |
20/5 |
2x0.75 |
|
20 |
6/9/12/15/18 |
M4 |
4/1 |
4/0.66 |
16/2.6 |
20/5 |
2x0.75 |
|

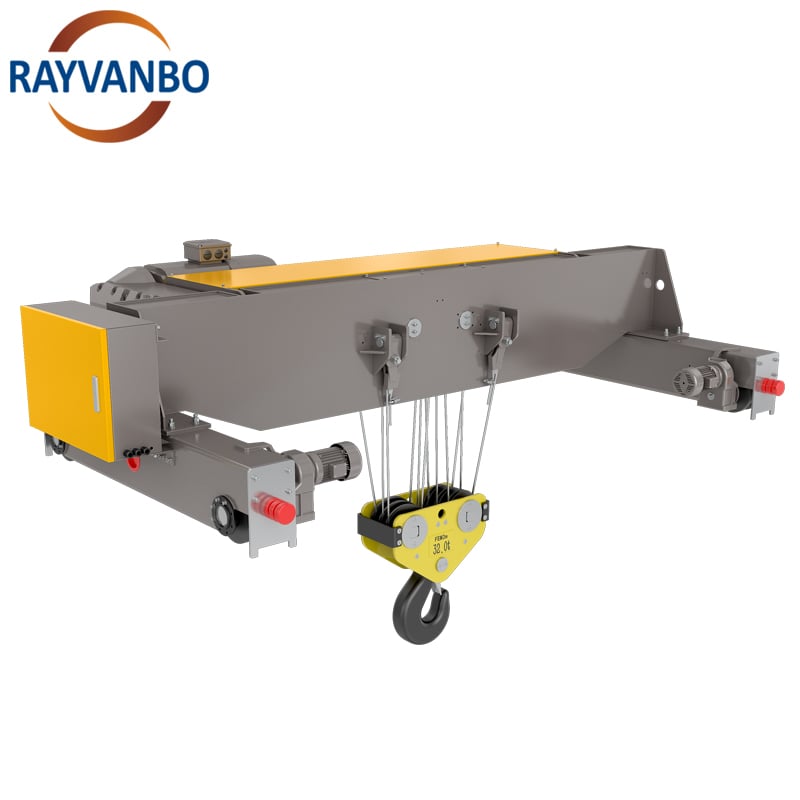

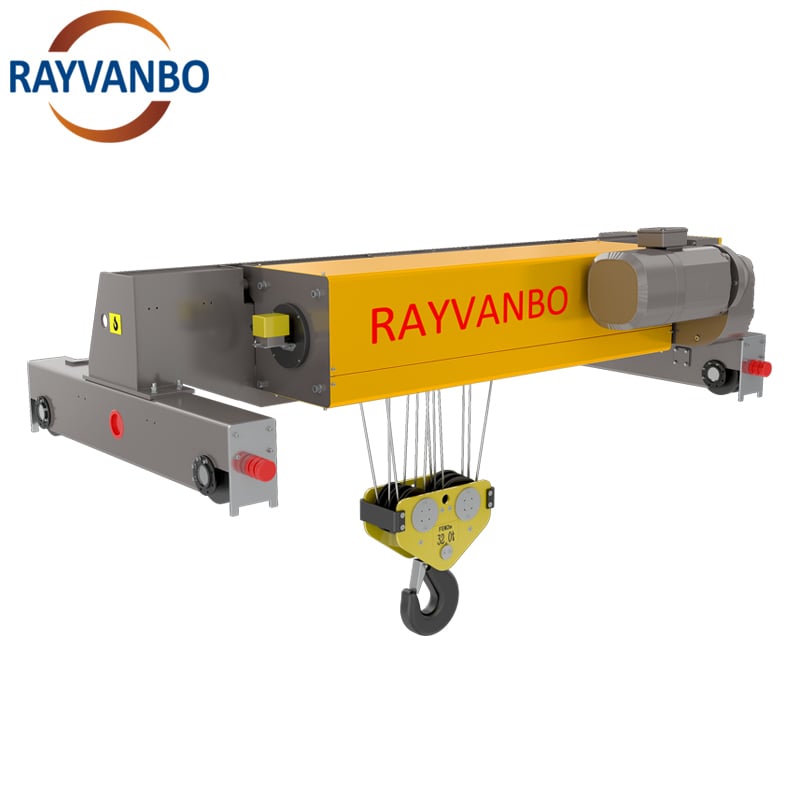

Double Girder |
3.2 |
6/9/12/15/18 |
M5 |
4/1 |
5/0.8 |
3.2/0.45 |
20/5 |
2*0.37 |
5 |
6/9/12/15/18 |
M5 |
4/1 |
5/0.8 |
6.1/1.0 |
20/5 |
2*0.37 |
|
6.3 |
6/9/12/15/18 |
M5 |
4/1 |
5/0.8 |
6.1/1.0 |
20/5 |
2*0.37 |
|
10 |
6/9/12/15/18 |
M5 |
4/1 |
5/0.8 |
9.5/1.5 |
20/5 |
2*0.4 |
|
12.5 |
6/9/12/15/18 |
M5 |
4/1 |
5/0.8 |
12.5/2 |
20/5 |
2*0.4 |

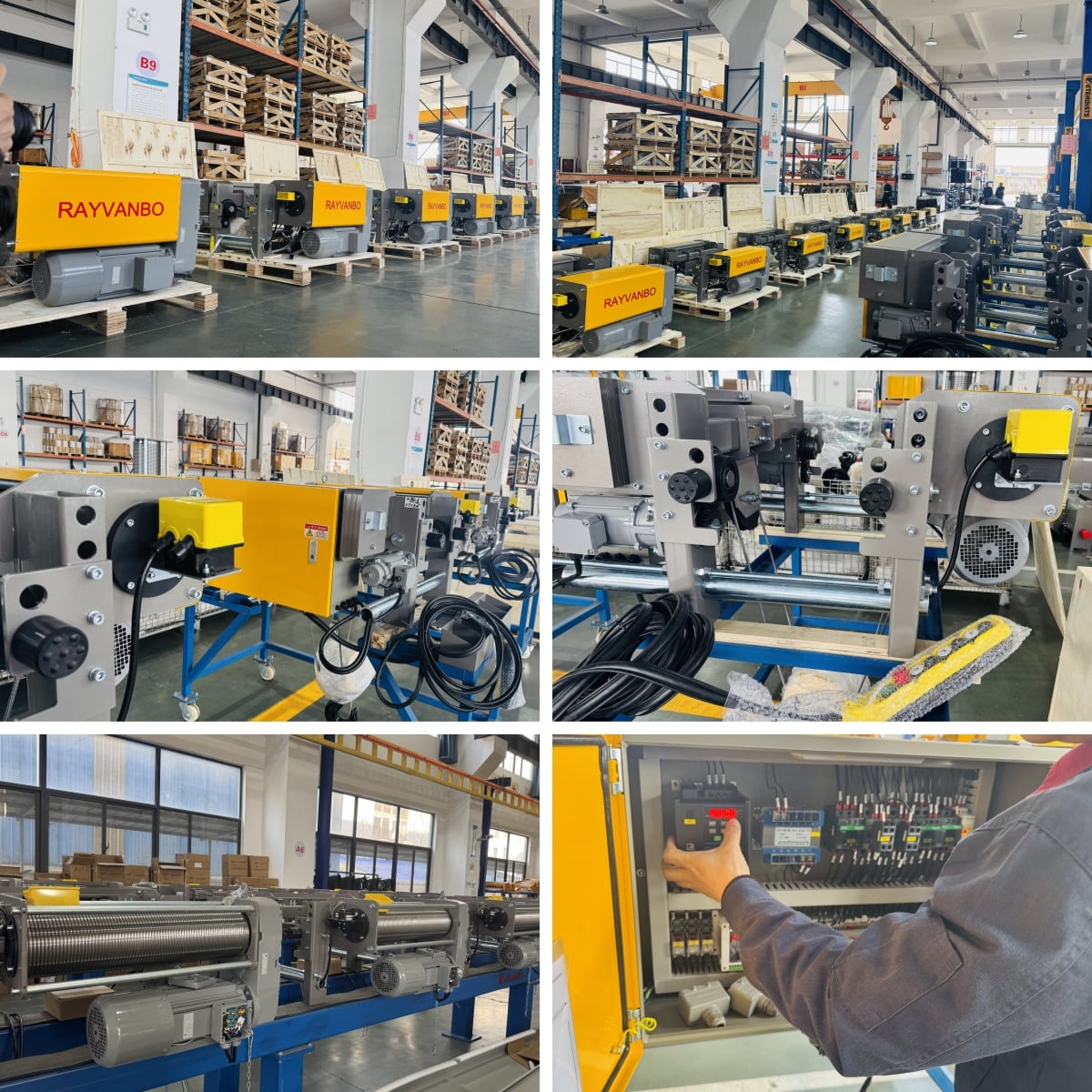

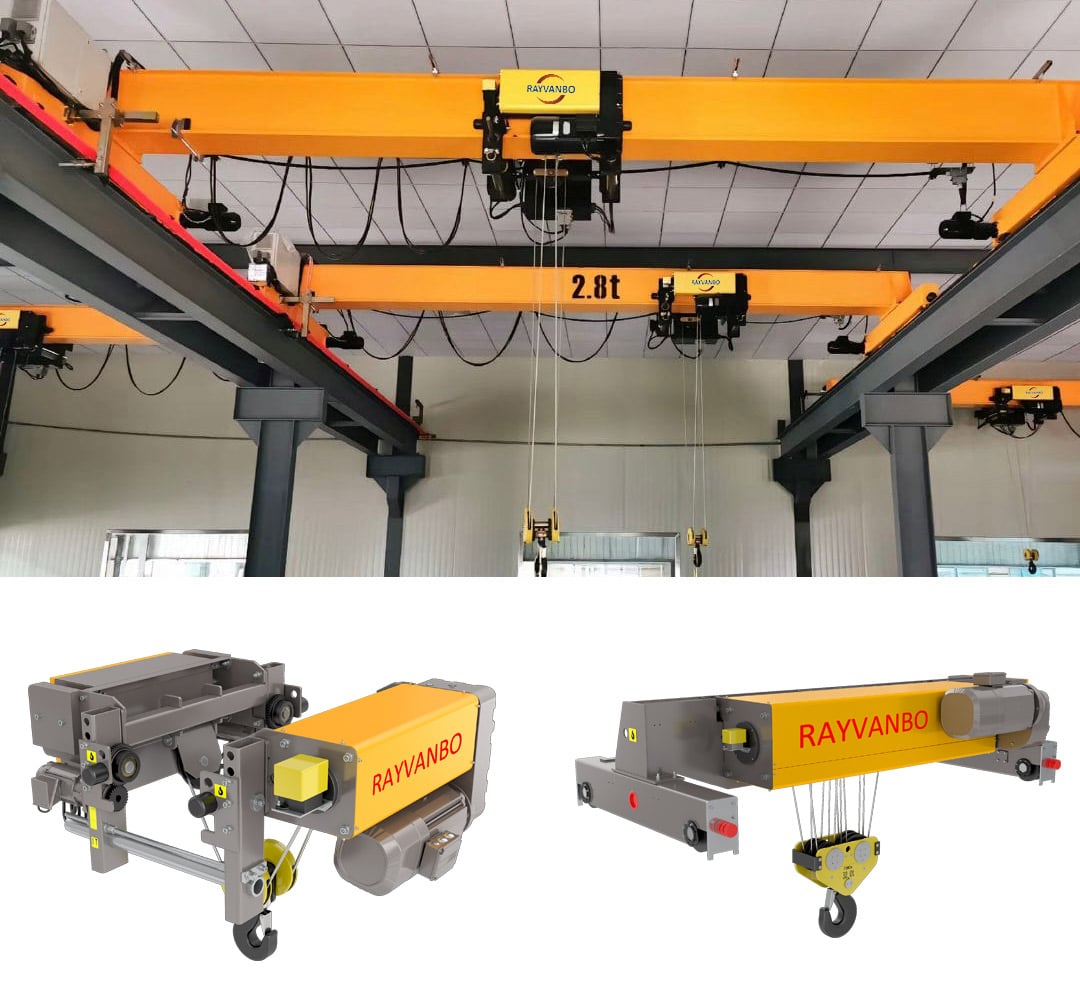

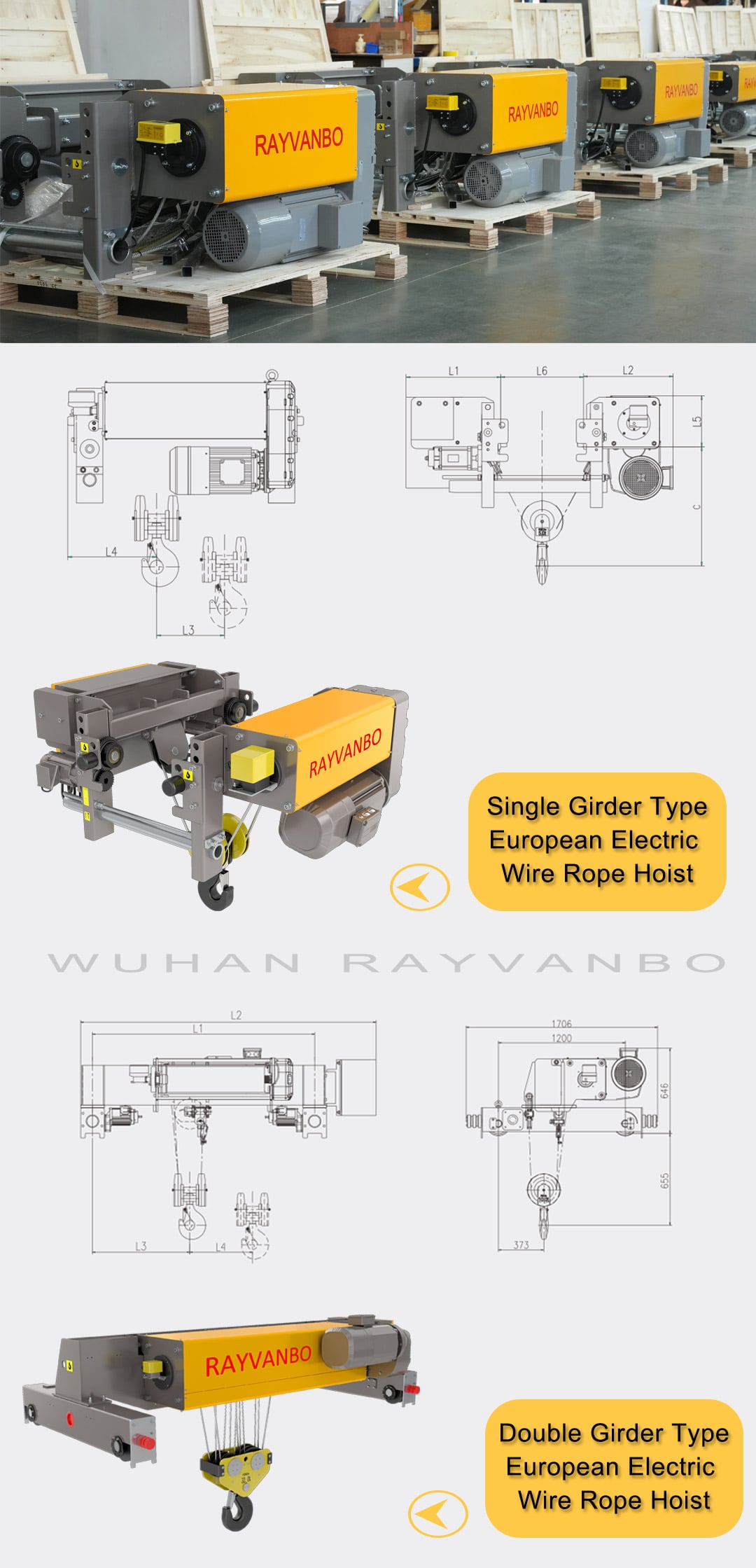

Product Details:
European wire rope hoist has the following advantages：
1. Anti-rotation wire rope design
The wire rope adopts a special twisting process to effectively reduce the rotation and shaking during hoisting and improve the load stability. It is especially suitable for vertical transportation of precision equipment or materials that are easy to tilt.
2. High-efficiency and energy-saving motor
Equipped with a low-energy AC motor, it has high operating efficiency and low temperature rise, consumes less energy during continuous operation, and reduces the impact of equipment heating on life.
3. Emergency power-off unlocking function
In the event of a sudden power outage, the brake can be quickly released through the manual release device, and the heavy objects can be lowered smoothly to avoid the risk of hanging and enhance emergency handling capabilities.
4. Modular quick-release structure
Key components (such as motors and reducers) adopt standardized interface design, which can be quickly disassembled and replaced without professional tools, greatly shortening the maintenance cycle.
5. Accurate limit protection
Built-in two-stage height limit switch, automatically identifies the upper and lower limit positions of lifting, prevents collisions or overwinding of wire ropes caused by misoperation, and extends the service life of the equipment.
There are also many application scenarios for European wire rope hoists:
1. Port loading and unloading
Lifting of small and medium-sized goods, strong corrosion resistance, and adaptability to high humidity and high salt environments.
2. Automobile manufacturing
Precise lifting of large components, anti-rotation design to ensure assembly accuracy.
3. Equipment maintenance
Heavy machinery maintenance positioning, stable load-bearing, safe and reliable emergency unlocking.
4. Intelligent warehousing
Adapt to the automation system to realize intelligent lifting and transfer of goods.

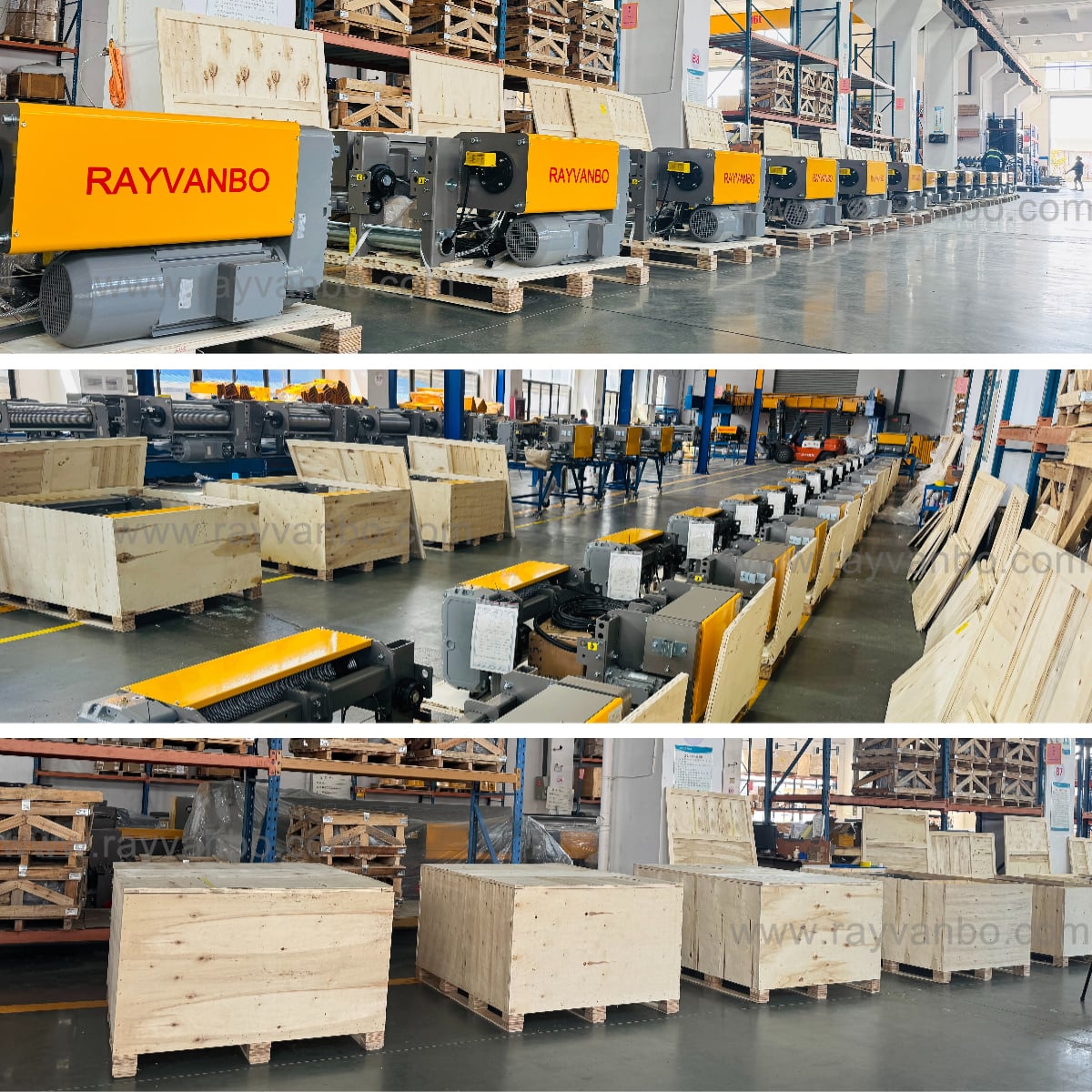

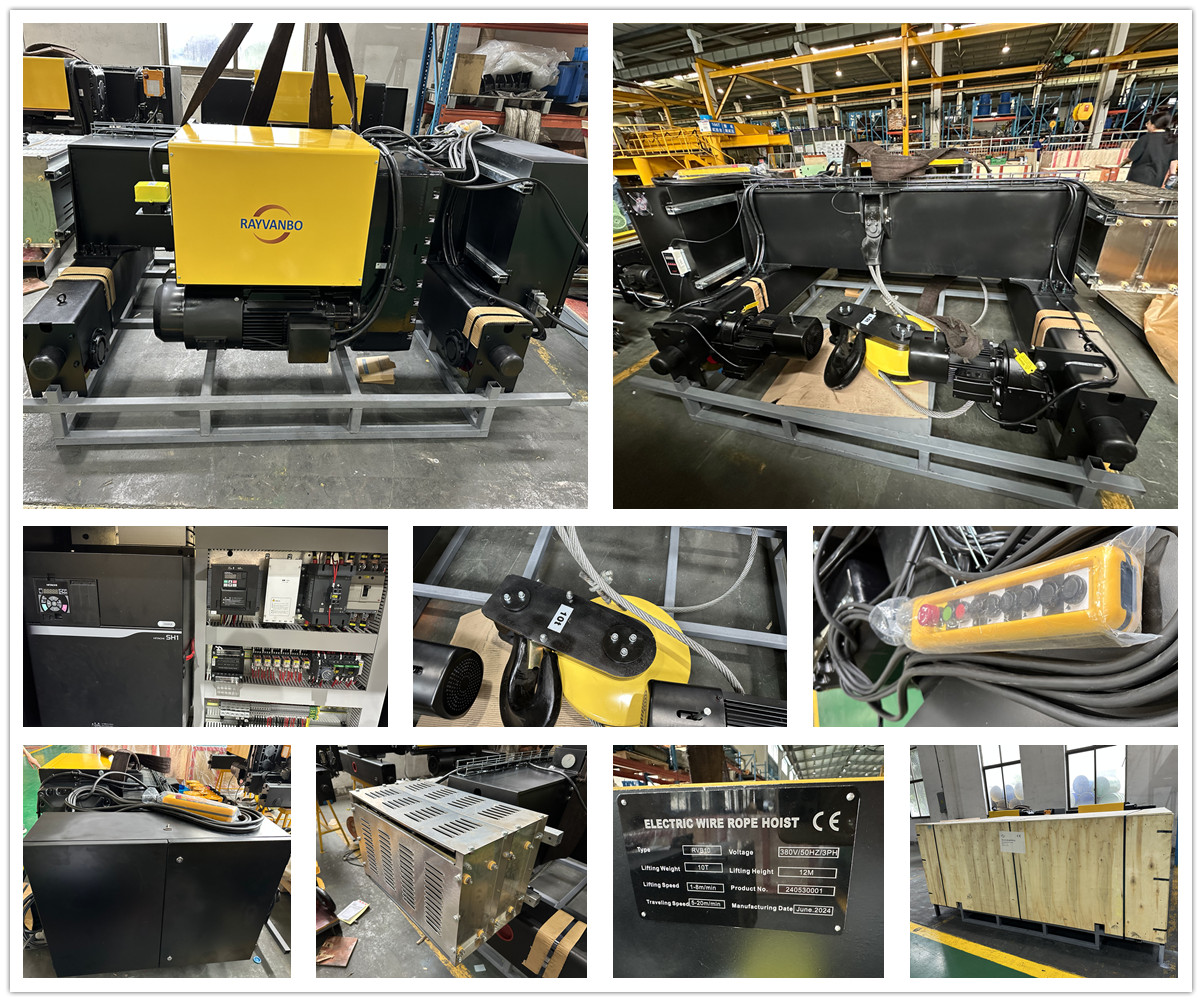

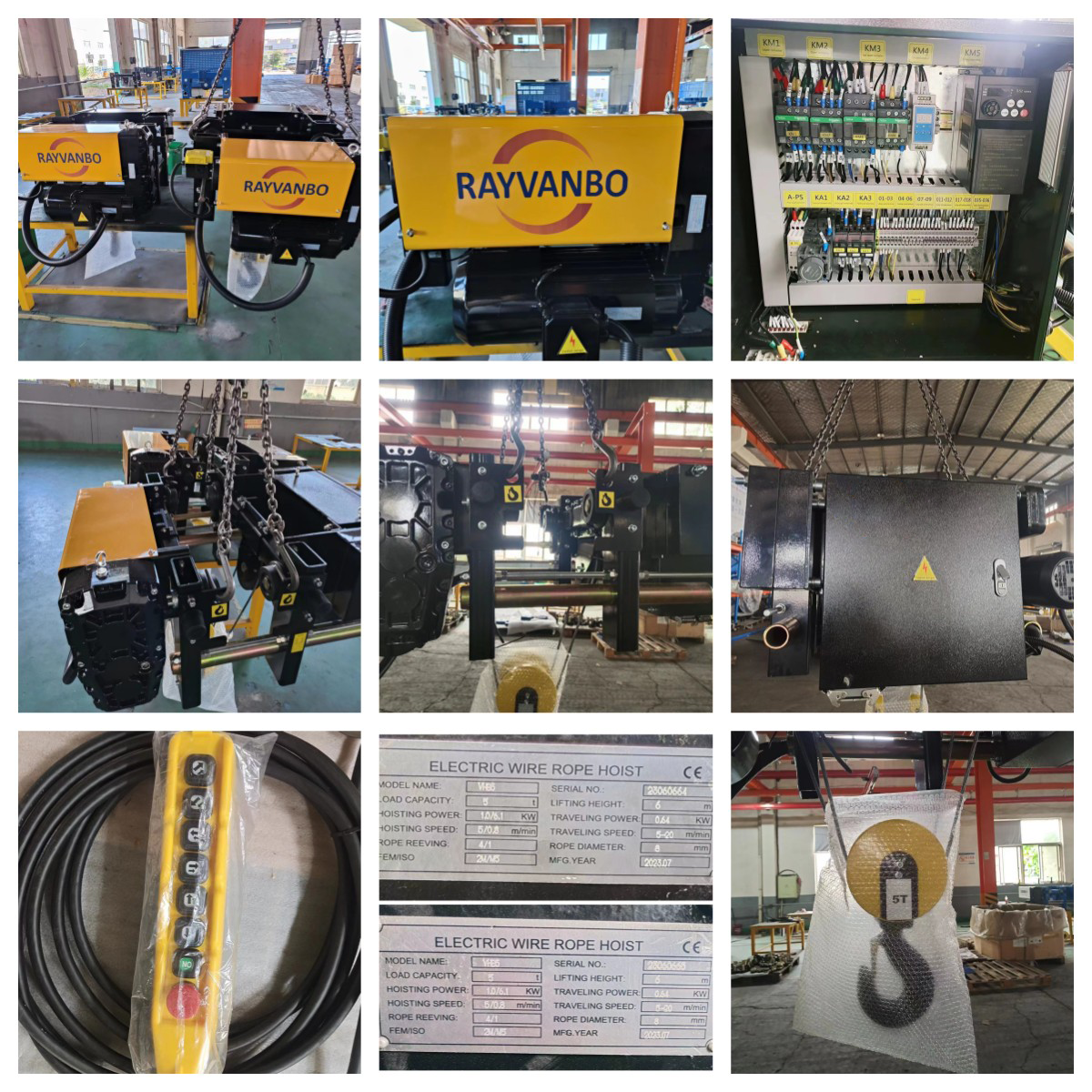

Shipping & Packaging:
