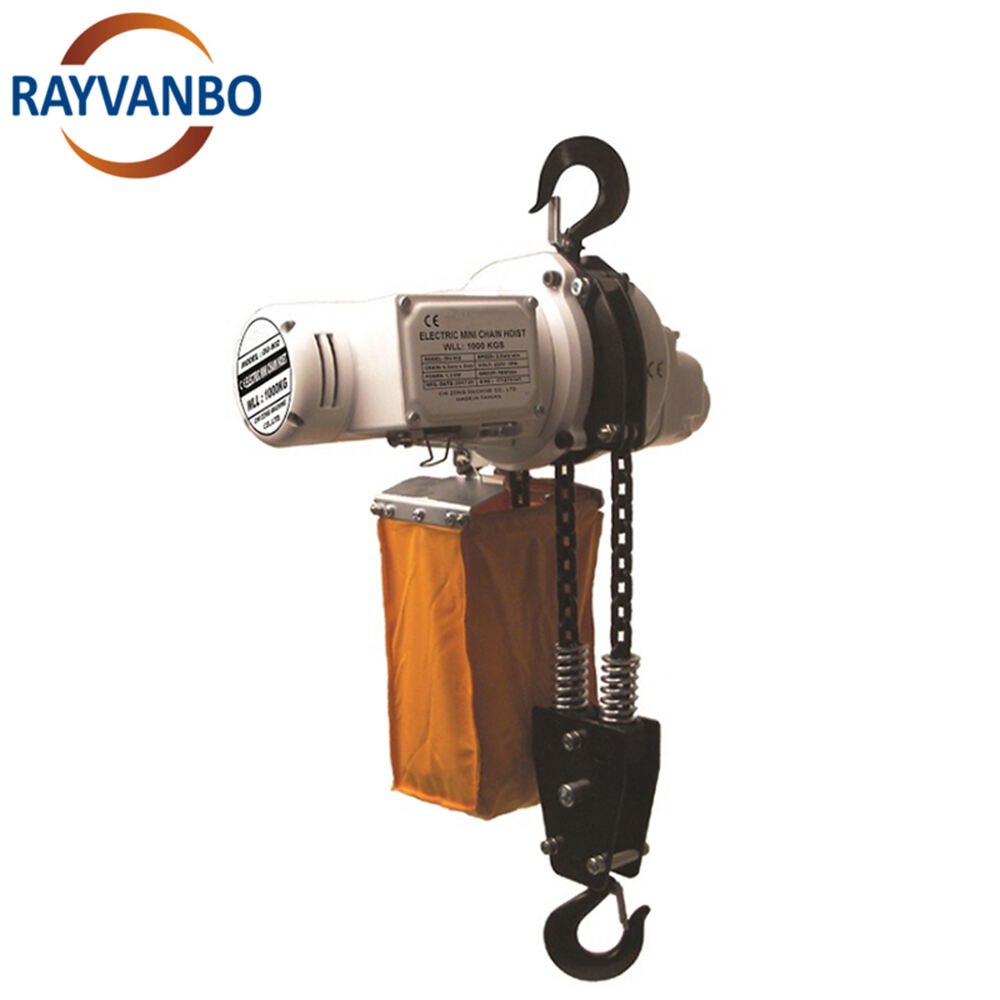

Product Name：Mini Electric Chain Hoist
Model：BCD
Lifting Capacity：250kg,500kg,1000kg
Lifting Height: 3m
Lifting Speed：2.5m/min,3m/min,5m/min,6m/min,10m/min,12m/min
Product Description:
The mini electric chain hoist is a small lifting device featuring fast lifting speeds, attractive appearance, and safe and reliable operation. Its unique overload safety and motor thermal protection provide enhanced safety and reliability. This product can be widely used for lifting various small and heavy objects. It can also be paired with an overhead crane or jib crane to form a logistics and transportation system suitable for low-space operations. It is an excellent device for improving working conditions and increasing labor efficiency.

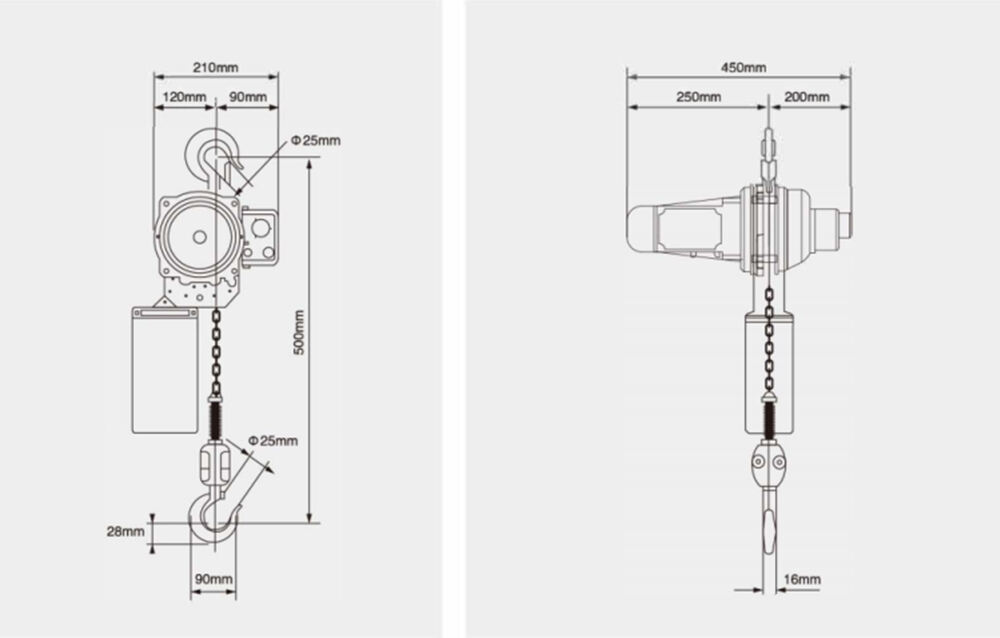

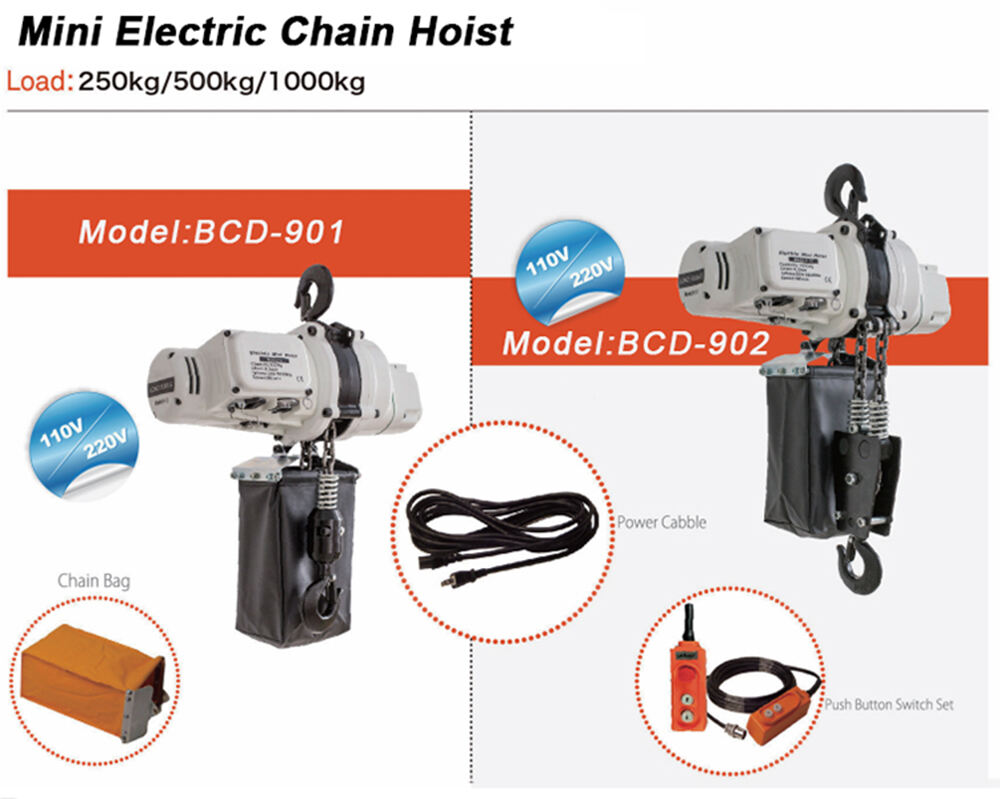

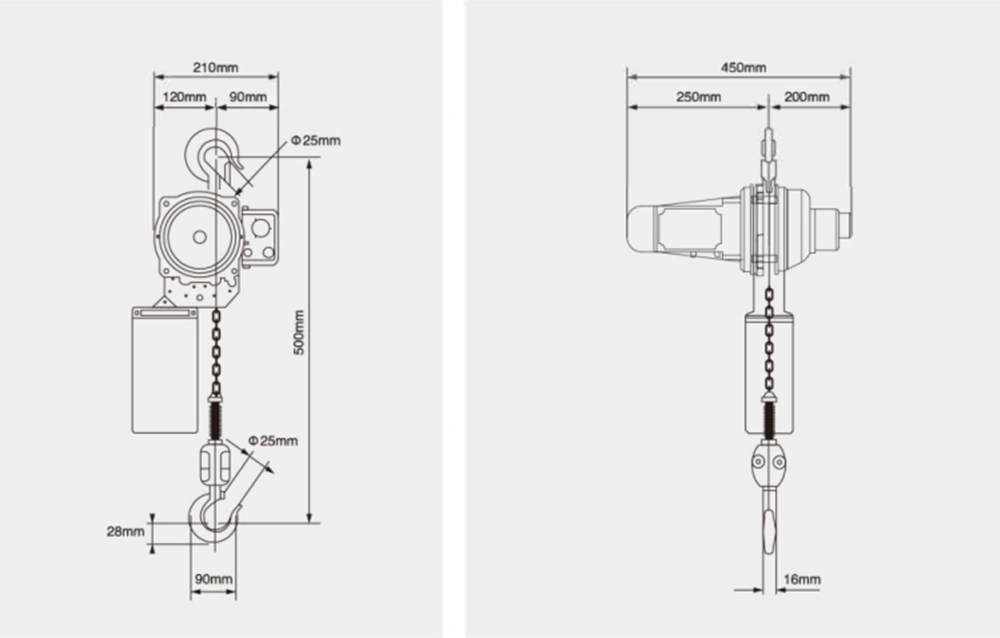

Product Parameters:
Model |
Capacity
(kg)
|
Power(V) |
Phase |
Lift Height
(M)
|
Chain
(Falls)
|
Load chain
(mm)
|
|
BCD-825 |
250 |
100-200 |
200-240 |
1 |
3 |
1 |
6.3 |
BCD-901 |
500 |
100-200 |
200-240 |
1 |
3 |
1 |
6.3 |
BCD-902 |
1000 |
100-200 |
200-240 |
1 |
3 |
2 |
6.3 |
Product Features：
1.Electric crane adopts:
Manhattan brake system:
(1)Motor brake；
(2)Mechanical load brake.
Four sets of safety devices:
(1)Motor overload protection；
(2)Electric limit switch；
(3)Emergency stop；
(4)Overload slip clutch.
2.Reinforced aluminum alloy structure, providing clearance, simplicity and short suspension distance.
3.High-tensile alloy steel load chain, hot-dip treated and fatigue-resistant.
4.All gears and pinion shafts are made of high-quality alloy steel with good surface hardness and supported by anti-friction ball bearings at both ends. Gears run in sealed oil tanks.

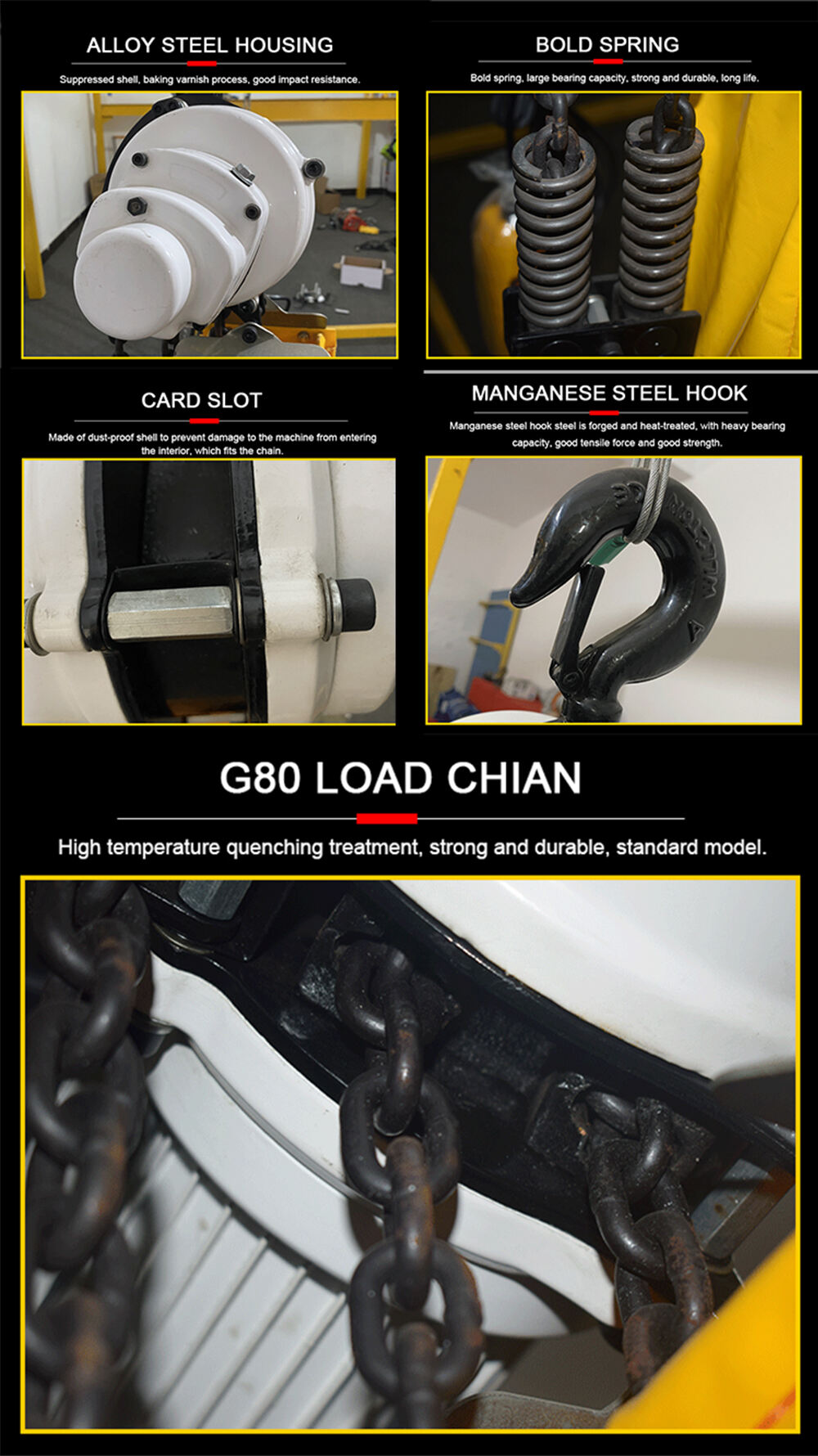

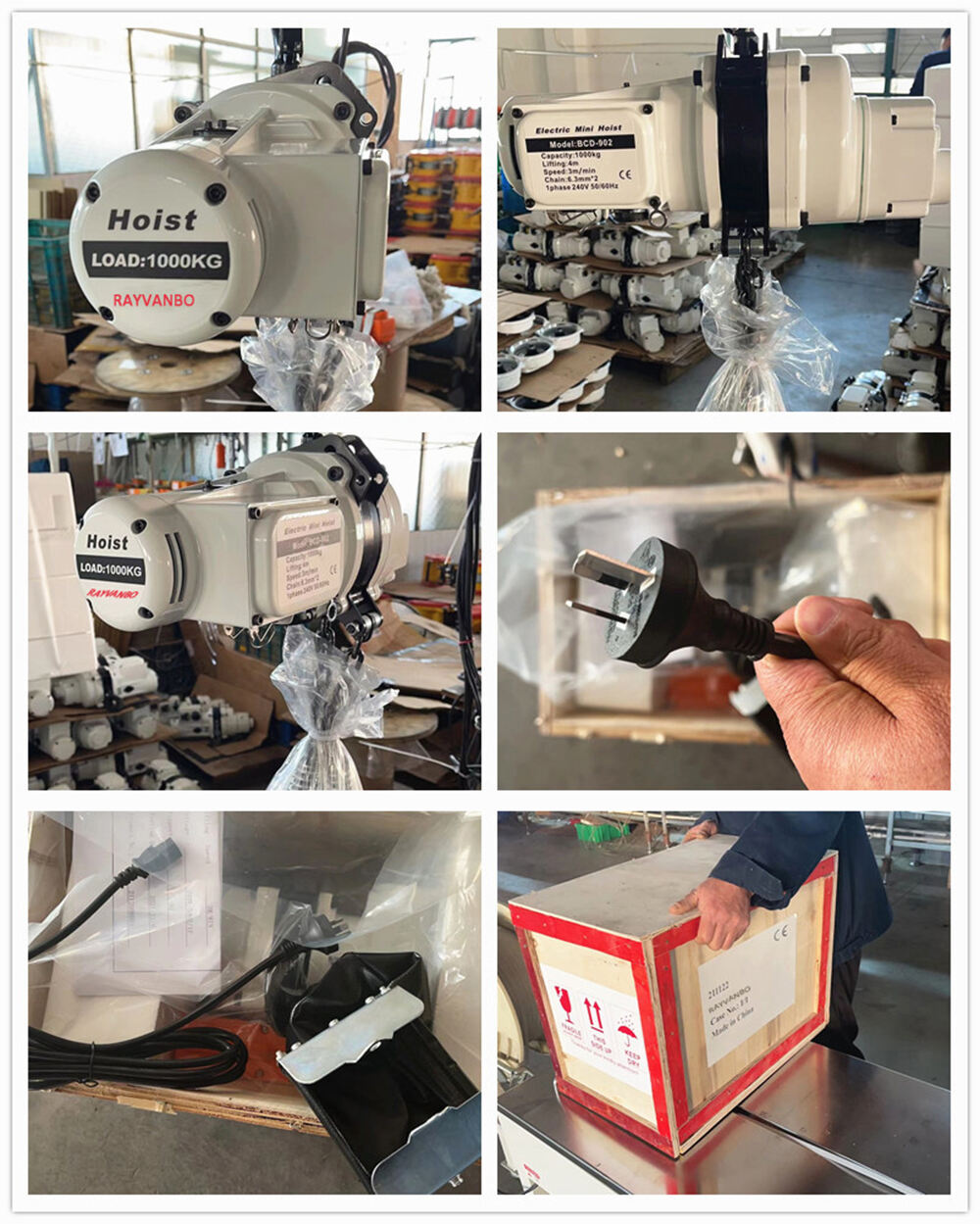

Product Details:
Product Application:

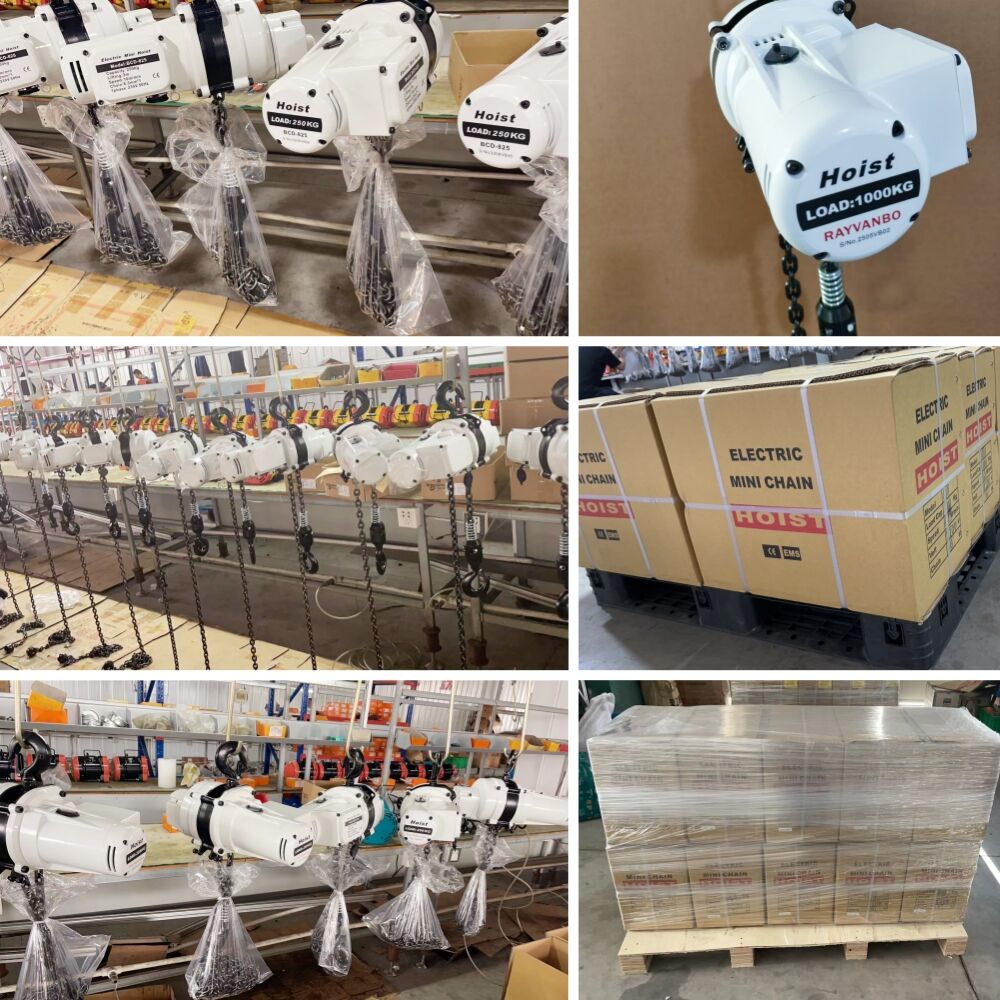

Shipping & Packaging:
