SH Model 0.125-6.3 ton Fixed Manual Trolley Electric Trolley Low Headroom Type European Type Electric Chain Hoist

SH Model 0.125-6.3 ton Fixed Manual Trolley Electric Trolley Low Headroom Type European Type Electric Chain Hoist

Product Name：European Type Electric Chain Hoist
Model: SH

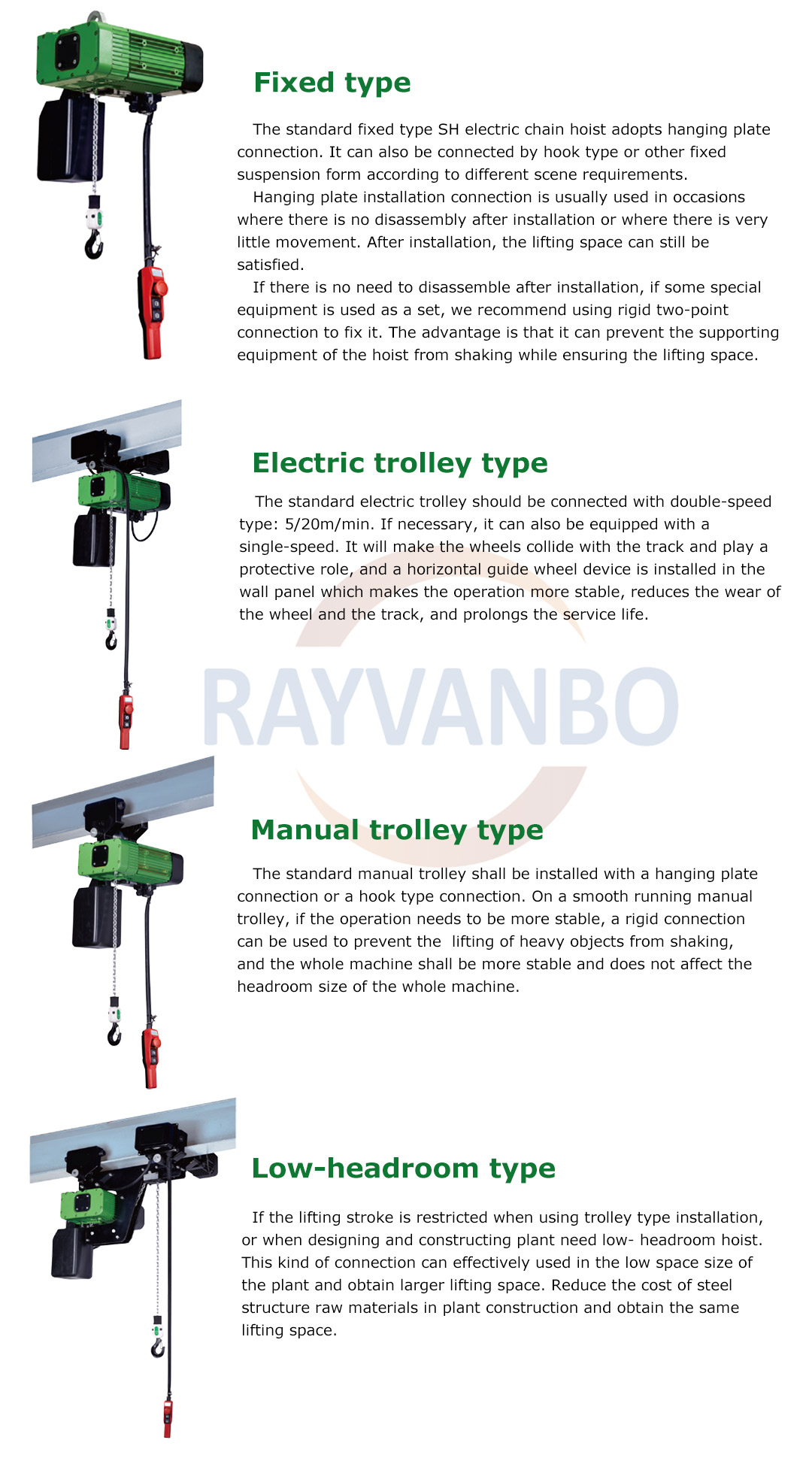

Type: Fixed type / Manual trolley type/ Electric trolley type / Low headroom type
Lifting Capacity：0.125-6.3ton (can be customized)
Lifting Height: Standard 3m (can be customized)

Overview
Related Products

Product Description：

Rayvanbo is a comprehensive lifting equipment enterprise integrating design, research anddevelopment, production and sales. The main products are kinds of crane,hoist and parts.The lifting products adopting a large number of new technologies, new materials and imported partsand components, with low noise, light weight, compact structure, advanced technology, superiorperformance.It has the advantages of safe and simple operation, easy installation and maintenance.Our company "SH" series electric chain hoist are widely used in material handling, machining, molds

development, industrial automation assembly lines, product assembly, wind power generation,etc.various industries.

Rayvanbo company has the license to export independently, and got CE and SGS certificates. Thecompany’s marketing network has spread all over the country.

Product Parameters：

Lift capacity(KG)	Work duty	Lift speed(m/min)
125	3m/M5	16/4
125	3m/M6	8/2
250	2m/M5	12/3
250	1Am/M4	8/2
500	1Am/M4	4/1
	1Am/M4	8/2
	1Am/M4	12/3
1000	1Am/M4	4/1
	1Am/M4	6/1.5
	2m/M5	8/2
	1Am/M4	12/3
1250	3m/M6	6/1.5
1250	3m/M6	16/4
1600	1Bm/M3	8/2
	2m/M5	8/2
	1Am/M4	12/3
2000	2m/M5	4/1
2000	1Am/M4	6/1.5
2500	1Am/M4	6/1.5
2500	1Am/M4	8/2
3200	1Bm/M3	4/1
	2m/M5	4/1
	1Am/M4	6/1.5
	1Bm/M3	6/1.5
5000	1Am/M4	3.2/0.75
5000	1Am/M4	4/1
6300	1Bm/M3	3.2/0.75
