Product Name: JIB Crane

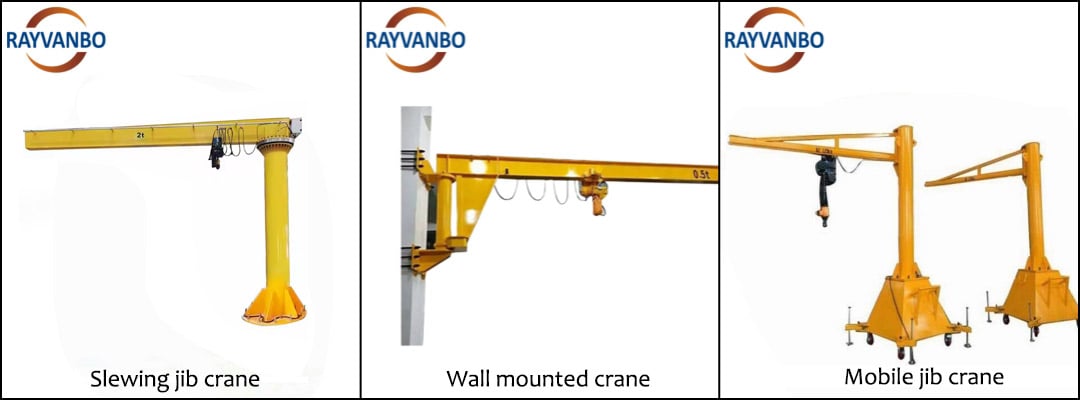

Slewing jib crane/Wall-mounted jib crane/mobile jib crane
Lifting Capacity: 0.5-20 tons
Span or Jib Length：Typically 3-12 meters, depending on the type of structure (column-mounted, wall-mounted, or mobile)
Lifting Height: Generally 3~15 meters, depending on the type of equipment and installation method
Product Description:
JIB crane is a common lifting equipment, which is mainly used for lifting and handling. According to different working occasions and needs, the main structural forms of cantilever crane include column type, wall type and mobile type.

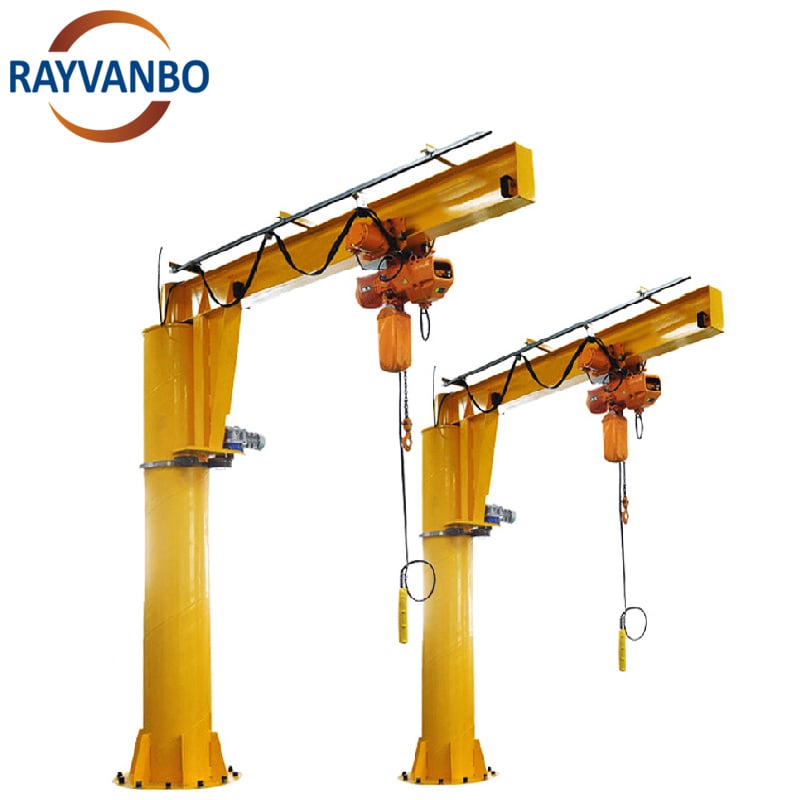

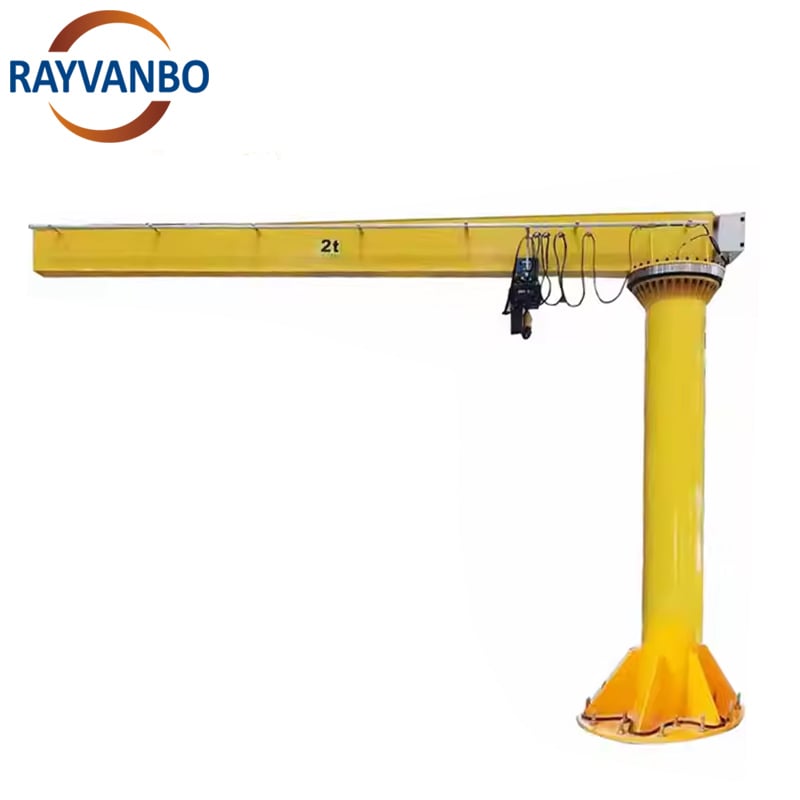

1. Column type JIB crane
Column type electric cantilever crane, the maximum lifting weight can reach 5000kg. The cantilever length can reach 10 meters. The cantilever uses H-shaped steel as the cantilever material, low clearance design, electric rotation, and no angle restriction, so it has great advantages, especially when the working area is large. The column type cantilever crane consists of a column, a cantilever, an electric hoist and a control system. The column is usually made of steel structure with sufficient stability and load-bearing capacity. The cantilever is a beam connected to the column, which is used to carry the electric hoist and hook. The electric hoist can be manual or electric and is used to lift and hang materials. The control system is used to control the operation of the cantilever crane and the action of the electric hoist. The column type cantilever crane is suitable for various occasions that require fixed lifting points, such as assembly work on the production line, cargo handling in the warehouse, etc.
2. Wall-mounted JIB crane
The wall-mounted electric cantilever crane has a maximum lifting capacity of 3000kg, a cantilever length of up to 10 meters (≤1000kg), a maximum rotation angle of 180°, and can be used in places with reinforced concrete walls and columns. The lifting height can be arbitrarily determined according to the actual lifting height. The wall-mounted cantilever crane consists of a wall bracket, a cantilever, an electric hoist and a control system. The wall bracket is usually made of steel structure, installed on the wall and has sufficient stability and load-bearing capacity. The structure of the cantilever and electric hoist is similar to that of the column-mounted cantilever crane. The main advantage of the wall-mounted cantilever crane is that it can be installed on the wall, does not occupy ground space, and can provide a larger operating space. It is suitable for occasions that need to save space and provide a larger operating space, such as factory workshops, warehouses, etc.
3. Mobile cantilever crane
The mobile cantilever crane is flexible and can be moved between different working areas as needed. The mobile cantilever crane consists of a mobile base, a cantilever, an electric hoist and a control system. The mobile base is usually made of steel structure, with sufficient stability and load-bearing capacity, and equipped with mobile wheels to facilitate the cantilever crane to move between work areas. The structure of the cantilever and electric hoist is similar to that of the column cantilever crane. The main advantage of the mobile cantilever crane is its flexibility. It can be moved between different work areas as needed. It is suitable for occasions where the work location needs to be changed frequently, such as construction sites, loading and unloading sites, etc..
Product Parameters:
Lift capacity(T) |
0.5, 1, 2, 3, 5, 10, 16, 20 |
|||
Span(M) |
7.5-22.5 |
|||
|
Mechanism traveling |
speed(m/min) |
10, 20, 30 |
45, 60 |
|
|
motor |
type |
ZDY1 21-4 |
ZDR12-4 |
|
power(kw) |
2*0.8 |
2*1.5 |
||
speed(r/min) |
1380 |
1380 |
||
|
Electric chain hoist or wire rope hoist |
model |
CD1/MD1/HHBB |
||
lift height(m) |
3-25 |
|||
traversing speed(m/min) |
20,30 or can be customized |
|||
lifting speed(m/min) |
8(7); 8/0.8(7/0.7) |
|||
Work duty |
A3-A5 |
|||
Power supply |
380V/50HZ or on request |
|||
Product Details:
Product Advantages:
1. Fixed column cantilever crane
- High stability, ensuring safety and reliability during lifting.
- No need to move frequently after installation, reducing equipment wear and maintenance costs.
- Suitable for efficient lifting at specific workstations, improving production efficiency.
2. Wall cantilever crane
- Save space, make full use of wall resources, and make the workplace more tidy and orderly.
- Firm installation, does not affect the use of ground space, and facilitates the layout of other equipment.
- Stable and reliable, able to meet certain lifting needs.
3.Mobile cantilever crane
- Strong flexibility, able to quickly respond to lifting needs at different locations.
- Simple operation, convenient for workers to use, and improve work efficiency.
- The position can be adjusted at any time according to actual conditions to adapt to changing working environments.
