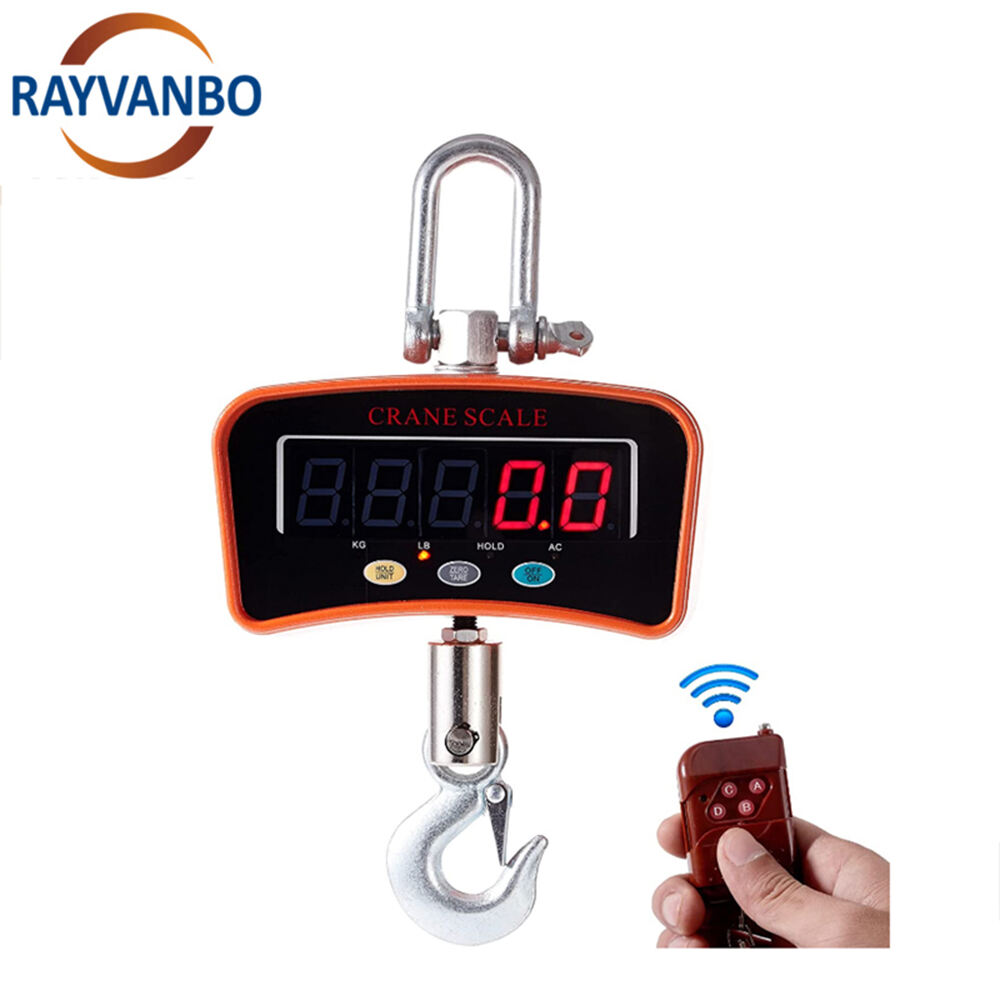

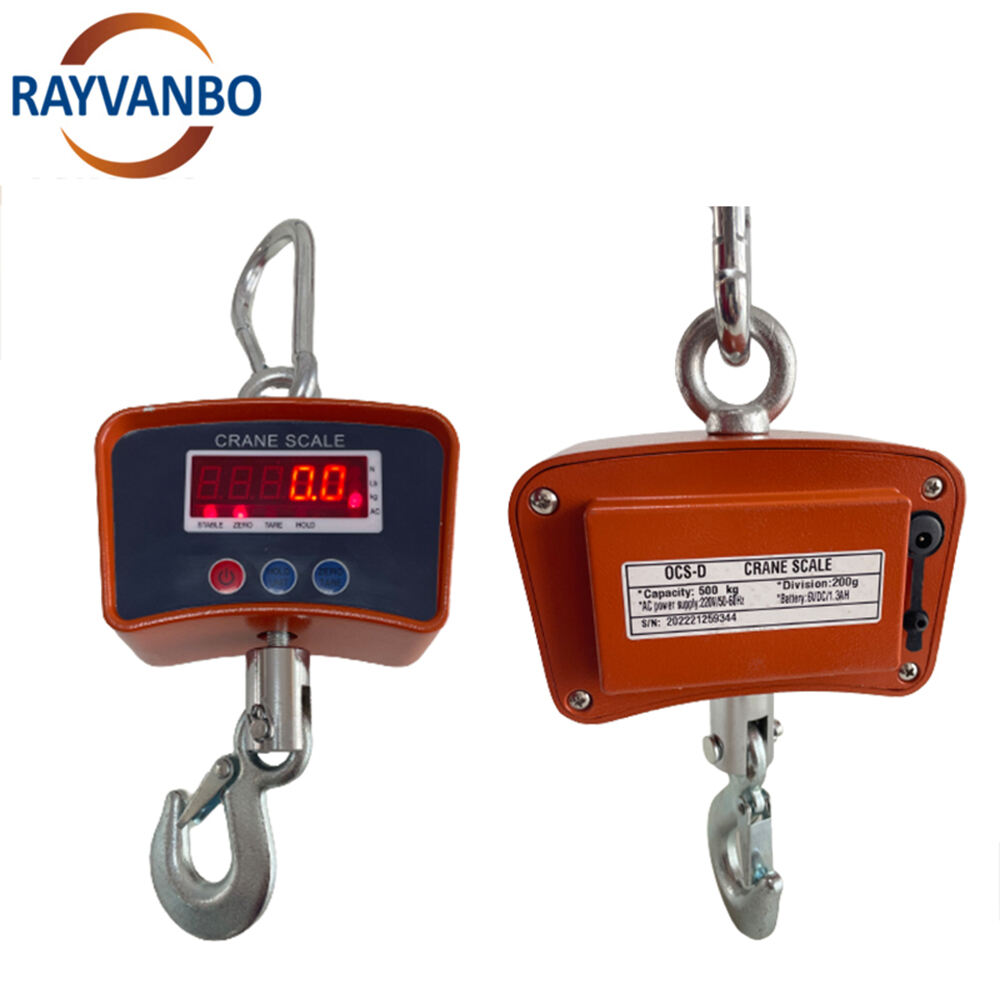

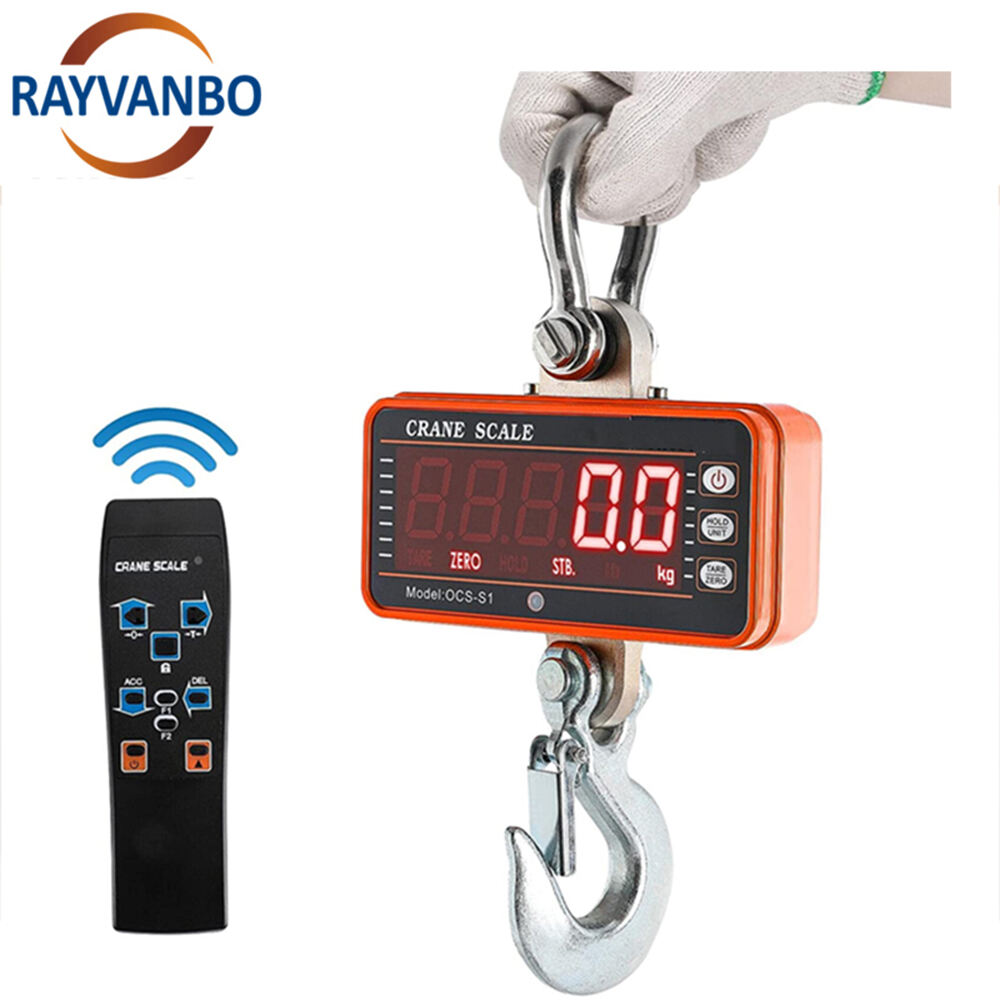

Product Name：Crane Scale
Capacity：0.5-30 ton
Remote Control Distance: 10-15m
Material: Alloy Steel Shell
Product Description:
The crane scale is a measuring instrument used to weigh suspended objects. It consists of core components such as a sensor, a scale frame, and a weight display controller. It is primarily used in packaging, transportation, and warehousing. Based on the reading method, it is categorized into wireless data transmission and direct-view types. The former uses a separate instrument to receive wireless signals, while the latter has a display integrated directly into the scale. Its mechanical structure includes load-bearing components such as shackles and hooks, and is equipped with a sensor protection device.
Product Parameters:
Model |
Max. Capacity |
Division value |
A |
B |
C |
D |
E |
Weight (KG) |
1T |
1000KG |
0.5KG |
185 |
130 |
270 |
520 |
60 |
6 |
2T |
2000KG |
1KG |
185 |
130 |
270 |
520 |
60 |
7 |
3T |
3000KG |
1KG |
185 |
130 |
270 |
500 |
95 |
11 |
5T |
5000KG |
2KG |
185 |
130 |
270 |
610 |
120 |
16 |
10T |
10000KG |
5KG |
220 |
160 |
320 |
640 |
125 |
23 |
15T |
15000KG |
5KG |
220 |
160 |
320 |
780 |
185 |
36 |
20T |
20000KG |
10KG |
280 |
200 |
270 |
930 |
230 |
66 |
30T |
30000KG |
10KG |
280 |
200 |
270 |
1200 |
240 |
101 |

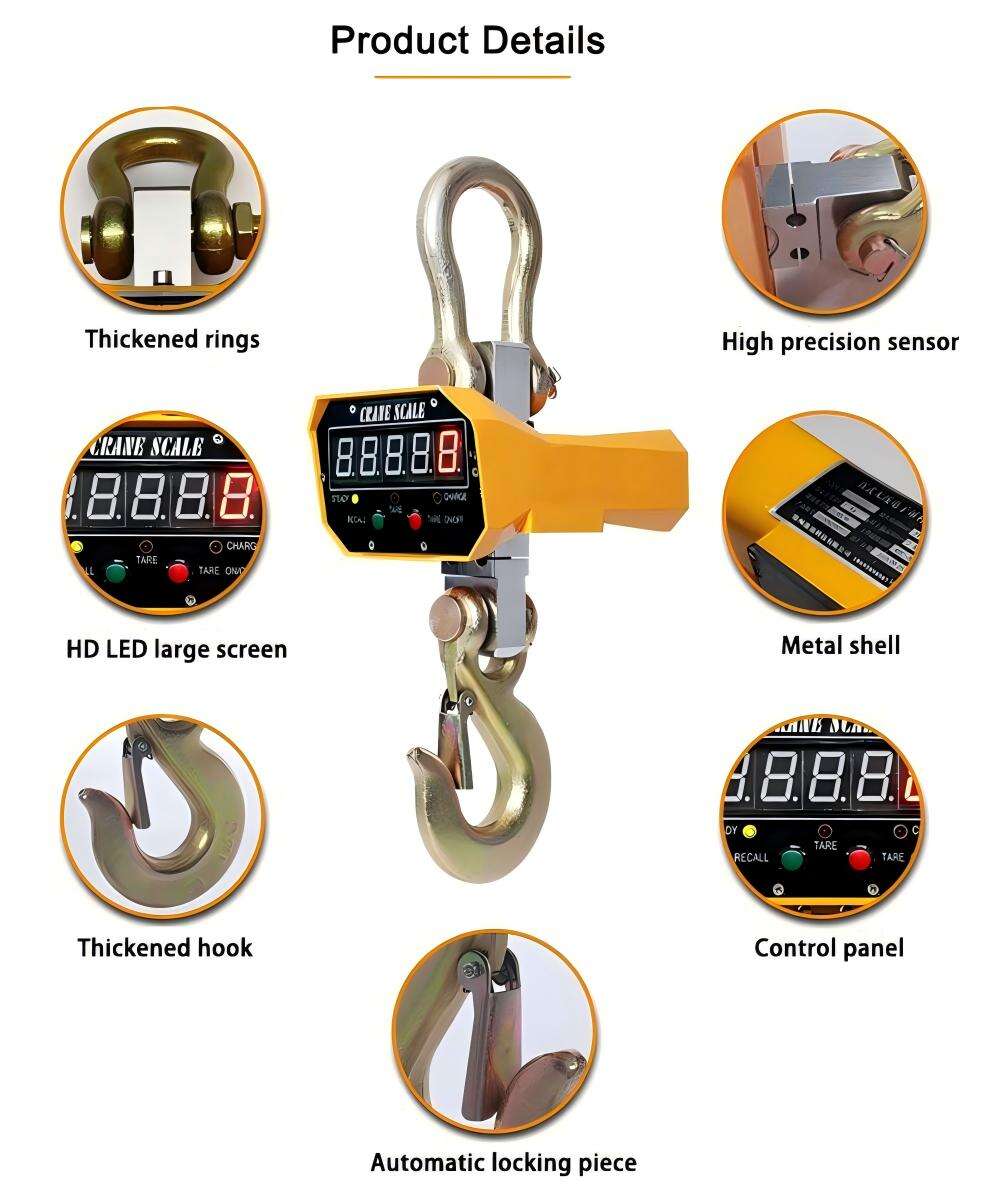

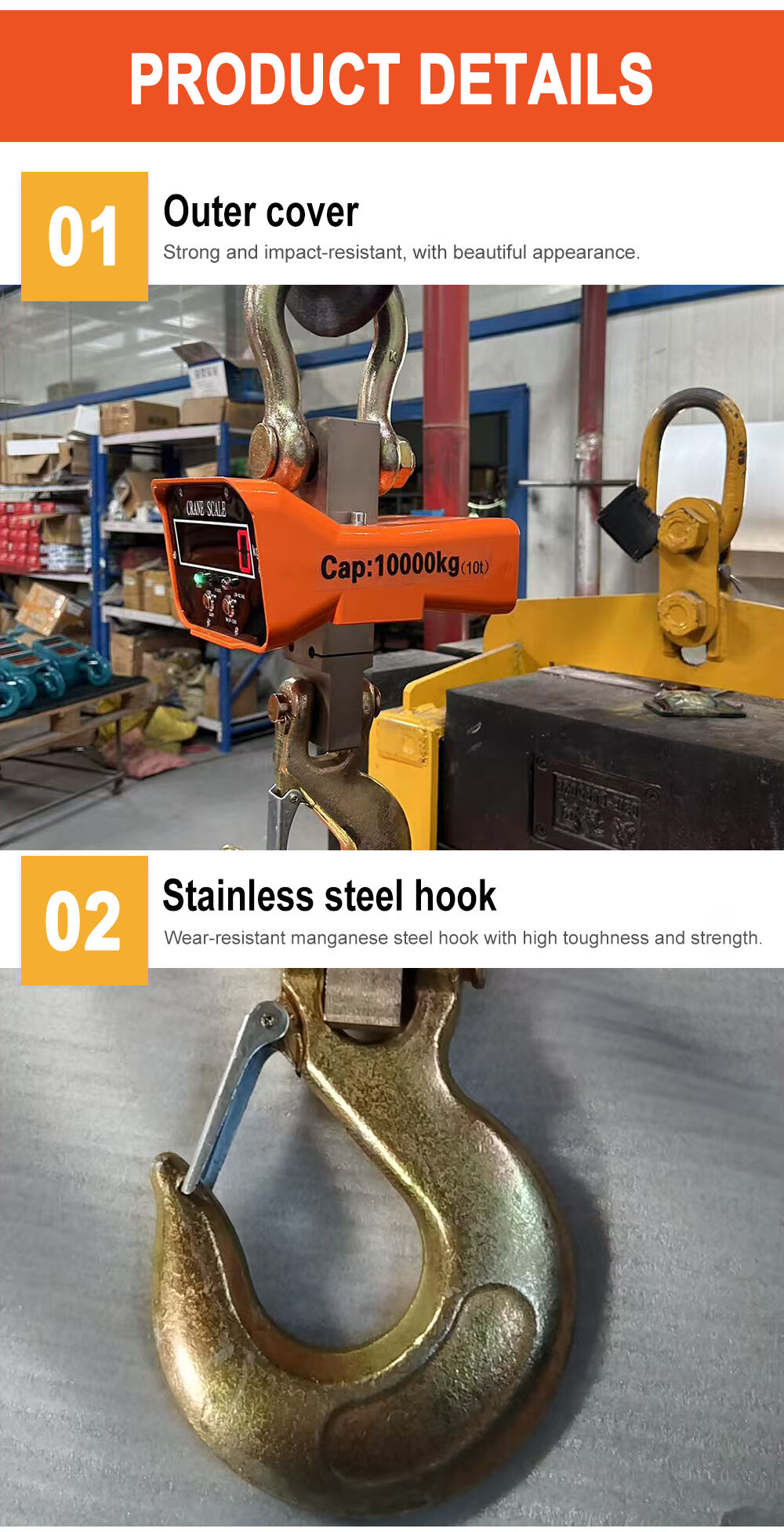

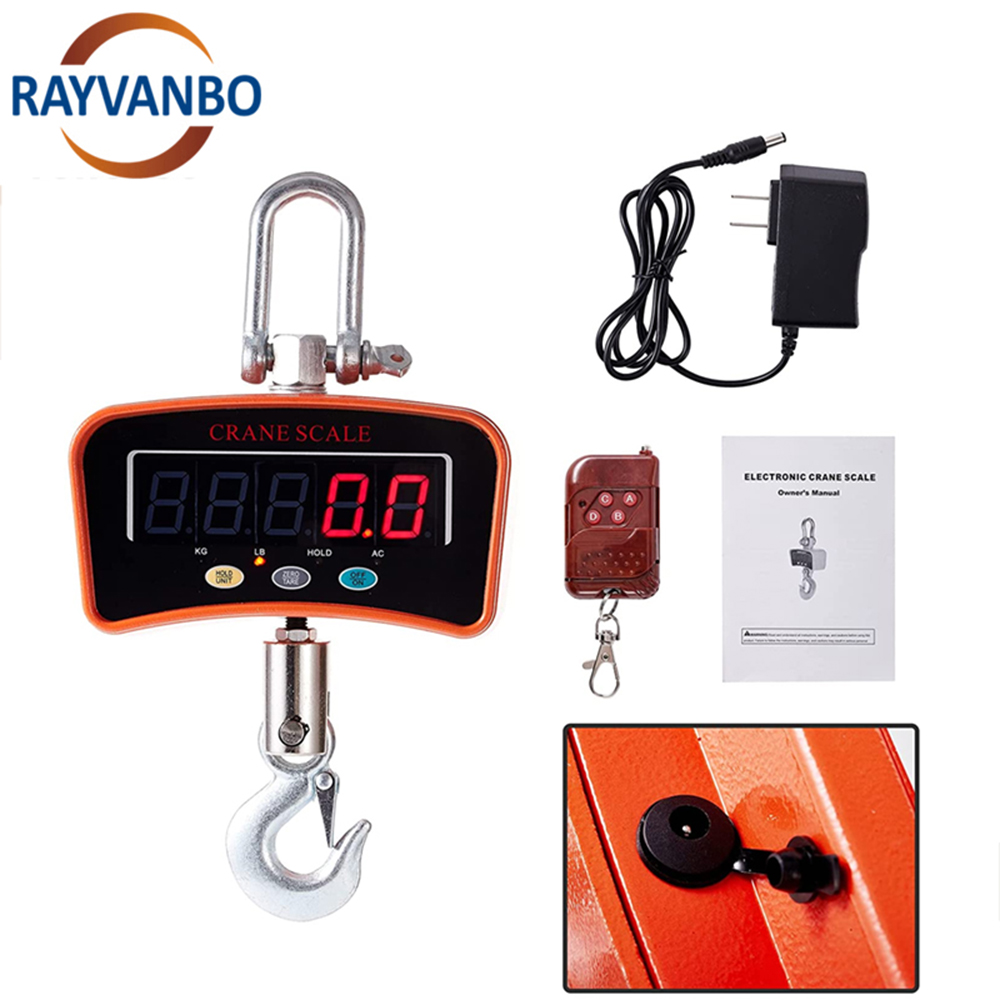

Product Details:

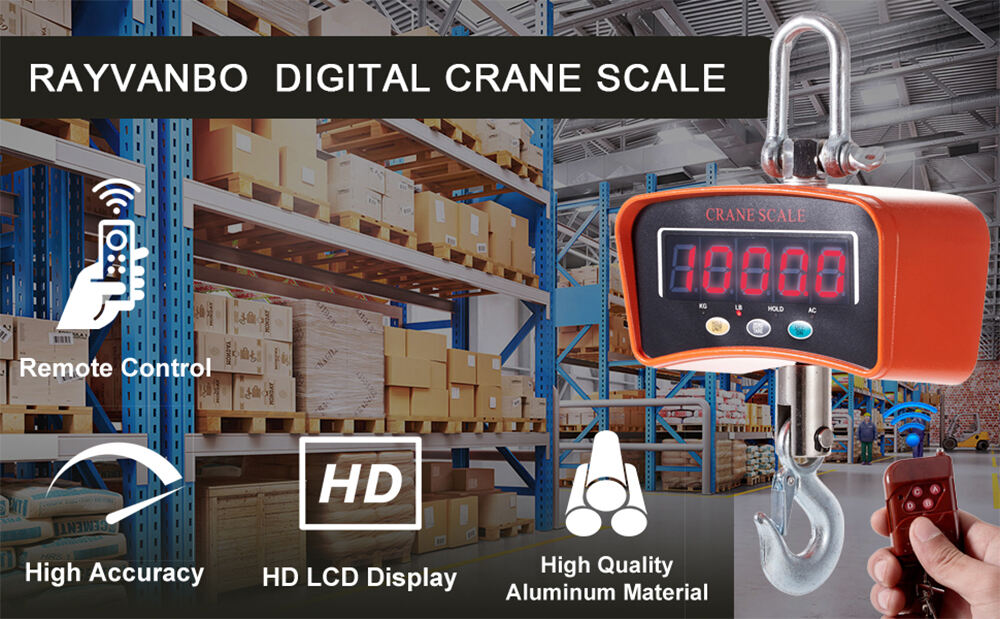

Product Application:

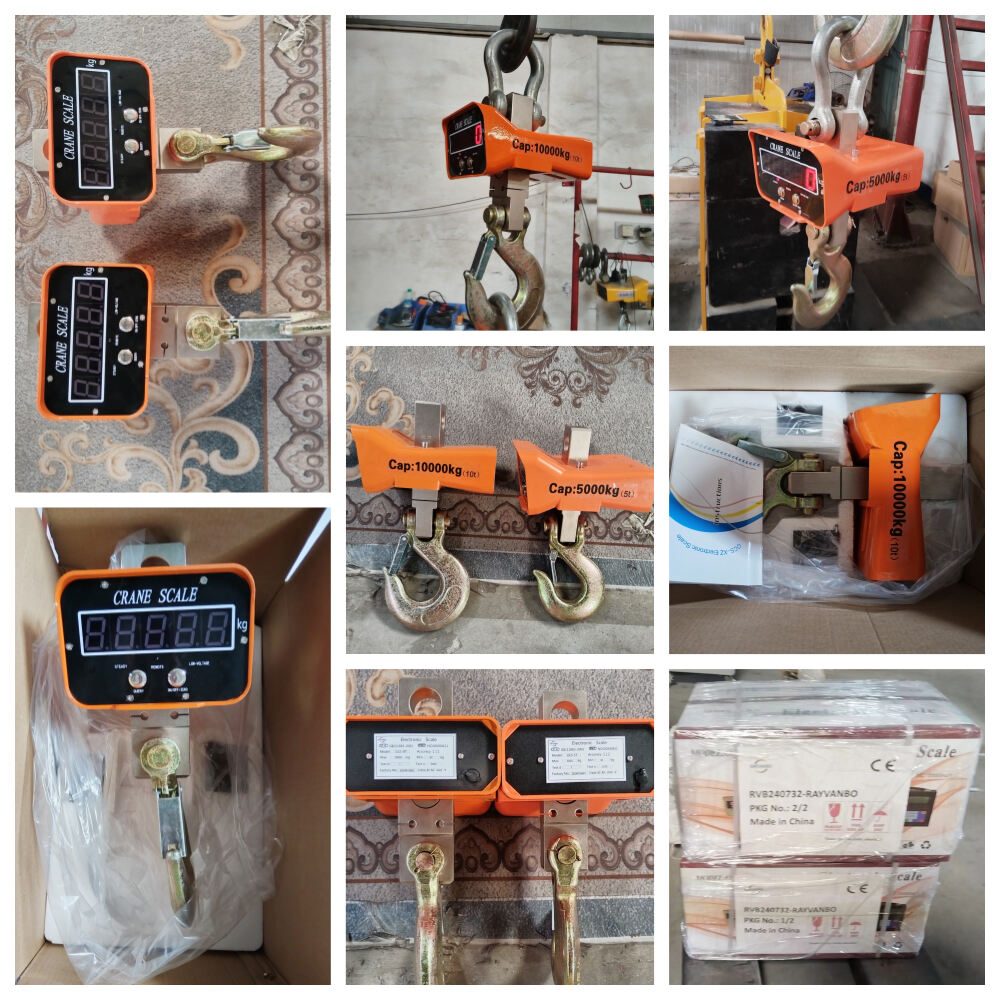

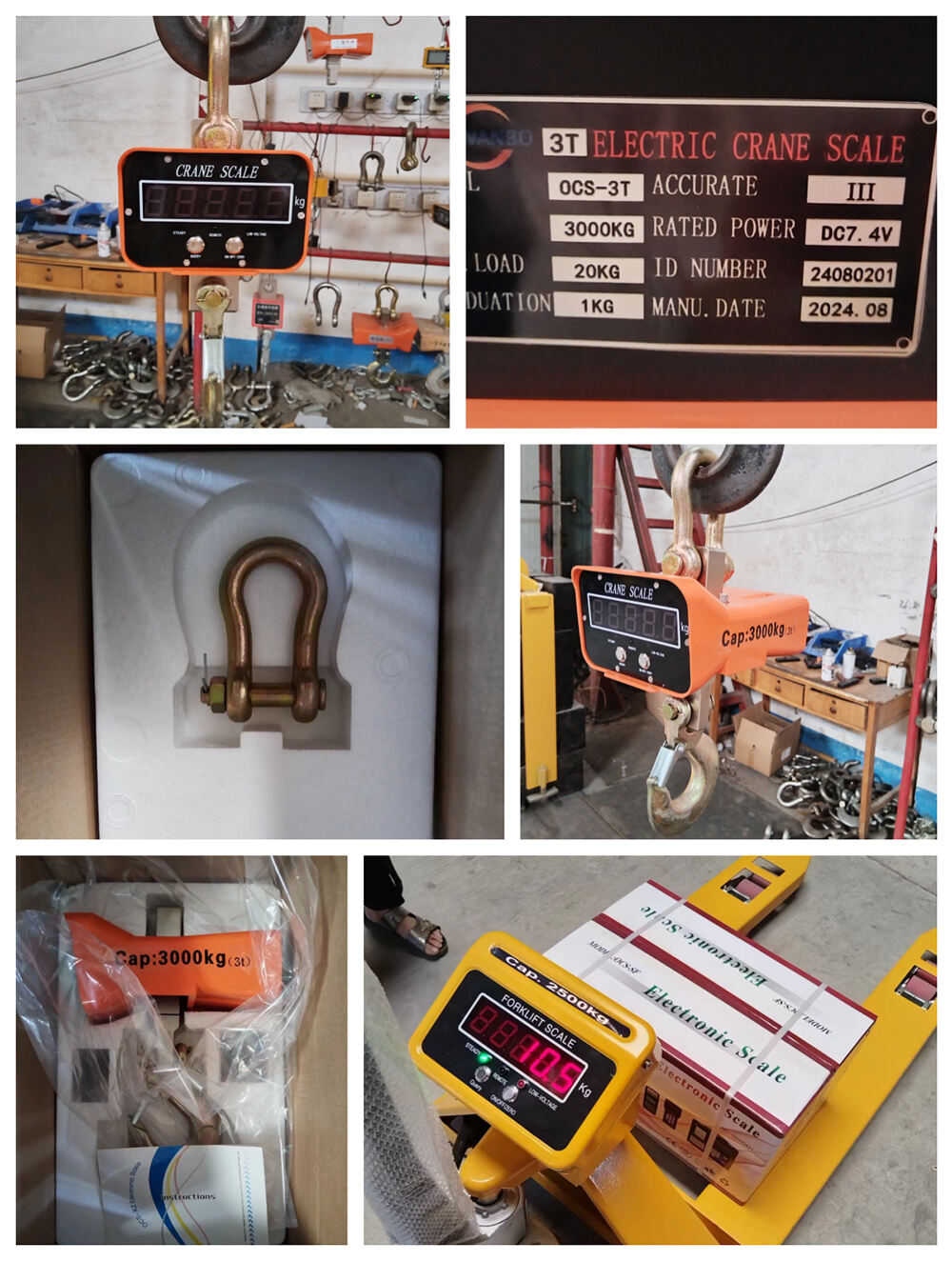

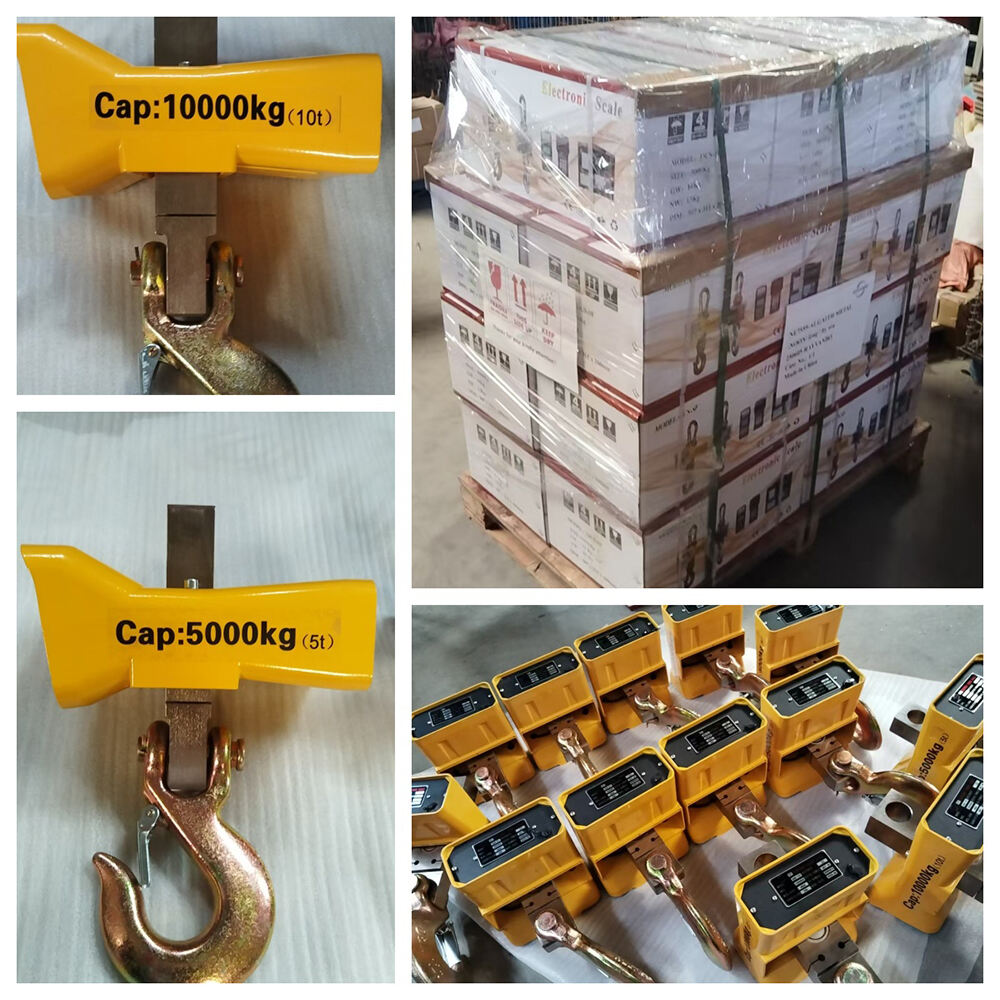

Shipping & Packaging:
