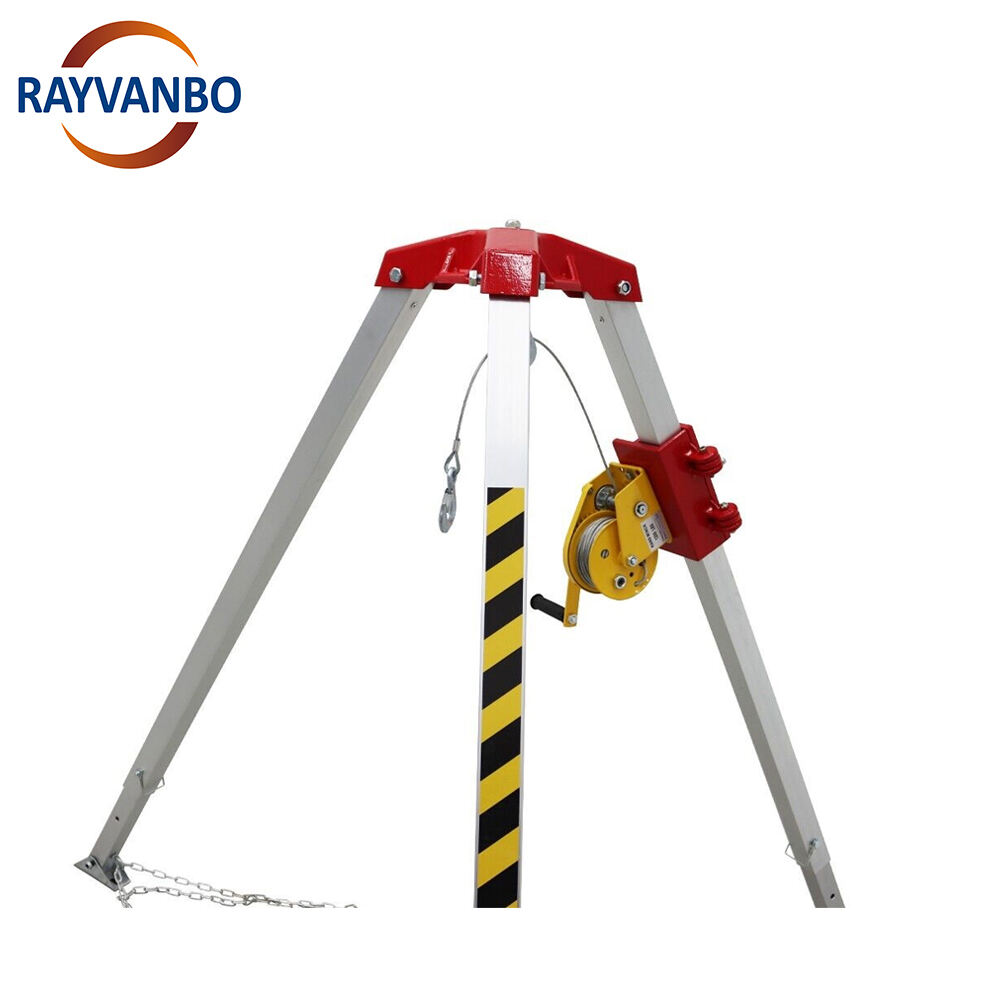

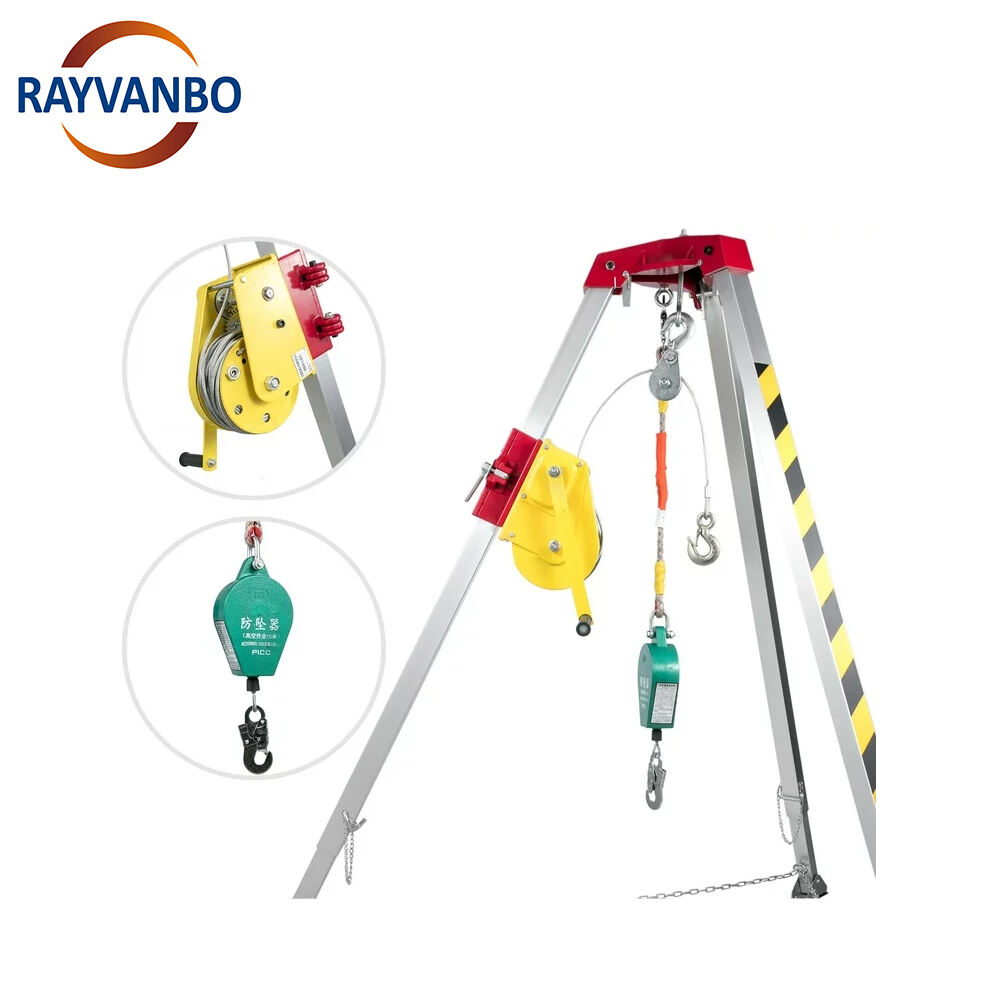

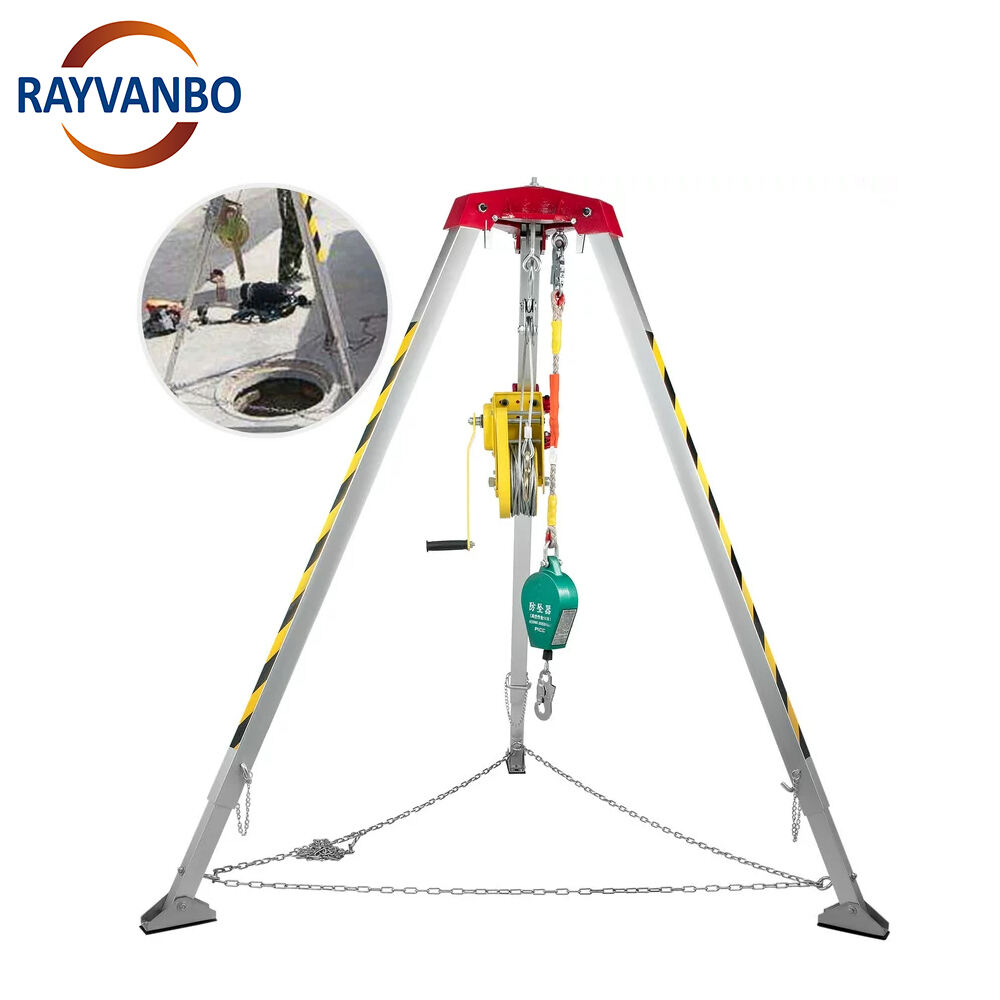

Product Name：Rescue Tripod
Rated Load: ≤180kg
Close Length：1.34m
Manual Handle Force：≤500N
Wire Rope Length:20m
Product Description:
The rescue tripod is a retractable support made of high-strength lightweight alloy. It is characterized by a safety factor greater than 10, a self-locking device for rising and falling, and a special stainless steel wire rope with good flexibility. It will not be damaged by rust or lack of oil.

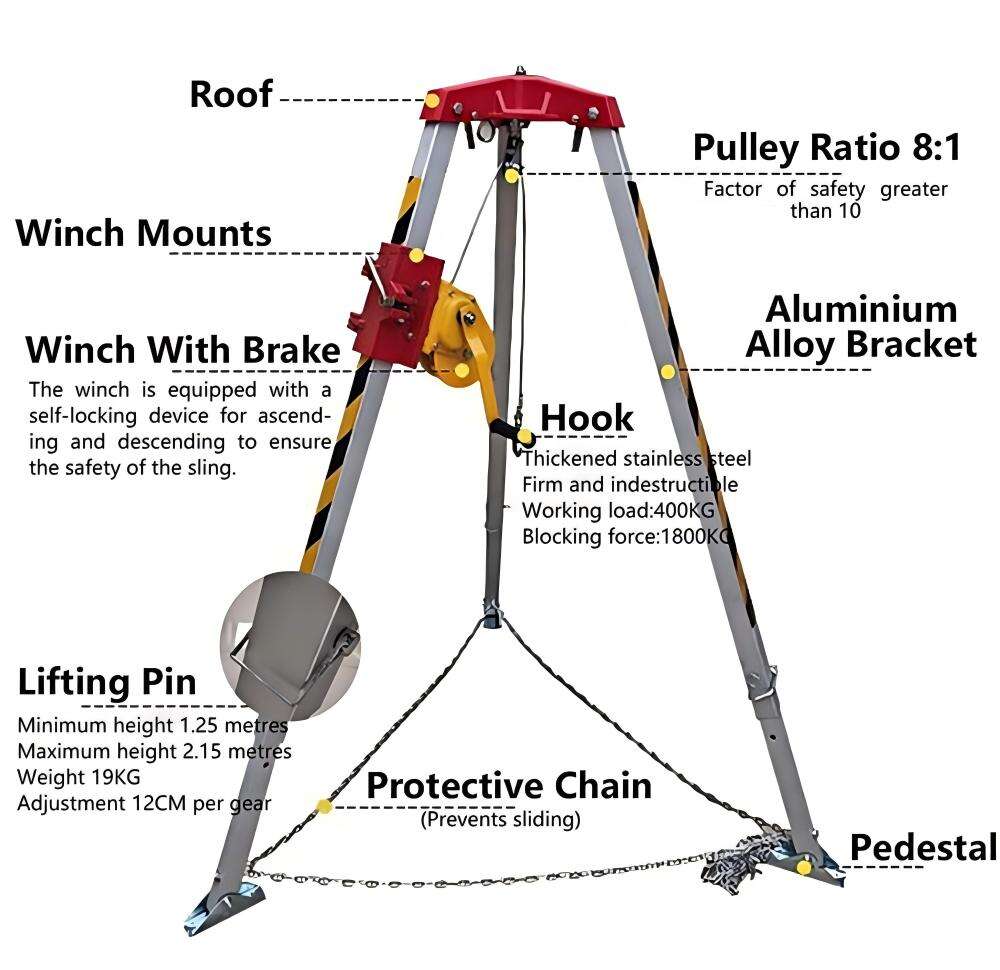

Product Features：
1. The retractable legs are made of high-strength, lightweight alloy, with a safety factor greater than 10, and feature a ring-shaped protective chain at the base.
2. The winch features self-locking mechanisms for raising and lowering, ensuring the safety of the sling.
3. The sling utilizes specially made stainless steel wire rope, which is highly flexible and resistant to damage from rust or oil depletion.
4. The sling is easily assembled and can be installed at wellheads or pitheads, regardless of uneven ground conditions.
Product Parameters:
Packing Specification |
173×39×36cm |
Rated Load |
≤180KG |
Close Length |
1.34m |
Manual Handle Force |
≤500N |
Wire Rope Length |
20m |
Winch Mechanical Efficiency |
5:1 |
Blocking Force |
22KN |
Dimensions |
173*39*36cm |

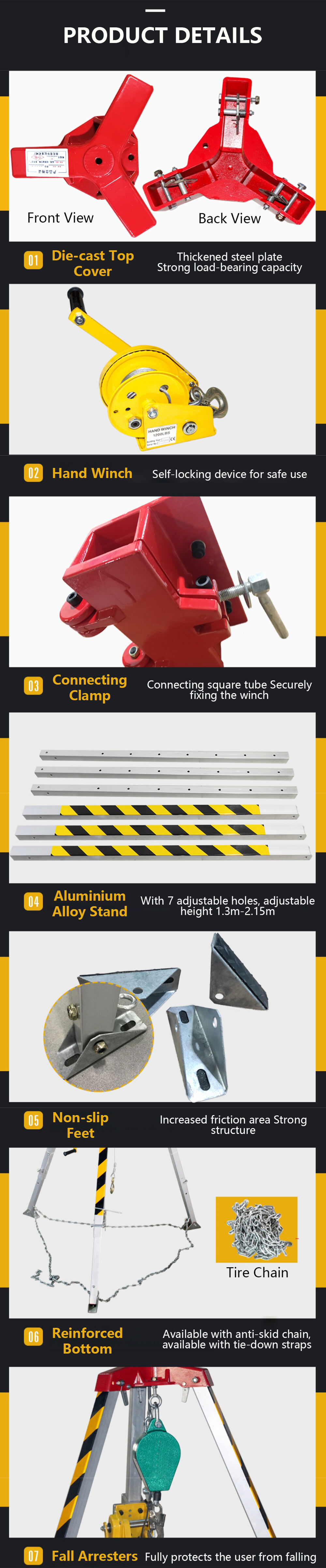

Product Details:

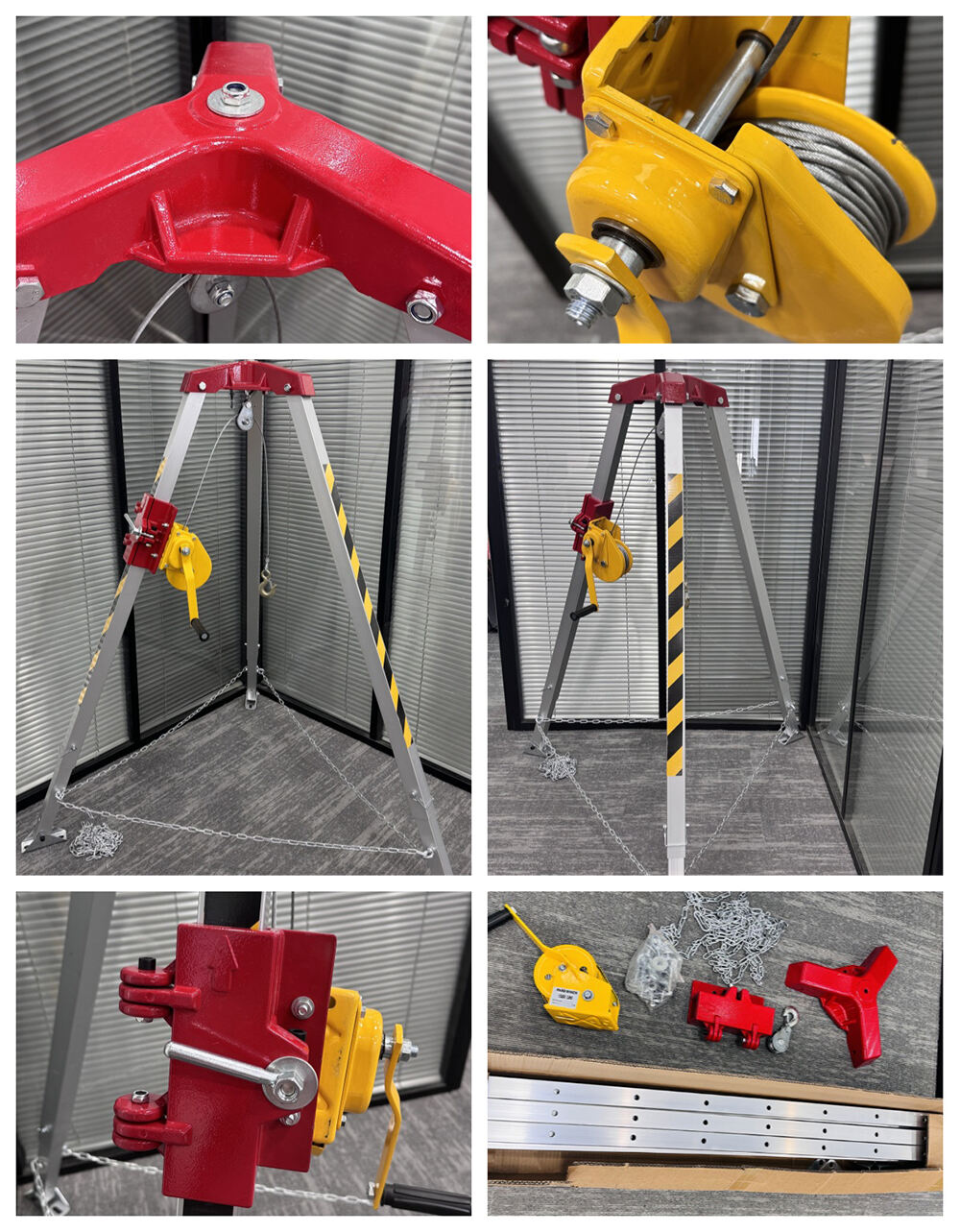

Case Show:

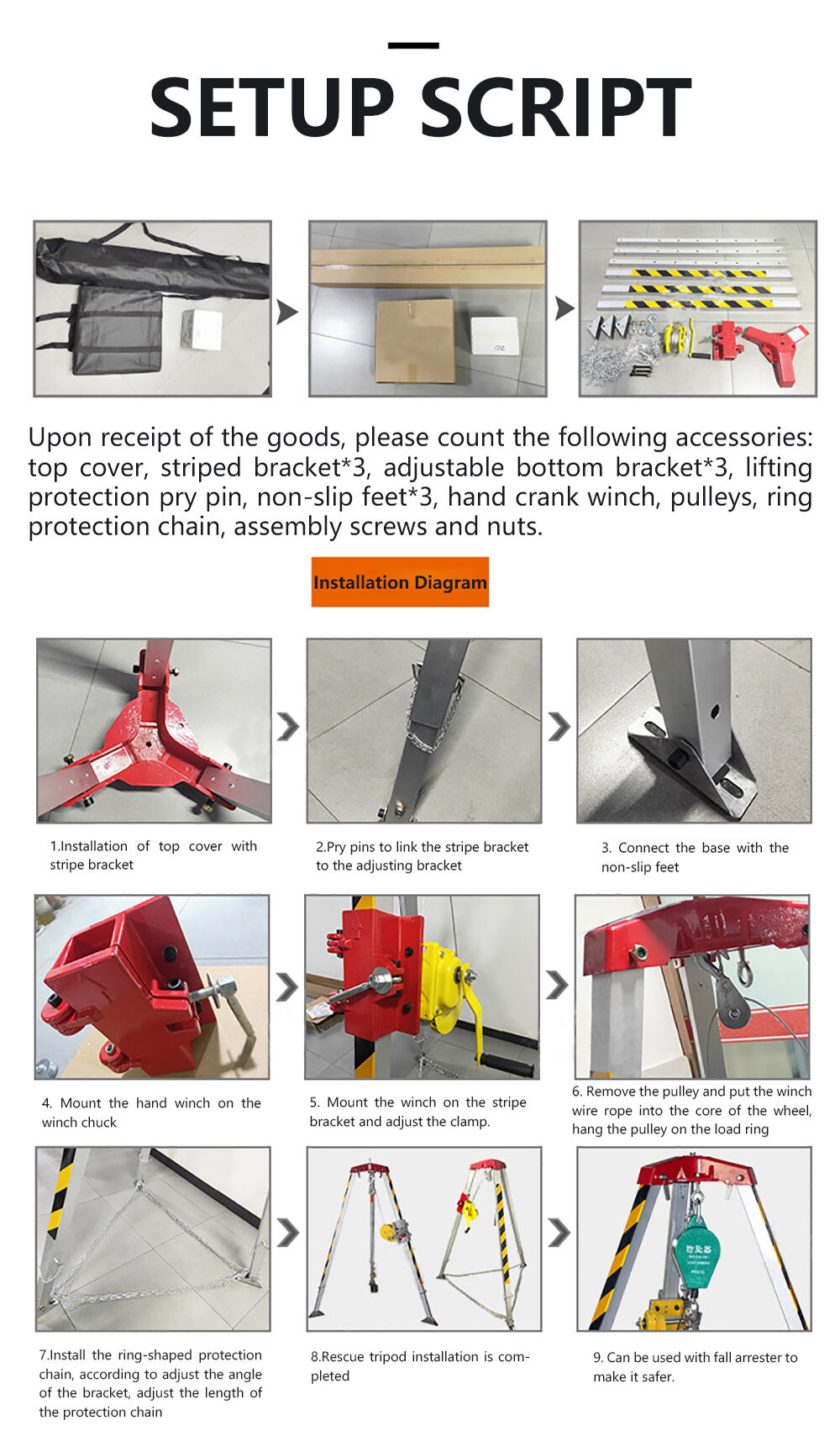

Setup Script:

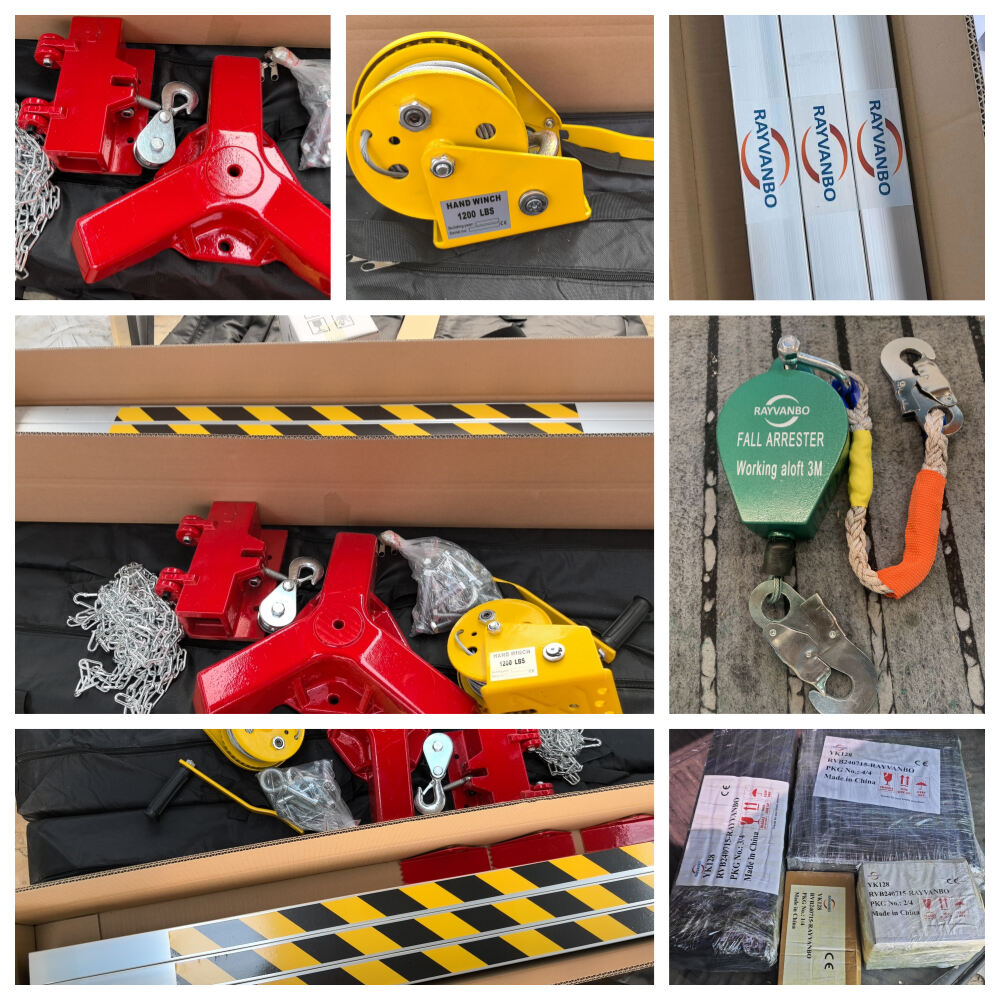

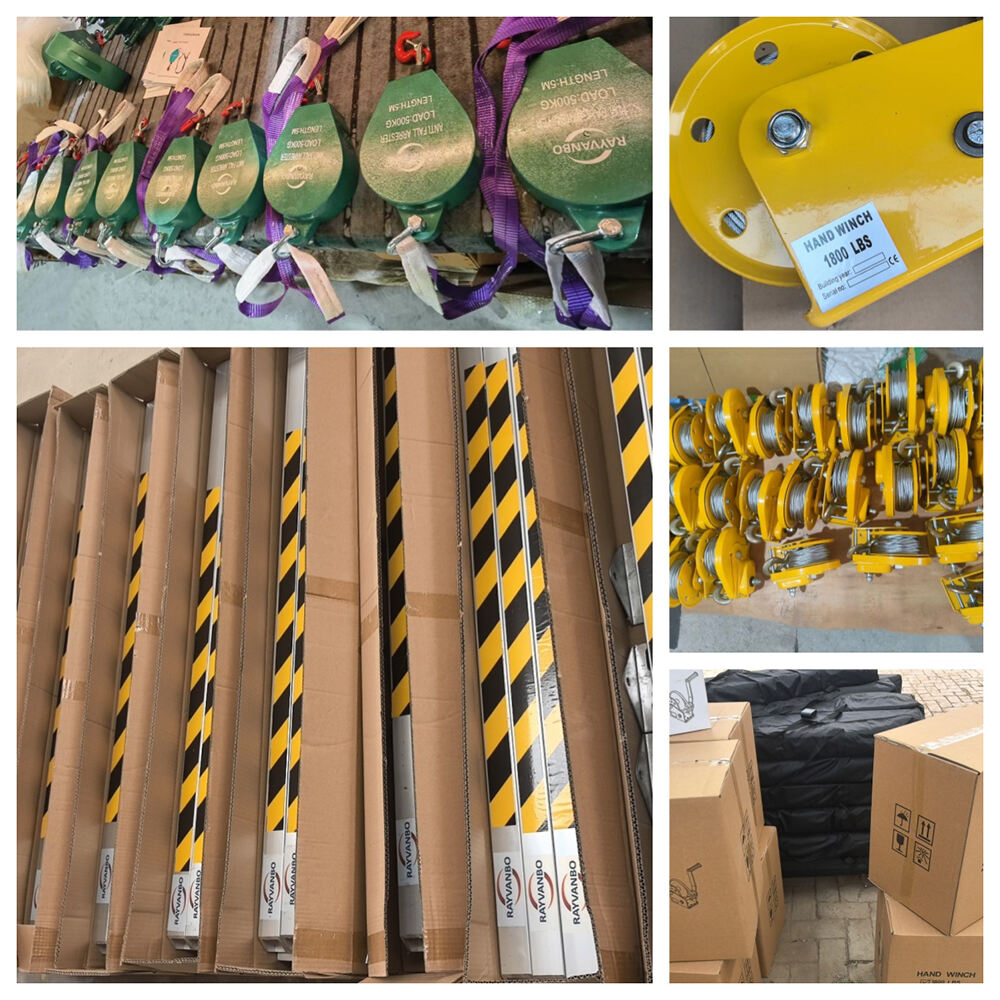

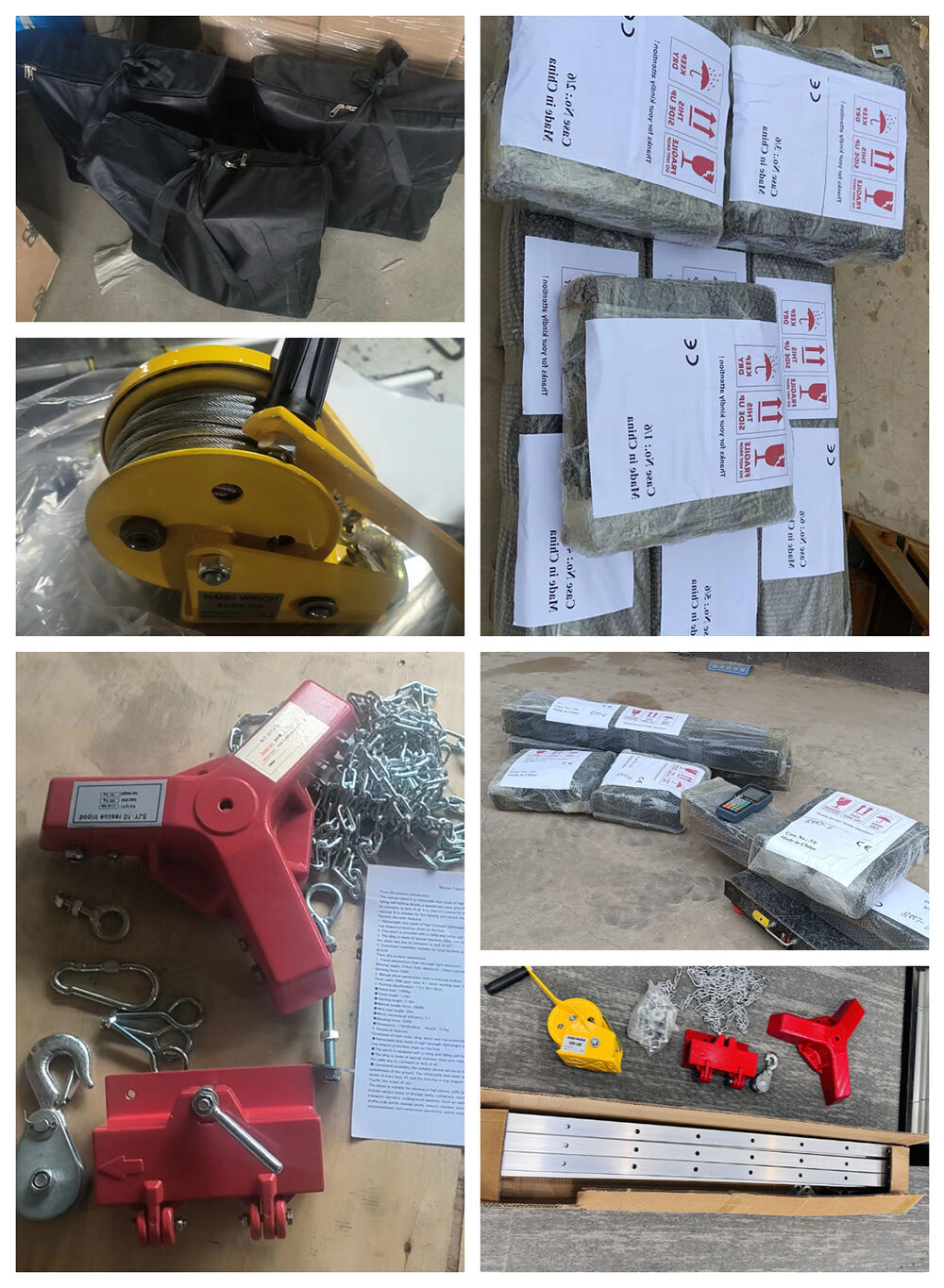

Shipping & Packaging:
