Product Name：Industrial Remote Control
Model: F21-2D
Material：Glass-Fiber PA
Enclosure Protection：IP65
Product Description:
Product specifications :
12V UHF : The Receiver power supply 12V AC DC . Frequency UHF 425~446MHz . Arrow buttons
18-65V UHF : The Receiver power supply 18-65V AC DC . Frequency UHF 425~446MHz . Arrow buttons
65-440V UHF : The Receiver power supply 65-440V AC DC . Frequency UHF 425~446MHz . Arrow buttons

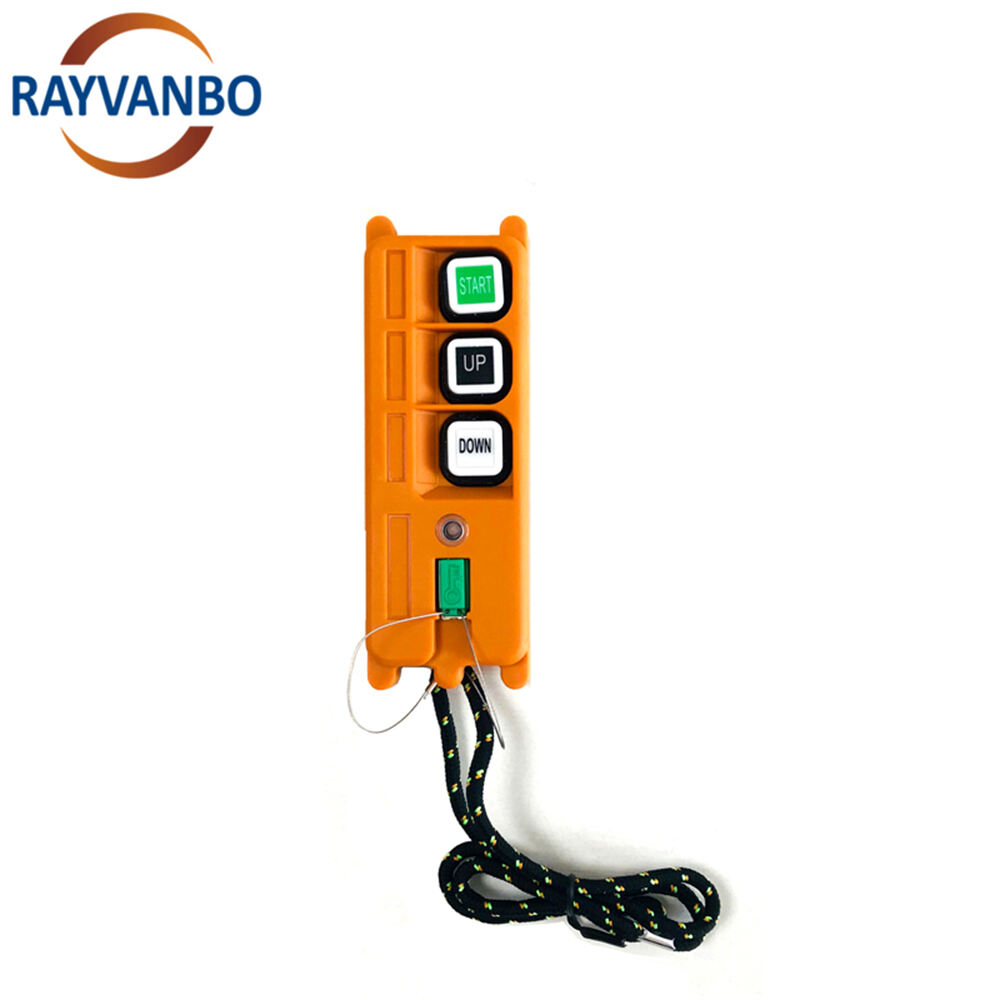

F21-2D Function Characteristic :
1.Have 3 function keys (2 double speed buttons + 1 start button ).
2.Control contact is up to 6.
3.Small size for the installation of thght-spaces tailored
4.With battery voltage warning device, the power supply is cut off during low power.
5.Can be connected with the computer through the data line to set the keys ( The program software /data line need to buy extra )
Up/down can be programmed to interlock or non-interlock .

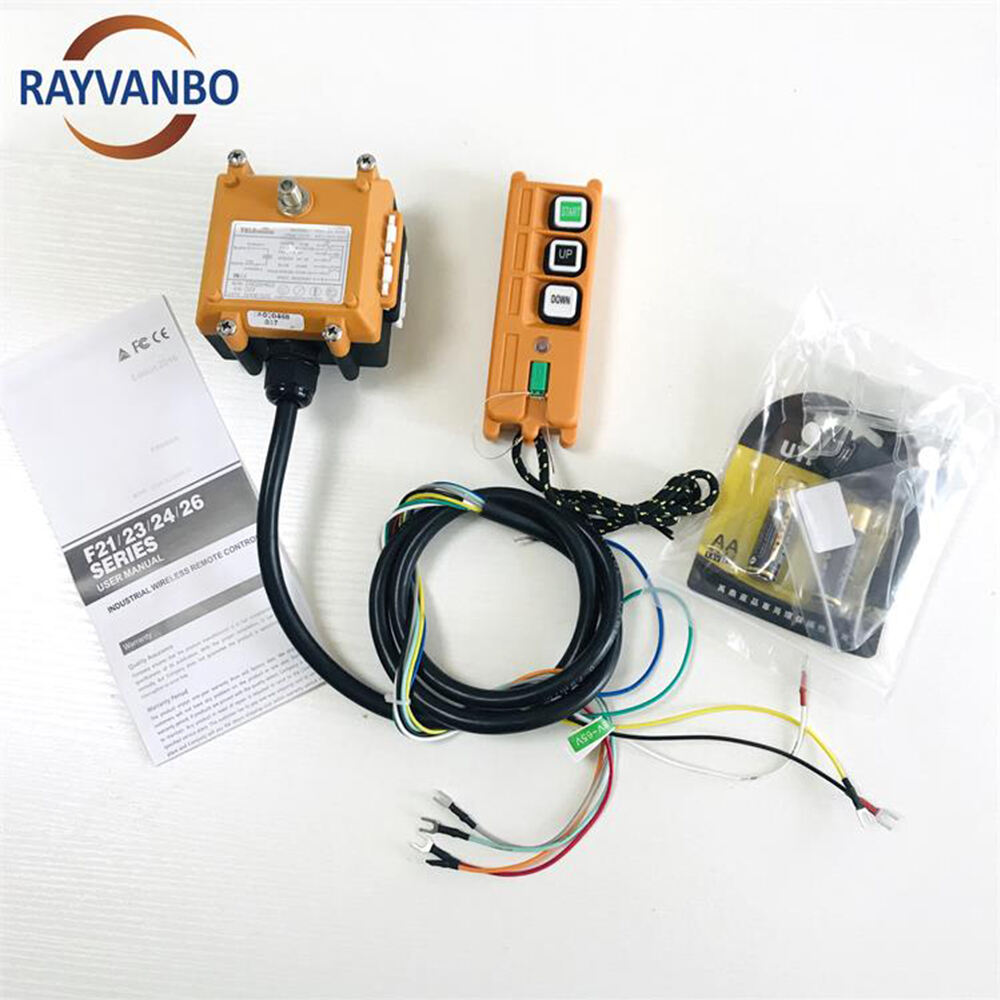

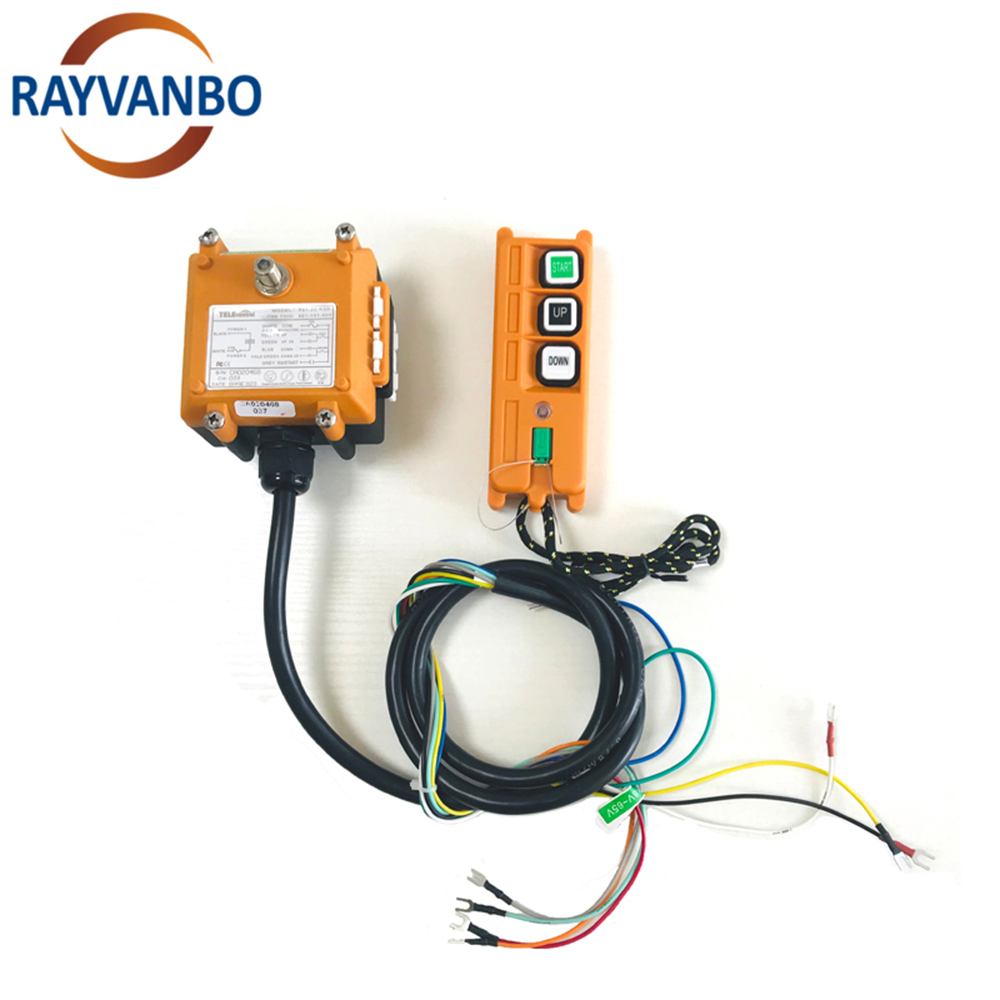

F21-2D Standard Configuration:
1 pieces transmitters (with hanging belt)
1 piece receiver with 1.1M cable connector
1 pieces dust bag
1 piece english manual
Product Parameters:
F21-2D Transmitter Parameters | |
Material |
Glass-Fiber PA |
Enclosure protection class |
IP65 |
Frequency range |
VHF: 310-331MHz (UHF: 425-446MHz is optional) |
Transmitter power |
≤10dBm |
Transmitter power supply |
2 AA alkaline batteries (not included) |
Safety code |
32 bits (4.3billion) |
Temperature range |
-40℃-+85℃ |
Control distance |
Approx 100m(200 meters is customized) |
Size |
132x45x28mm |
Weight |
98g (without battery) |
F21-2D Receiver Parameters | |
Material |
Glass-Fiber PA |
Enclosure protection class |
IP65 |
Frequency range |
VHF: 310-331MHz; UHF: 425-446MHz |
Receiver sensitivity |
-110dBm |
Receiver power supply |
18~65V AC/DC; 65~440V AC/DC (optional) |
Safety code |
32 bits (4.3billion) |
Temperature range |
-40℃-+85℃ |
Output contactor capacity |
8A sealed relay output (with AC 250V/10A relays, 10A fuse) |
Cable length |
1.65m (Other length can be customized) |
Size |
88x92x62mm |
Weight |
320g |

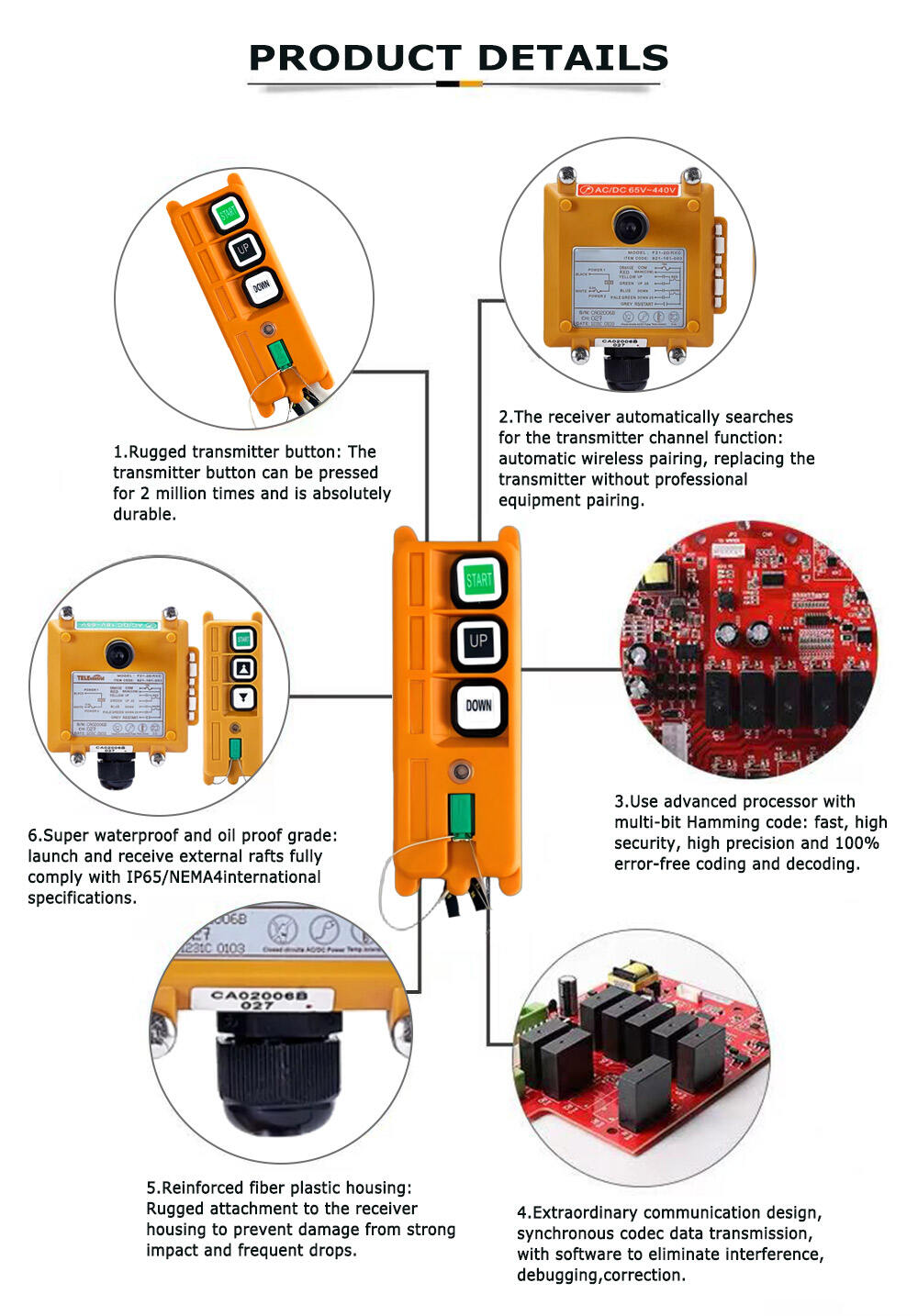

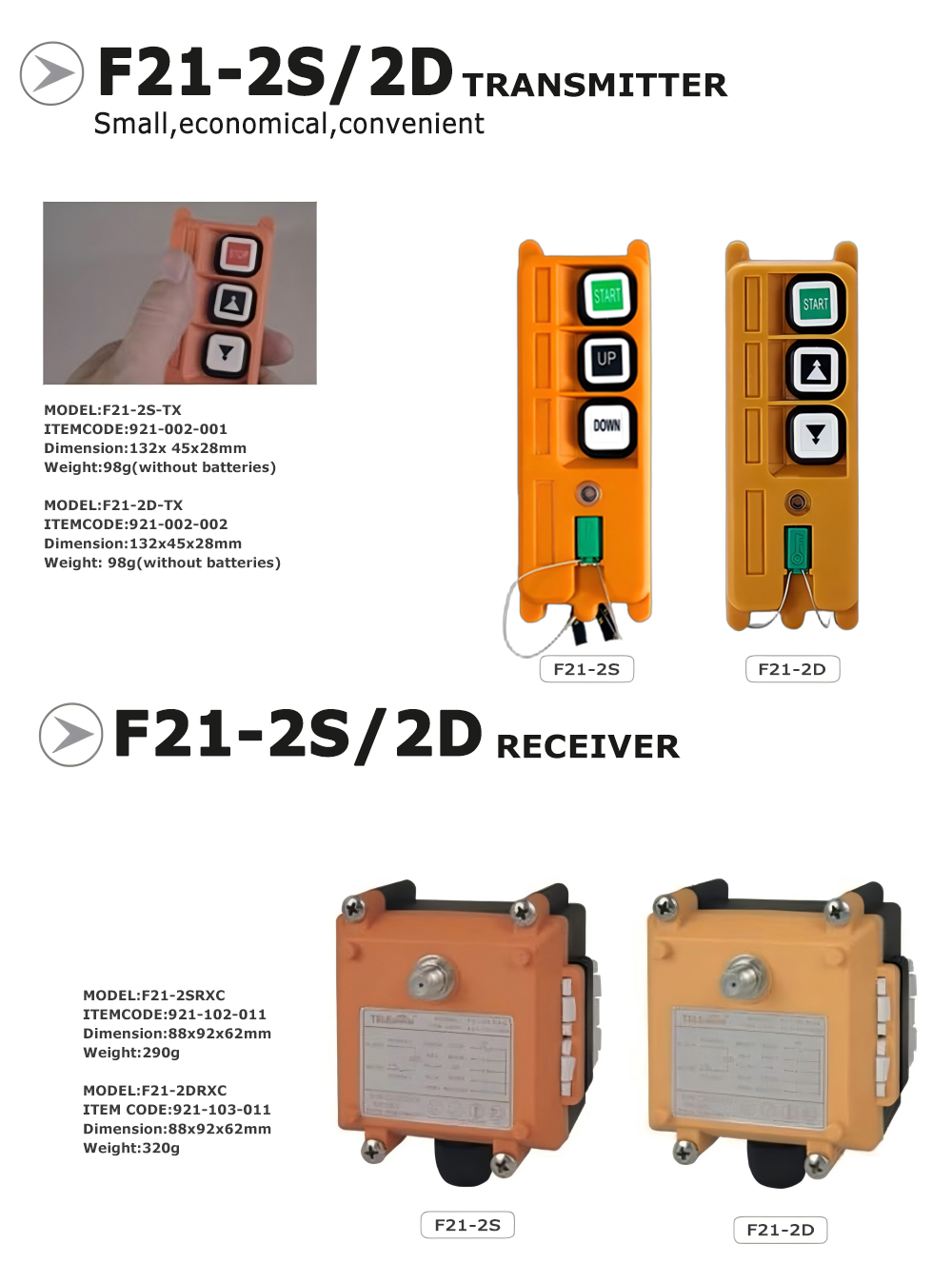

Product Details:
Product Application:

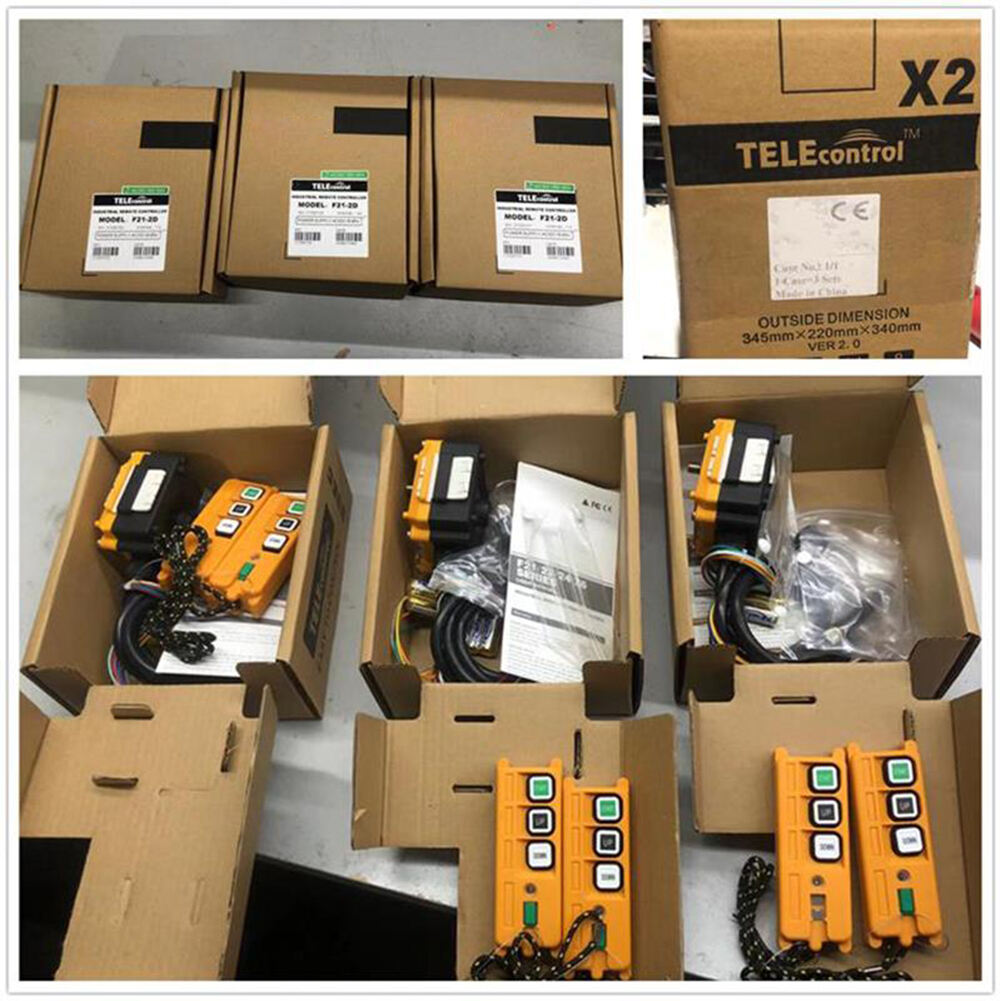

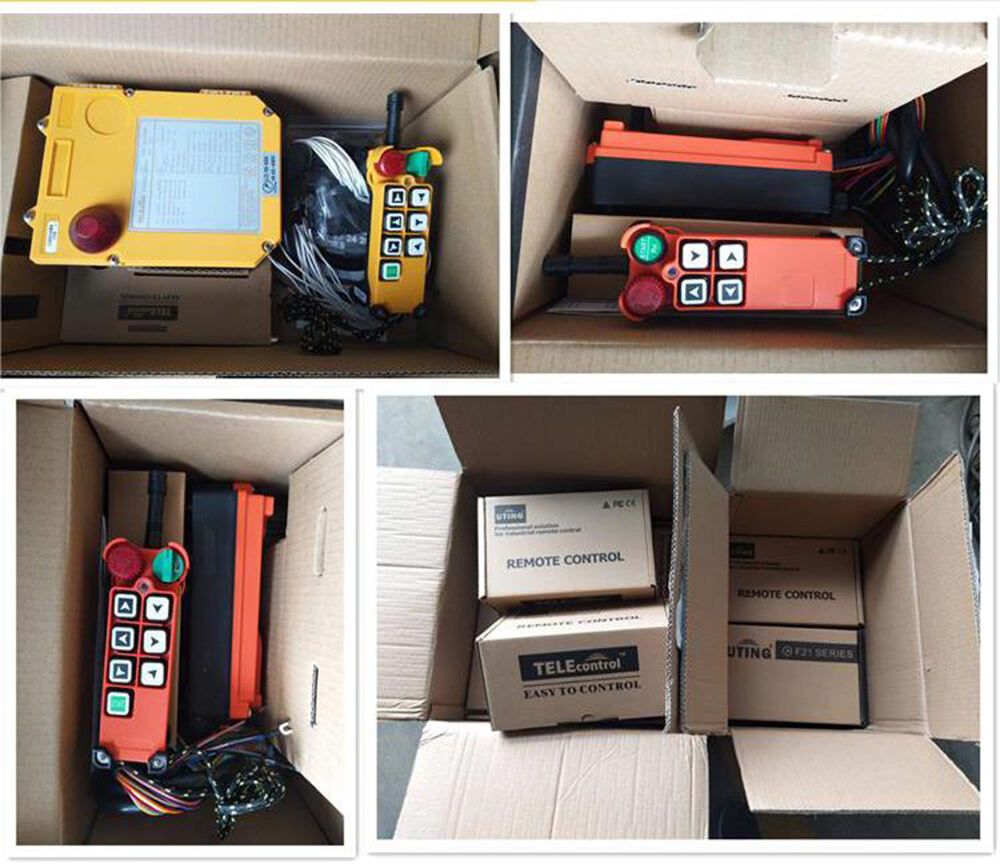

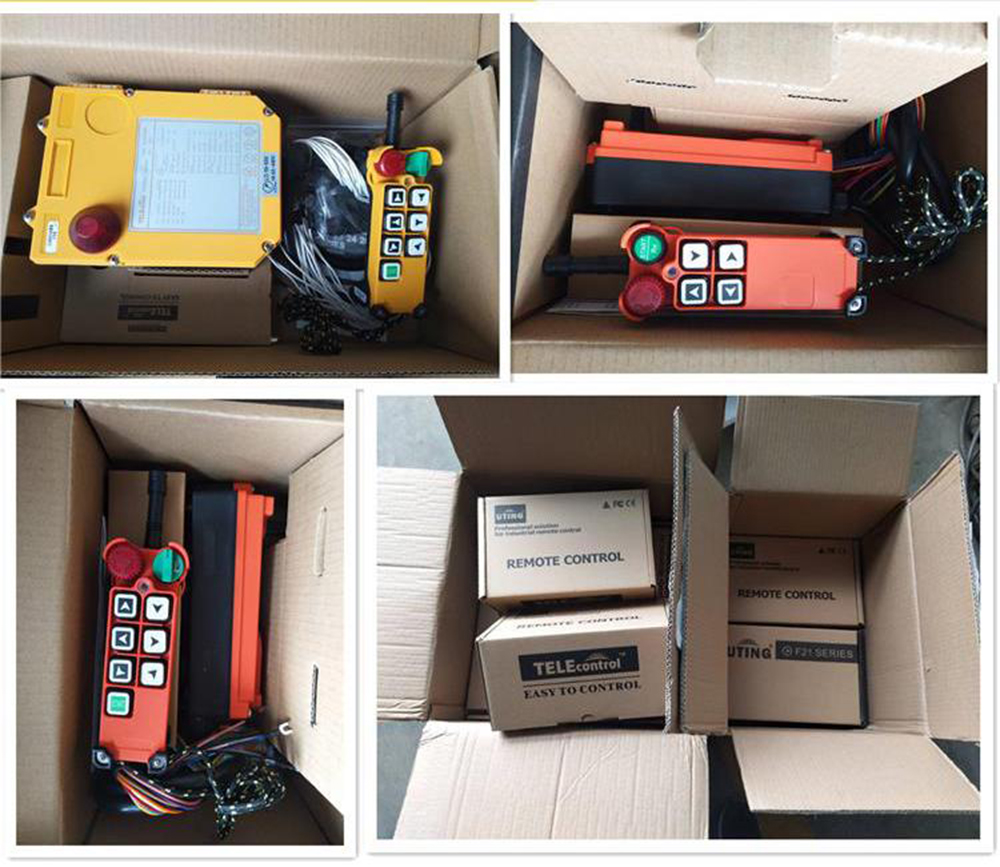

Shipping & Packaging:
