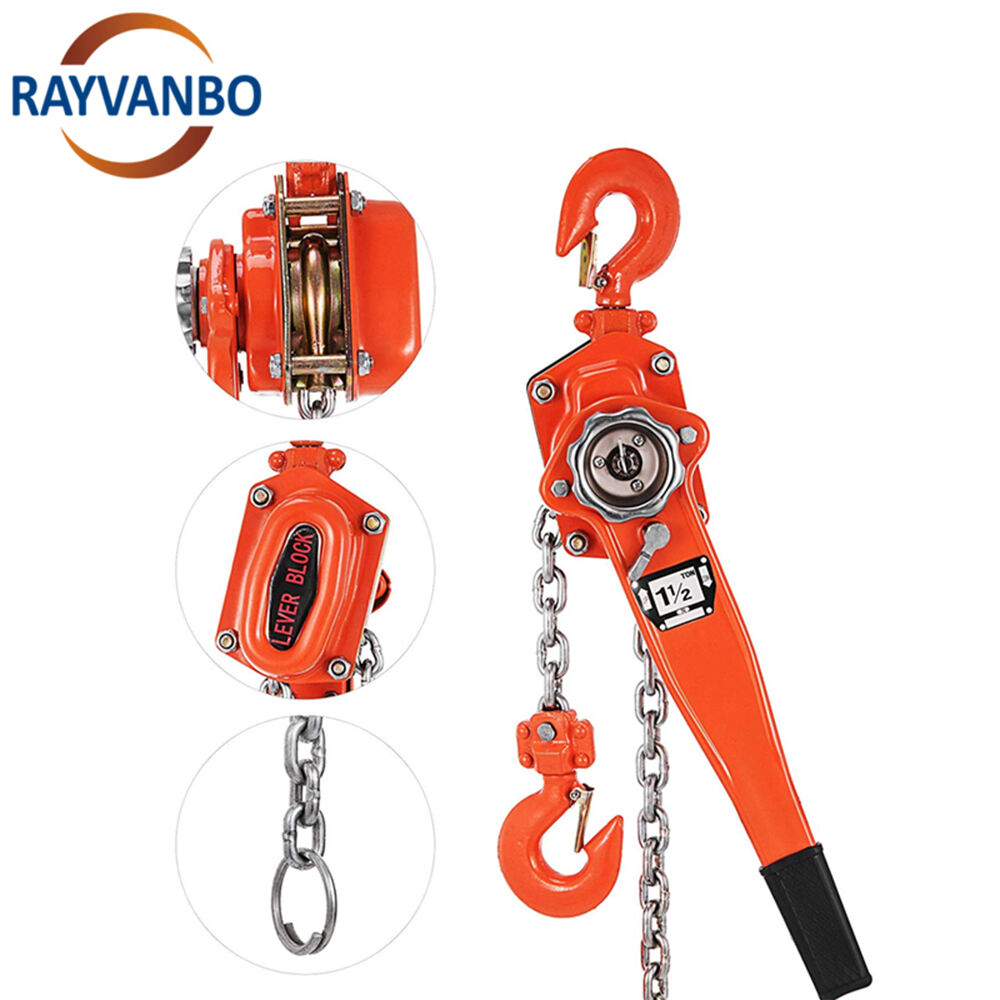

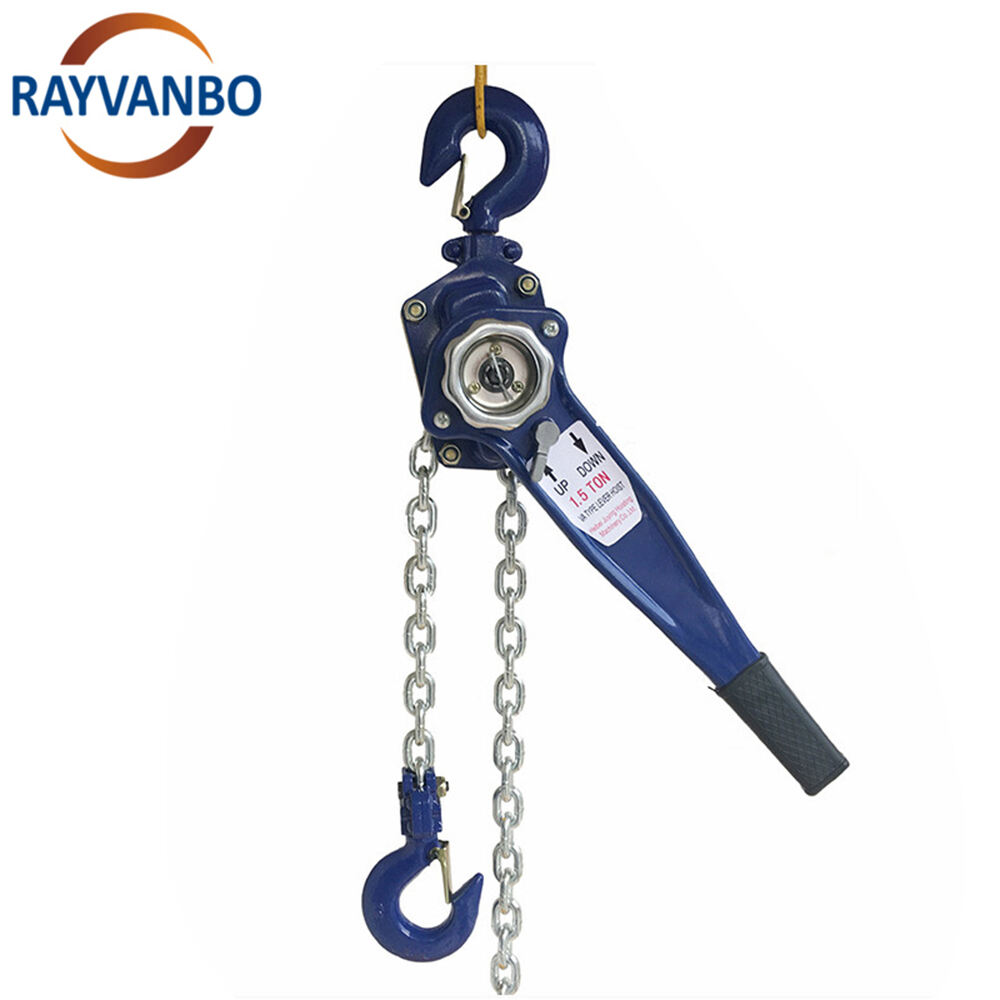

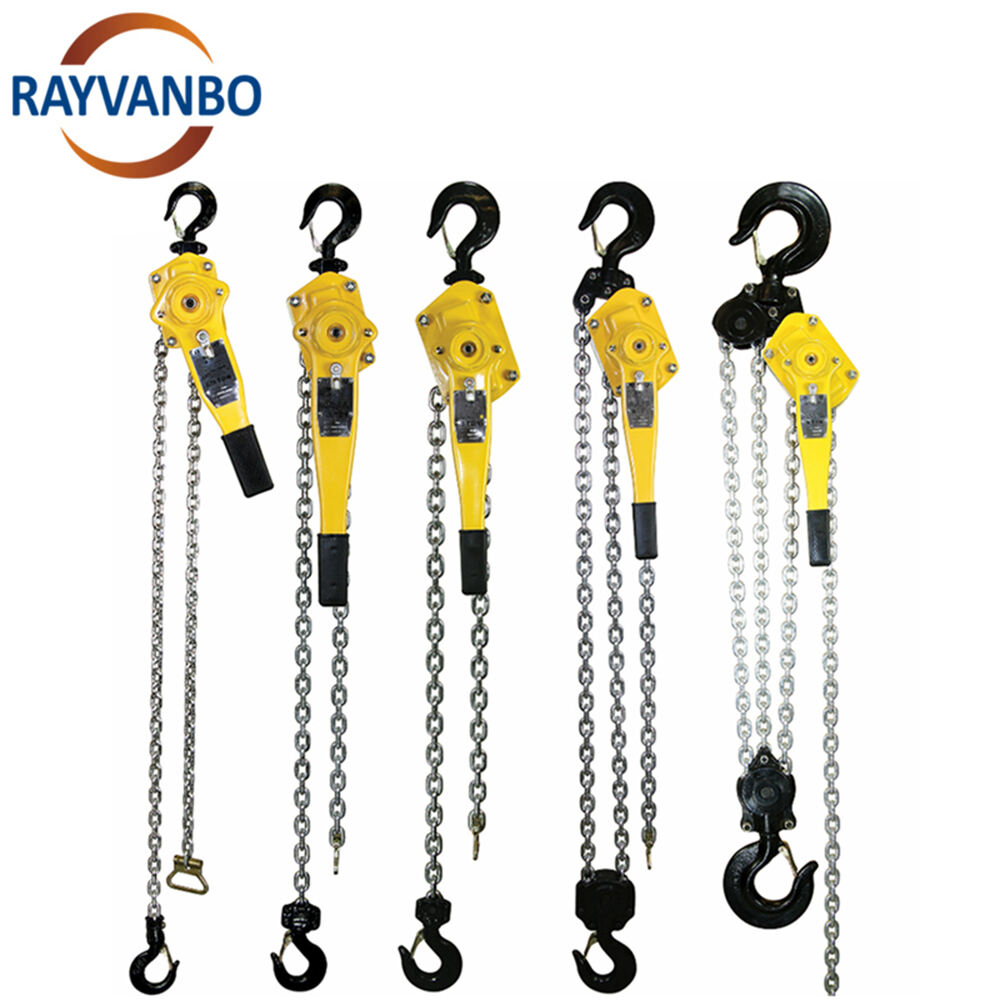

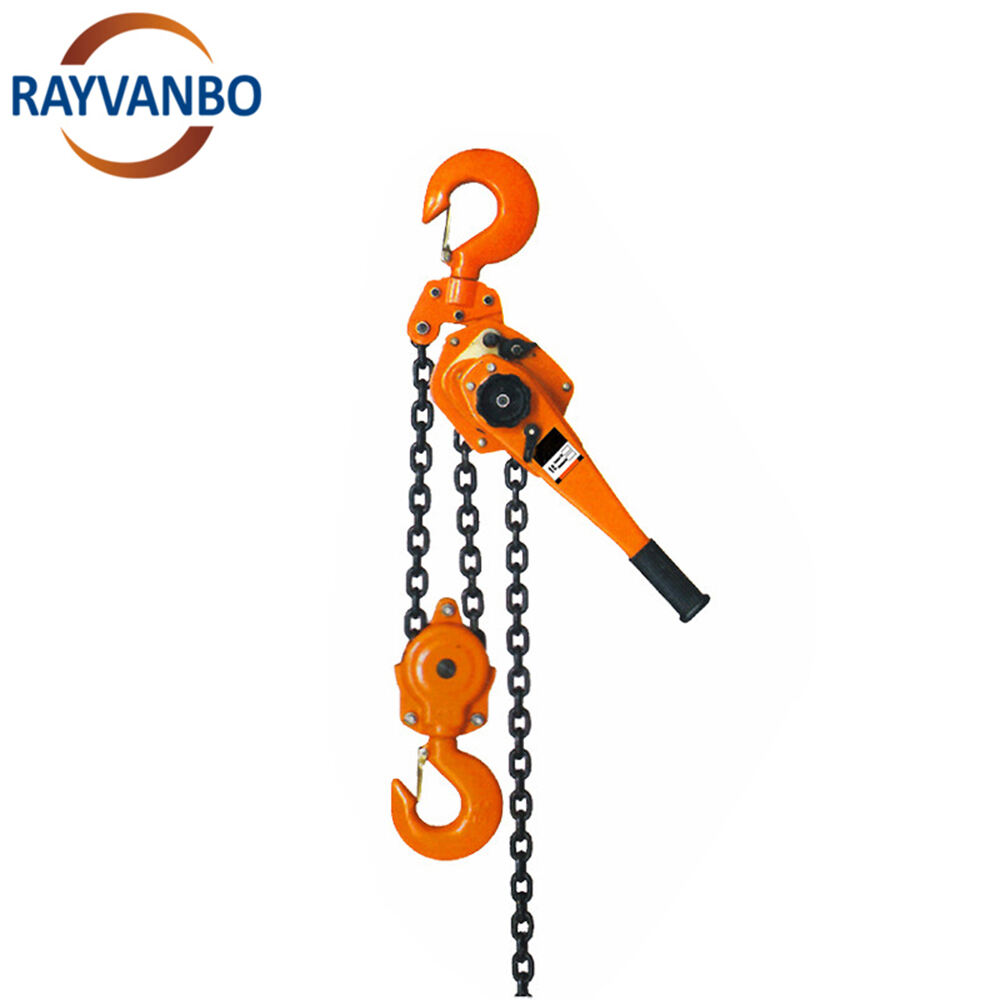

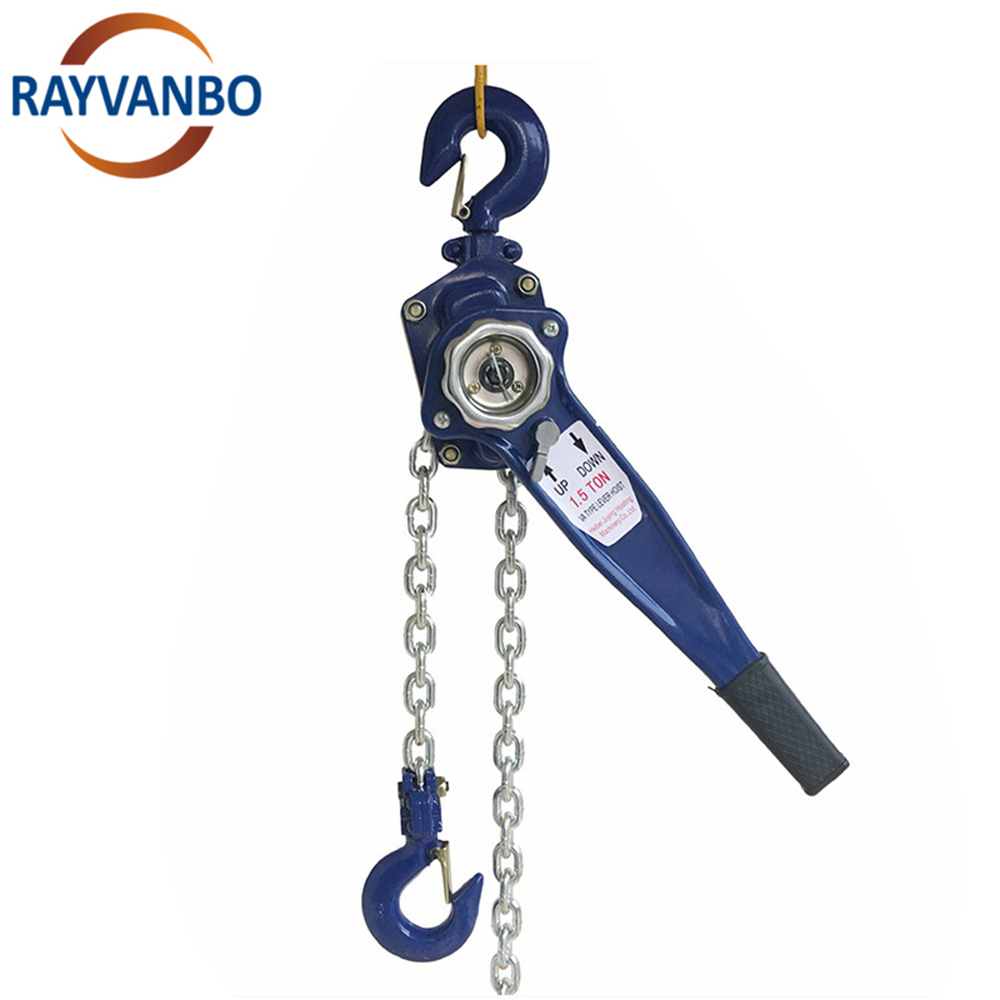

Product Name：Lever Hoist
Capacity：0.75t-9t（Can be customized）
Chain：Alloy Steel G80
Sling Type: Manual Chain
Product Description:
The lever hoist is a simple, portable manual lifting tool. It can be used for lifting, pulling, lowering, and calibrating. Its lifting capacity generally does not exceed 50 tons. It is widely used for equipment installation, lifting objects, and pulling machinery in industries such as shipbuilding, power generation, transportation, construction, mining, and postal and telecommunications.
Lever hoists are widely used for equipment installation, lifting, and pulling machinery in industries such as shipbuilding, electric power, transportation, construction, mining, and postal services. They are safe, reliable, and durable; offer excellent performance and easy maintenance; are compact, lightweight, and portable; require minimal hand-operation force for high efficiency; and feature a well-designed structure and attractive appearance. Both chain hoists and lever hoists are manual hoists, designed to lift heavy objects using human power. The operating handle must not be arbitrarily lengthened; during operation, the remaining handles must move freely and without obstruction. The appropriate tonnage must be selected based on the load.
Product Parameters:
|
Capacity (ton) |
Running Test Load (ton) |
Chain Diameter (mm) |
Contraction Distance (mm) |
Stretch Distance (mm) |
Handle Length (mm) |
Net Weight (kg) |
Increased weight per meter of 1m lift(kg) |
0.75 |
1.13 |
5 |
300 |
1800 |
230 |
4 |
0.55 |
1.5 |
2.25 |
5 |
350 |
1850 |
230 |
5 |
1.1 |
3 |
4.5 |
6 |
350 |
1850 |
430 |
8.5 |
1.7 |
4 |
6 |
6 |
580 |
2080 |
630 |
14.5 |
2.1 |
6 |
9 |
6 |
650 |
2150 |
730 |
18 |
2.8 |
9 |
13.5 |
7.1 |
820 |
2320 |
750 |
24 |
3.2 |

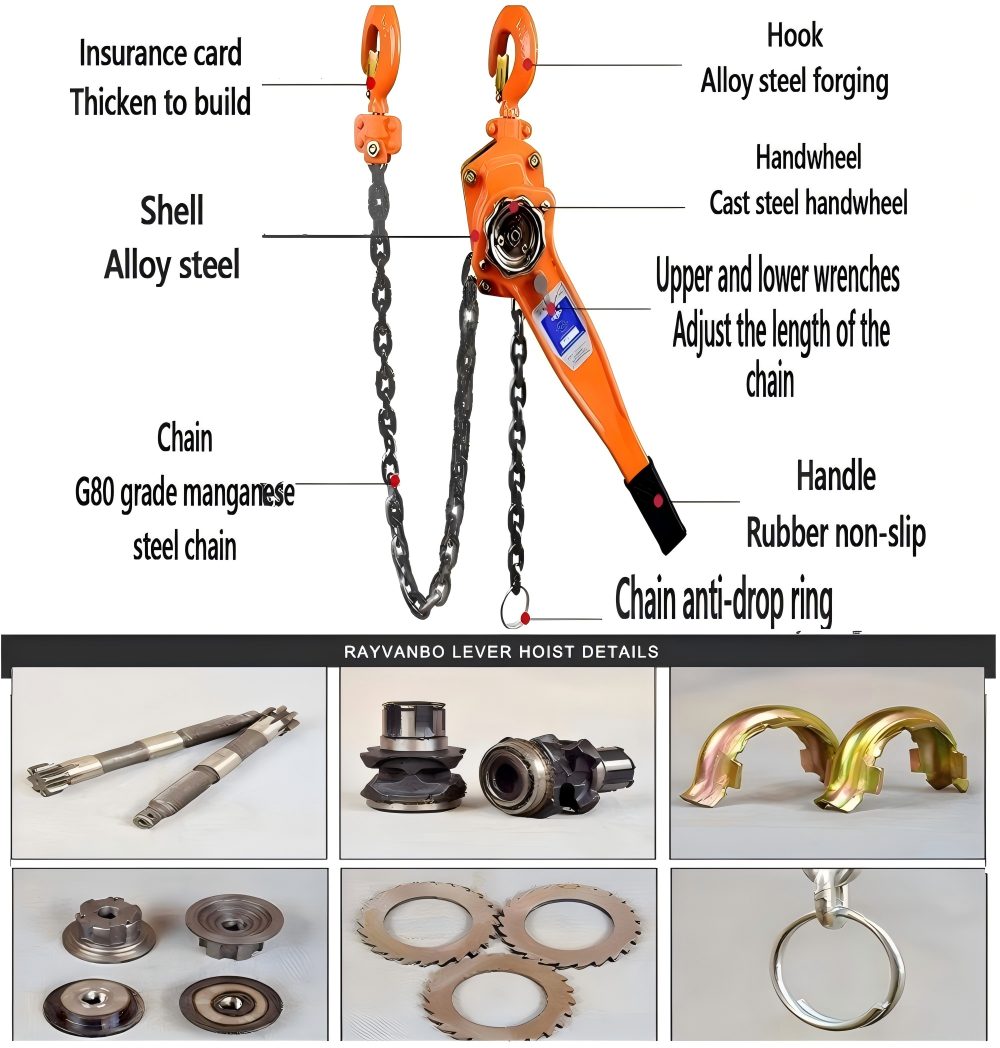

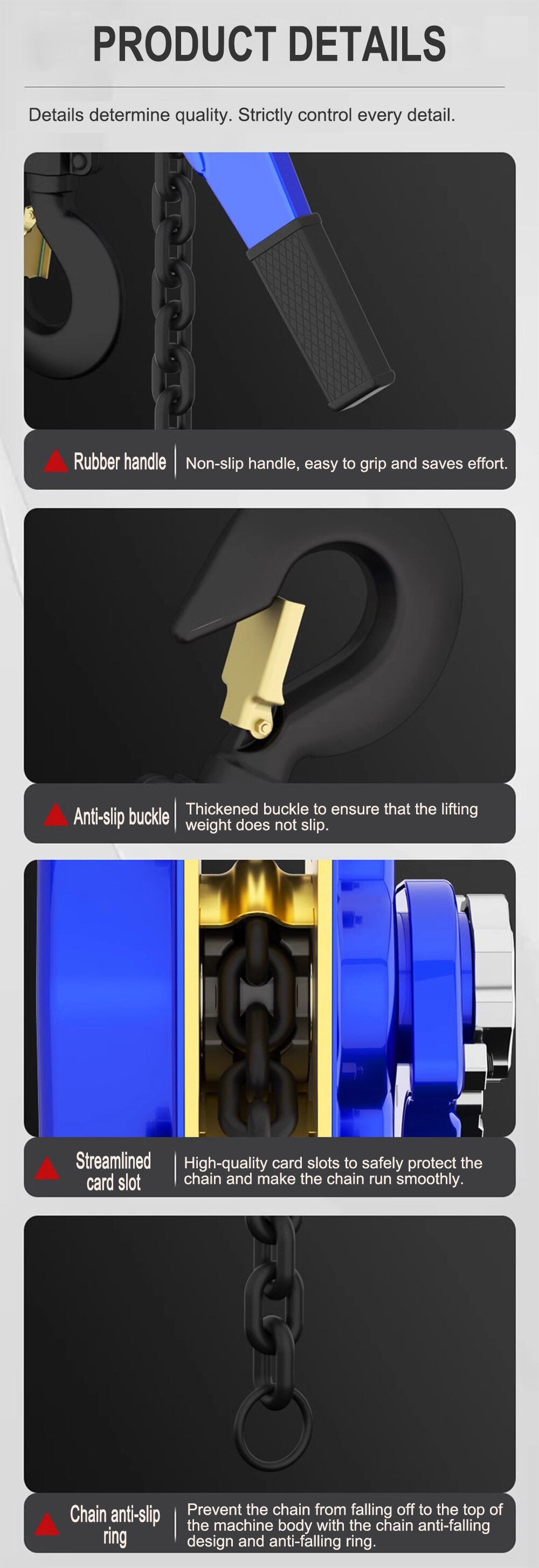

Product Details:
Product Application:

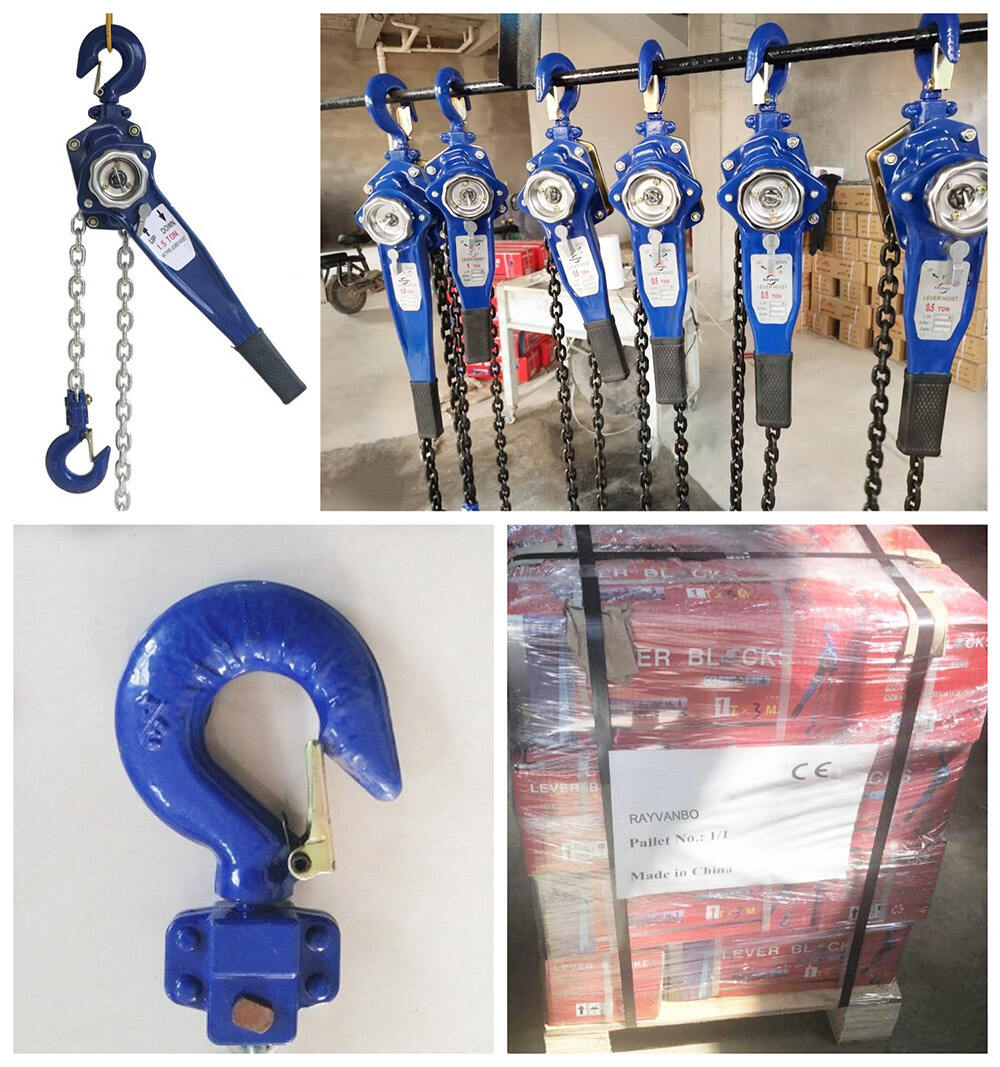

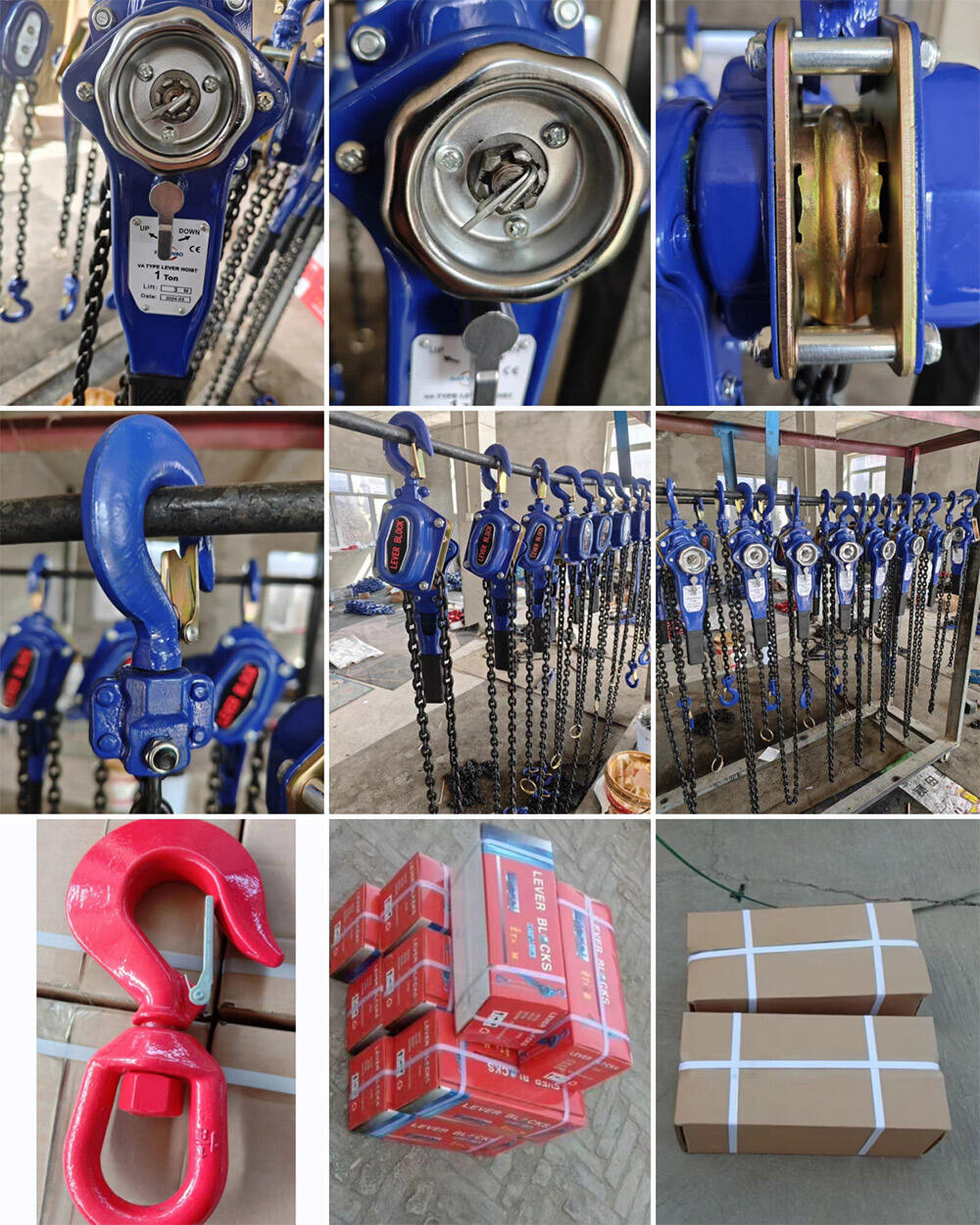

Shipping & Packaging:
