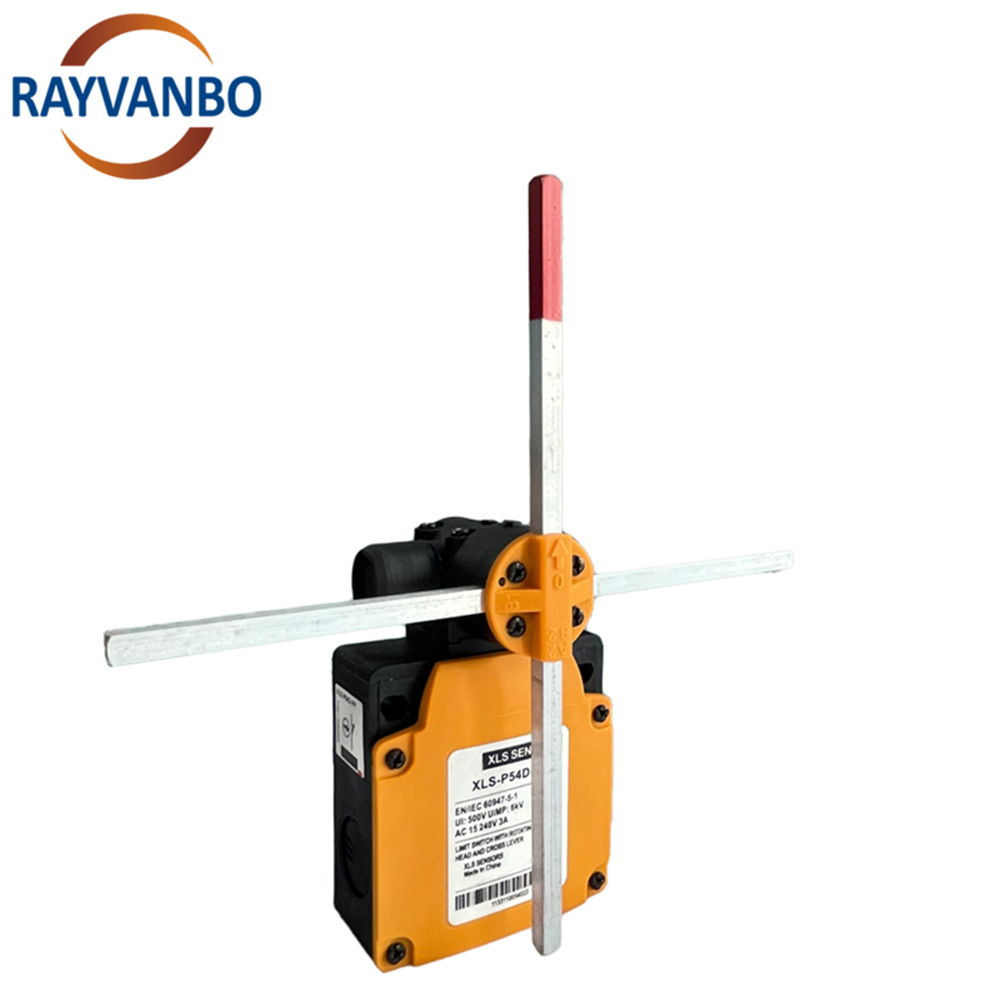

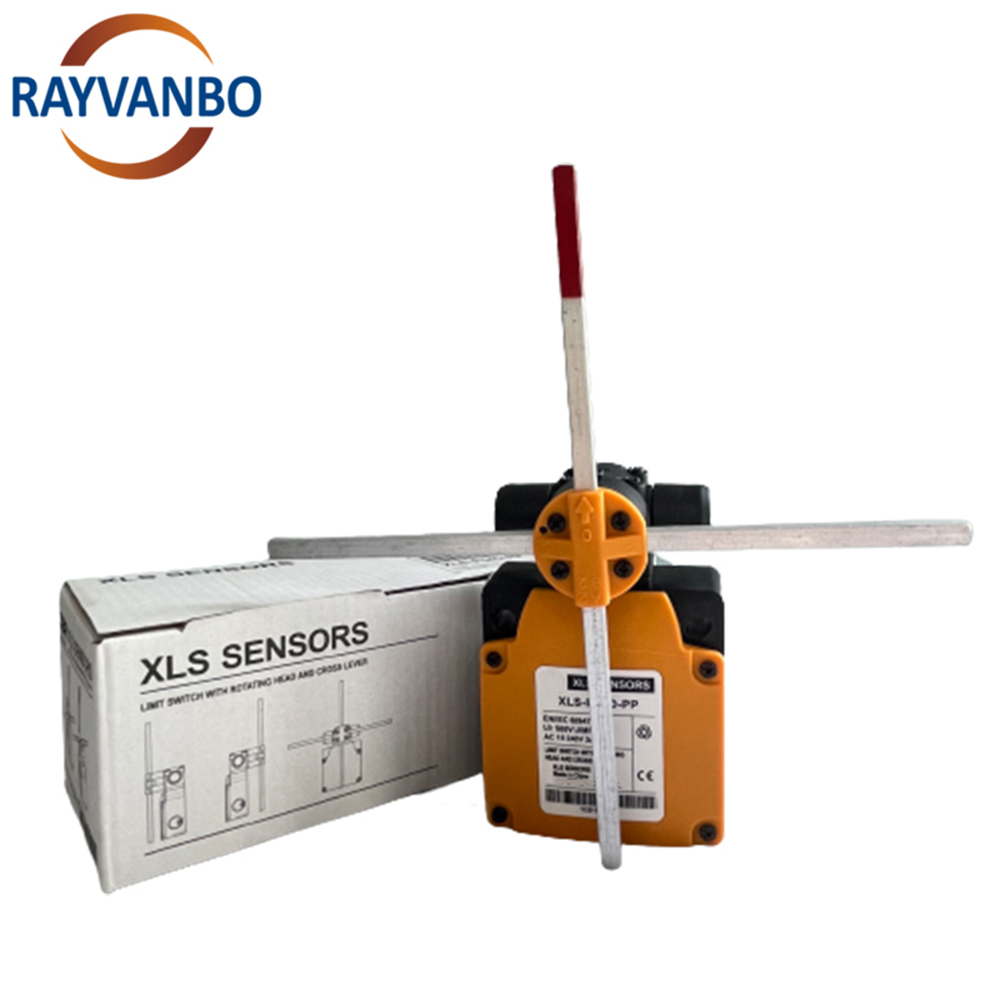

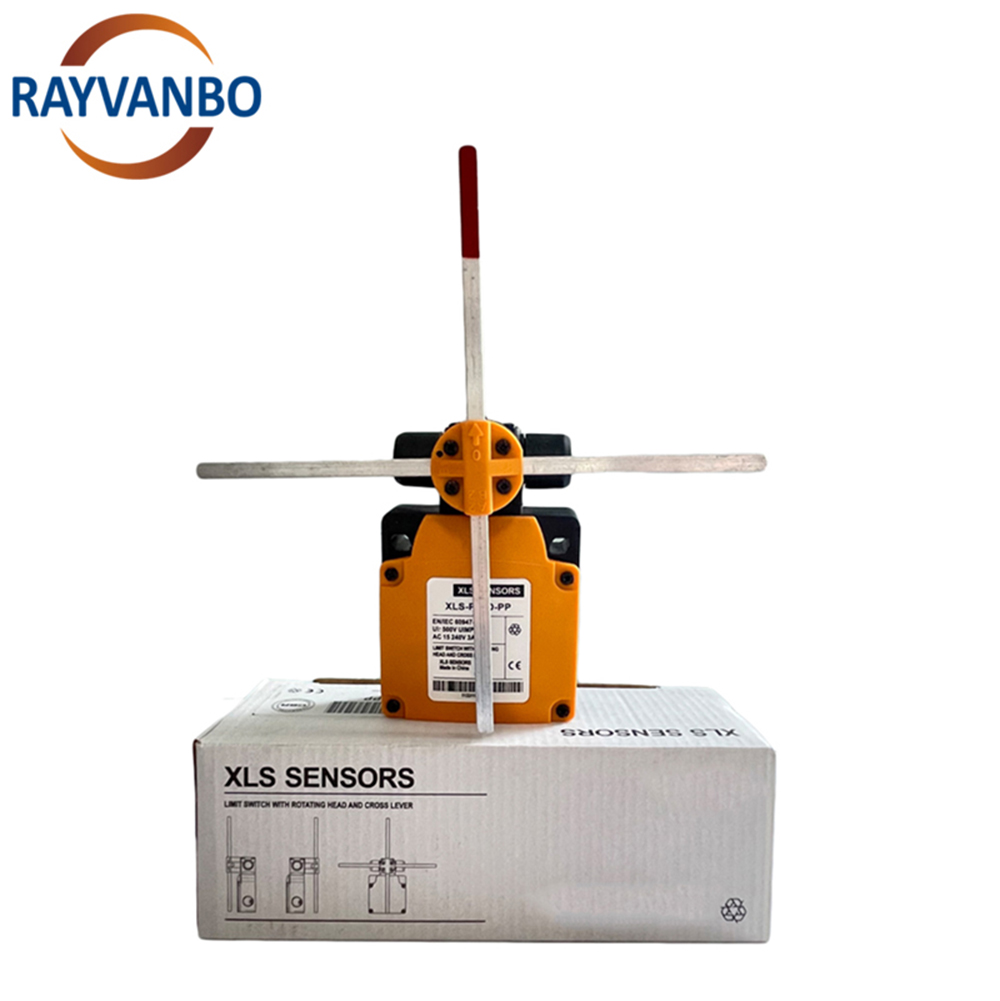

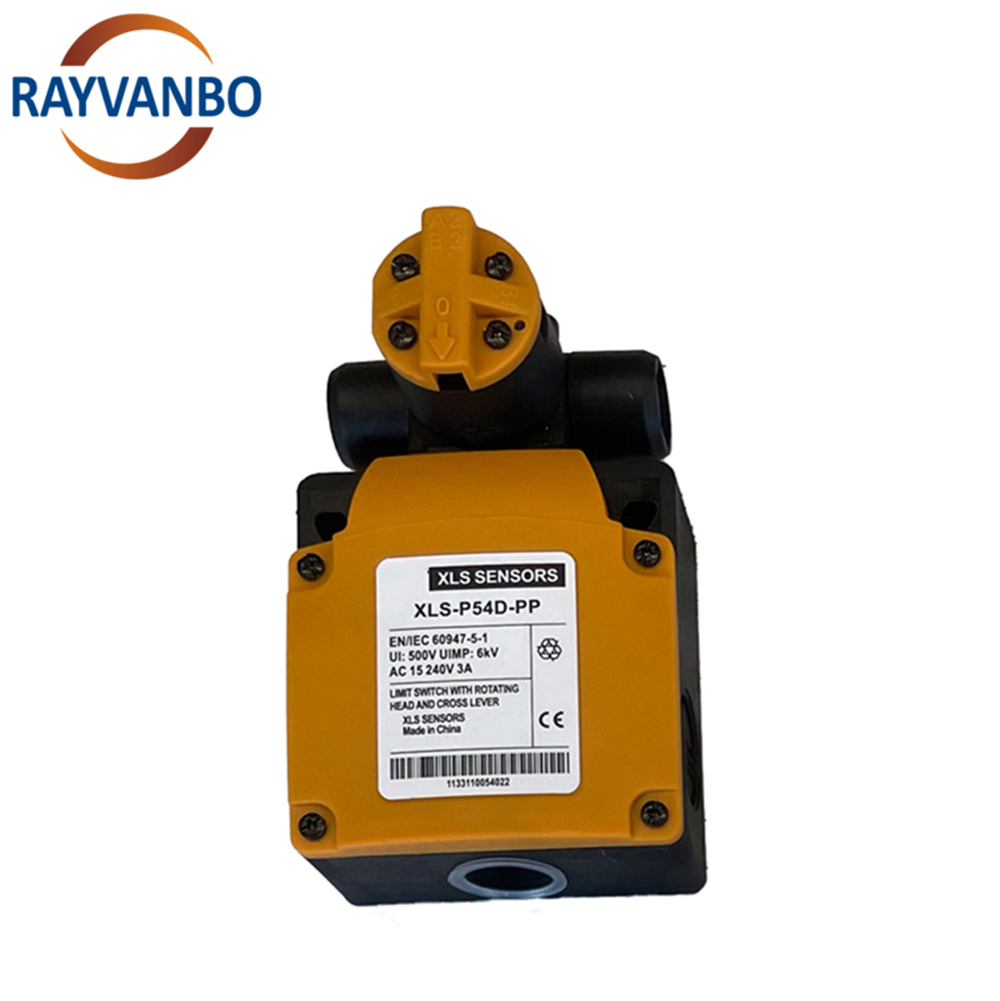

Product Name：Cross Limit Switch
Type：single speed / double speed
Packing：1pc/shall carton box, 12 pcs/big carton box
Product Description:
The cross limit switch is a mechanical switch primarily used for position detection in mechanical systems. It can serve as a motor travel limiter and an automatic control switch. Its operating principle is based on mechanical position detection. When a moving part on a machine contacts the switch, the switch generates a corresponding signal output, ensuring the safety and stability of the mechanical system.
The cross limit switch typically consists of a switch body, contacts, a swing arm, and a movable arm. When the mechanical moving part reaches the set position, the swing arm is acted upon by mechanical force, causing it to swing. At this point, the contacts follow the movable arm's movement and generate a signal output. When the mechanical moving part returns to its initial position, the swing arm returns to its original position, and the contacts also return to their original position.

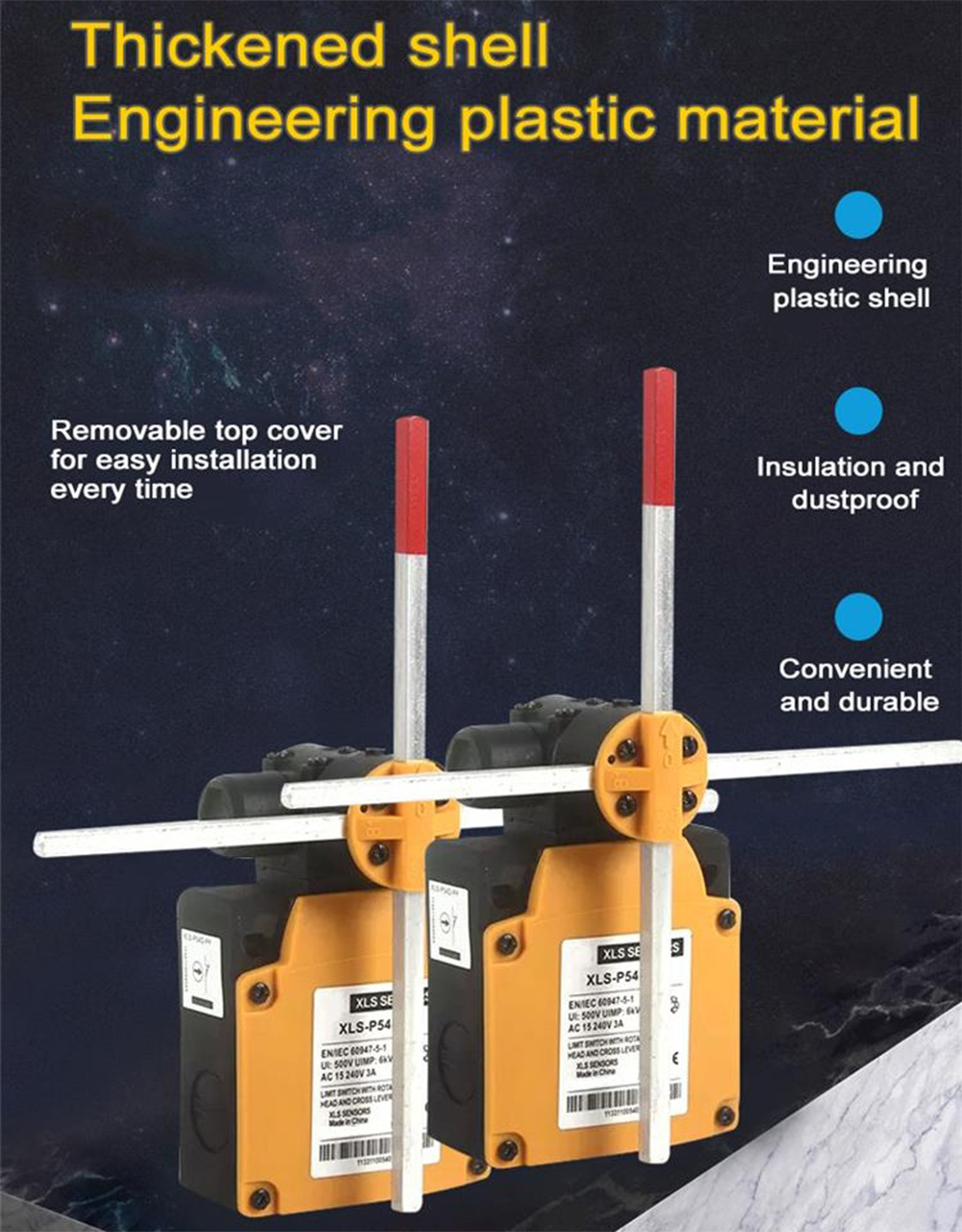

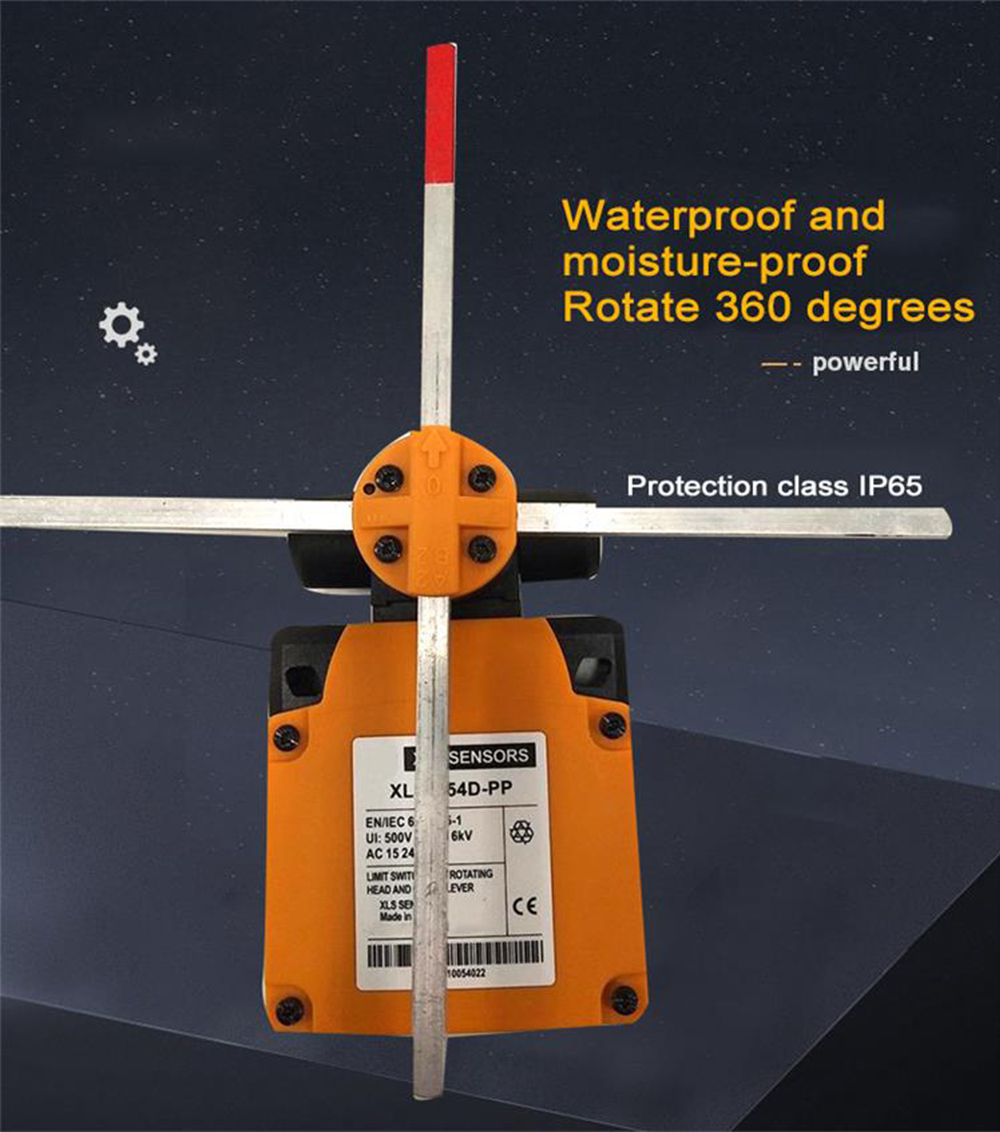

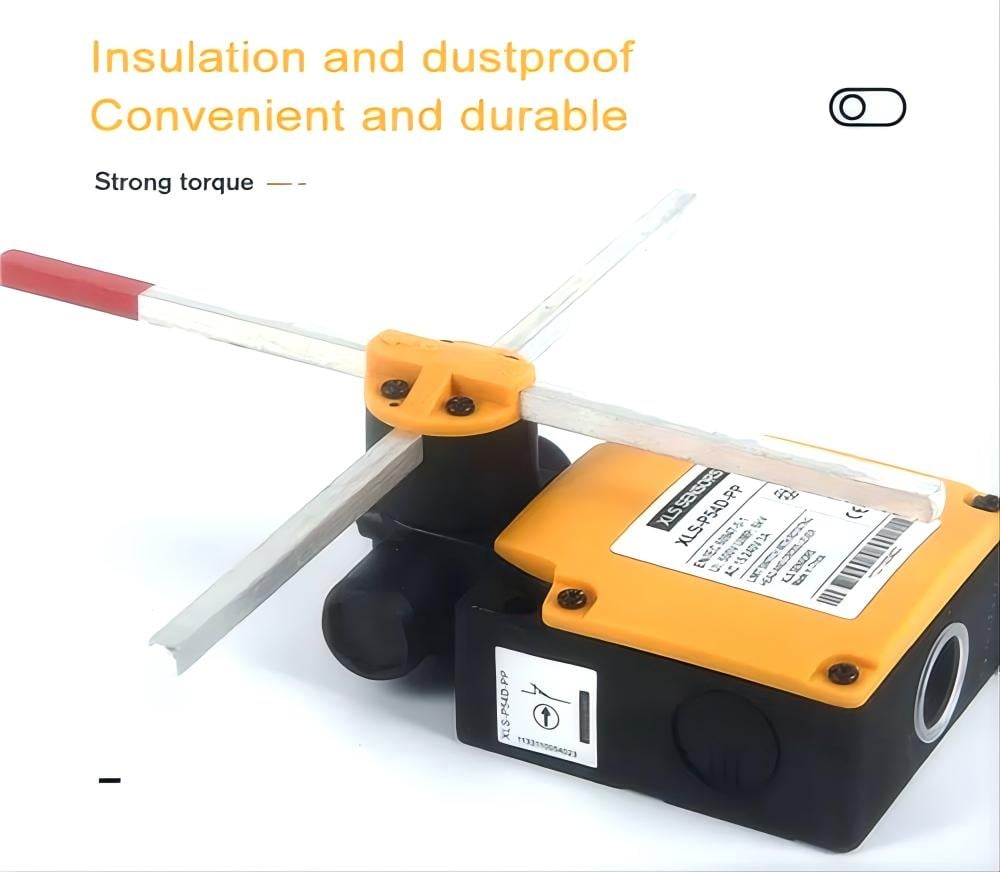

Product Details:

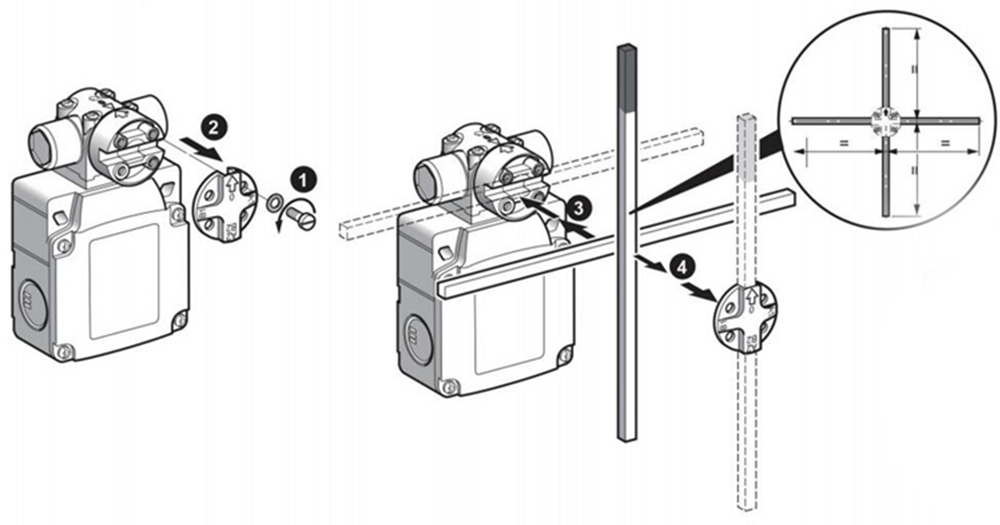

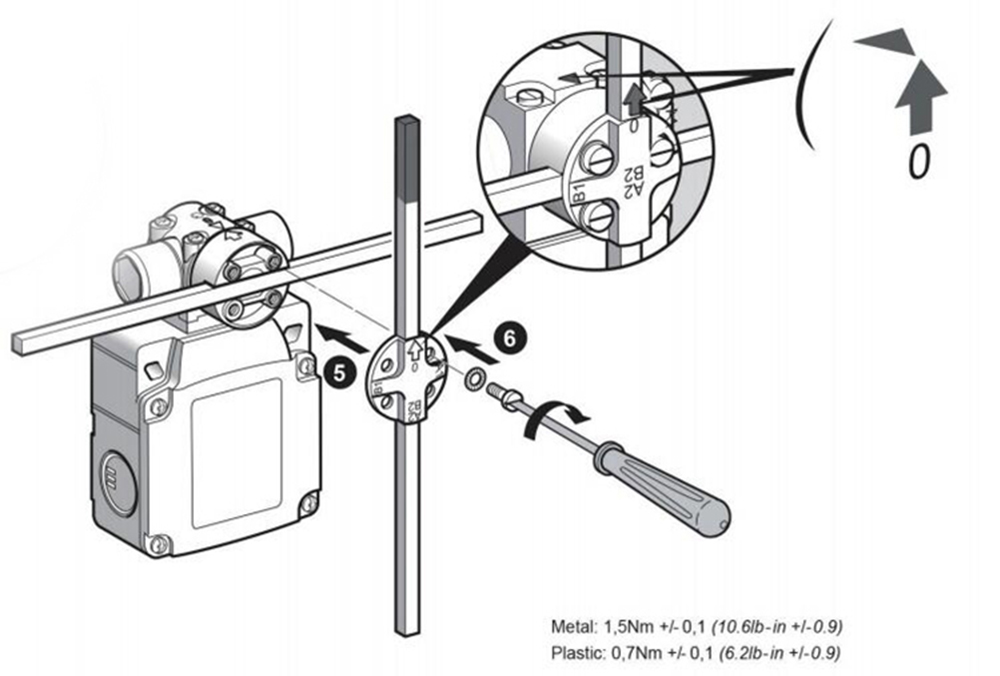

Product Instruction:

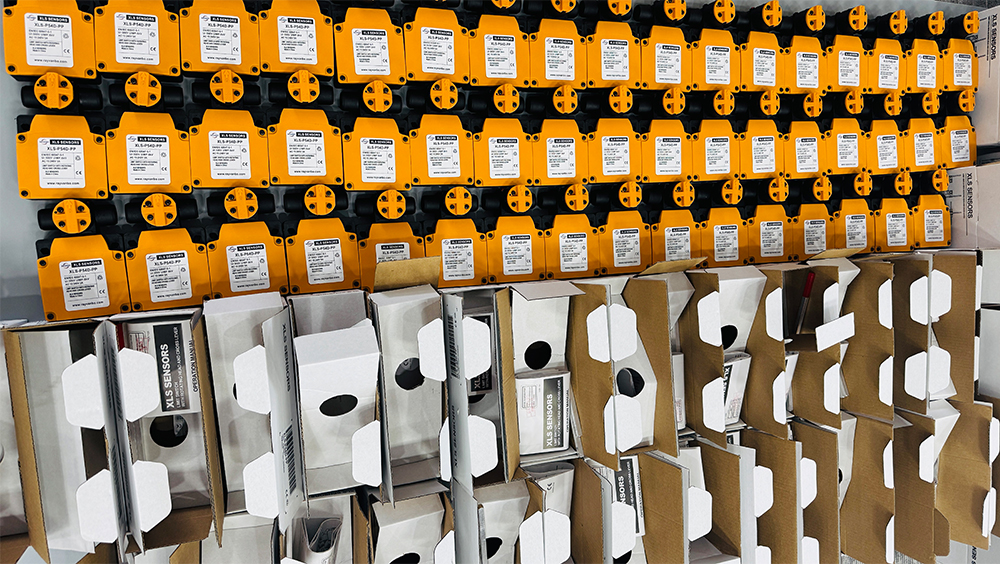

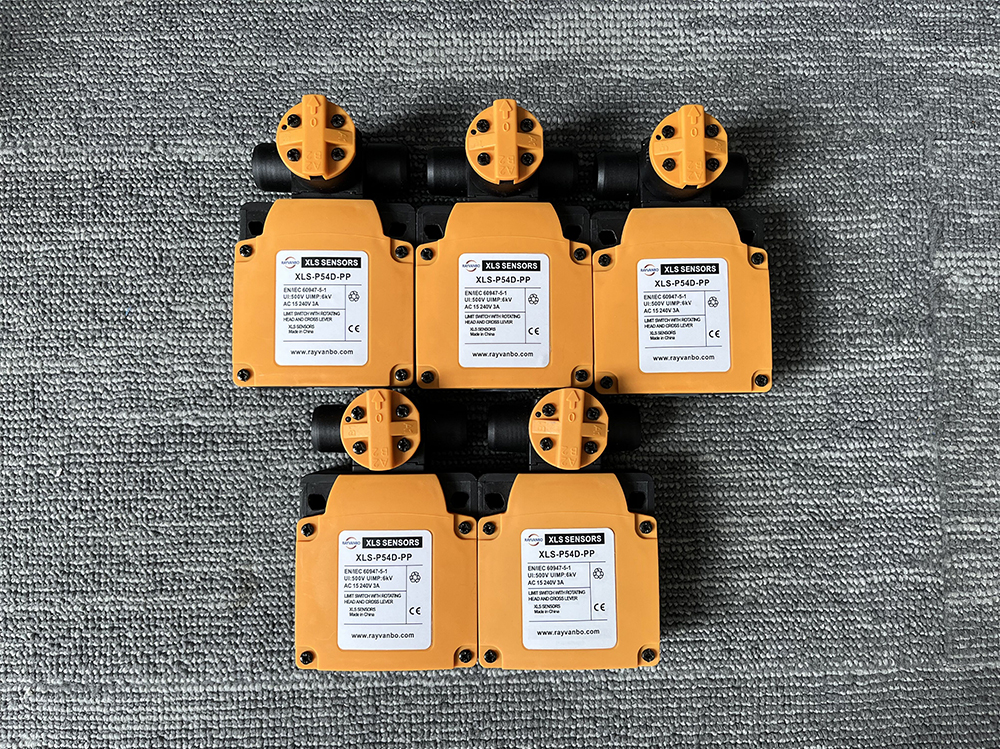

Case Show:

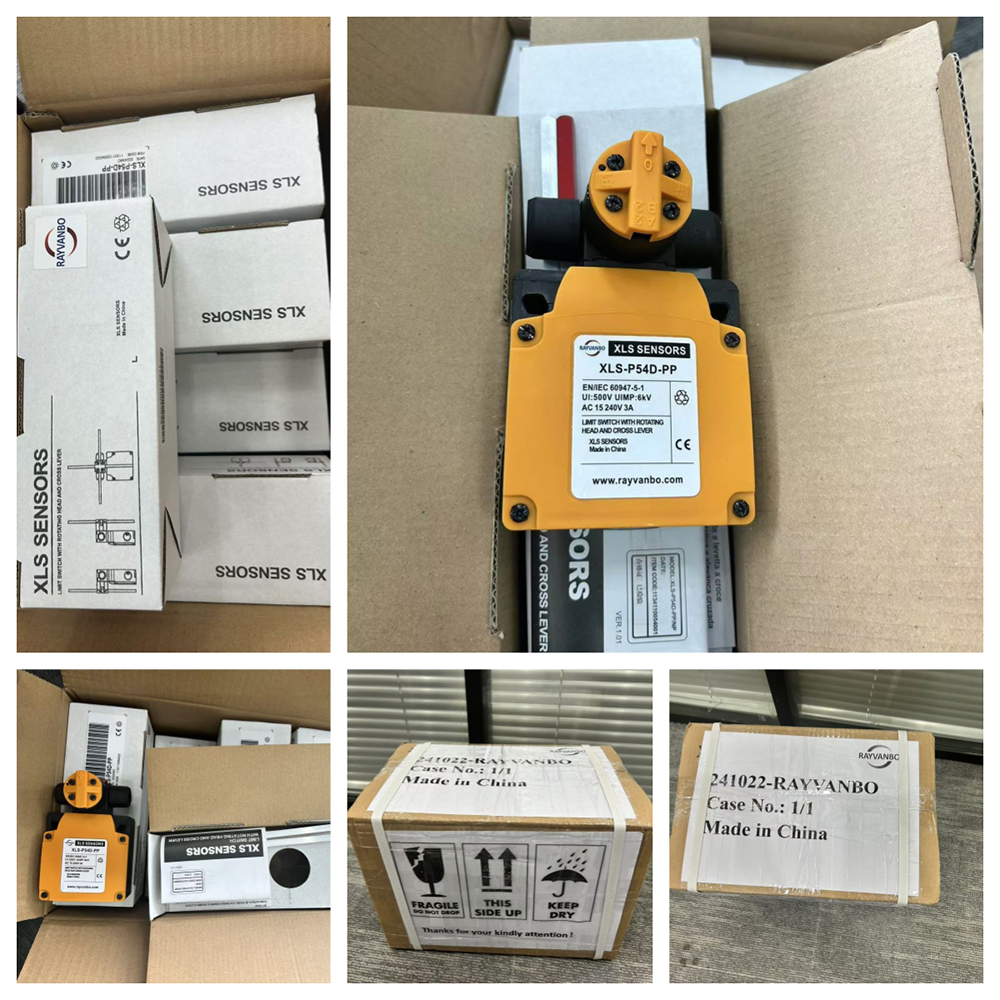

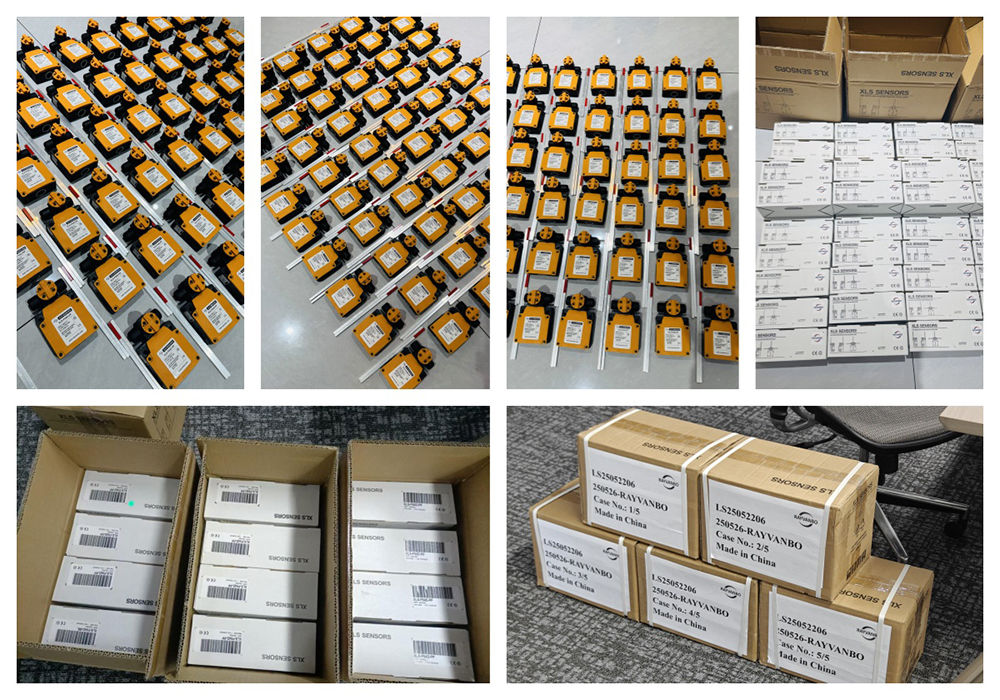

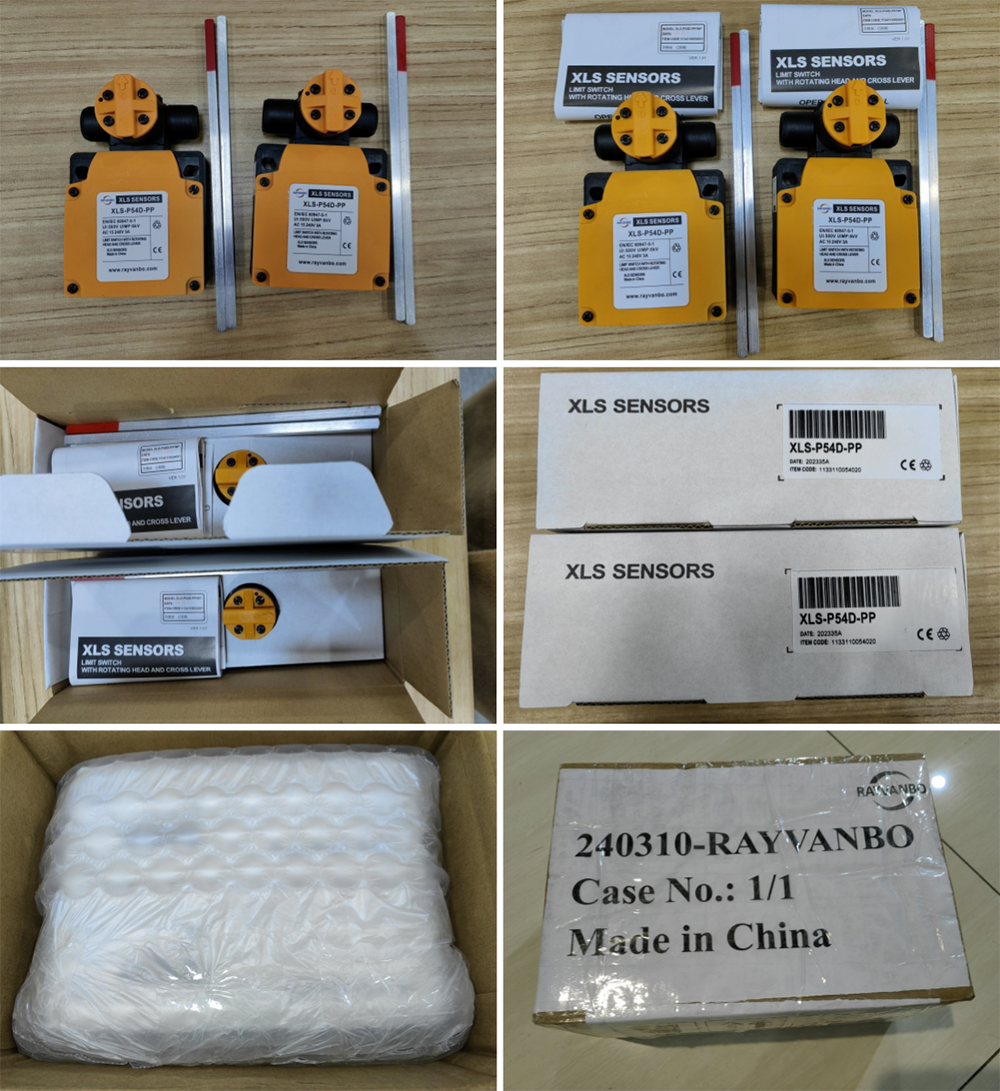

Shipping & Packaging:
