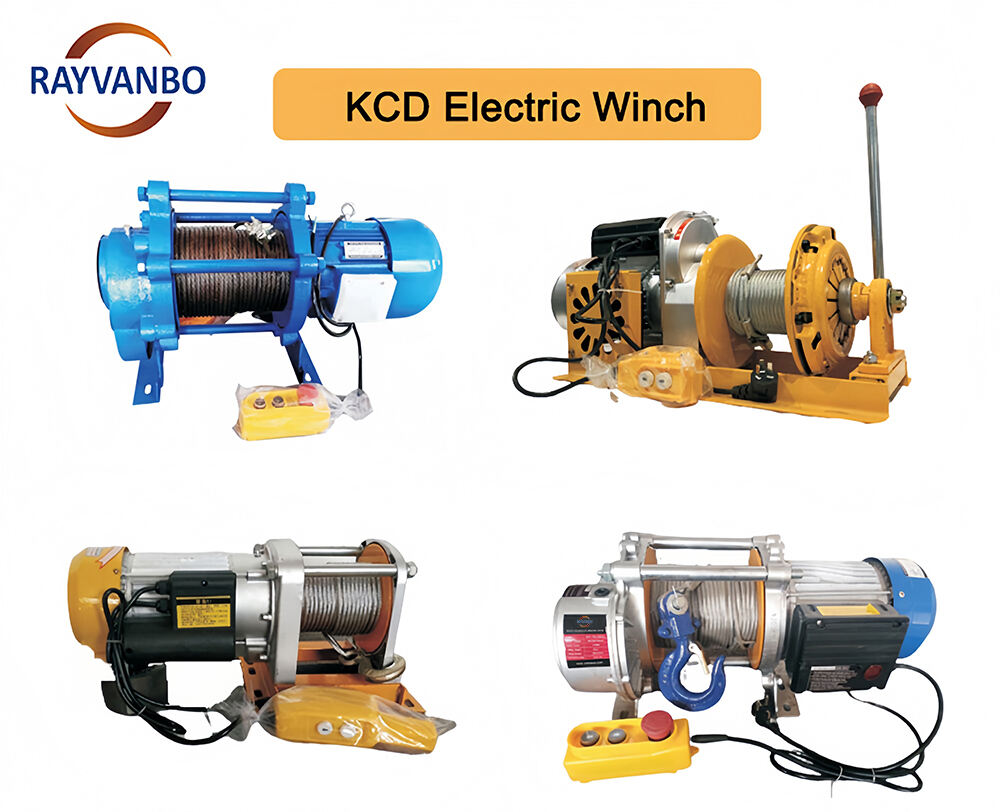

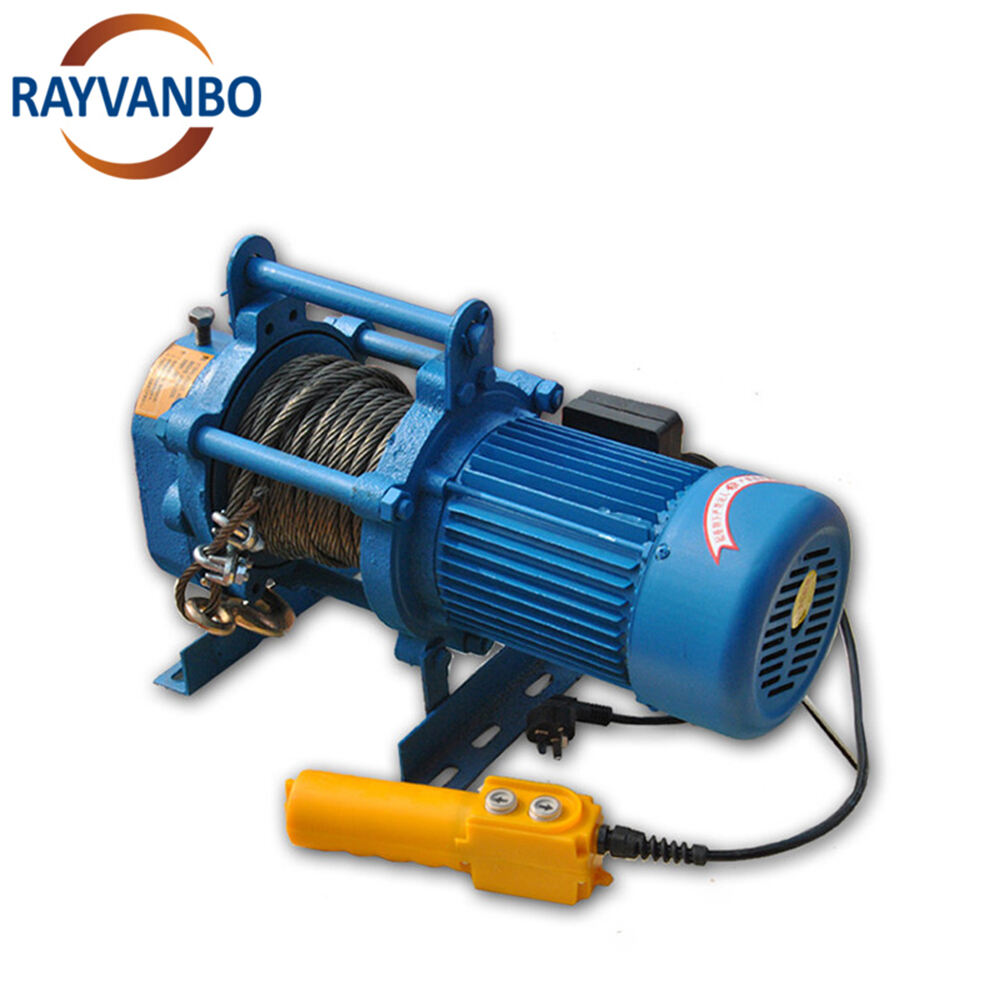

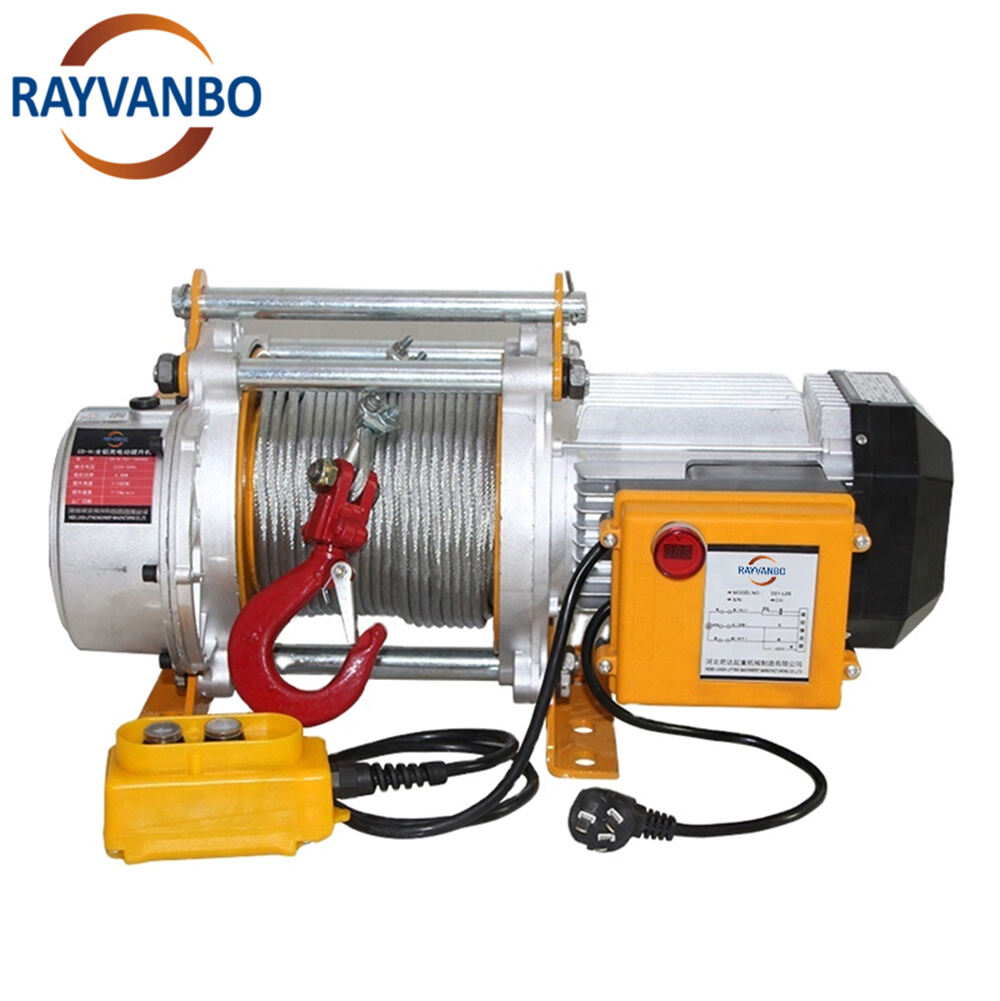

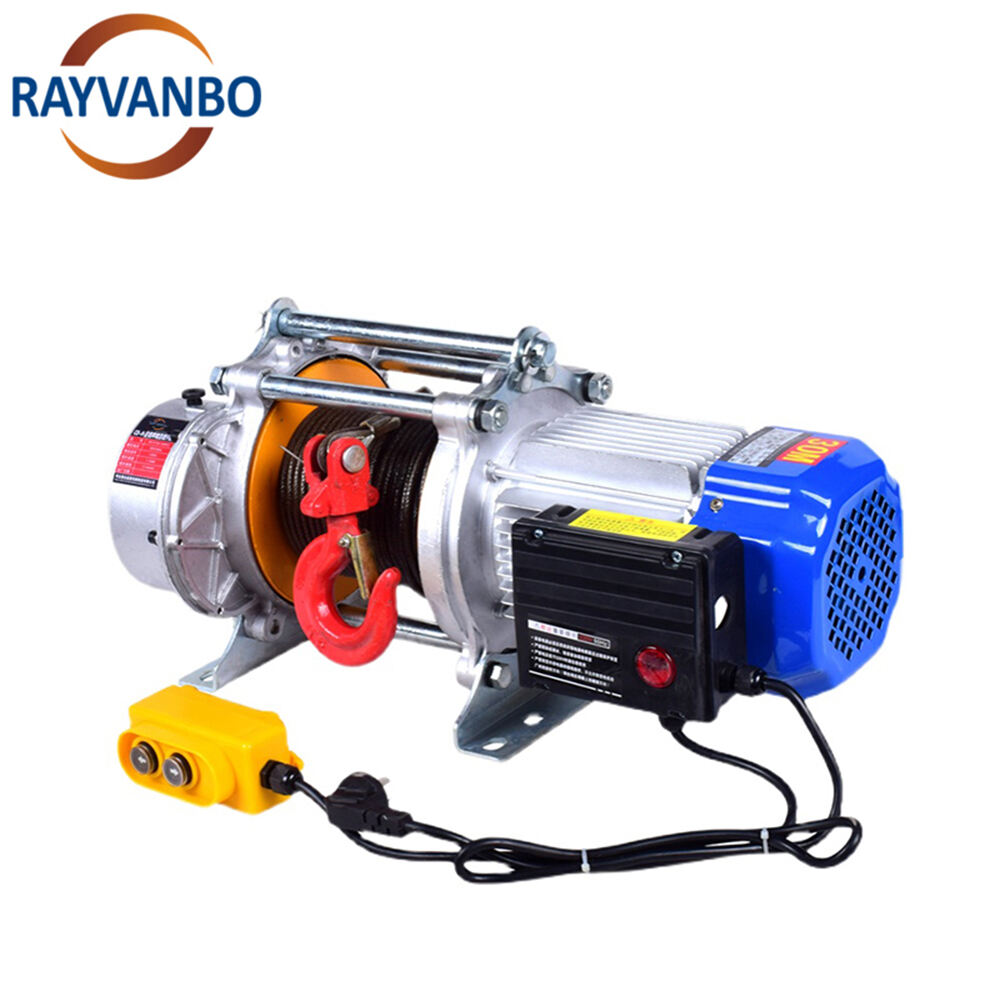

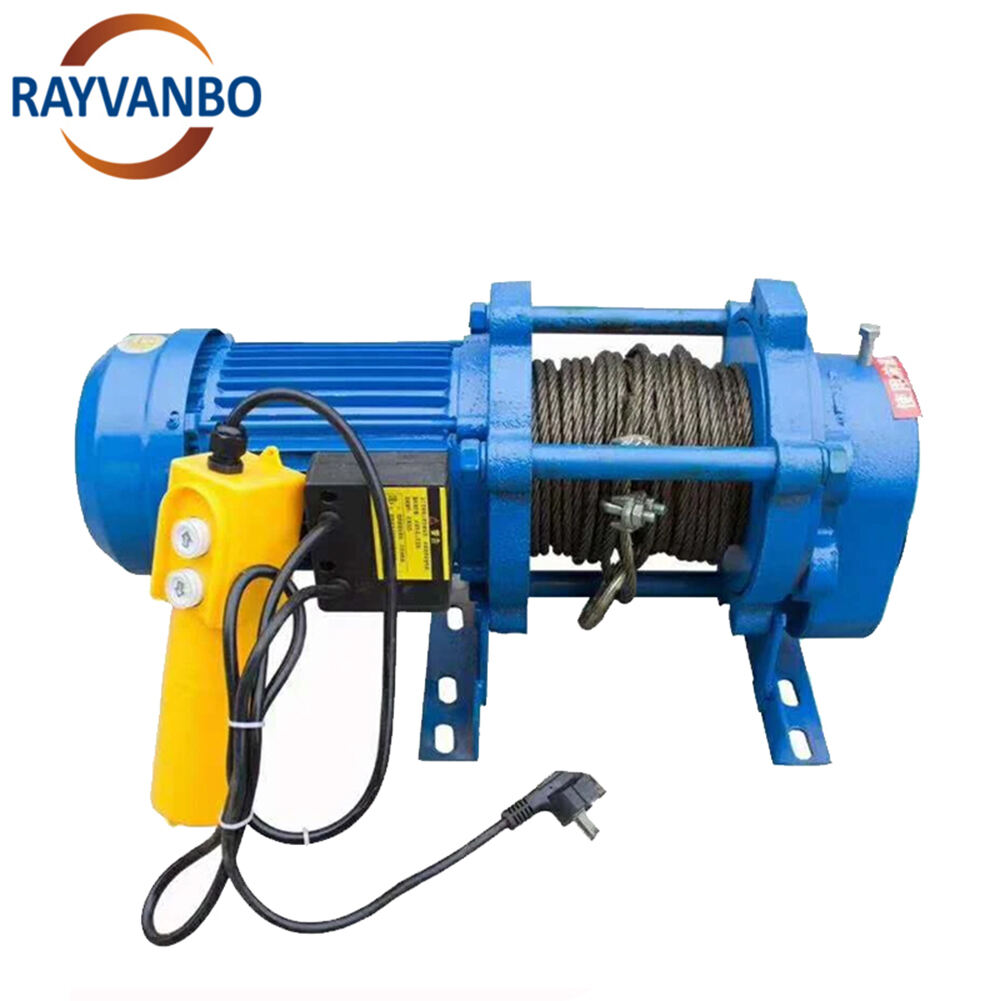

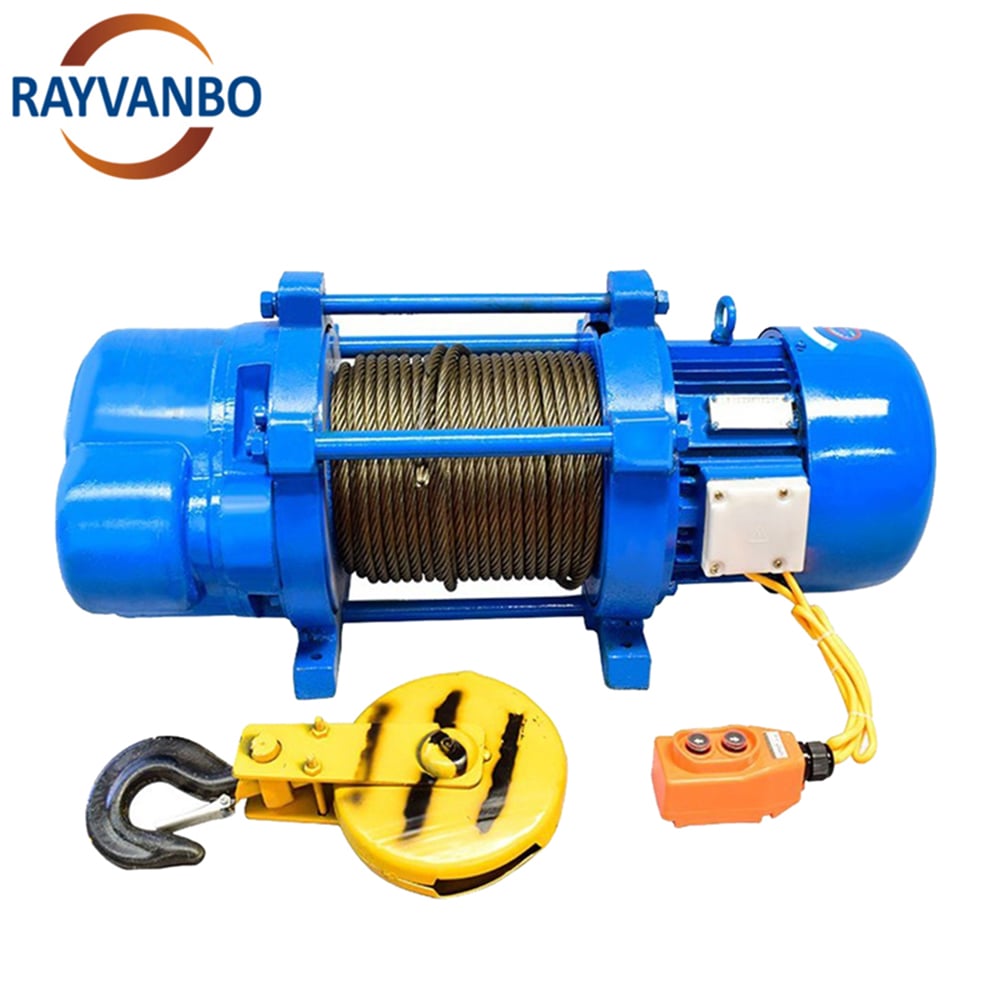

Product Name：Electric Winch
Model：KCD
Lift Capacity：300kg-2000kg (Can be customized)
Lift Height: 30-100m (Can be customized)
Lift Speed：7-16m/min
Product Description:
The KCD electric winch is a multifunctional electric lifting device, a type of electric hoist. It utilizes a conical motor or a conventional motor, combined with a variable speed mechanism, to drive the drum, achieving both lifting and lowering operations. It can be used suspended or on the ground, and is widely used in small and medium-sized residential buildings and high-rise building renovations, such as lifting floor slabs, digging wells to extract soil, and lifting objects in warehouses and factories. It can also be used to install elevator materials and perform maintenance in high-rise buildings.
Adavantages of KCD electric winch:
- Fast installation.
- Convenience in operation.
- Low noise level.- Fast braking.- Big rope capacity
– to 100 meters (that allows to apply them to raising of freights at repair of high-floor buildings).
- Existence of a rope with a hook in a set.
Product Parameters:
| Model | Lift Capacity (kg) |
Wire Rope length(m) |
Lift Speed(m/min) |
Power Supply | Motor power(kw) |
Wire rope diameter(φmm) |
|
| KCD300-600 | 300 | 30-60 | 14 | 3 phase,380v,50hz | 0.6 | 5 | |
| 600 | 7 | ||||||
| KCD400-800 | 400 | 30-60 | 14 | 1 phase 220v,50hz | 1.5 | 6 | |
| 800 | 7 | 3 phase,380v,50hz | |||||
| KCD500-1000 | 500 | 30-60 | 14 | 1 phase 220v,50hz | 1.8 | 6 | |
| 1000 | 7 | 3 phase,380v,50hz | |||||
| KCD600-1200 | 600 | 30-100 | 16 | 1 phase 220v,50hz | 1.9 | 6 | |
| 1200 | 8 | 3 phase,380v,50hz | |||||
| KCD750-1500 | 750 | 30-100 | 16 | 1 phase 220v,50hz | 2.2 | 7 | |
| 1500 | 8 | 3phase,380v,50hz | |||||
| KCD1000-2000 | 1000 | 30-100 | 14 | 3 phase,380v,50hz | 3.0 | 11 | |
| 2000 | 7 | ||||||

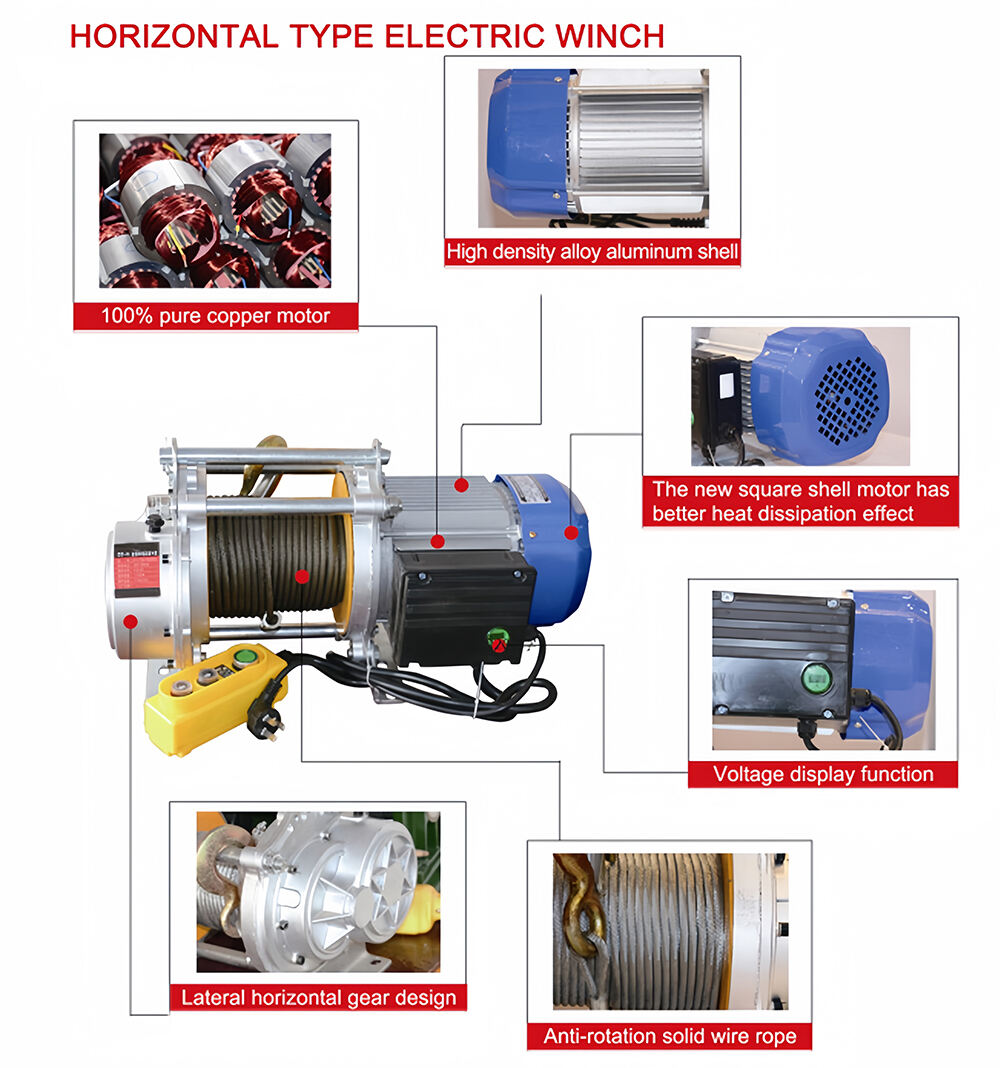

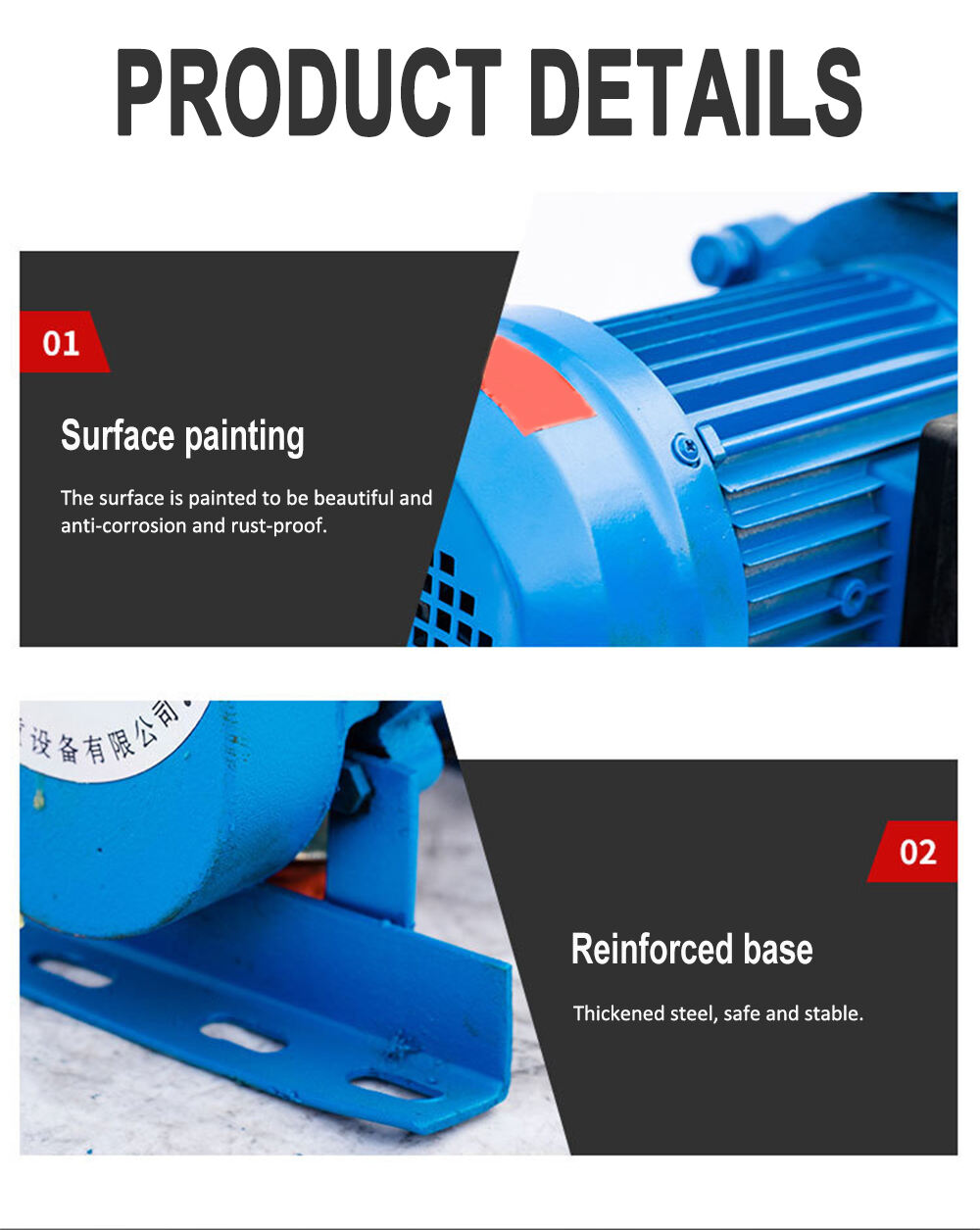

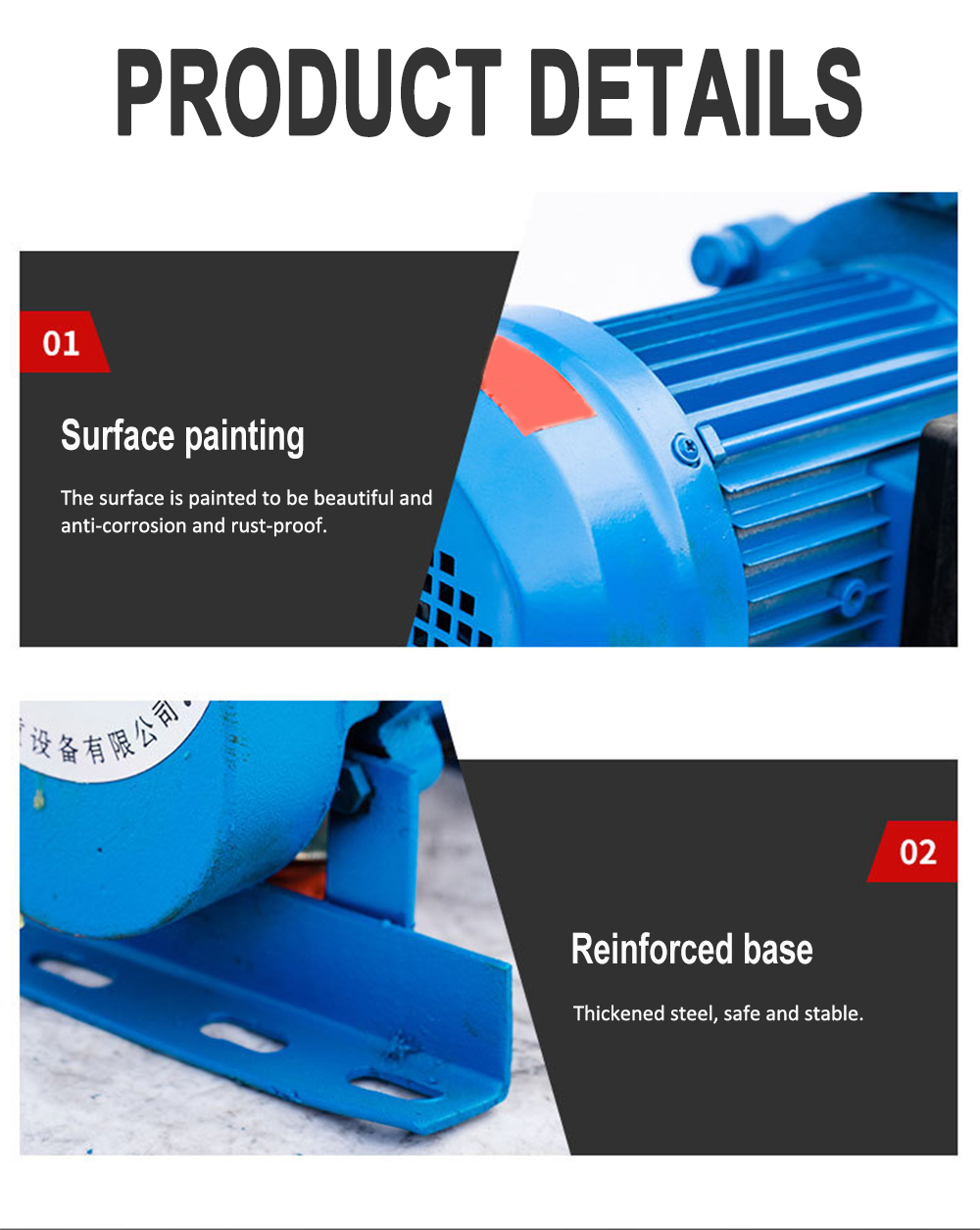

Product Details:

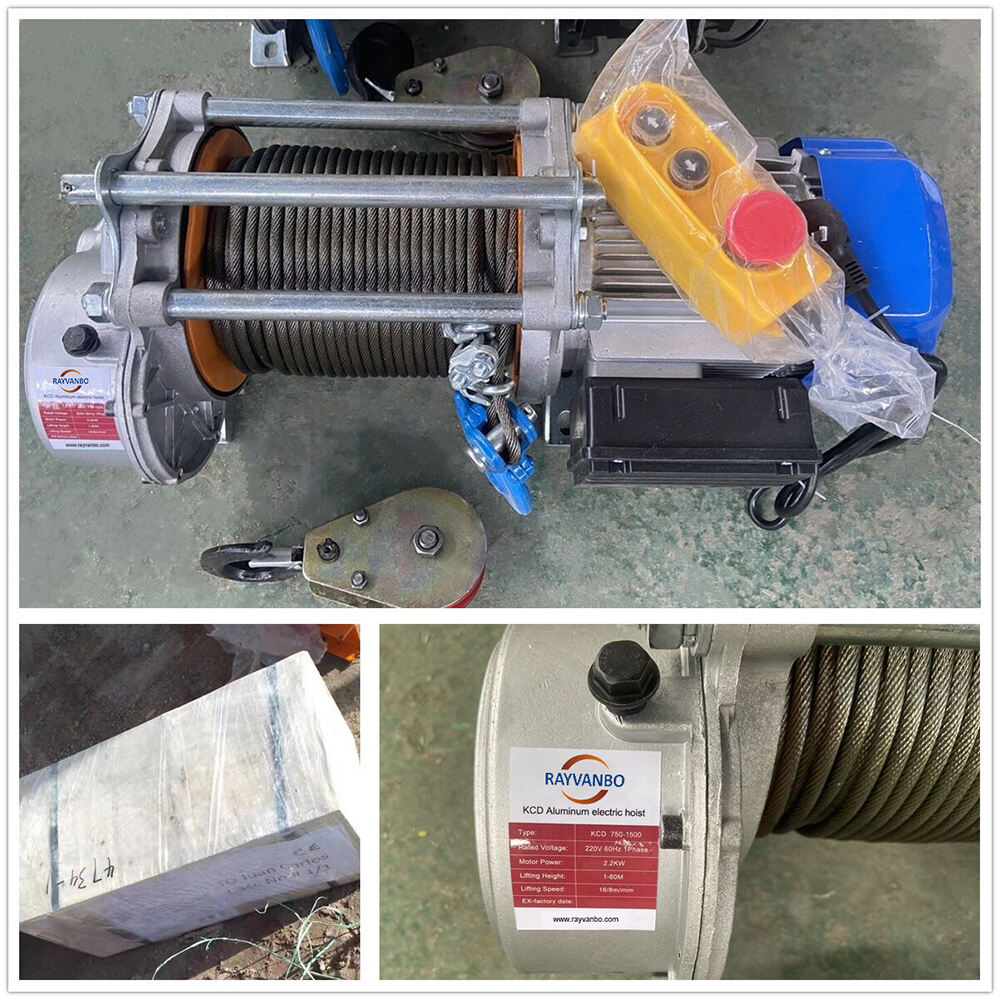

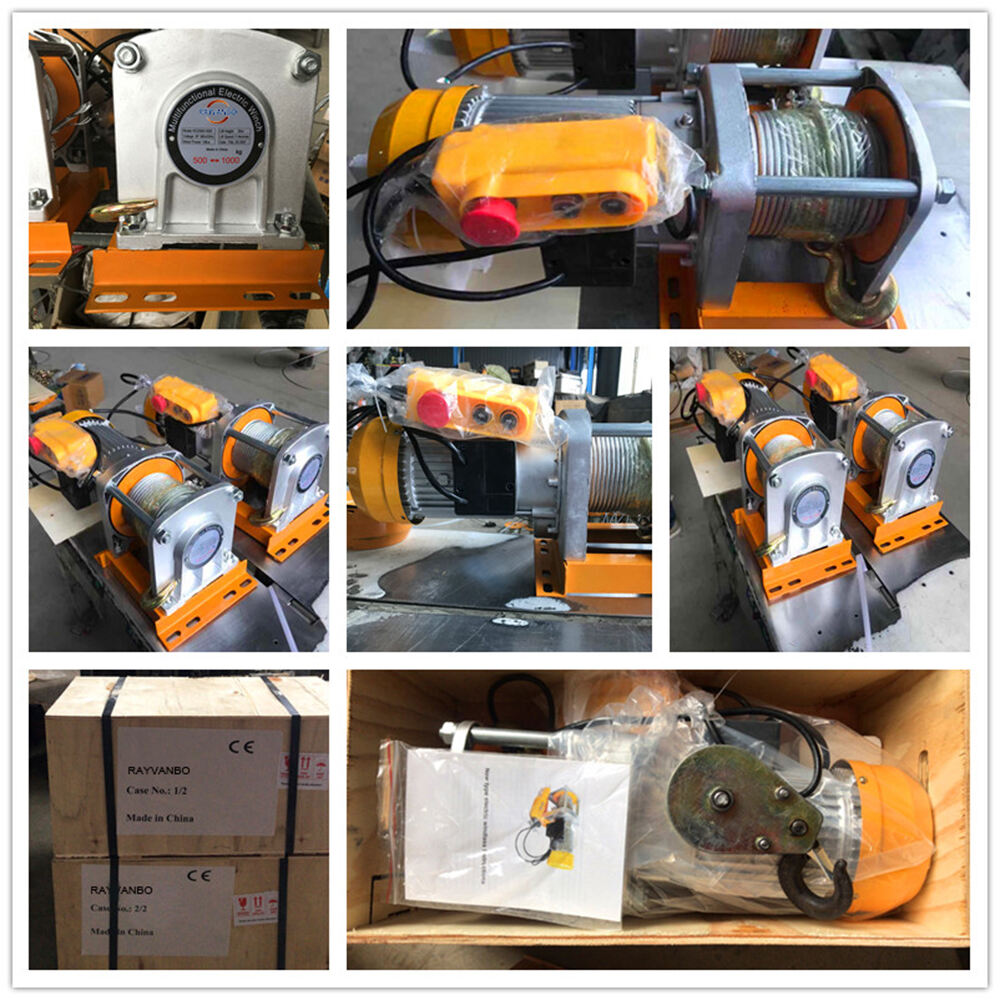

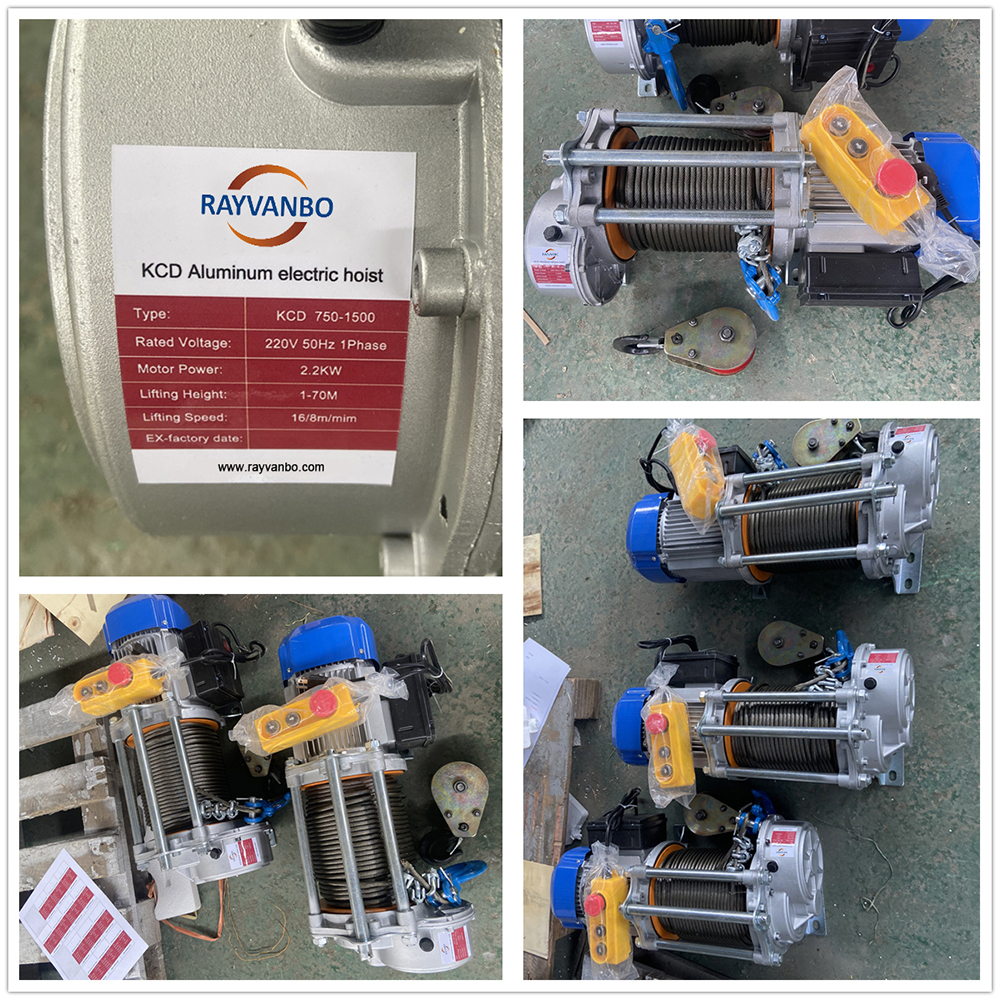

Shipping & Packaging:
