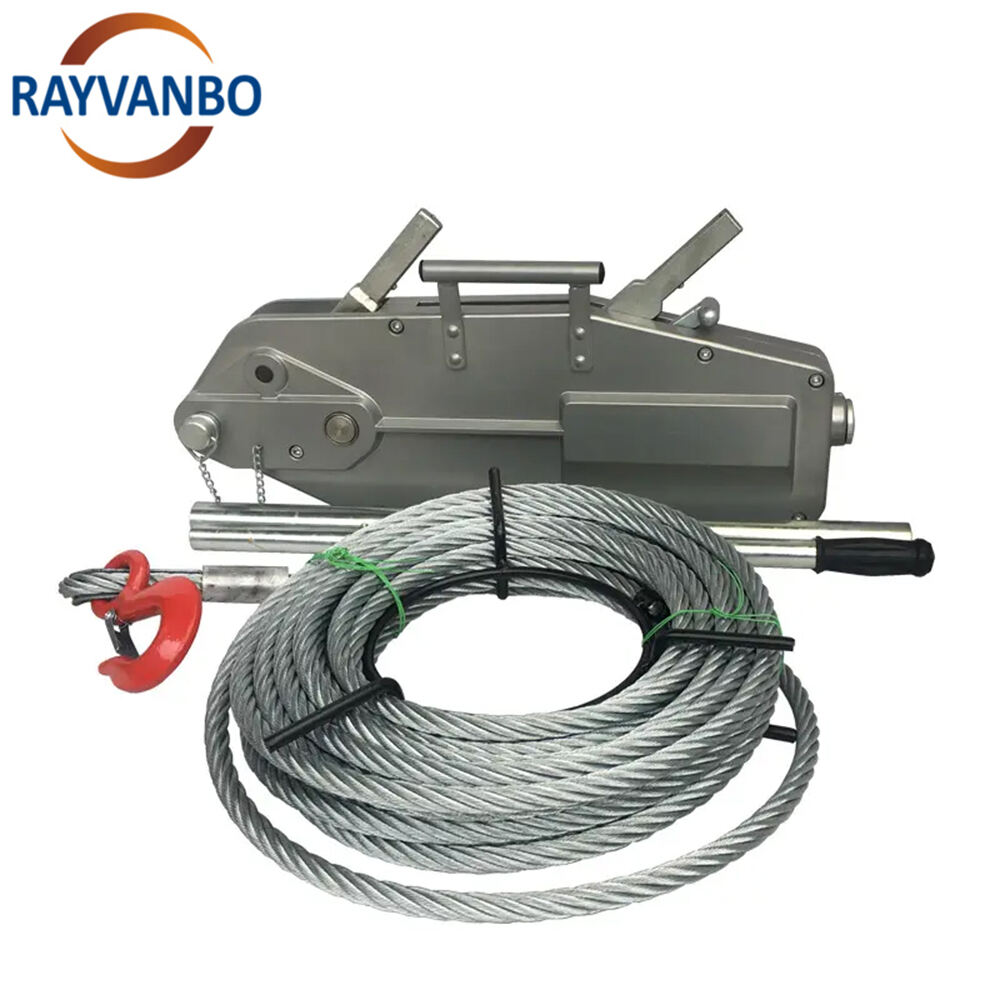

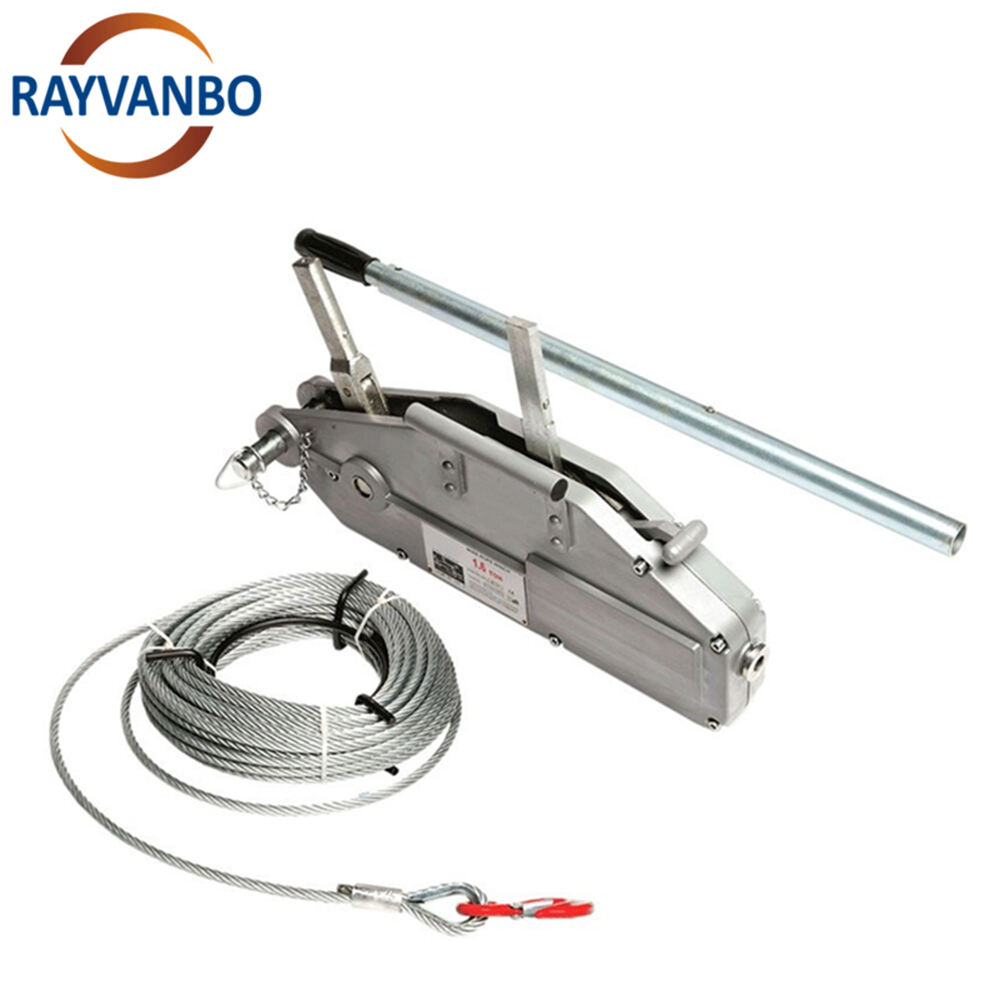

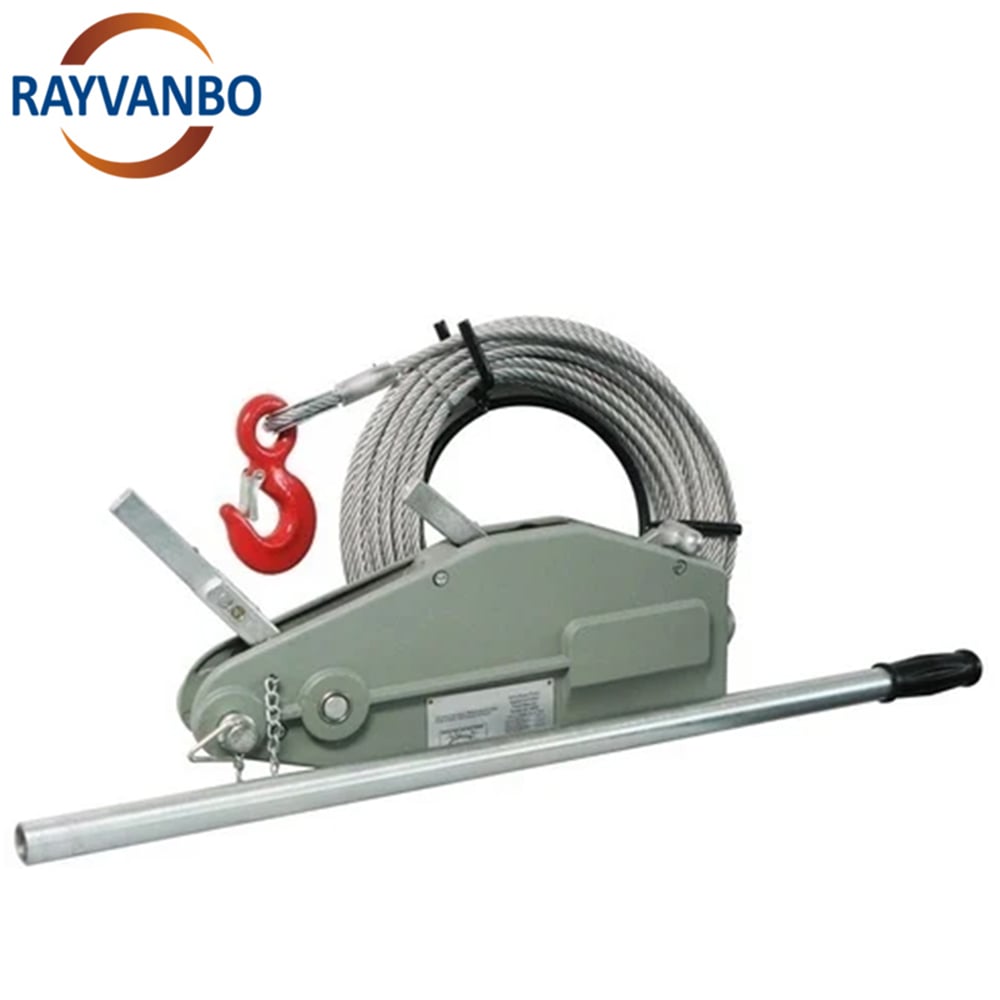

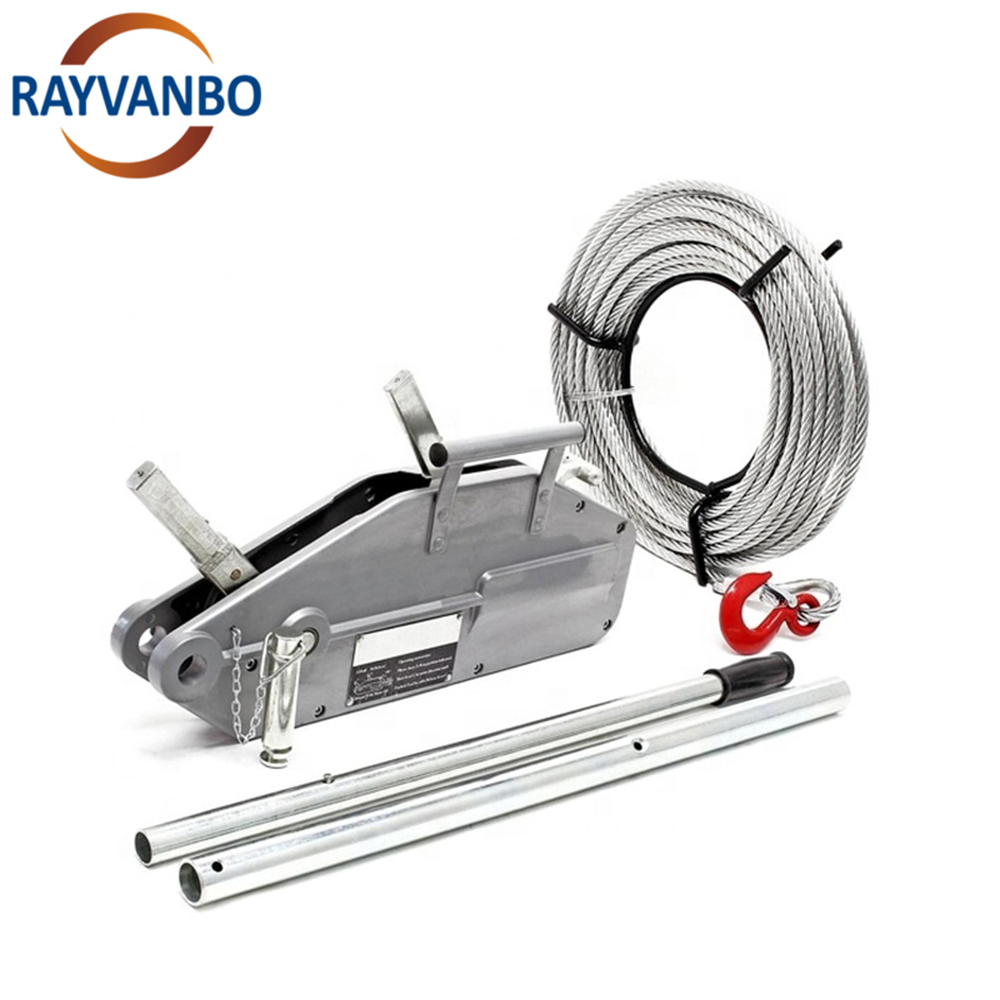

Product Name：Wire Rope Pulling Hoist
Load Capacity：800-5400kg (Can be customized)
MAX.travelling load(kg):1200-8100kg
Rope Diameter:8.3-20mm
Product Description:
The wire rope pulling hoist is a portable mechanical device that integrates lifting, pulling, and tensioning functions. Constructed from a high-strength aluminum alloy, it features strong wear resistance and high breaking strength. Its compact structure and lightweight design make it suitable for narrow, unpowered environments and outdoor aerial work. Its applications encompass engineering fields such as telecommunications installation, pipeline laying, and power installation. Its operation is smooth and quiet, but strict operating procedures must be followed to avoid overloading.
Product Features:
1. Lifting Capacity: Supports vertical lifting operations.
2. Towing Function: Suitable for horizontal towing, suitable for unpowered operations in narrow areas, outdoor operations, and high-altitude operations.
3. Tensioning Function: Adjustable cable tension.
Product Parameters:
Wire Rope Pulling Hoist | ||||
Lifting Capacity (kg) |
800 |
1600 |
3200 |
5400 |
Rated forward hand power(N) |
341 |
400 |
438 |
850 |
Rated forward travel(mm) |
≧52 |
≧55 |
≧28 |
≧25 |
Rope diameter(mm) |
8.3 |
11 |
16 |
20 |
Wire rope safety factor load capacity |
5×WLL |
5×WLL |
5×WLL |
5×WLL |
Safety factor &static load capacity |
4 |
4 |
4 |
4 |
MAX.traveling load(kg) |
1200 |
2400 |
4000 |
8100 |
Net weight |
6.4 |
12 |
23 |
56 |

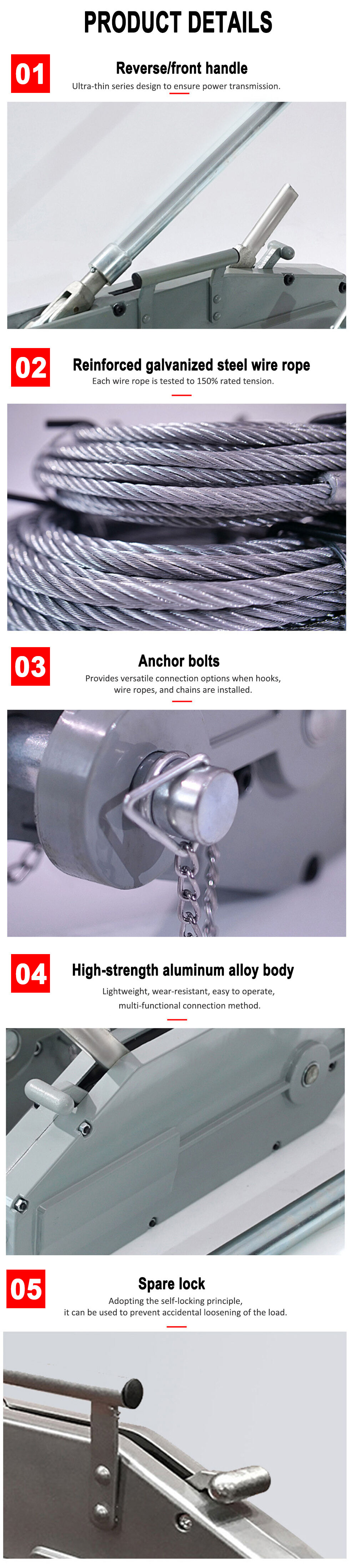

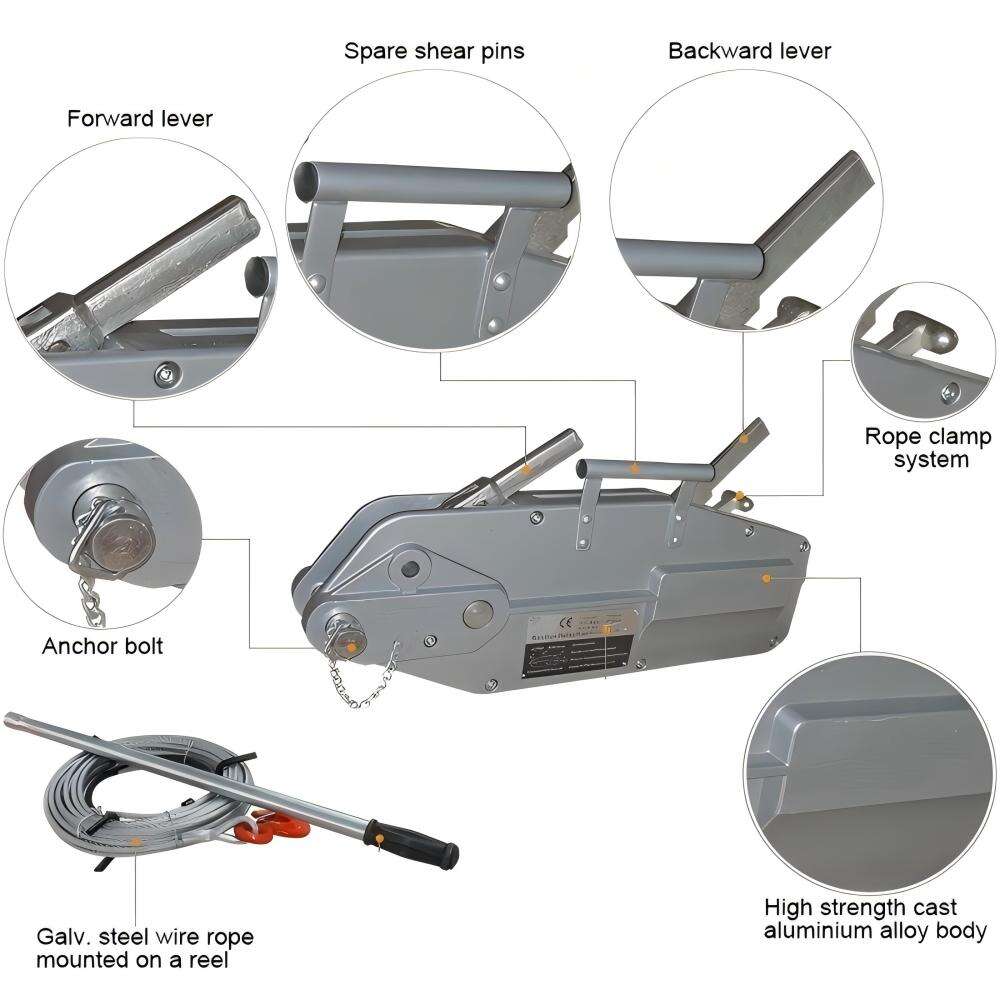

Product Details:
Product Application:

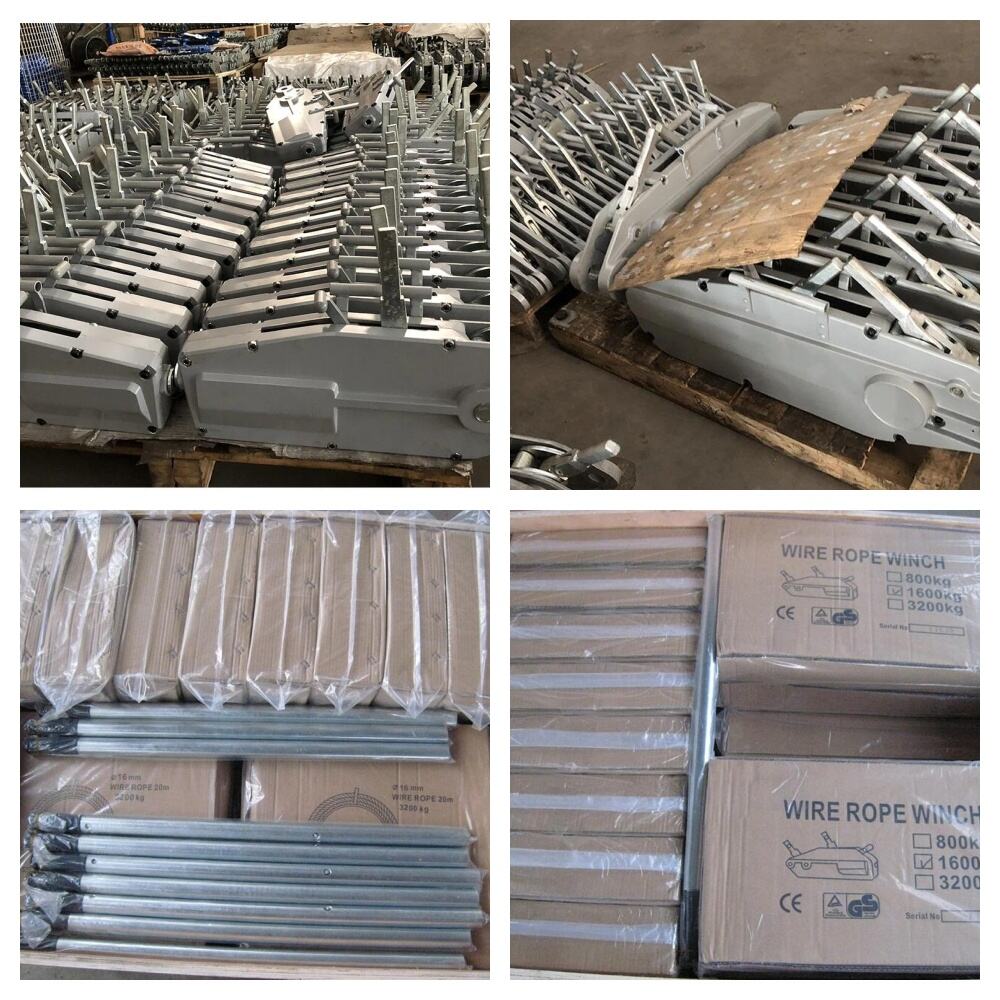

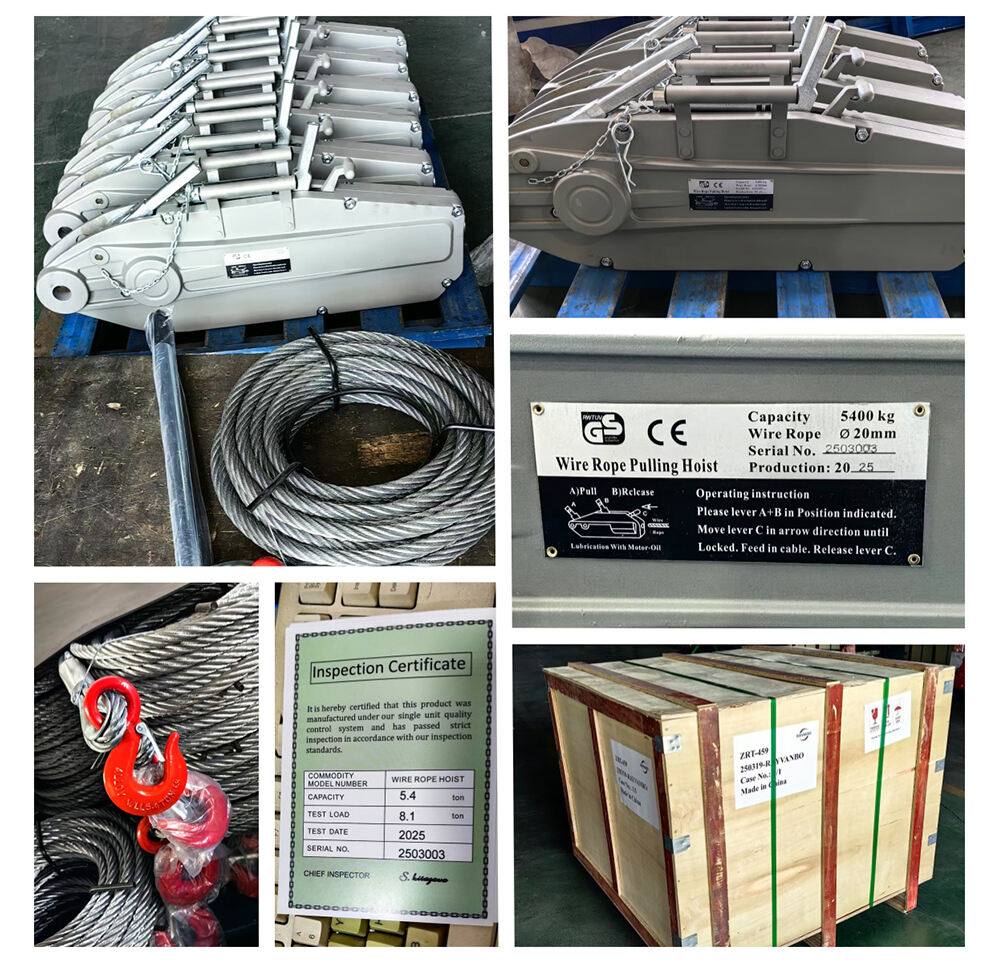

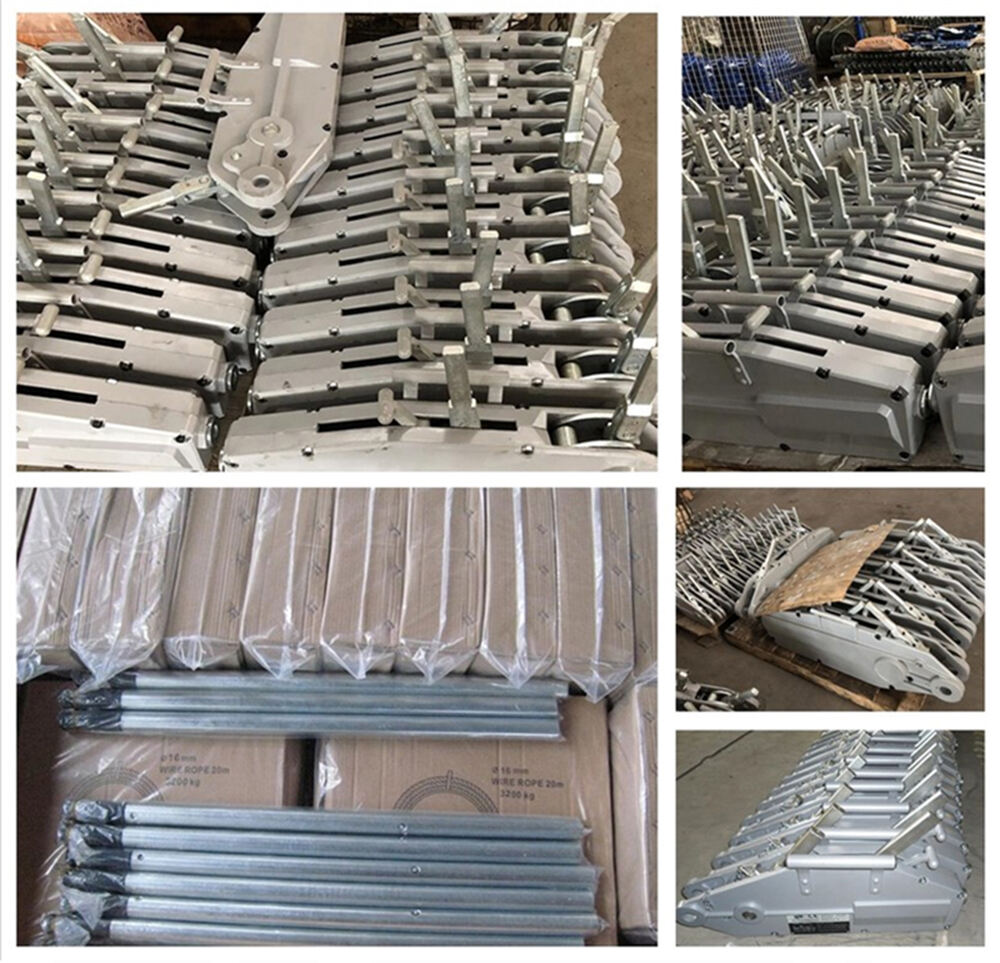

Shipping & Packaging:
