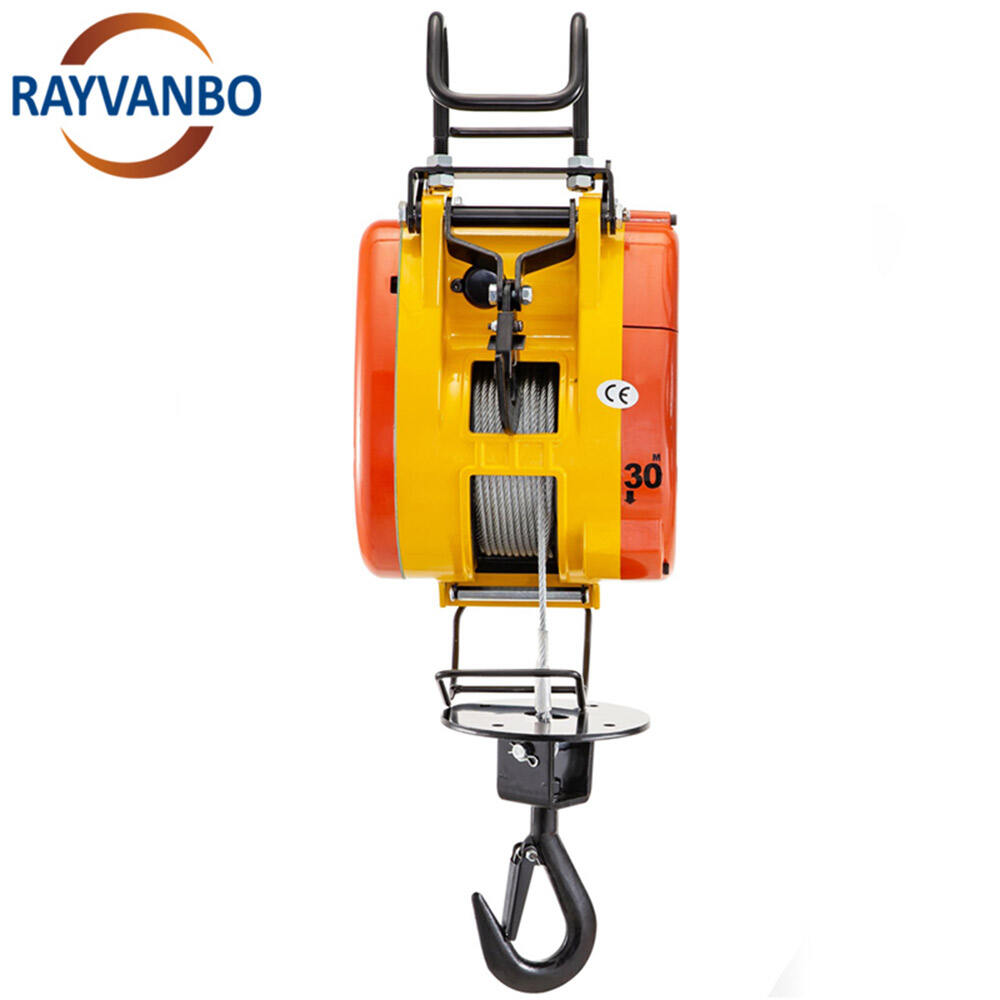

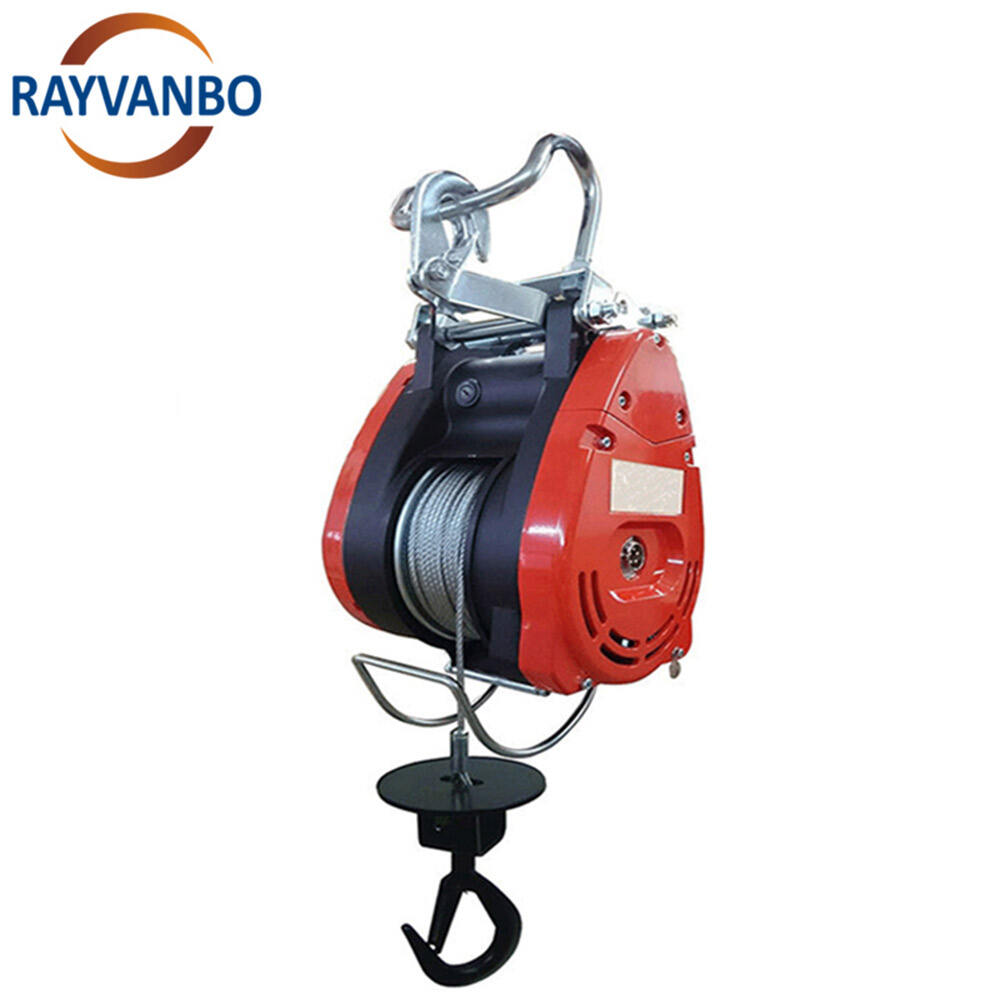

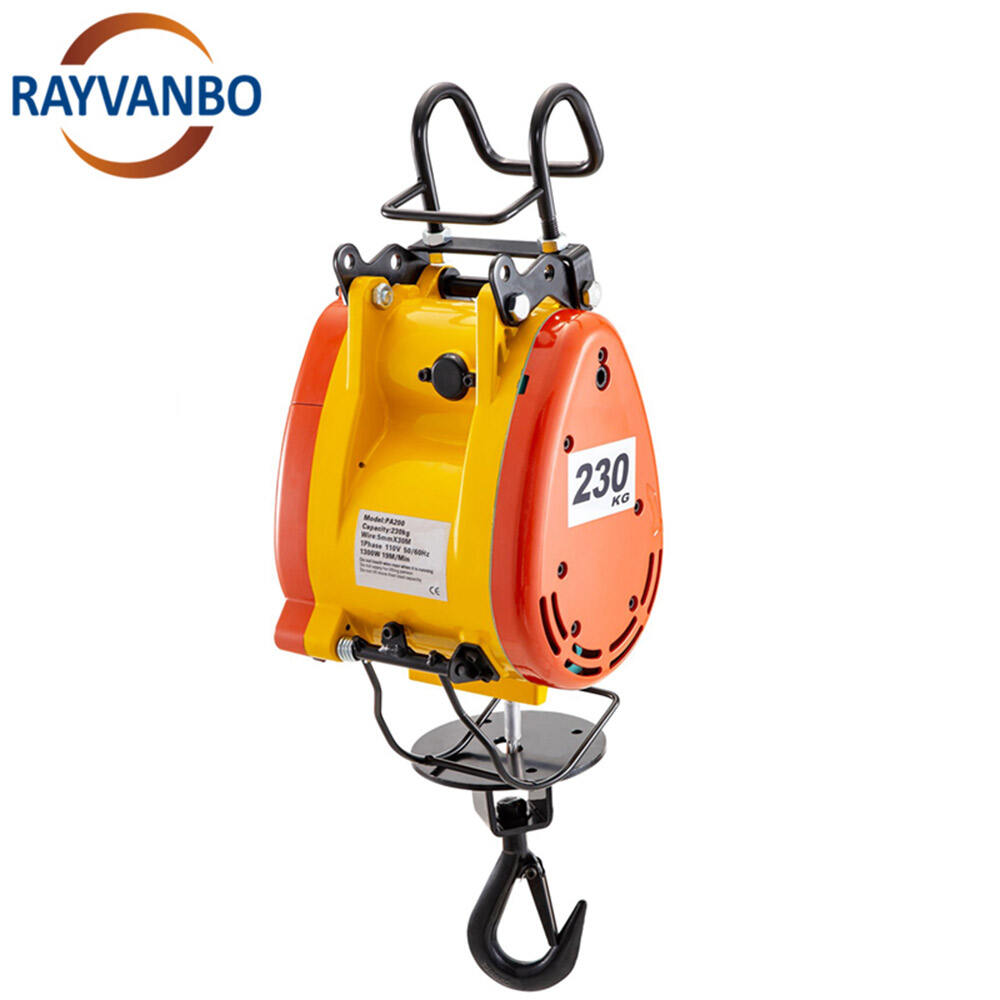

Product Name：Electric Mini Winch
Load Capacity：160kg-500kg (Can be customized)
Lifting Height: 6-30m
Lifting Speed：13m/min，19m/min
Voltage：220v
Product Description:
The electric mini hoist is a type of wire rope electric hoist with beautiful appearance, small size, light weight and exquisite appearance.The shell of the electric mini hoist is made of aluminum, which has better heat dissipation. The steel wire rope carries the heavy objects. The motor is a motor with greater power and faster speed. It is hook-type and easy to install.
Product Features:
1. The manufacturing process is complex and the materials are relatively expensive.

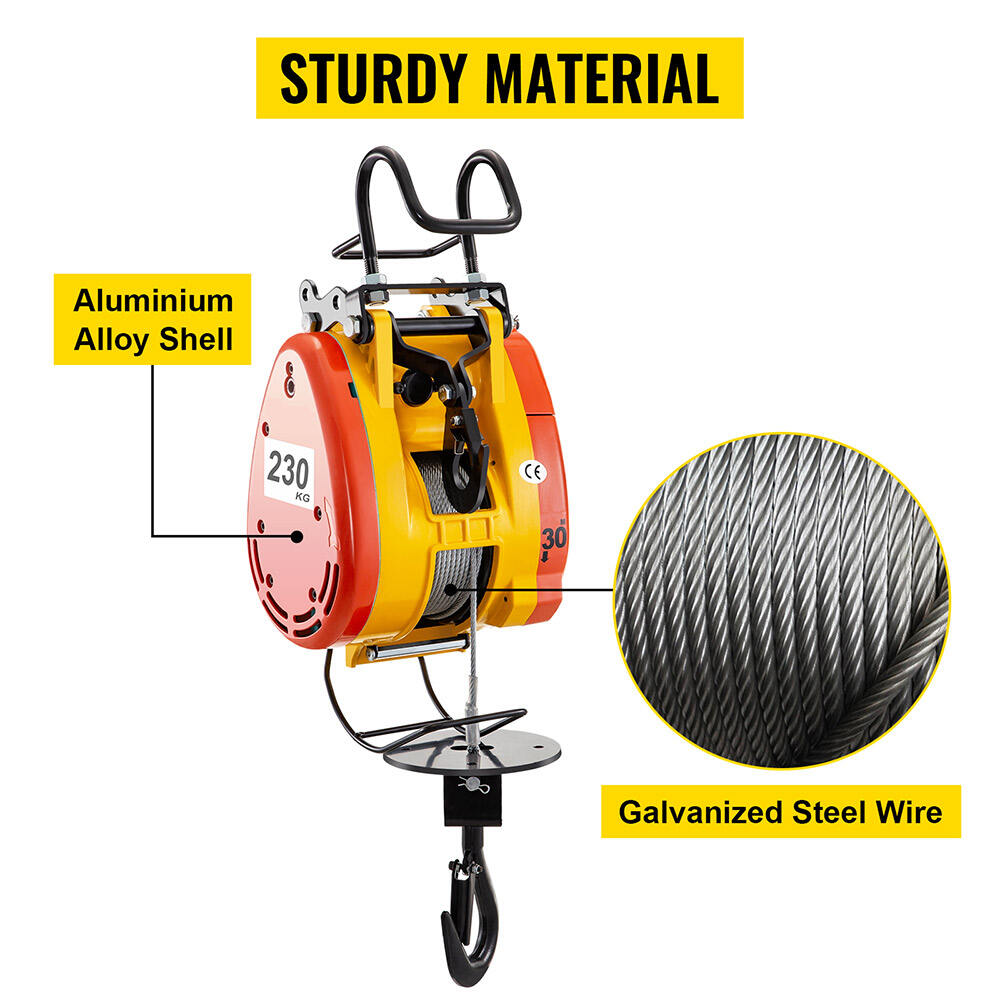

2. The outer shell is made of aluminum, which provides better heat dissipation.
3. The load-bearing frame is made of cast steel, which has a good load-bearing capacity.

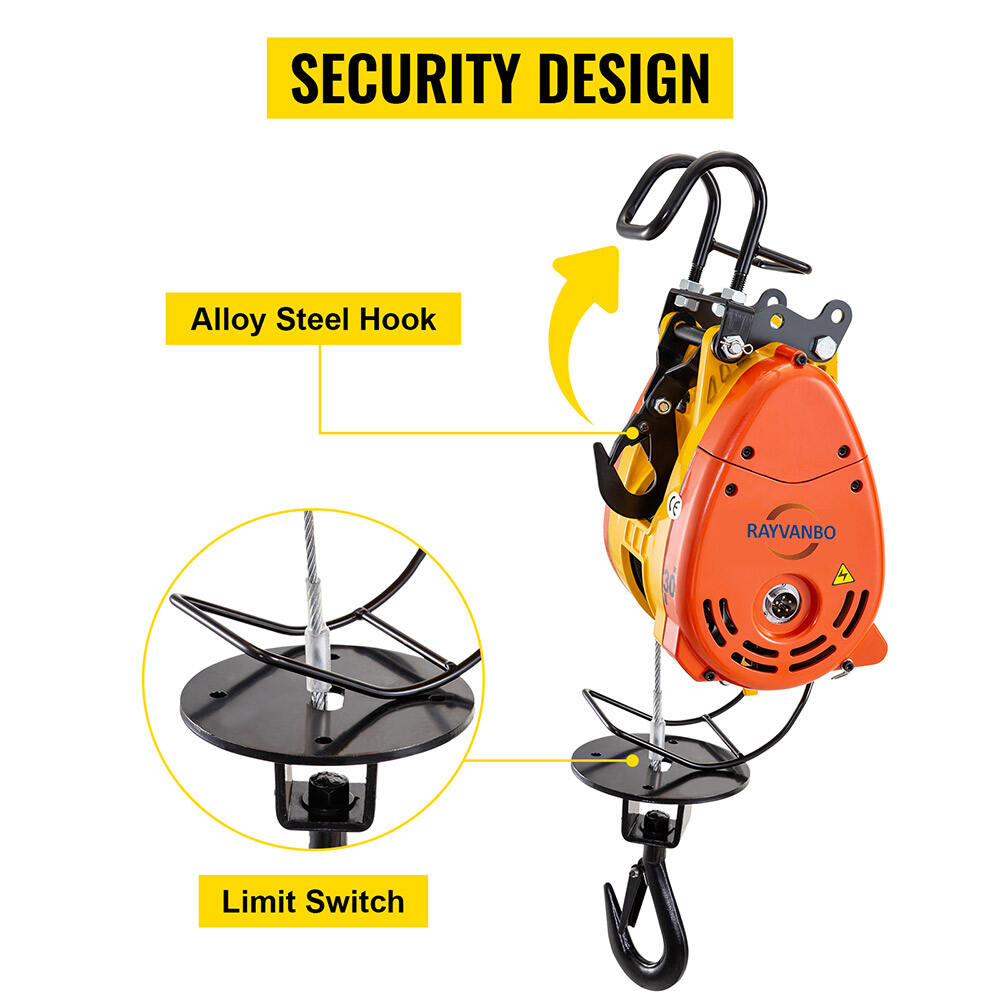

4. The double safety function and flexible hook reduce the requirements for the hanging point. The fixing screws meet national standards.
Product Parameters:
Model |
Load |
Speed |
Lift Hight(Max) |
Motor Power |
BCD-160 |
160kg |
19M/Min |
30 Metre |
1200W |
BCD-180 |
180kg |
19M/Min |
30 Metre |
1300W |
BCD-230 |
230kg |
19M/Min |
30 Metre |
1300W |
BCD-250 |
250kg |
19M/Min |
30 Metre |
1500W |
BCD-300 |
300kg |
19M/Min |
30 Metre |
1600W |
BCD-280 |
280kg |
13M/Min |
60 Metre |
1300W |
BCD-360 |
360kg |
13M/Min |
60 Metre |
1600W |
BCD-500 |
500kg |
13M/Min |
30 Metre |
1800W |
Packing:carton 220V/1 Phase | ||||

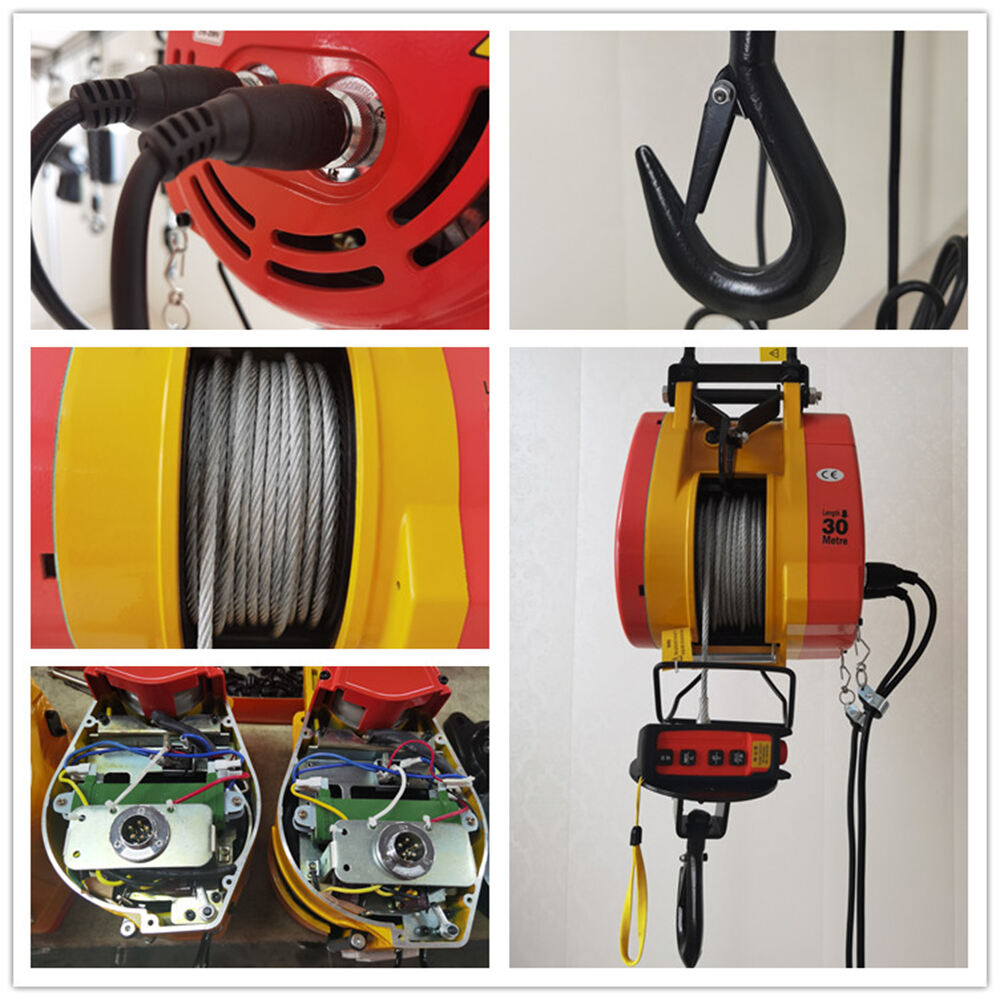

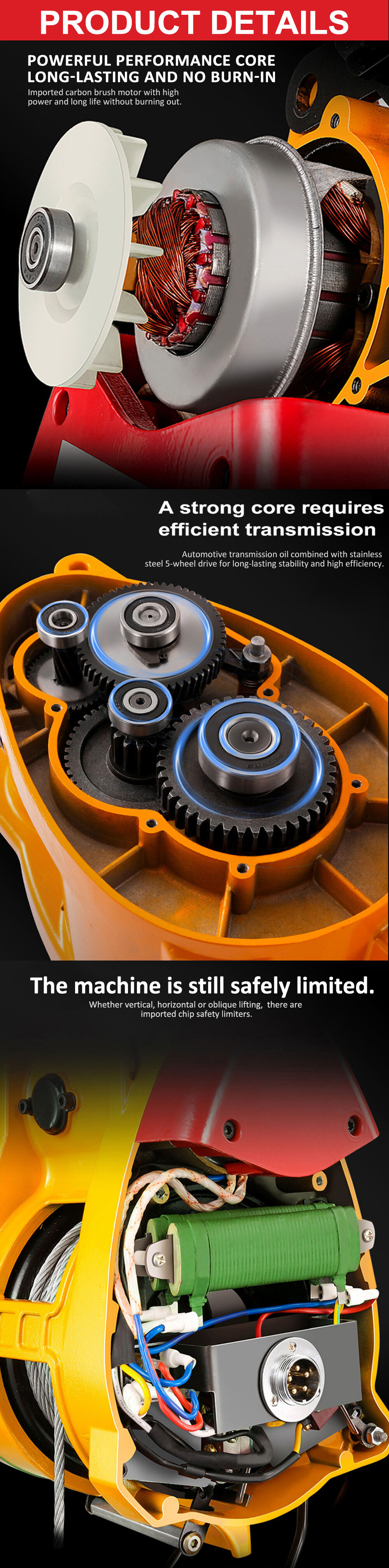

Product Details:
Product Application:

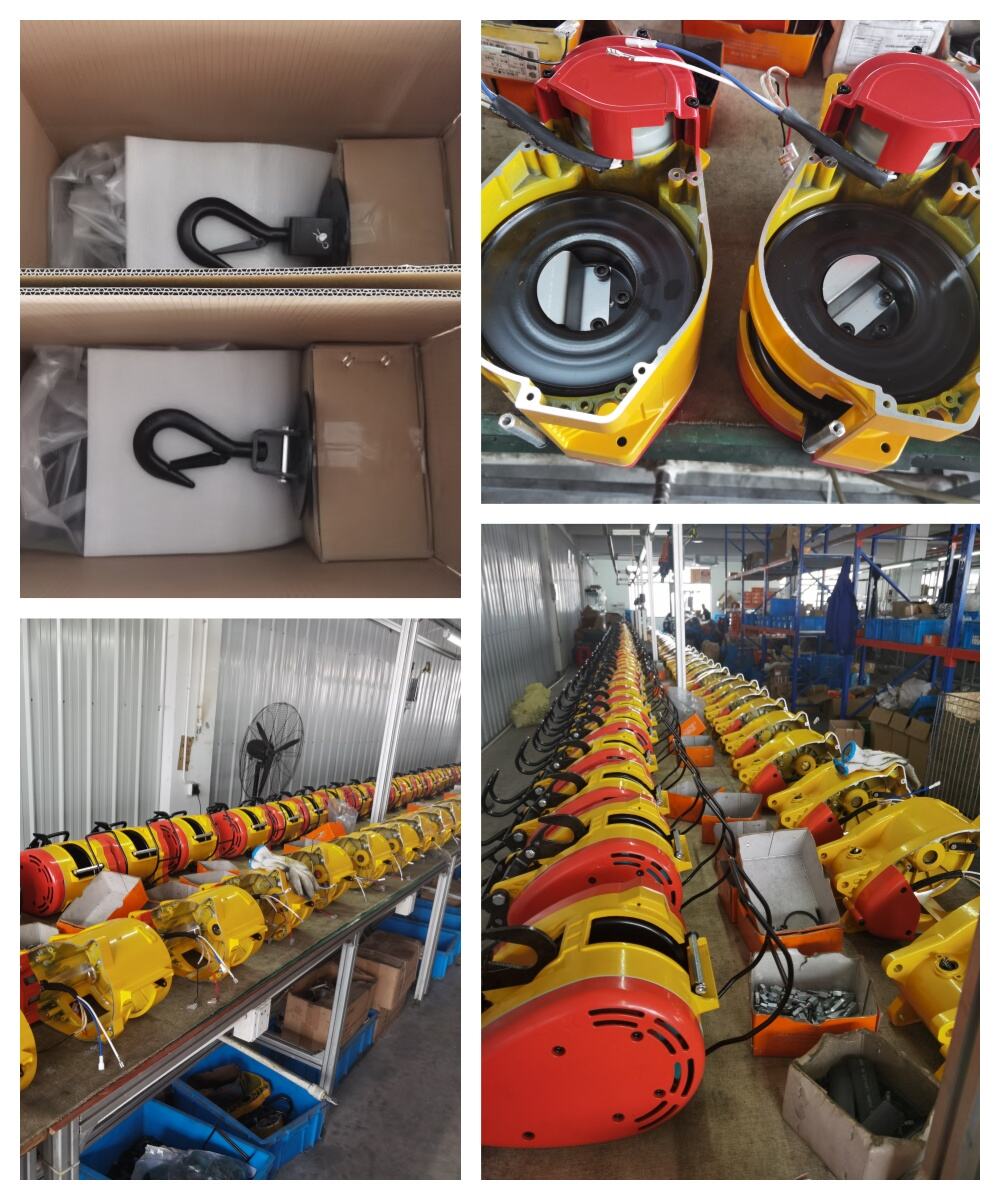

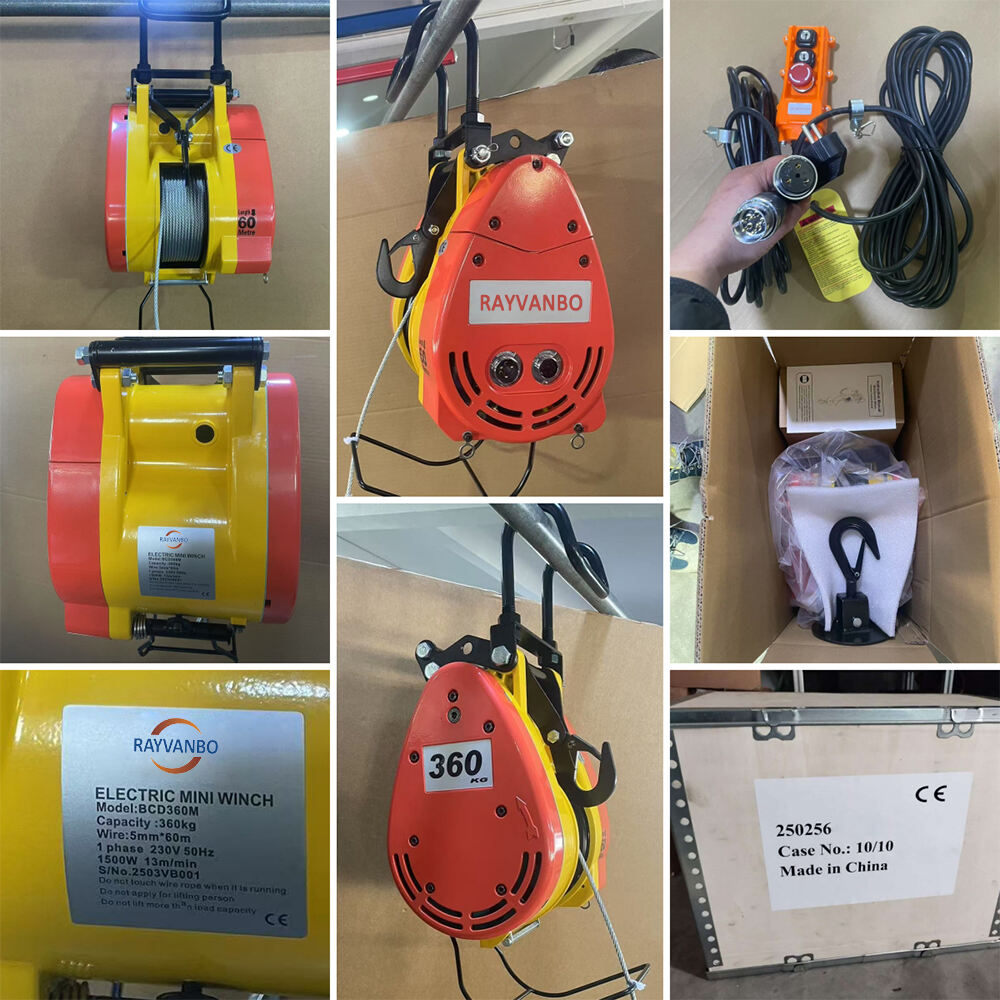

Shipping & Packaging:
