For this Mexico order, Rayvanbo prepared 2 sets of overhead cranes together with wire rope hoists and trolleys. The equipment included the main beams, end carriages, wire rope hoists, trolleys and related accessories. After production, all crane components were organized for packing and container loading before shipment.

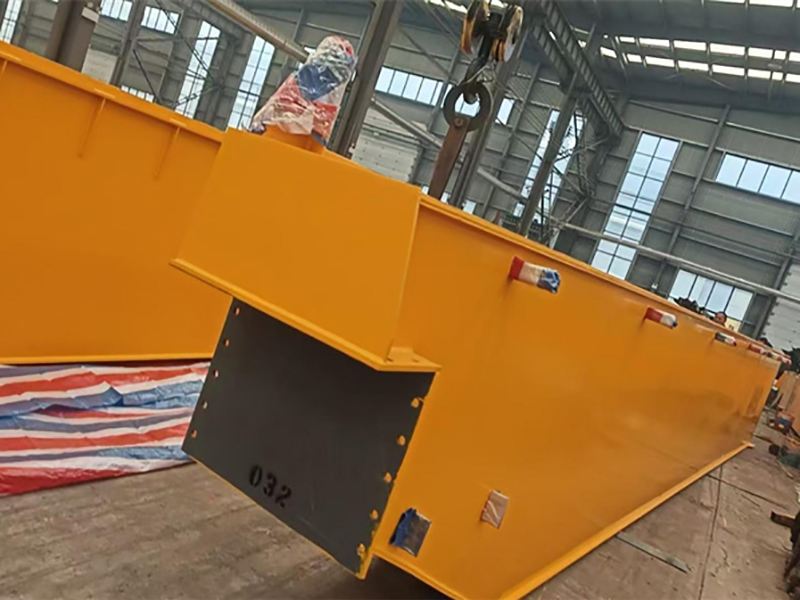

Main beam
The main beam forms the long horizontal section of the overhead crane. It carries the working equipment mounted on the crane and provides the running path for the wire rope hoist and trolley. Its structure is closely related to the overall layout and working movement of the crane.
Horizontal Framework — The main beam forms the primary horizontal structure of the overhead crane and connects the two ends of the crane bridge.
Hoist Travel Path — It provides the working path for the trolley-mounted wire rope hoist to move along the crane.
Load Handling Area — The beam supports lifting operations across the working area and helps the hoist reach different load positions.
Crane Integration — Together with the end carriages, the main beam forms the complete bridge structure of the overhead crane.
Project Quantity — Two main beam structures were prepared as part of the 2 complete overhead crane sets for Mexico.

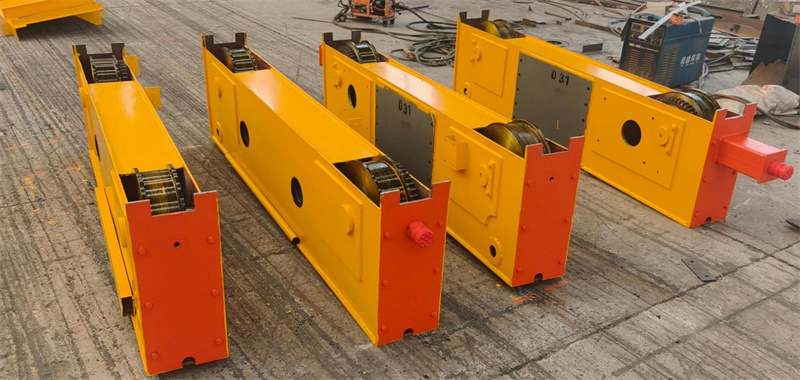

End Carriages
Positioned at the two ends of the main beam, the end carriages complete the bridge structure of the overhead crane. They are also closely related to the crane travel system, supporting the movement of the complete bridge along its operating path.
End Structure — The end carriages are installed at both ends of the main beam and form the two supporting ends of the crane bridge.
Bridge Connection — They connect with the main beam to create a complete overhead crane bridge structure.
Travel Support — The end carriages provide the structural base for the crane travel mechanism and related running components.
Wheel Assembly Area — They work together with the crane travel components to support movement along the operating path.
Structural Coordination — Proper connection between the main beam and end carriages keeps the crane bridge working as one complete structure.

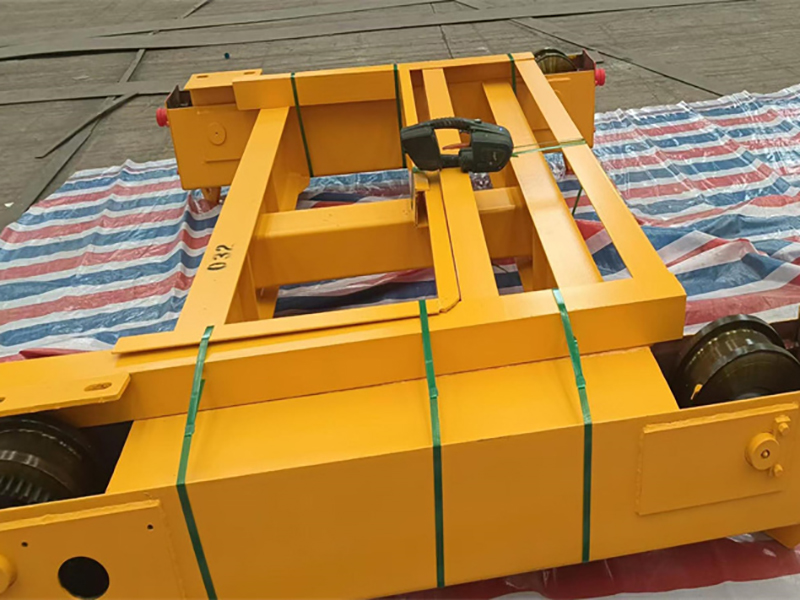

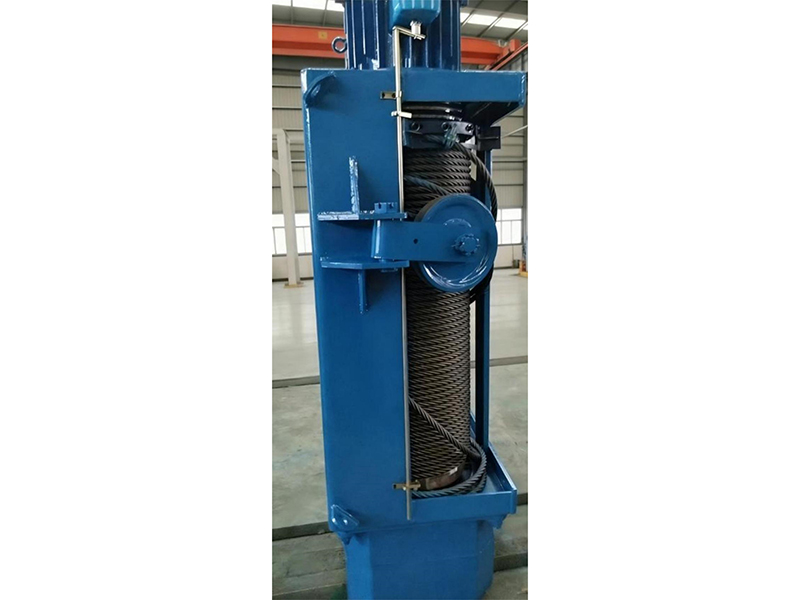

Wire Rope Hoist and trolley
The electric wire rope hoist and trolley form the main working unit mounted on the overhead crane. The wire rope hoist handles vertical lifting, while the trolley moves the hoist along the main beam. Together, they allow loads to be lifted and positioned within the crane's working area.
Vertical Lifting — The wire rope hoist performs the main lifting and lowering work, handling the vertical movement of loads.
Horizontal Travel — The trolley moves the wire rope hoist along the main beam to cover different working positions.
Load Positioning — The combined lifting and travel movements help position materials where they are needed.
Mechanical Coordination — The hoist and trolley work as one operating unit during regular crane lifting tasks.
Overhead Crane Application — This lifting unit is mounted on the crane bridge and forms the main working equipment of the system.

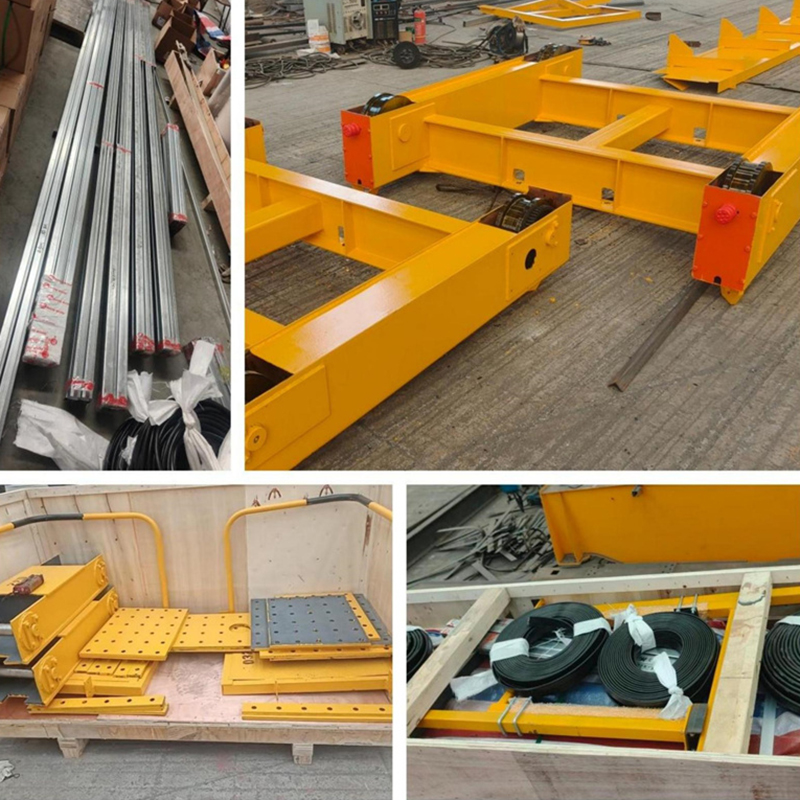

Besides the main structural parts and lifting equipment, the order also included related accessories. These smaller components form part of the overall crane configuration and were prepared together with the main equipment before shipment.
Supporting Components — Additional parts are used to support the normal configuration and operation of the overhead crane system.
Structure Matching — The accessories are arranged according to the main crane structure and its equipment configuration.
Hoist Related Parts — Supporting components are prepared together with the wire rope hoist and trolley system.
Complete Equipment Set — Main structural parts and smaller accessories are organized under the same equipment order.
Shipment Arrangement — Accessories are sorted and packed with the corresponding crane components before loading.

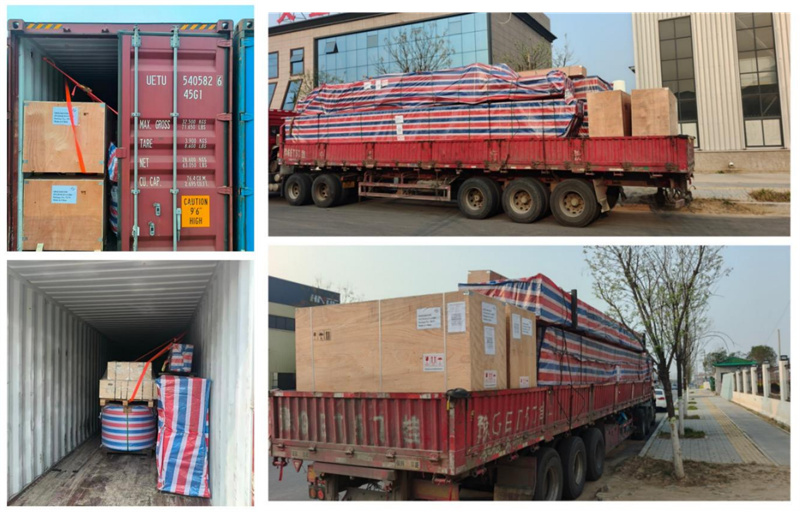

Packing and Container Loading

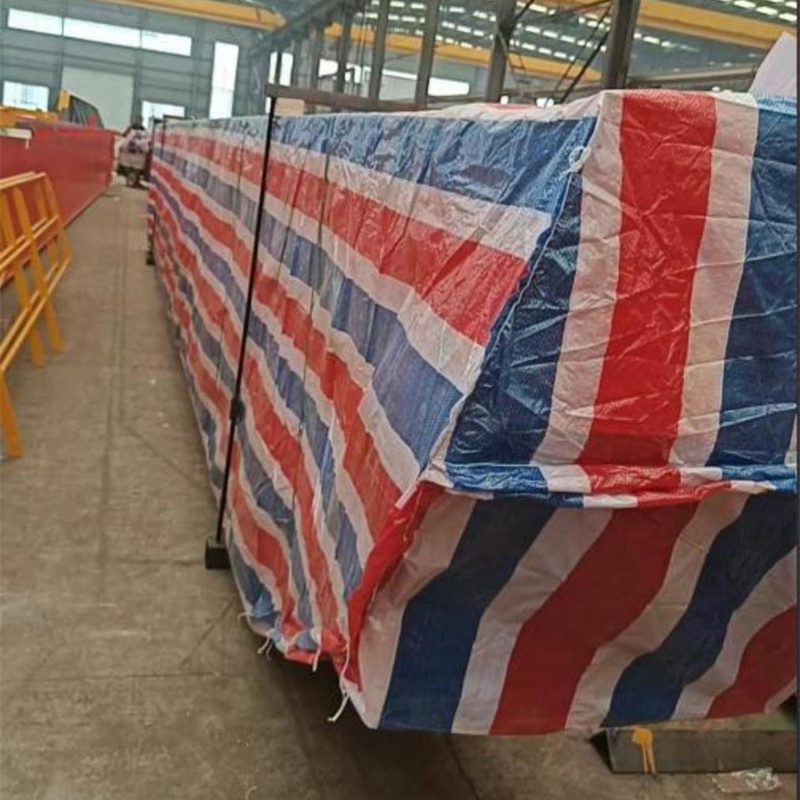

Large overhead crane components need to be properly organized before international transportation. For this order, the main beams, end carriages, wire rope hoists, trolleys and accessories were prepared for packing and container loading after production.
Crane Components — Main beams and end carriages were organized according to the structure of the 2 crane sets.

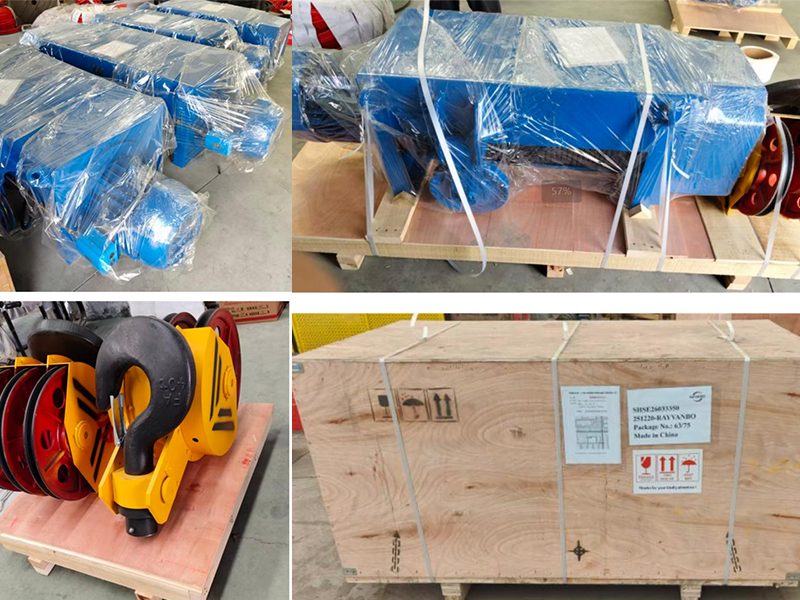

Hoist Equipment — Wire rope hoists and trolleys were prepared together with the corresponding crane structures.
Accessory Arrangement — Smaller components were sorted and arranged with the main equipment for easier shipment management.
Container Loading — The crane parts and lifting equipment were organized for efficient container transportation.
Mexico Delivery — After packing and loading, the complete order was ready for overseas shipment to the customer.
Why Choose Rayvanbo — One-stop for Crane and Hoist Equipment
For an overhead crane project, the main structure, lifting equipment and running mechanism need to work together. Rayvanbo can supply overhead cranes with wire rope hoists, trolleys and related accessories, allowing overseas buyers to handle the main equipment procurement through one supplier.
Overhead Crane Supply — Complete overhead crane structures can be supplied for different industrial lifting applications.
Wire Rope Hoist Matching — Wire rope hoists can be supplied together with the crane to simplify equipment matching.
Trolley System — Matching trolleys can be configured with the hoist for horizontal movement along the main beam.
Accessory Support — Related components can be included according to the overall crane equipment configuration.
Export Project Support — Equipment can be organized, packed and prepared according to the requirements of overseas orders.
Conclusion — 2 Sets Overhead Cranes Prepared for Mexico
This Mexico order covered 2 sets of overhead cranes with main beams, end carriages, wire rope hoists, trolleys and related accessories. Each component plays a different role in the lifting system, while the complete equipment was organized and prepared for container transportation after production.
If you are sourcing overhead cranes, wire rope hoists or complete lifting equipment, send us your required quantity, lifting application and equipment requirements. Rayvanbo can help you work through the suitable equipment configuration and provide a quotation based on your project.
