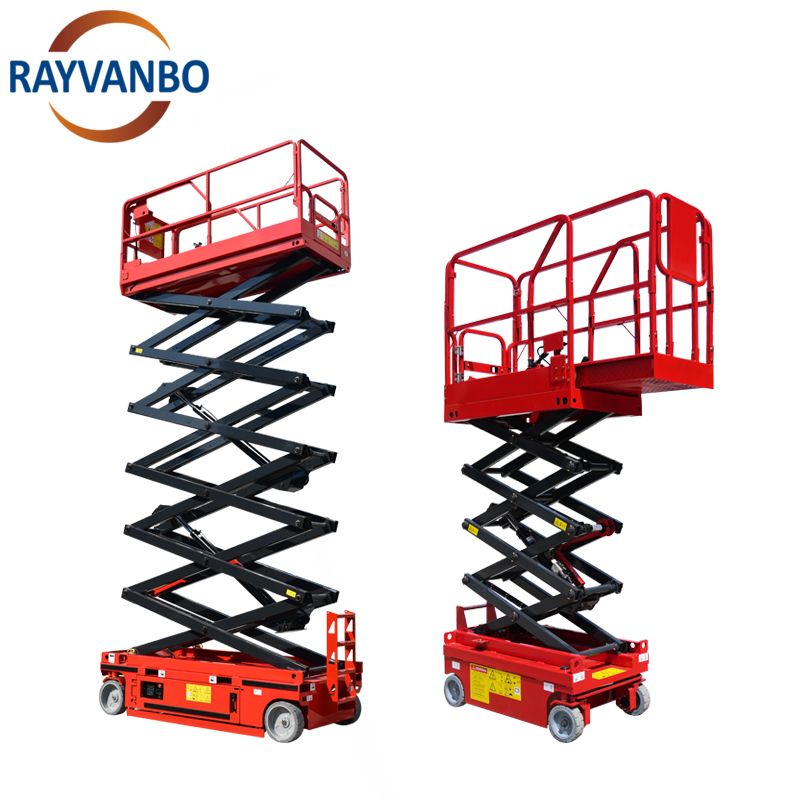

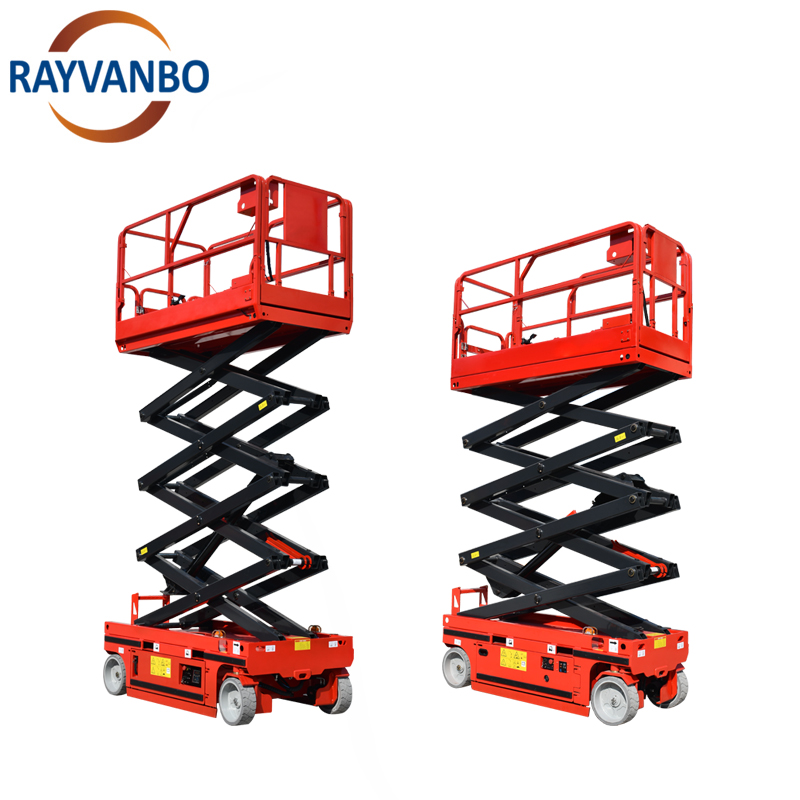

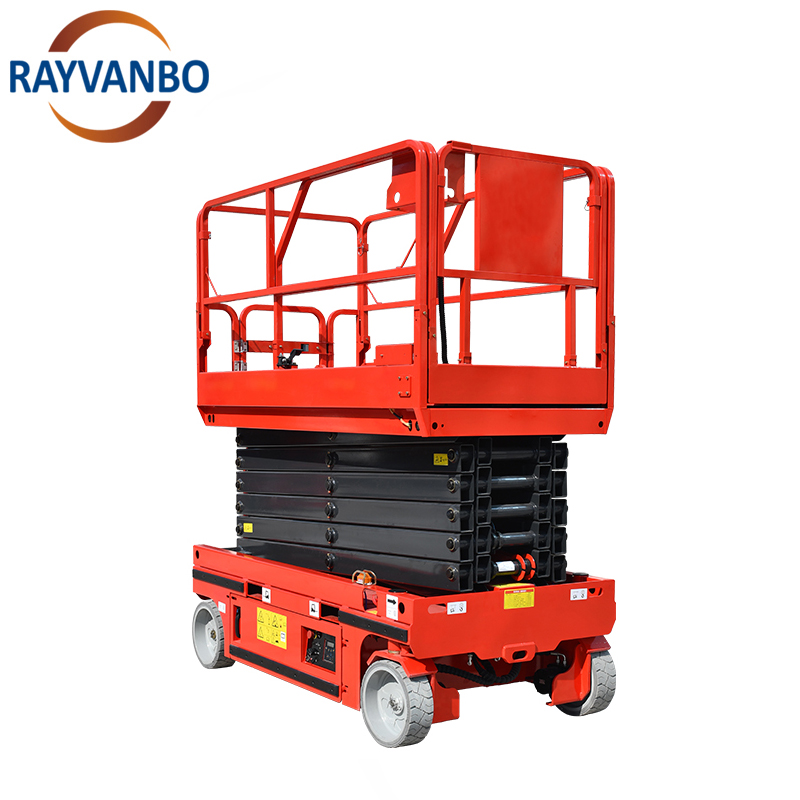

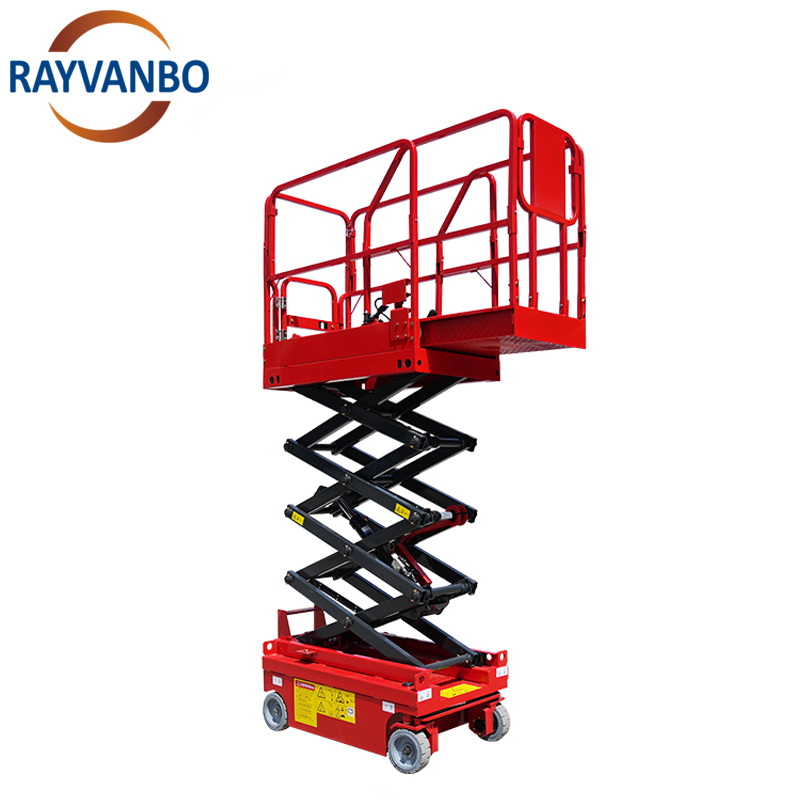

Product Name: Self Propelled Scissor Lift
Lifting Capacity: 230-450kg
Lifting Height: 4-14m
Standard Color: The upper and lower tables are red and the support rods are gray
Product Description

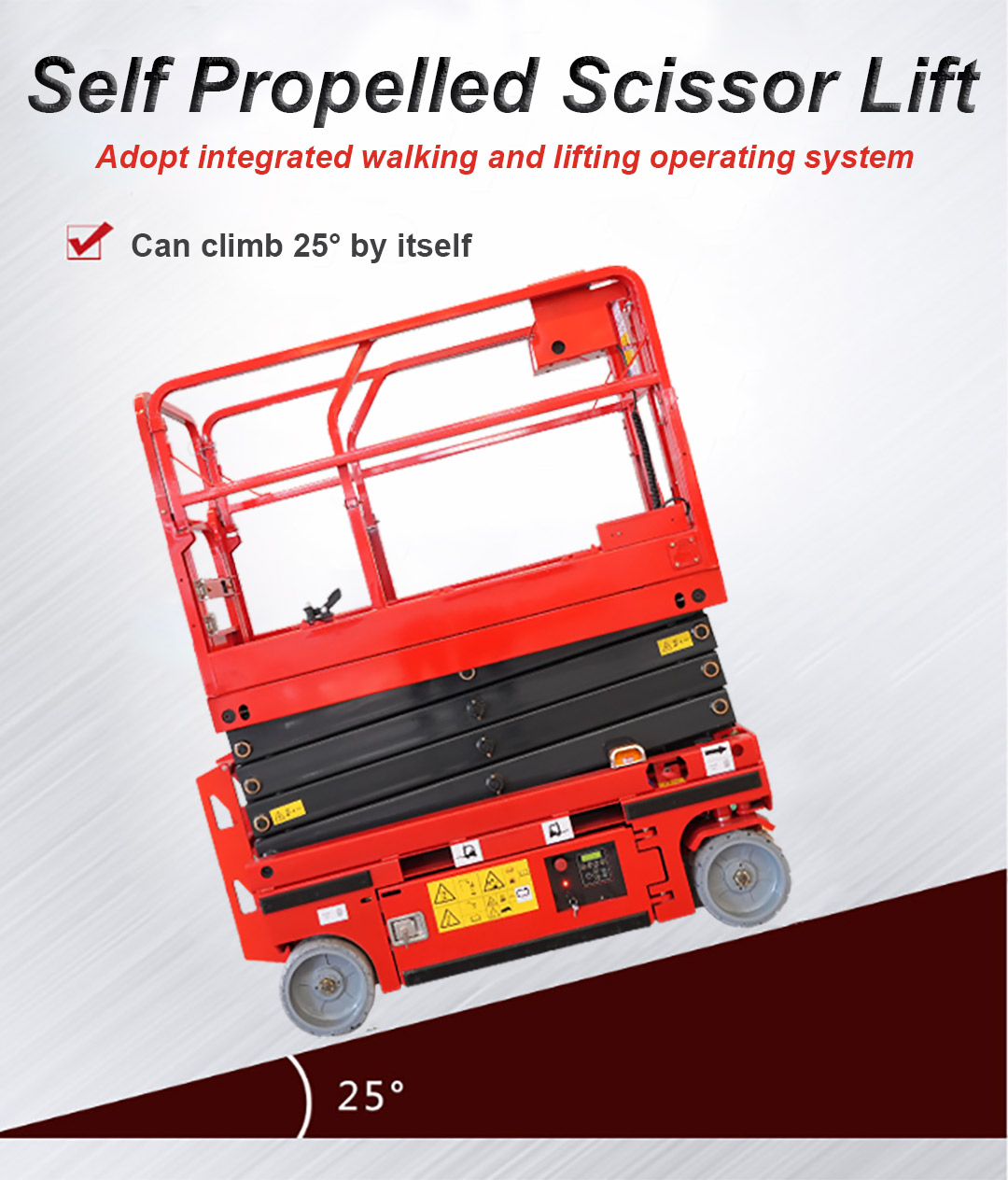

RAYVANBO's Self propelled scissor lift is an efficient, safe and multifunctional aerial work equipment. It adopts the classic scissor-type lifting structure, which has both stability and flexibility. It is widely used in building maintenance, warehousing logistics, equipment installation, indoor and outdoor decoration and other scenarios. Through modular design and intelligent control system, it comprehensively improves work efficiency and operational safety to meet the diverse needs of aerial work.
The standard configuration of this product includes the following functions and systems:
Control and operation functions: proportional control, one-button leveling function, full-range walking, action buzzer, emergency stop button, emergency descent system, folding fence.
Safety protection system: automatic braking system, tilt protection system, oil pipe explosion-proof system, platform self-locking door, automatic anti-adjustment protection system, charging protection system, safety maintenance support rod.
Auxiliary and diagnostic functions: fault diagnosis system, strobe light, one-way extension platform, standard transport forklift hole.
Product Parameters：
Lifting height |
Working platform size (m) |
Loading weight(Kg) |
Overall dimensions(m) Guardrail folded |
Overall dimensions (m) Guardrail not folded |
Machine weight (Kg) |
4m(Min) electric drive |
1.29*0.70 |
230 |
1.46*0.76*1.61 |
1.46*0.76*1.993 |
900 |
4.5m electric drive |
1.34*0.75 |
230 |
1.51*0.80*1.45 |
1.51*0.80*2.06 |
1050 |
6m(Min) |
1.68*0.74 |
230 |
1.85*0.79*1.67 |
1 85*079*220 |
1430 |
6m |
227*1.12 |
450 |
243*121*167 |
243*121*222 |
2250 |
8m |
2.27*1.12 |
450 |
2.43*1 .21*1.8 |
2.43*1 21*235 |
2350 |
8m（Narrow） |
2.27*0.86 |
320 |
2.43*0.89*1.9 |
2..43*0 89*2 35 |
2260 |
10m |
2.27*1.12 |
320 |
2.43*1 21*1.93 |
243*121*247 |
2550 |
12m |
227*1 12 |
320 |
243*1 21*206 |
2.43-1 21*2.6 |
3000 |
14m |
2.7*1.11 |
230 |
2.85*1.31*2.06 |
2.85*1.31*2.6 |
3670 |
Product Details:
The core configuration highlights of RAYVANBO self propelled scissor lift are as follows:
1. Hydraulic explosion-proof cylinder
Safe and durable: made of seamless steel, with high-sealing components, strong pressure-proof and explosion-proof performance, stable and reliable for long-term use.
2. High-strength fuselage frame
Stable load-bearing: high-quality steel reinforces the overall structure, with strong anti-deformation ability, ensuring that the work platform is still stable under high load.
3. Silent and wear-resistant tires
Ground-friendly: polyurethane tires, no marks and no damage to the ground, suitable for fine scenes such as marble and epoxy floors, and can be used indoors and outdoors.
4. Smart control panel
Easy to operate: integrated handle design, one-button control of lifting and moving, simple and intuitive, even novices can quickly master it.
5. Efficient hydraulic power
Long-lasting power: integrated hydraulic system, stable power output, adapt to long-term high-intensity operation needs.
self propelled scissor lift applicable scenarios
1. Road maintenance and municipal management
Indoor maintenance: easily handle fine operations such as replacement of lamps and lanterns in underground passages and tunnels, wall cleaning, etc., and flexibly enter and exit narrow spaces.
Warehouse operation and maintenance: high-level shelf maintenance, ceiling maintenance, stable equipment lifting and lowering, and improved warehouse management efficiency.
2. Hotels and commercial places
Outdoor maintenance: hotel exterior wall cleaning, sign installation, silent tires do not disturb guests, and adapt to various ground surfaces such as marble and lawn.
Logistics loading and unloading: banquet material handling, equipment high-altitude delivery, platform load-bearing stability, simplifying the preparation process of large-scale events.
3. Factory workshops and industrial scenes
Production line maintenance: equipment high-altitude debugging, pipeline maintenance, one-button leveling function quickly adapts to complex workshop terrain.
Emergency repair: quick response to sudden failures, and safety support system to ensure the stability of high-altitude operations.
Core advantages: one machine for multiple uses, from fine indoor maintenance to outdoor high-intensity operations, seamless switching of scenes, taking into account efficiency and safety.

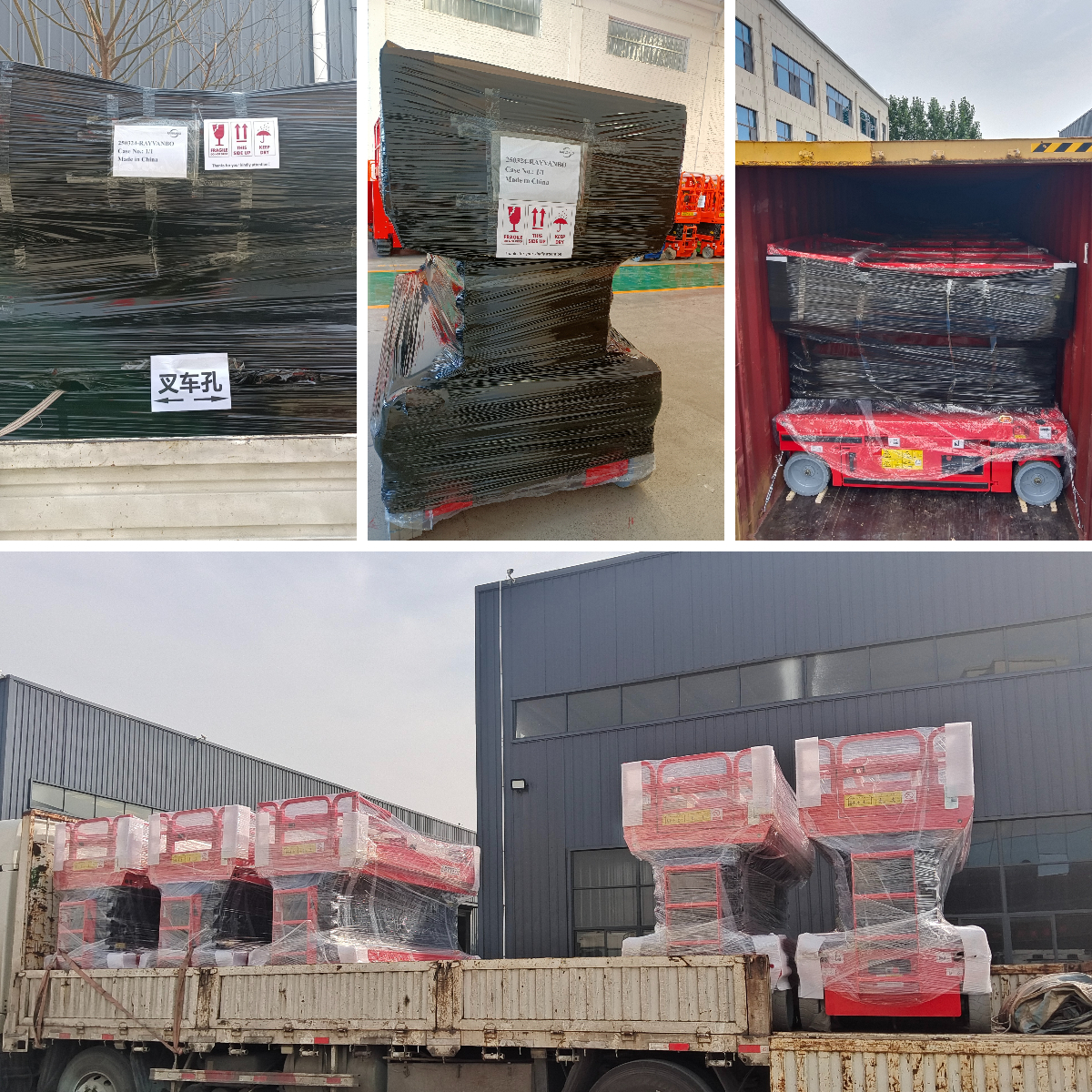

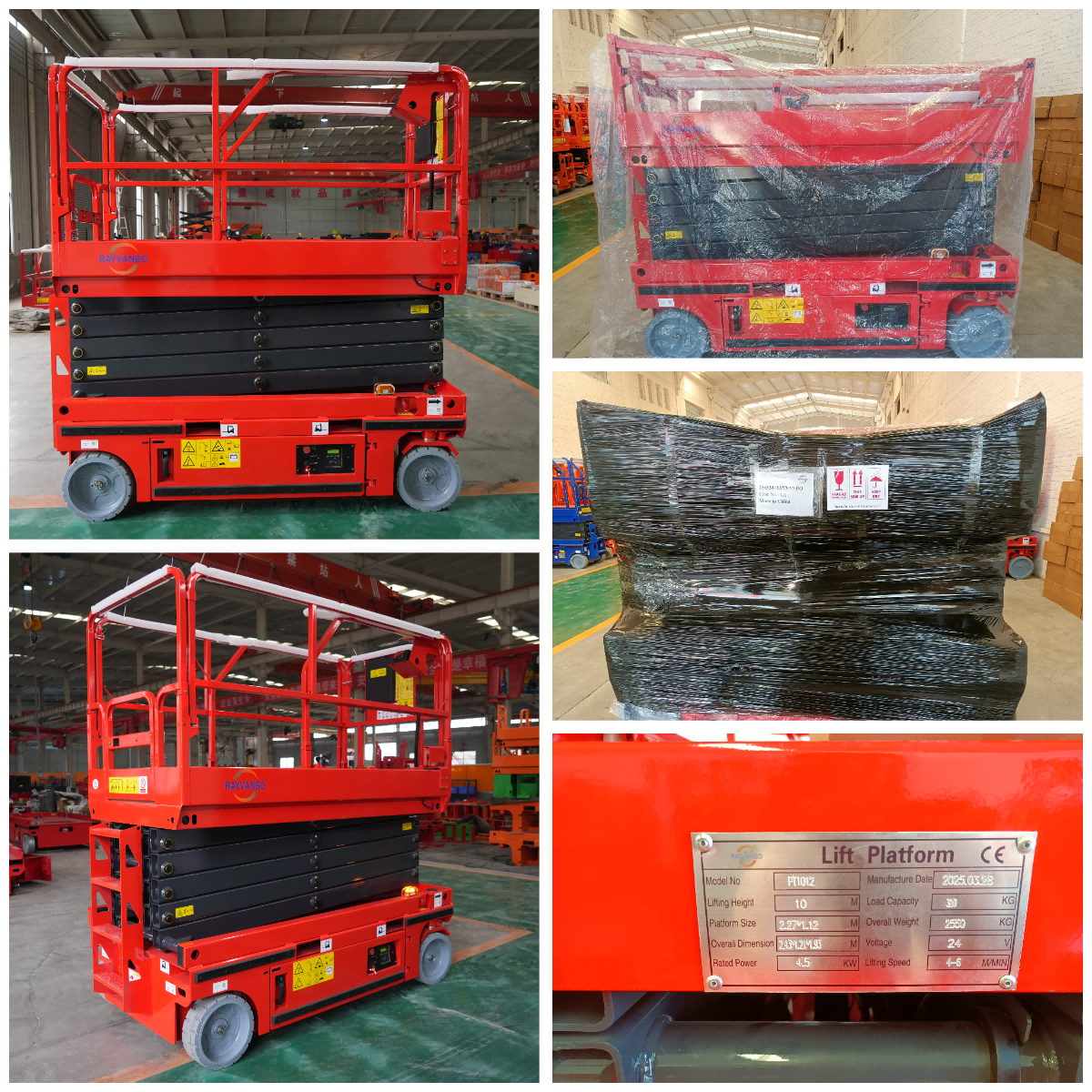

Shipping & Packaging:
